MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TRIPET
  • Model:

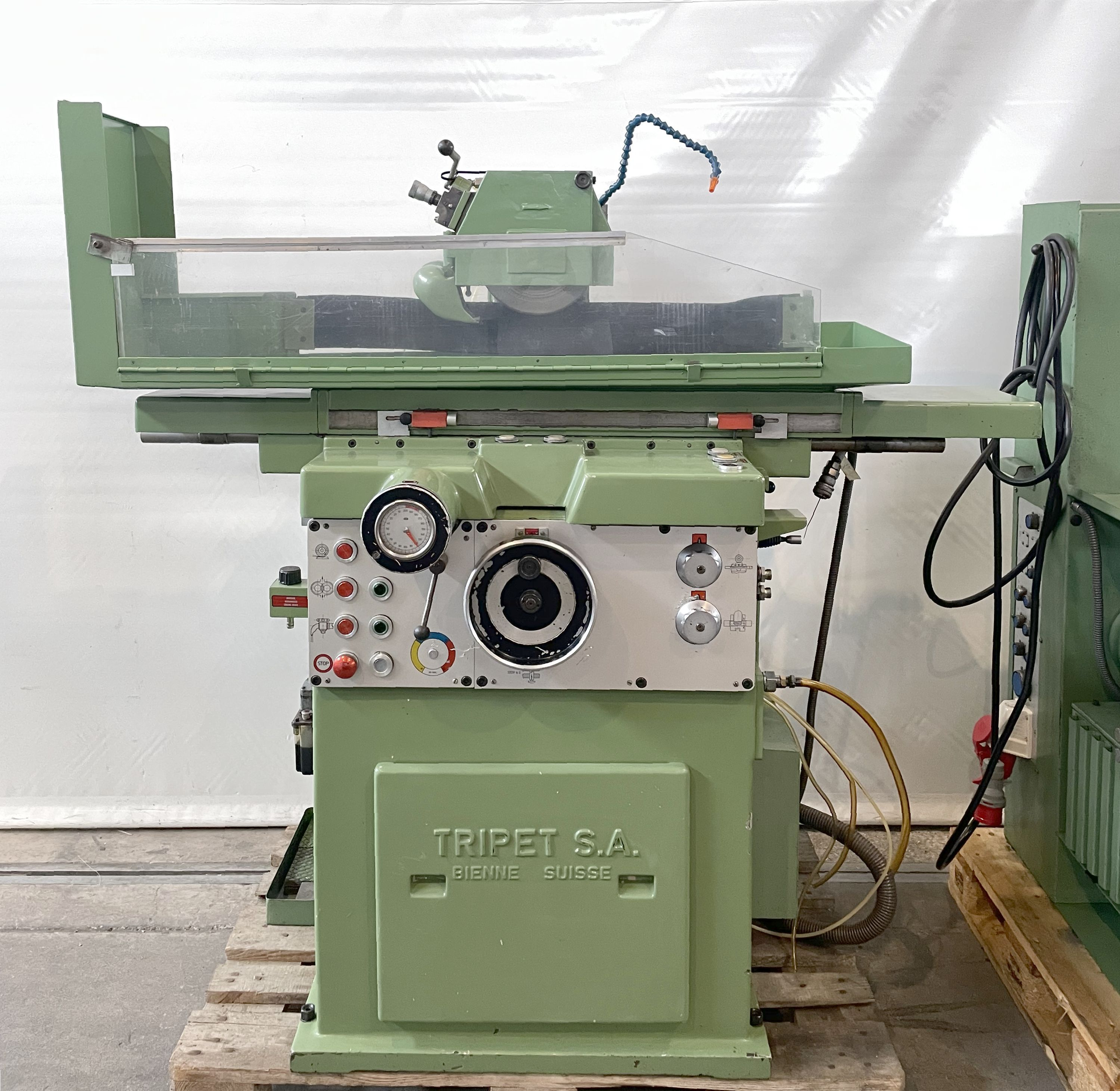

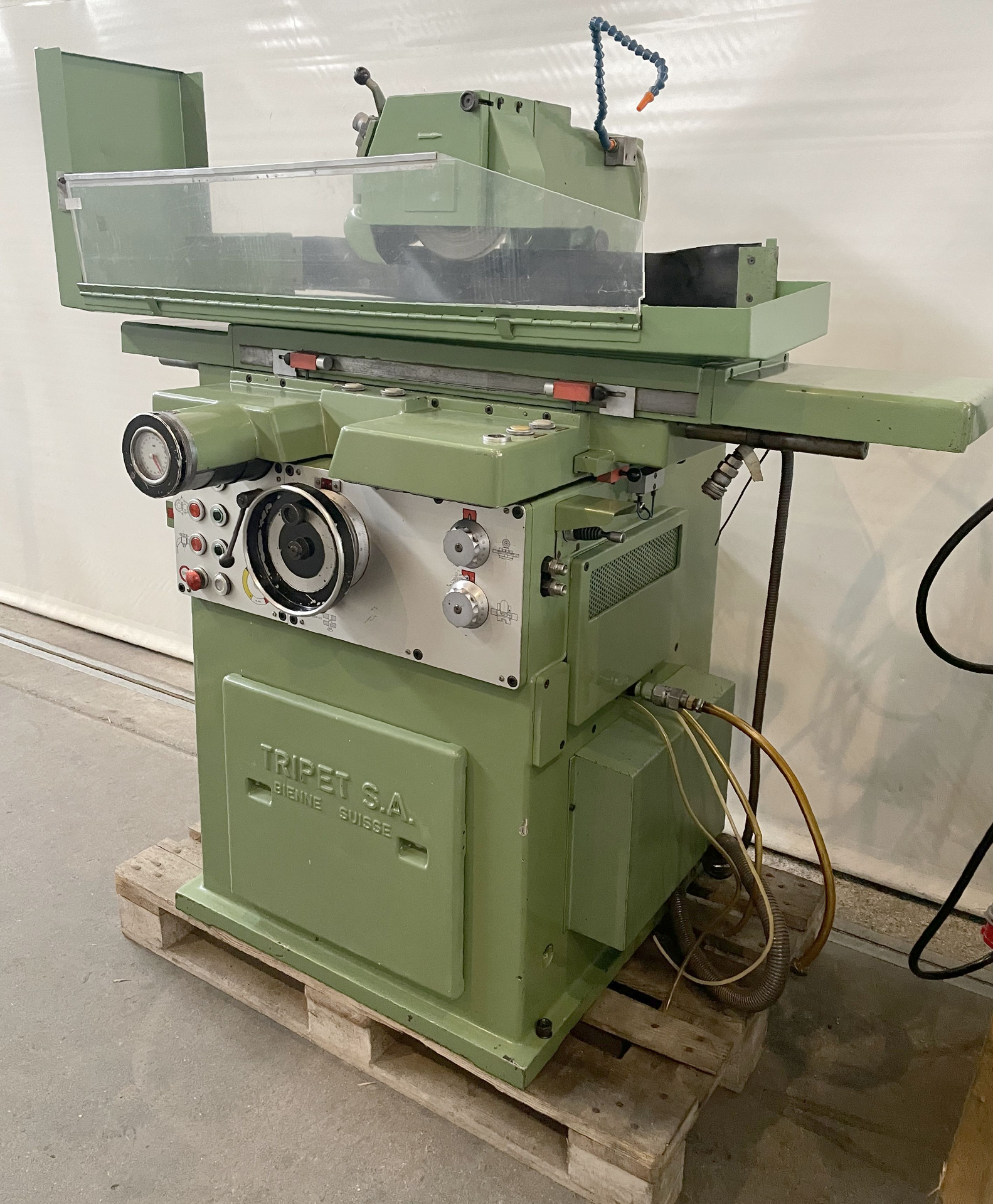

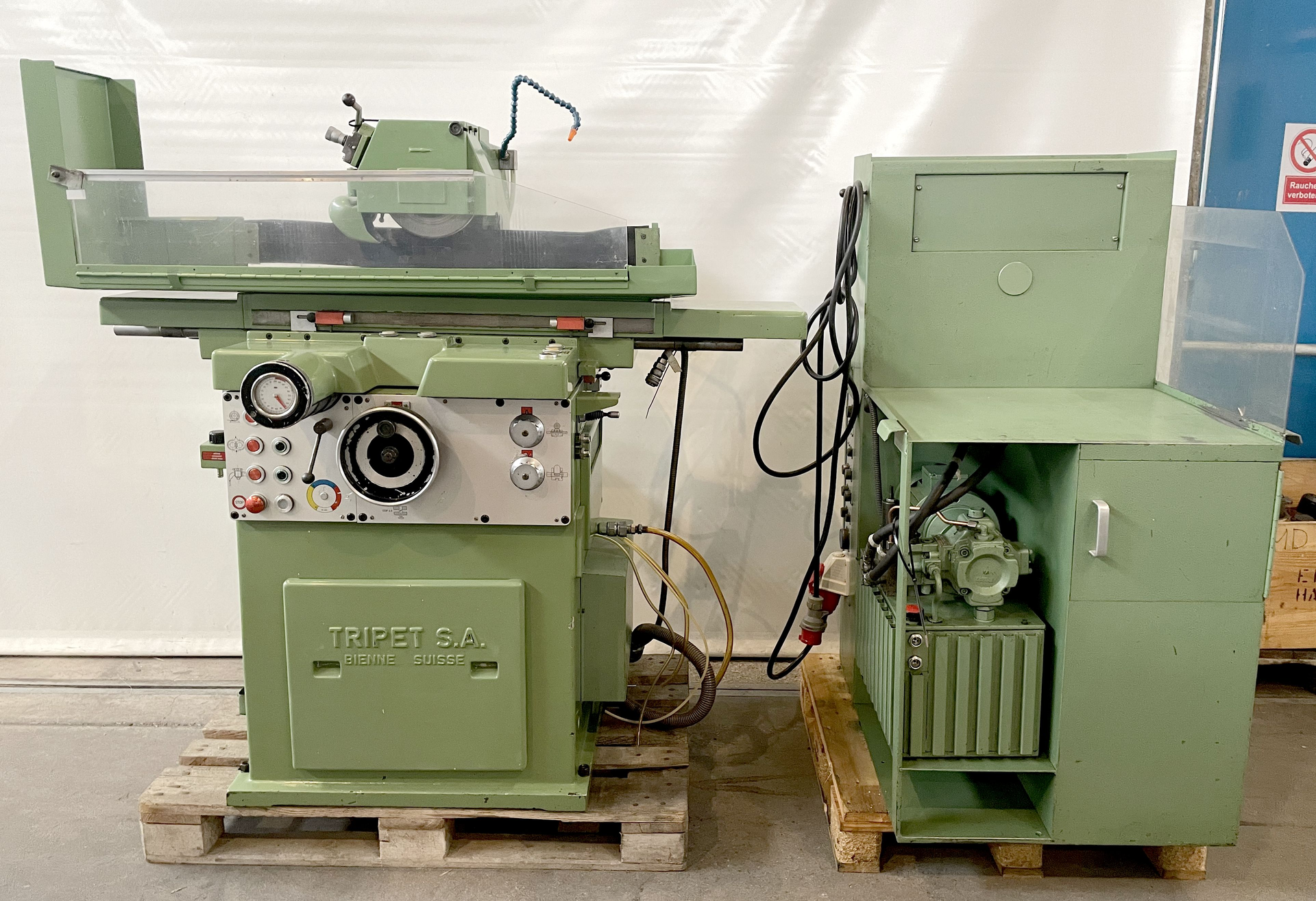

  • 022217 - TRIPET MHPE 500
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 600 mm.
Table width: 200 mm.
Grinding length: 500 mm.
Grinding width: 200 mm.
Grinding height: 300 mm.
Longitudinal travel (X-axis): 530 mm.
Transversal travel (y axis): 220 mm.
up to: 2700 t/min.
from: 1000 t/min.

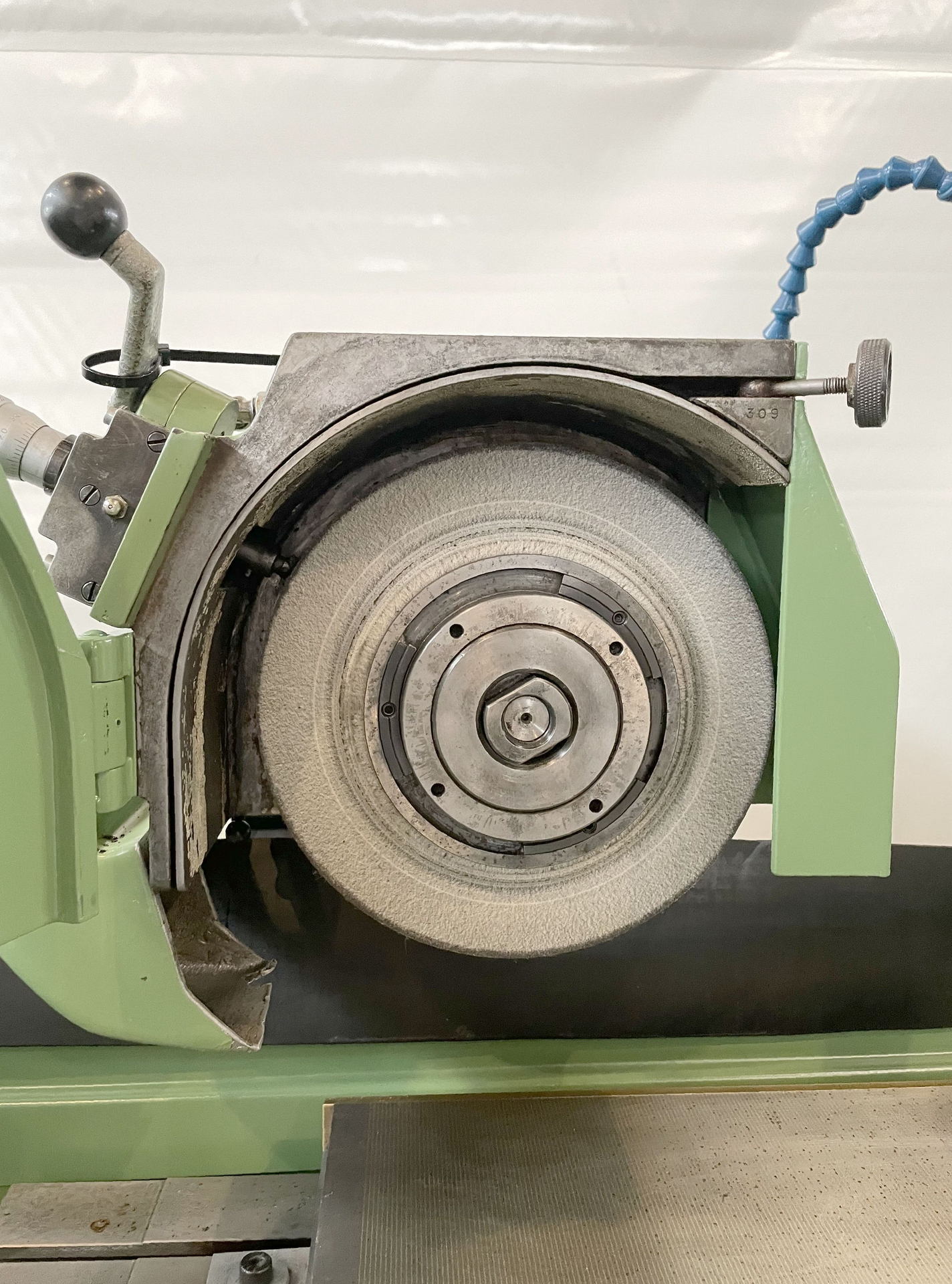

Diameter of grinding wheel: 225 mm.
Width of the grinding wheel: 25 mm.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 1.8 kW.
Machine's weight about: 800 kg.
Length: 500 mm.
Width: 200 mm.
Height: 1500 mm.
