MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DMG
  • Model:

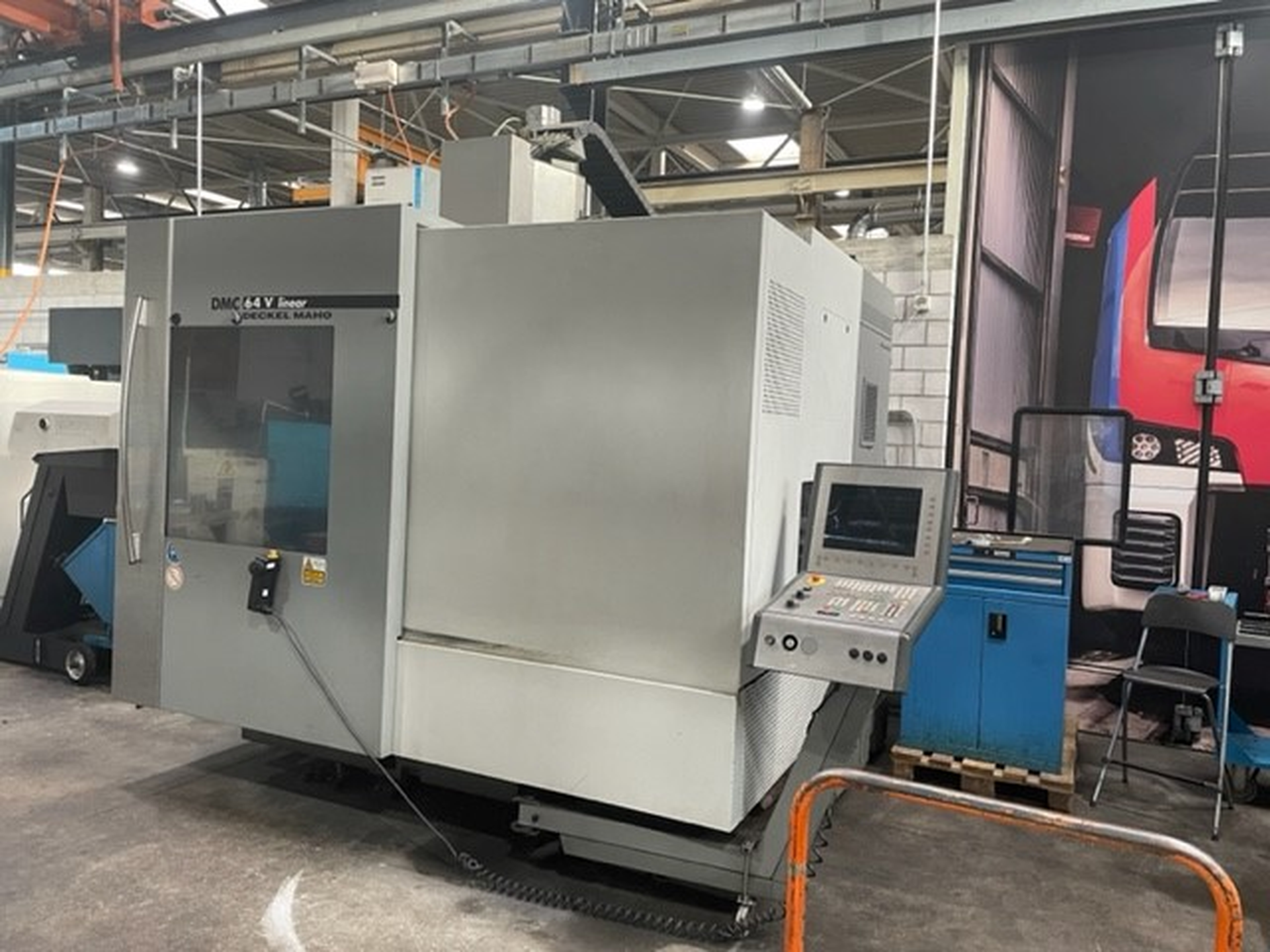

  • 022074 - DMG DMC 64 V linear
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 850 mm.
Table width: 630 mm.
Table load max.: 600 kg.
Longitudinal travel (X-axis): 640 mm.
Transversal travel (y-axis): 600 mm.
Vertical travel (z axis): 500 mm.
Number of tools: 30.
Tool diameter: 80 mm.
Tool diameter max.: 140 mm.
Diameter with free adjacent pockets: 140 mm.
Tool lenght: 300 mm.
Max. tool-weight: 7 kg.
Time of tool changing: 5 s.
Spindle nose: BT: 40.
from: 1 t/min.
up to: 12000 t/min.
Feed range: 0 - 40000 mm/min.
Rapid traverse: long.: 60 m/min.
Rapid traverse: transversal: 40 m/min.
Rapid traverse: vertical: 40 m/min.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 19 / 13 kW.
Torque max.: 100 / 70 Nm.
Total power required: 42 kVA.
Machine's weight about: 6500 kg.
Length: 3400 mm.
Width: 2500 mm.
Height: 3300 mm.

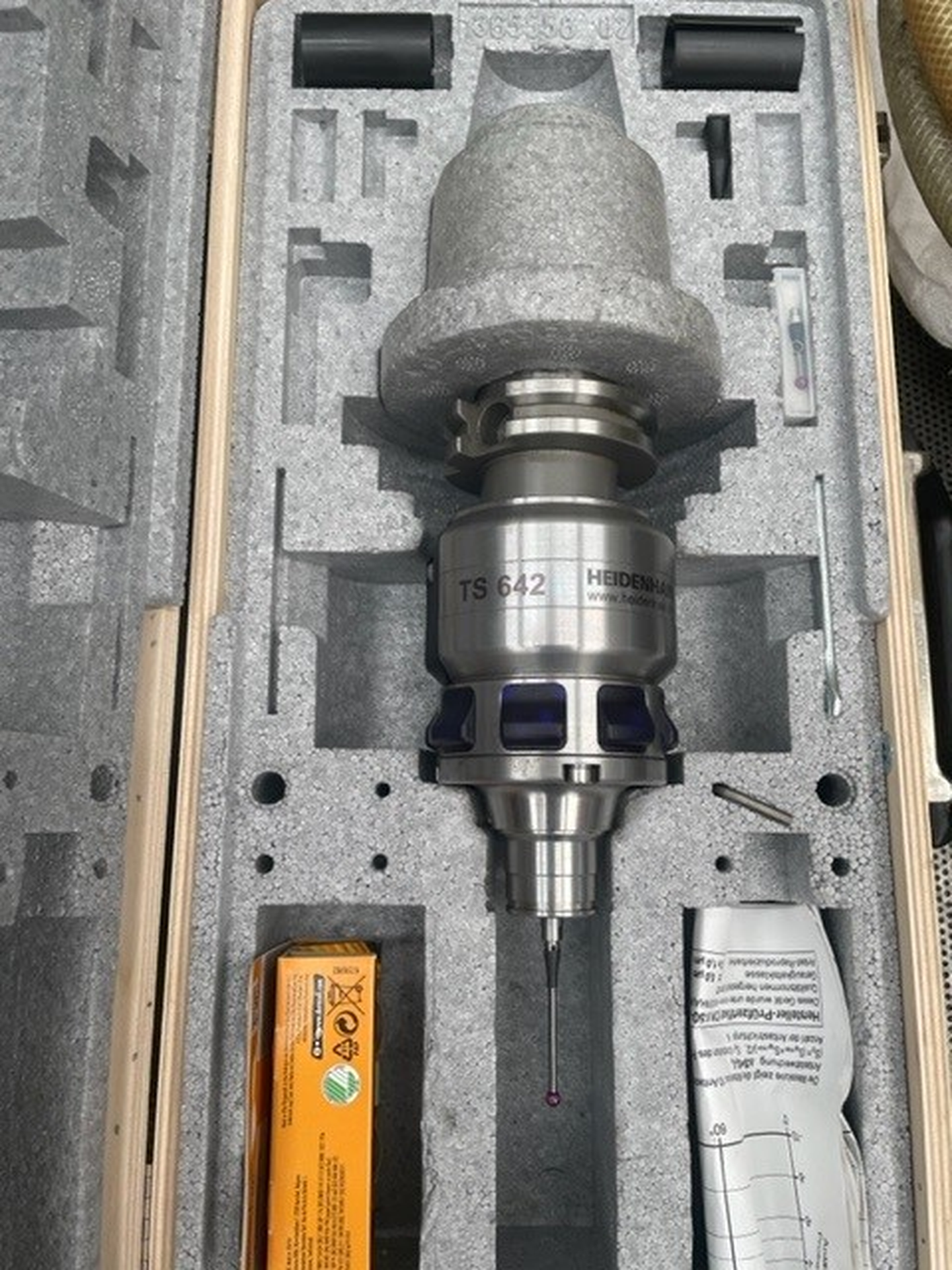

Touch Probe: Heidenhain TS 642.
