MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

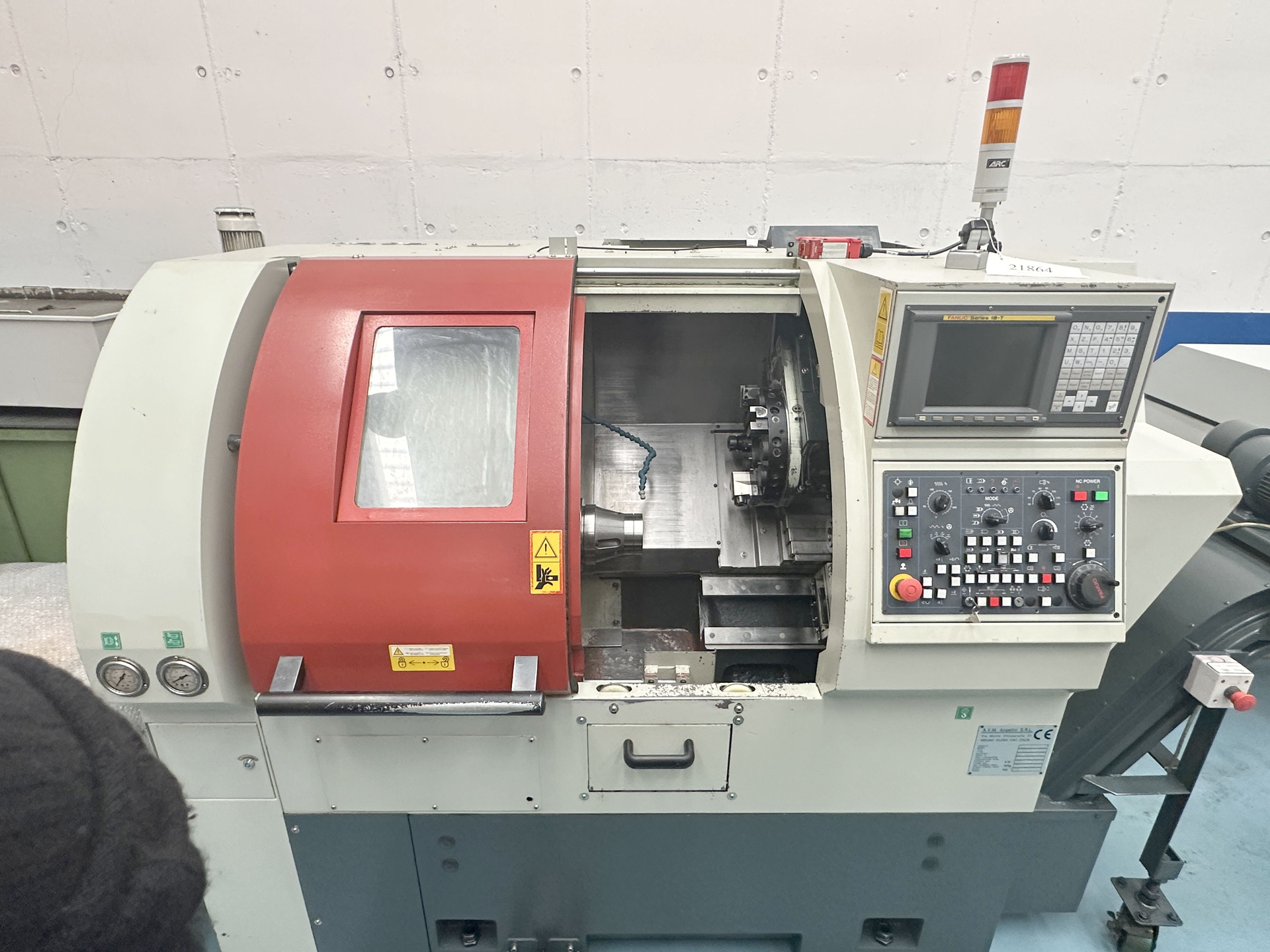

  • 021864 - ANGELINI Clipper
  • Condition:
  • 1
  • YOM:
  • NA

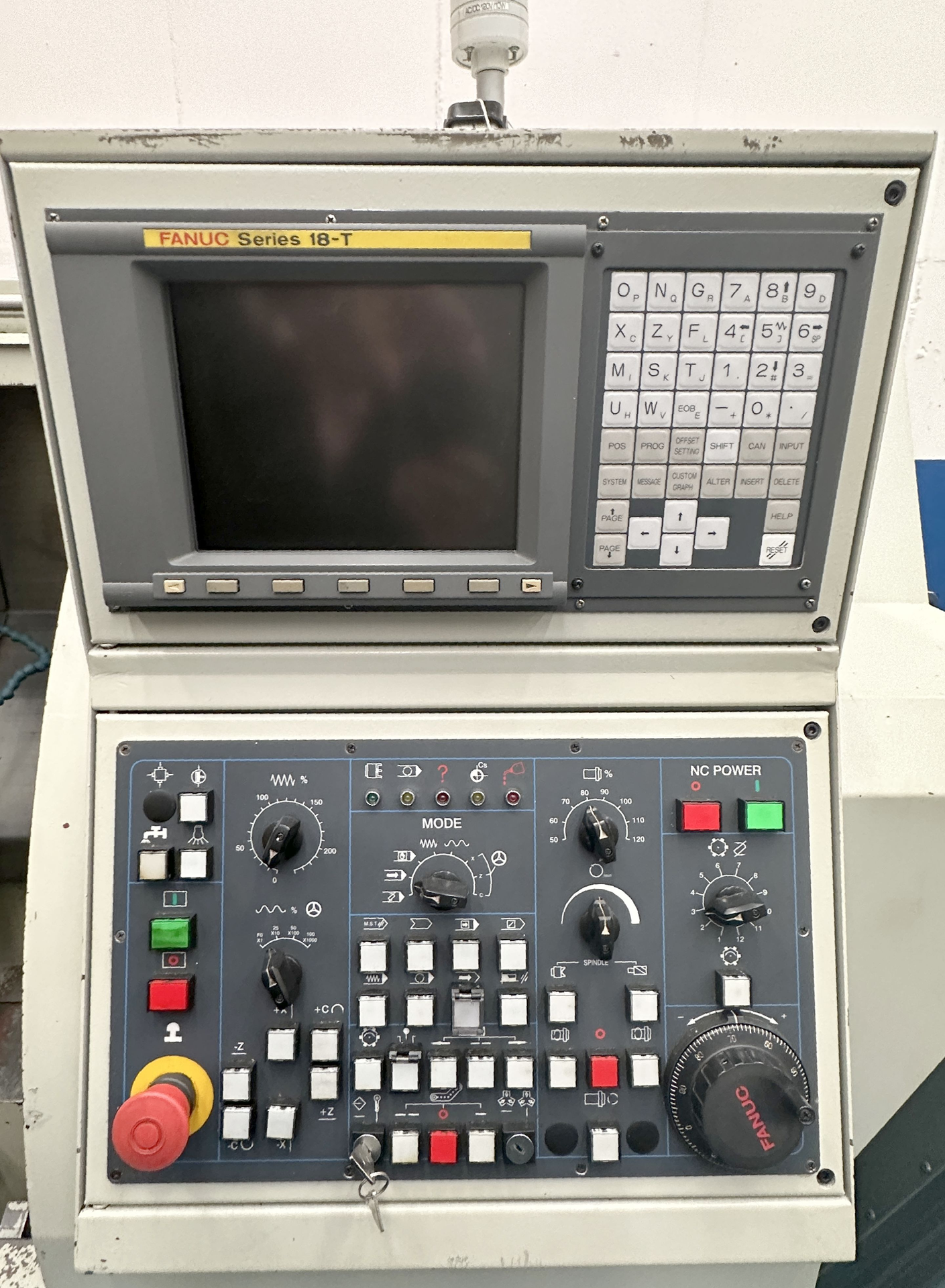

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.
Number of spindles: 1.
Number of revolvers: 1.
Distance between centres: 375 mm.
Swing diameter over bed: 480 mm.
Swing diameter over carriage: 380 mm.
Max. turning diameter: 250 mm.
Taper in spindle: ASA 12-5.

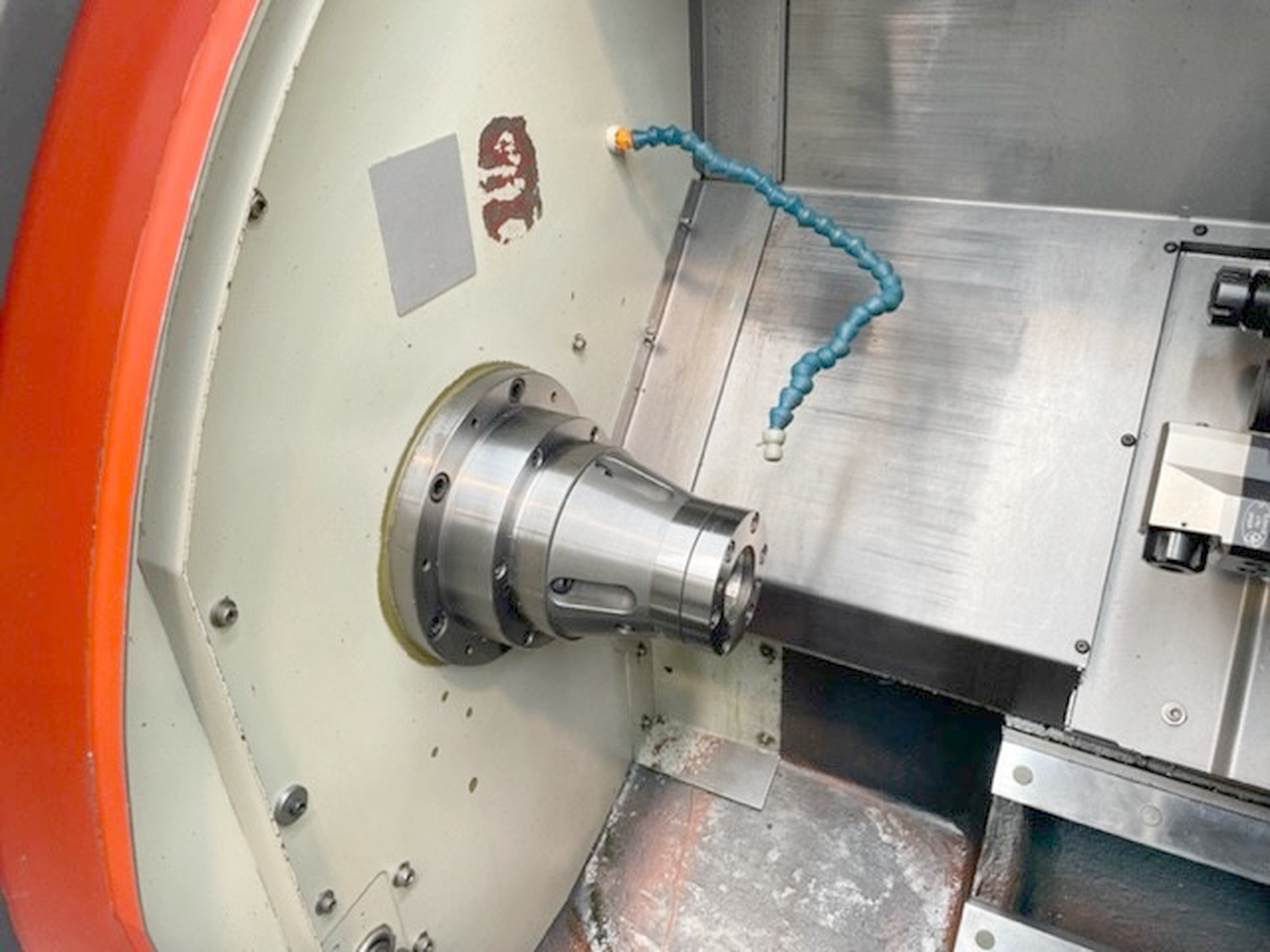

Spindle hole: 42 mm.

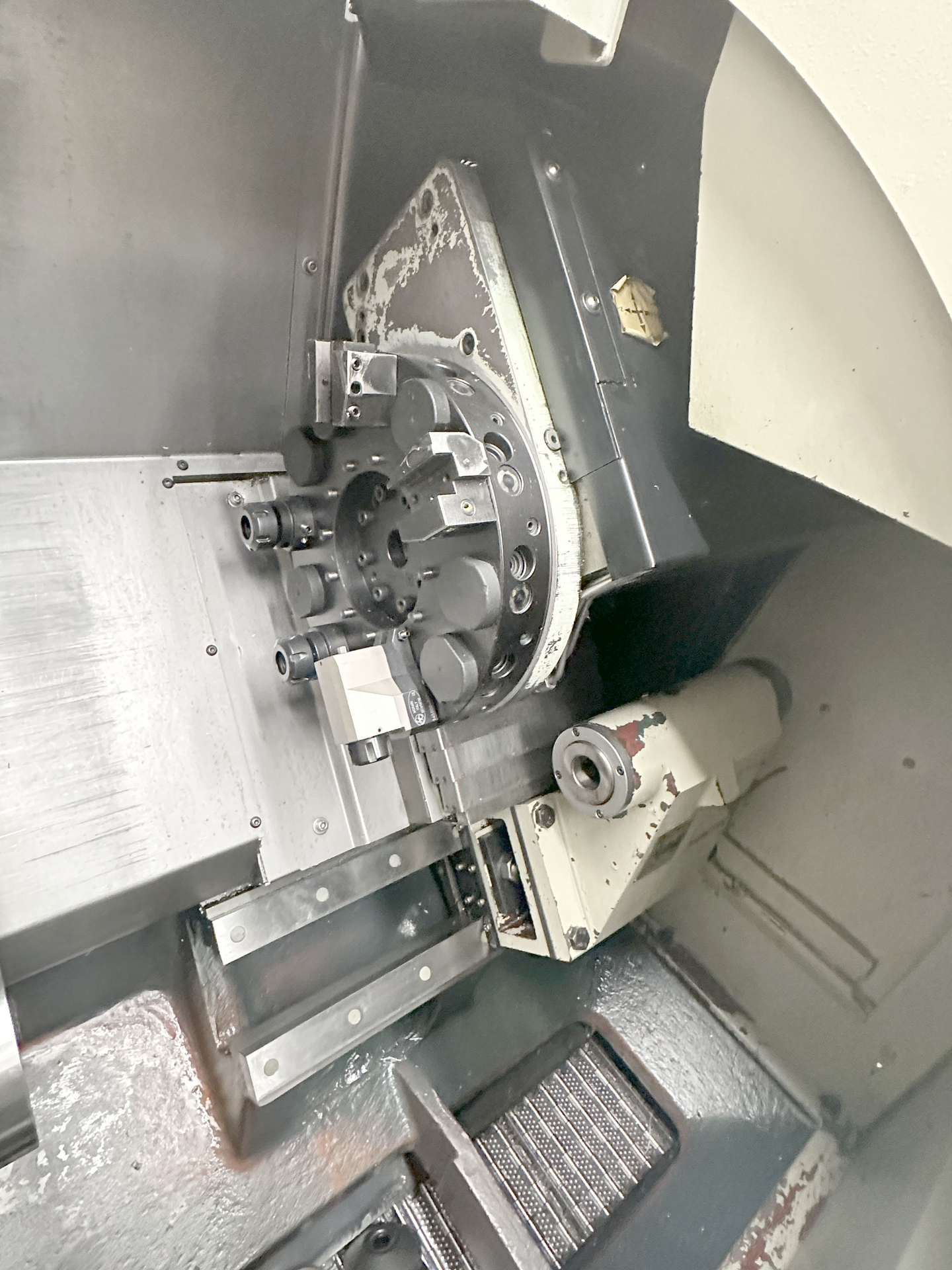

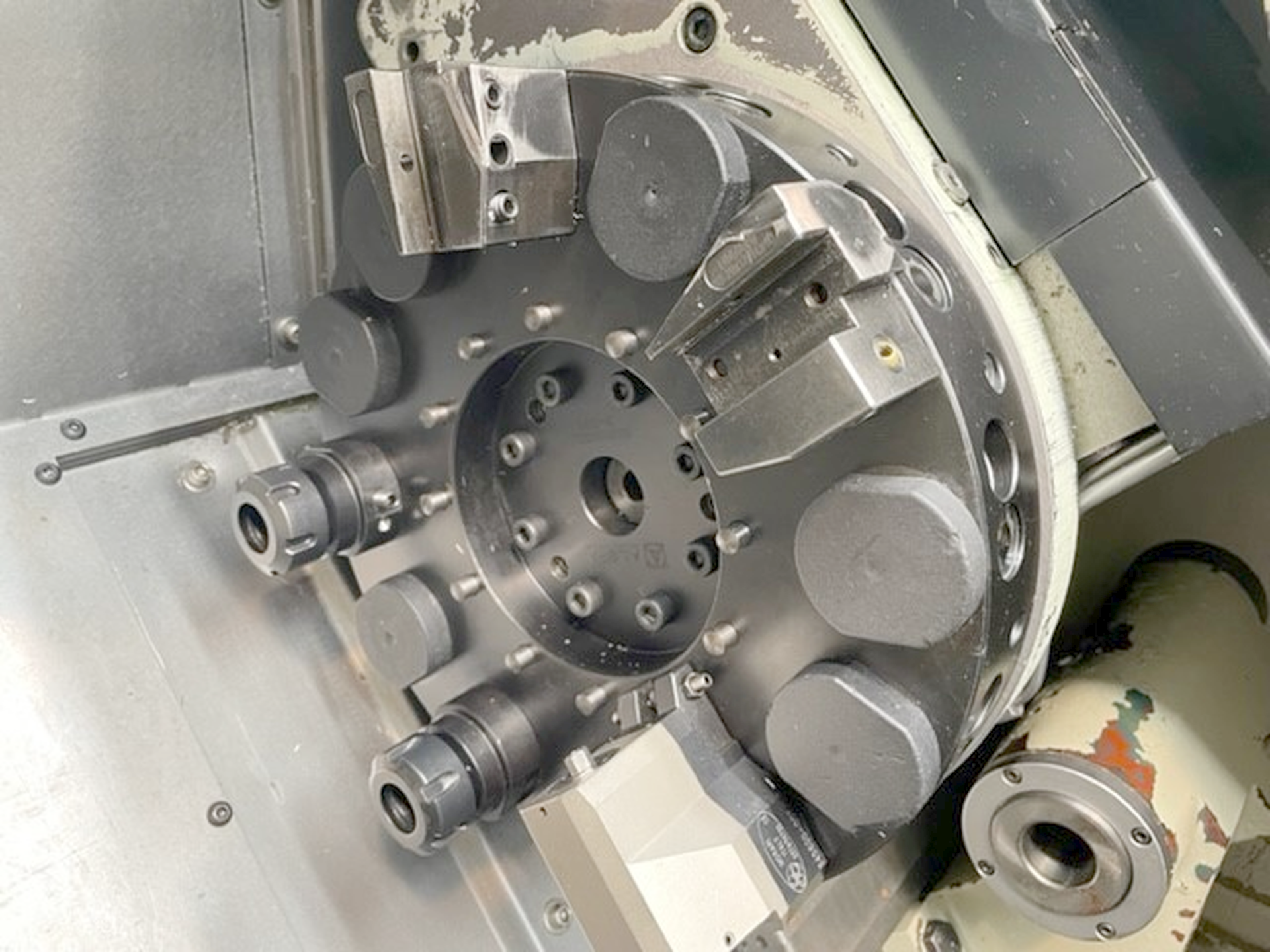

Number of positions: 8.
from: 0 t/min.
up to: 4500 t/min.
Rapid traverse:: 24 m/min.
Spindle motor: 7.5 kW.
Machine's weight about: 3000 kg.
Length: 1800 mm.
Width: 1450 mm.
Height: 1800 mm.

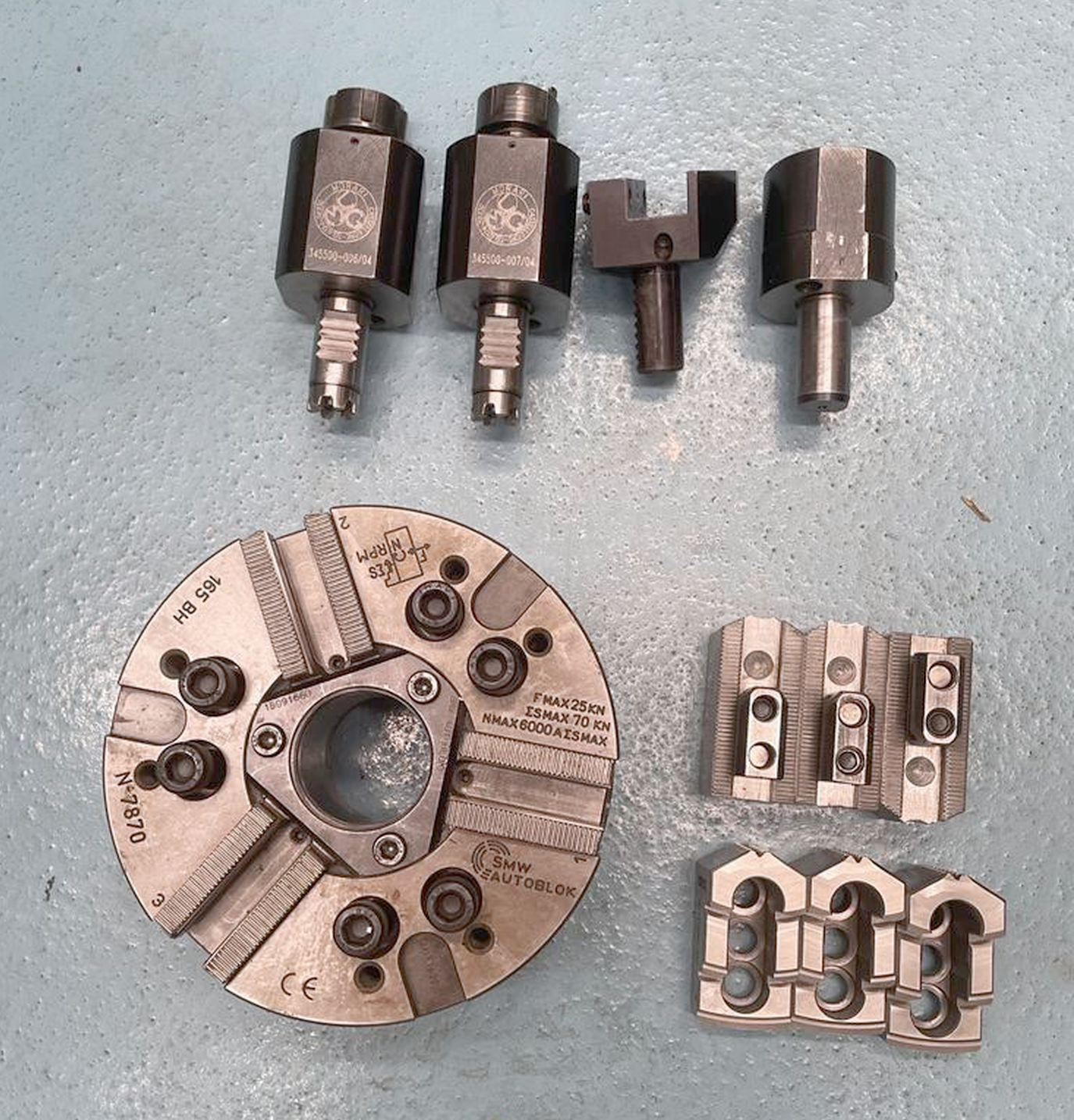

3-jaw chuck diameter: 165 mm.
Tool holder radial (nbr.): 1.
Tool holders axial (nbr.): 4.
Tool holder fix (nbr.): 4.
