MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

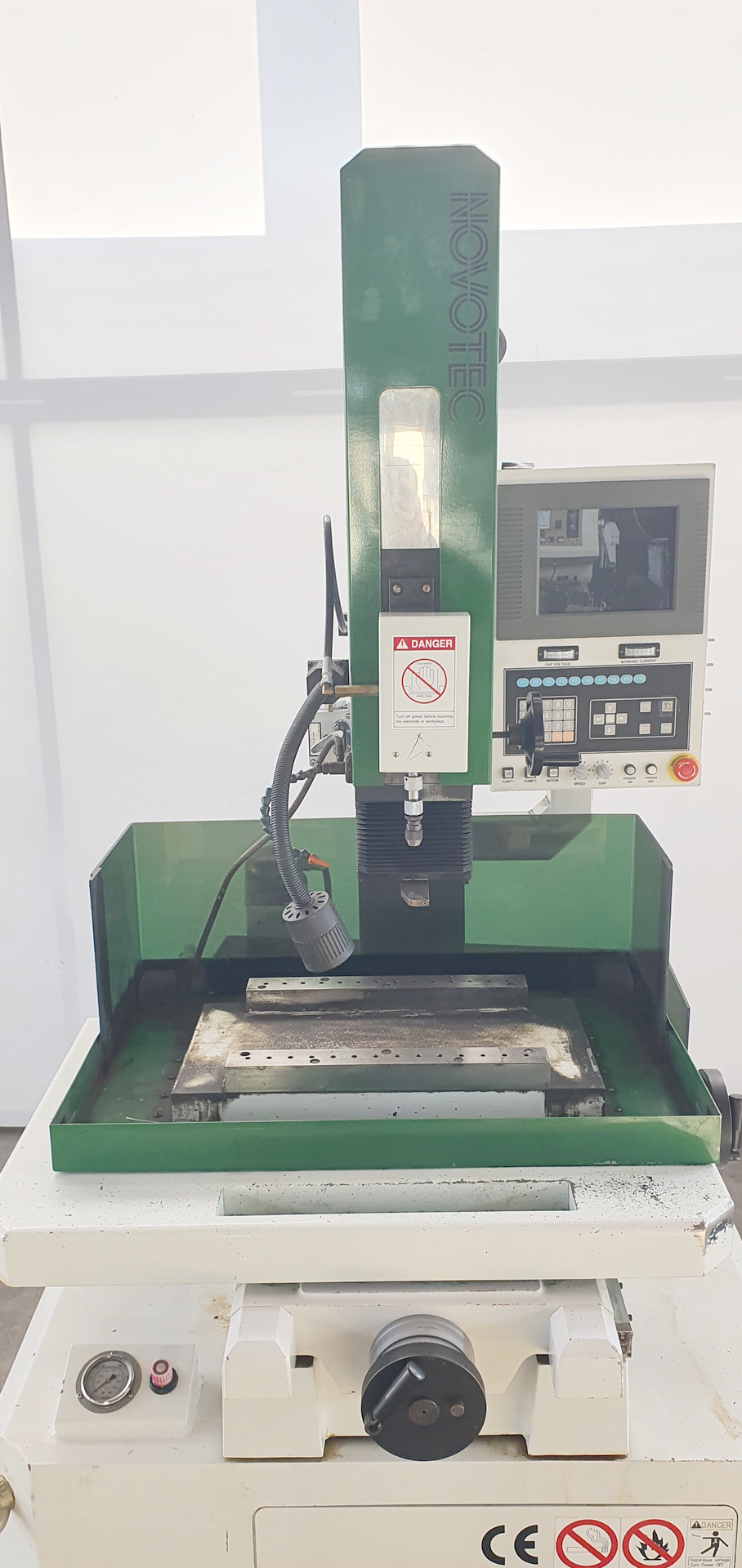

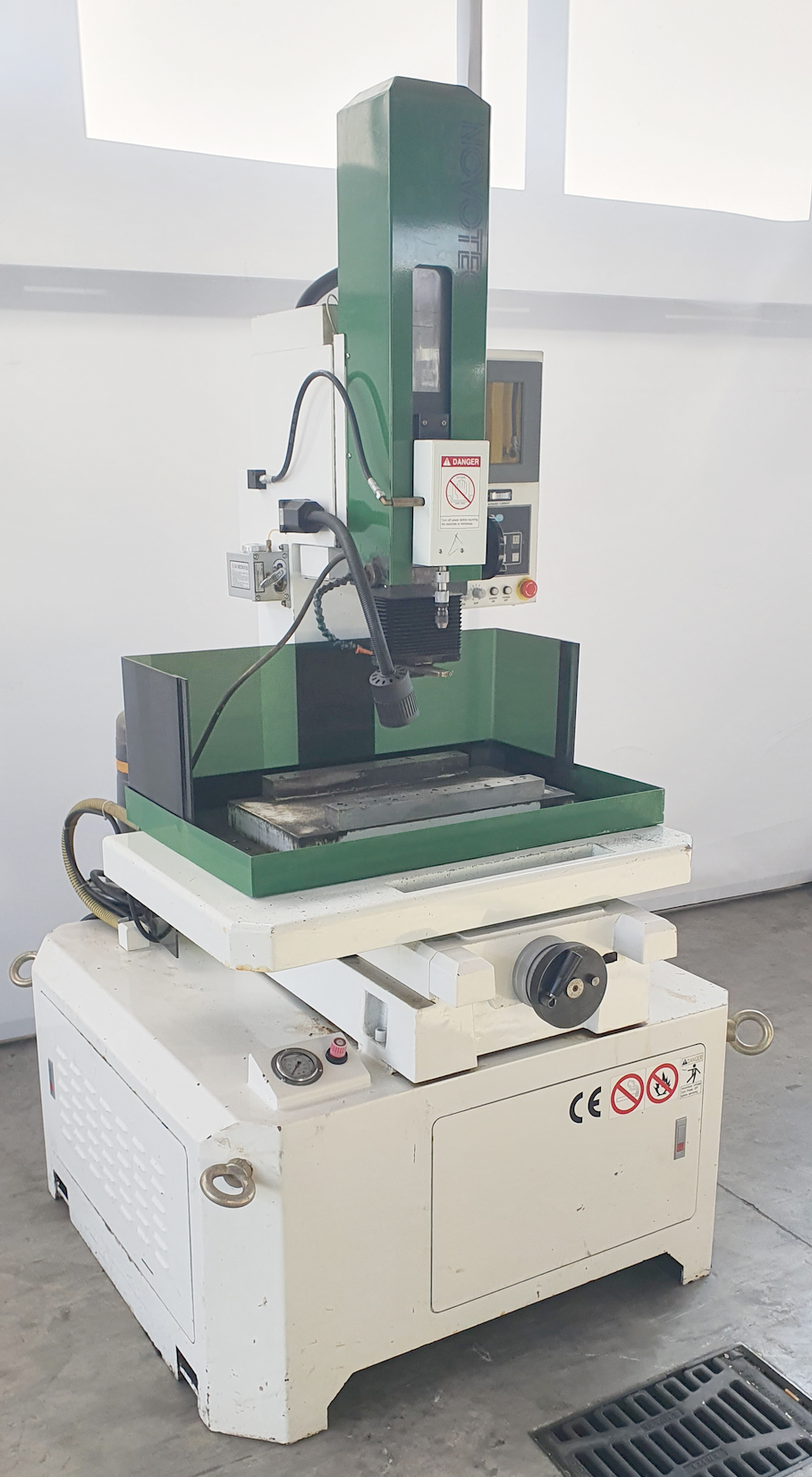

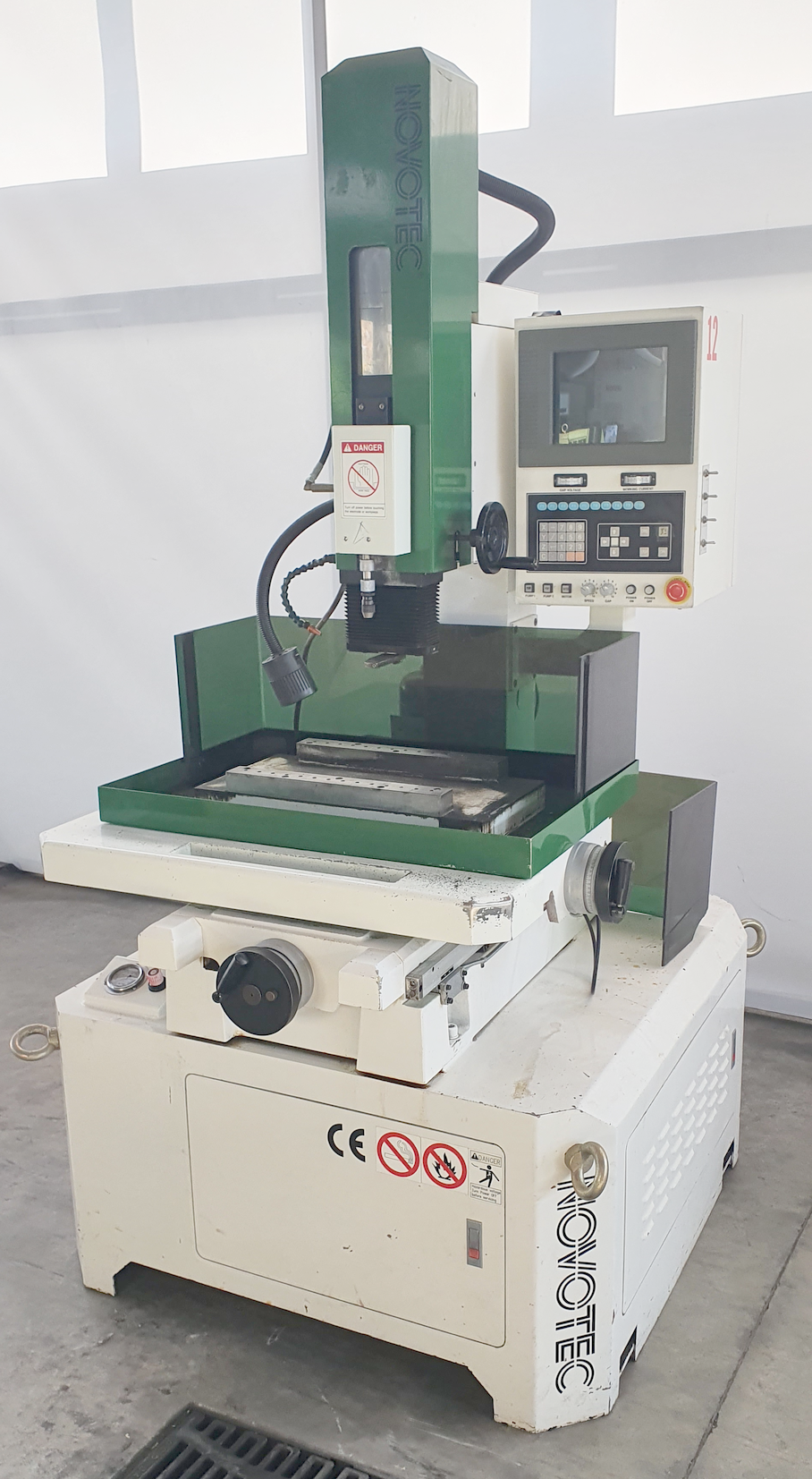

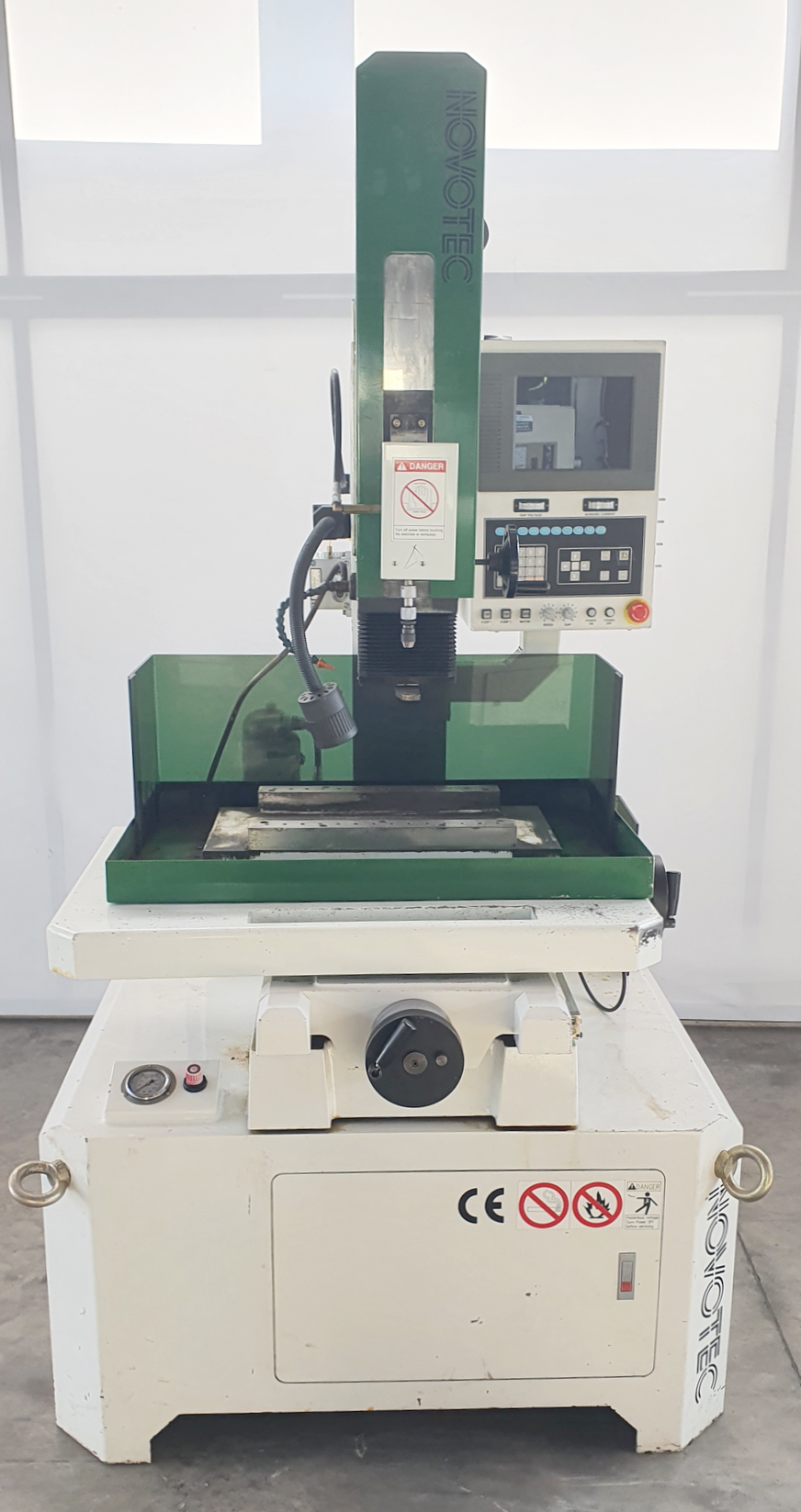

  • 021764 - NOVOTEC SD-1014
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.
Length: 1130 mm.
Width: 1110 mm.
Height: 2330 mm.
Table load max.: 150 kg.
Longitudinal traverse (X-axis): 350 mm.
Cross traverse (Y-axis): 250 mm.
Height adjustment (Z-axis): 350 mm.
Electrode diameter: 0.3 - 3 mm.
Contents: 20 l.
Power: 4 kW.
Machine's weight about: 900 kg.
