MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Aciera
  • Model:

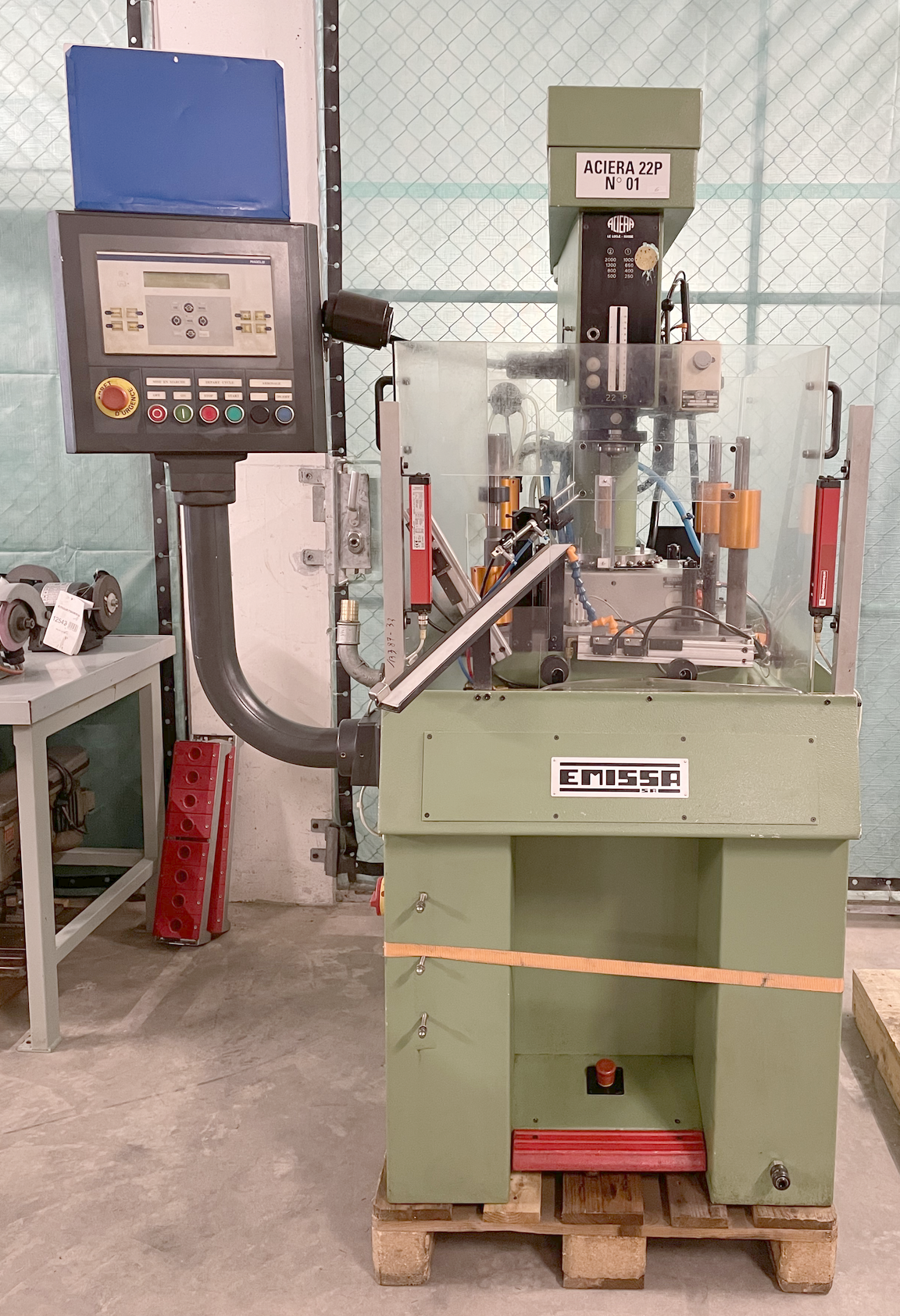

  • 021251 - ACIERA 22 P
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 700 mm.
Table width: 370 mm.
Drill capacity in steel: 22 mm.
Drill capacity in cast-iron: 24 mm.
Depth of throat: 300 mm.
Drill depth (spindle stroke): 120 mm.
Spindle head adjustment: 300 mm.
Longitudinal travel (X-axis): 330 mm.
Transversal travel (y-axis): 210 mm.
Vertical travel (z axis): 350 mm.

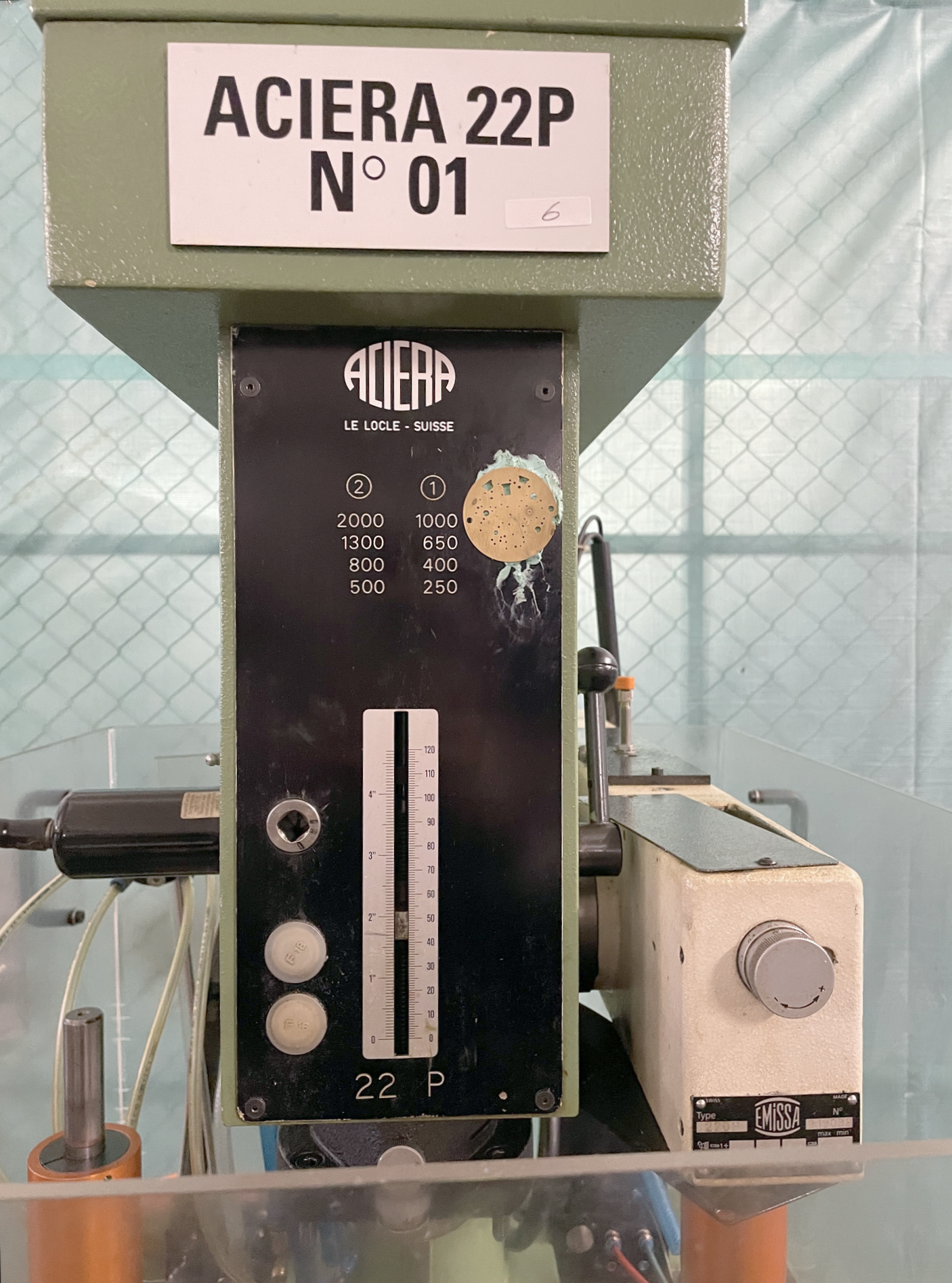

from: 250 t/min.
up to: 2000 t/min.
Voltage 50 Hz 3x: 380 Volt.

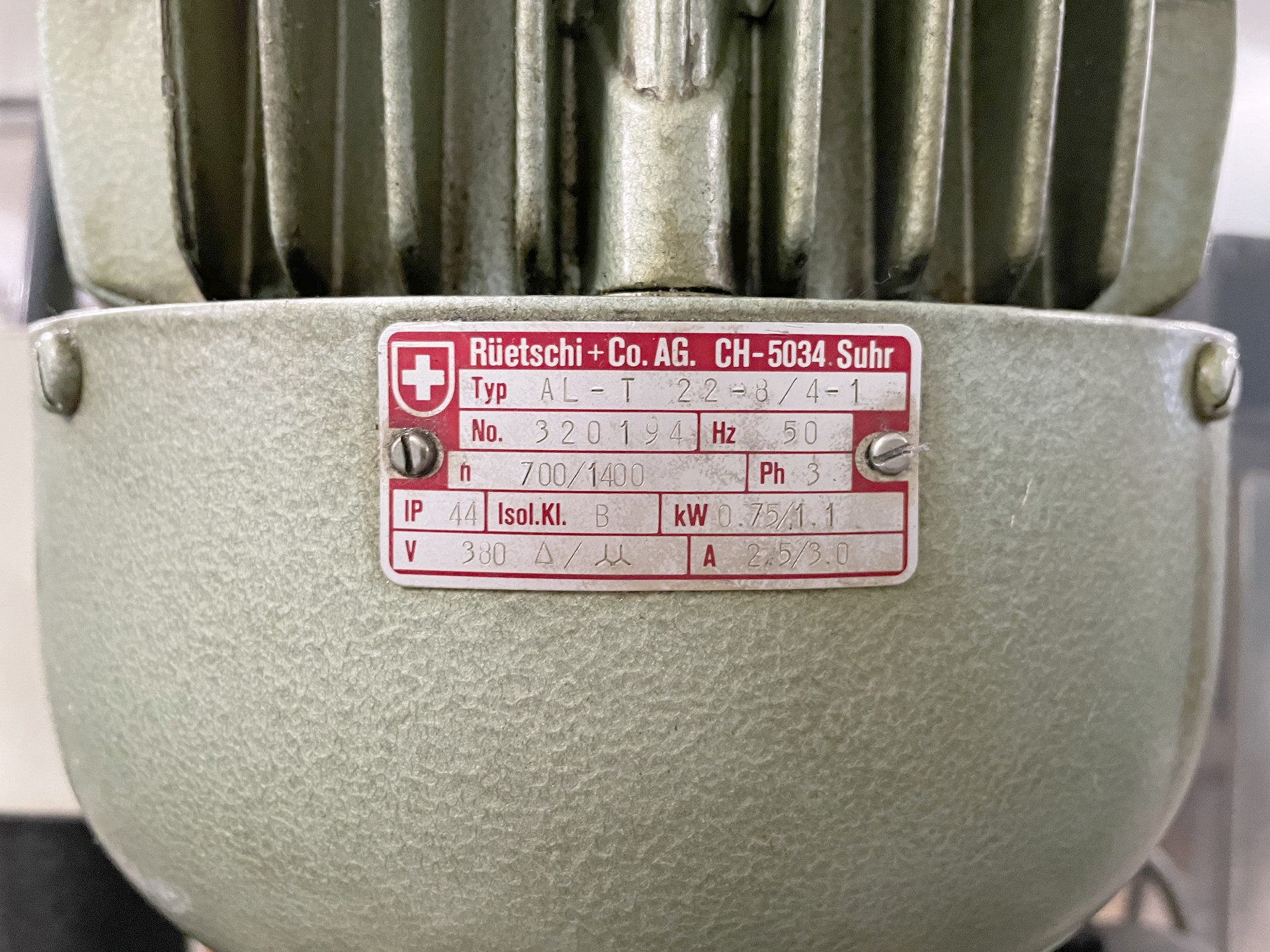

Spindle motor: 2 CV.
Machine's weight about: 990 kg.
Length: 1200 mm.
Width: 1000 mm.
Height: 1900 mm.
+ request more information
