MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

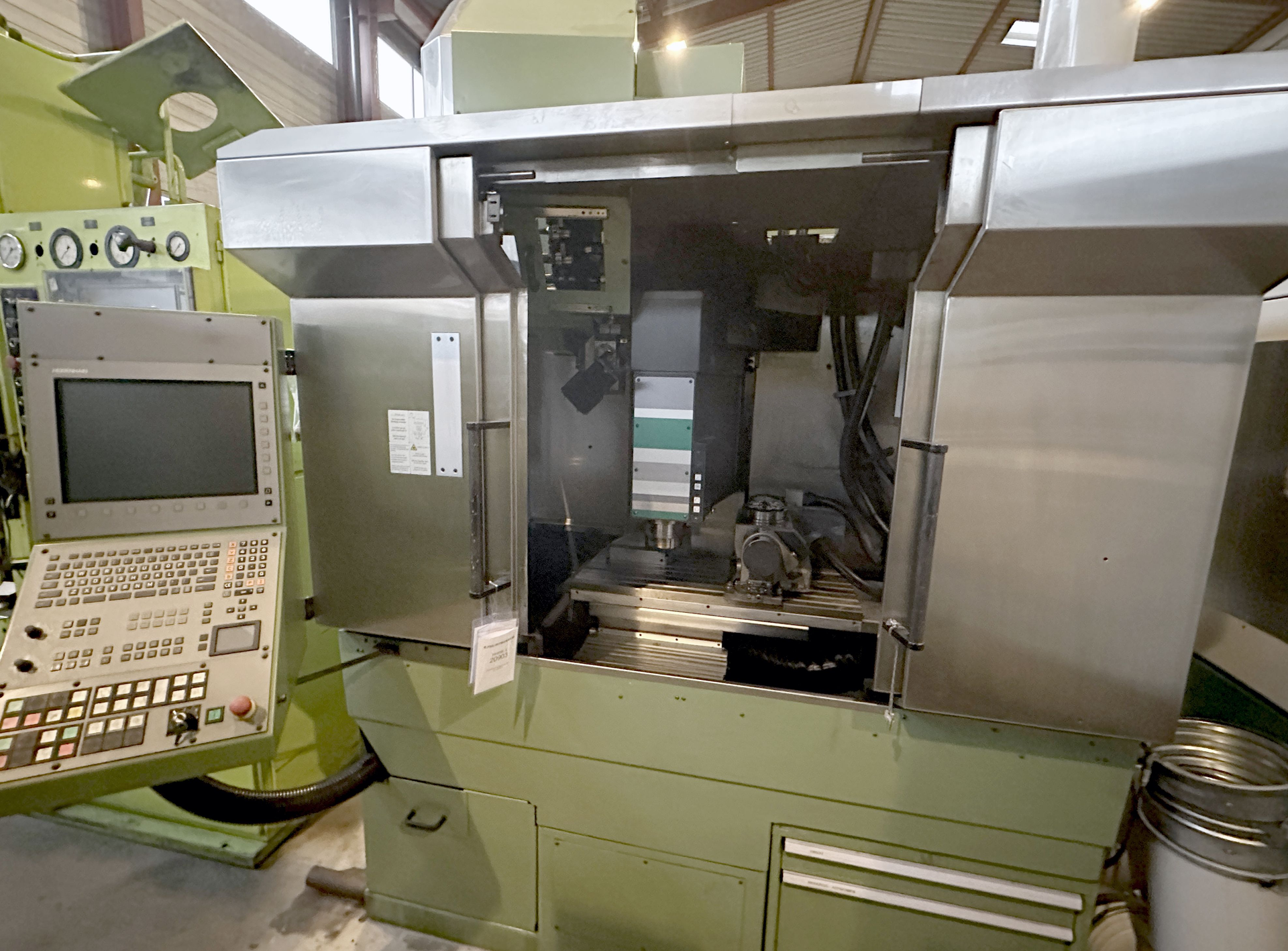

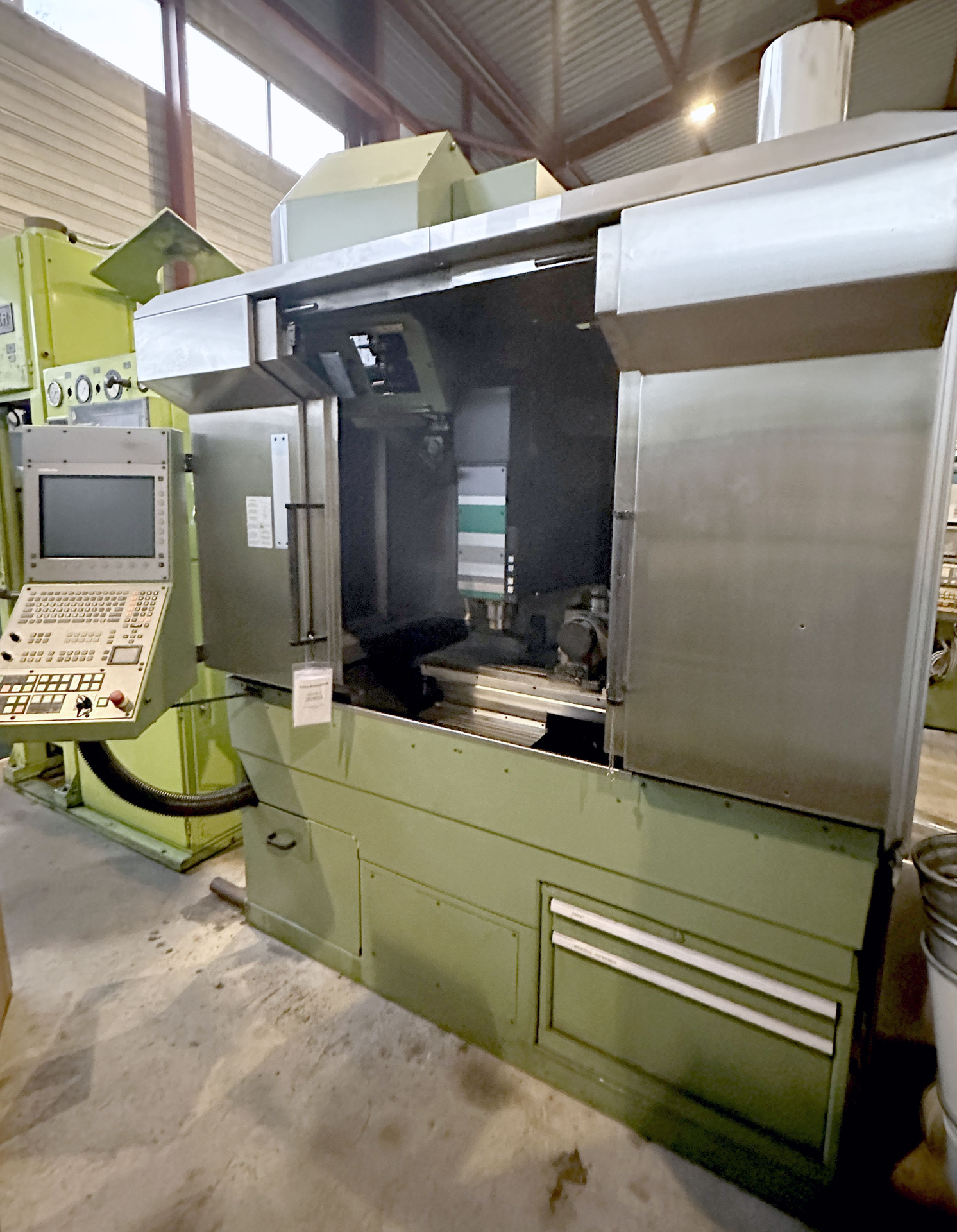

  • 020903 - FEHLMANN PICOMAX 60-HSC
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis simultaneous: 5.

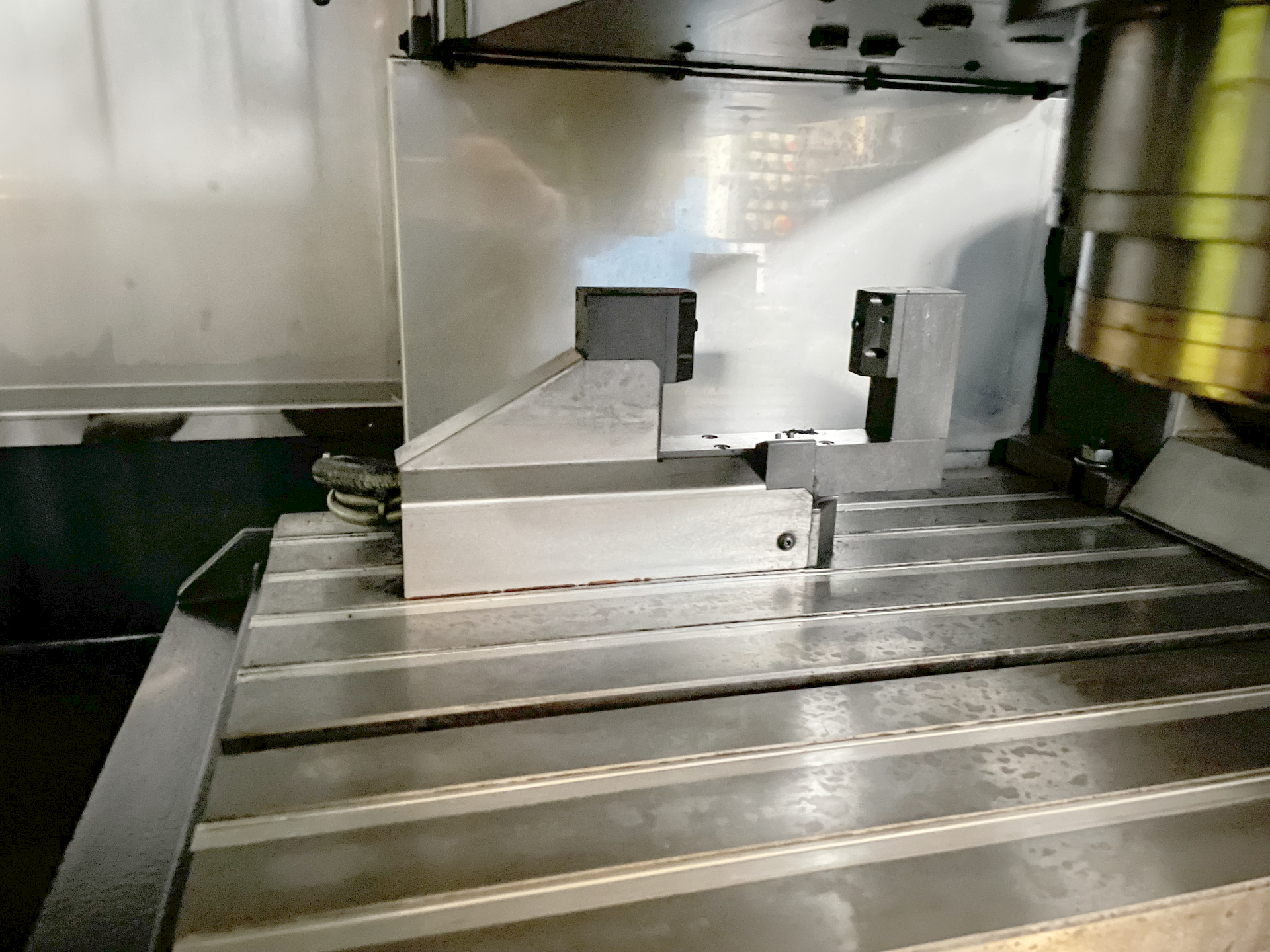

Table length: 920 mm.
Table width: 380 mm.
Table load max.: 250 kg.
Longitudinal travel (X-axis): 505 mm.
Transversal travel (y-axis): 355 mm.
Vertical travel (z axis): 610 mm.

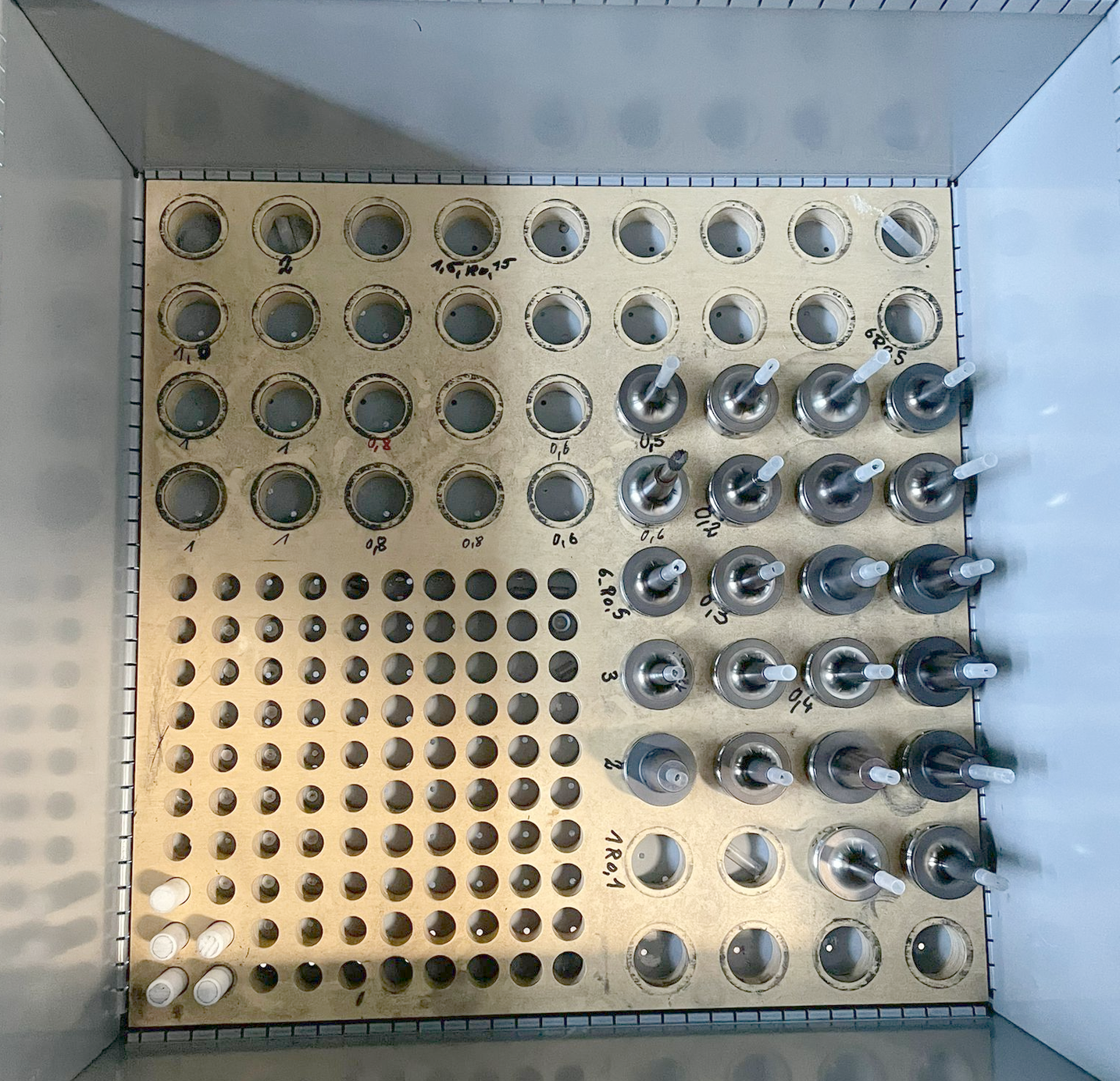

Number of tools: 28.
Spindle nose: HSK: E50.
from: 50 t/min.
up to: 30000 t/min.
Feed range: 1 - 20000 mm/min.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 22 kVA.
Machine's weight about: 3750 kg.
Length: 2070 mm.
Width: 1936 mm.
Height: 2642 mm.

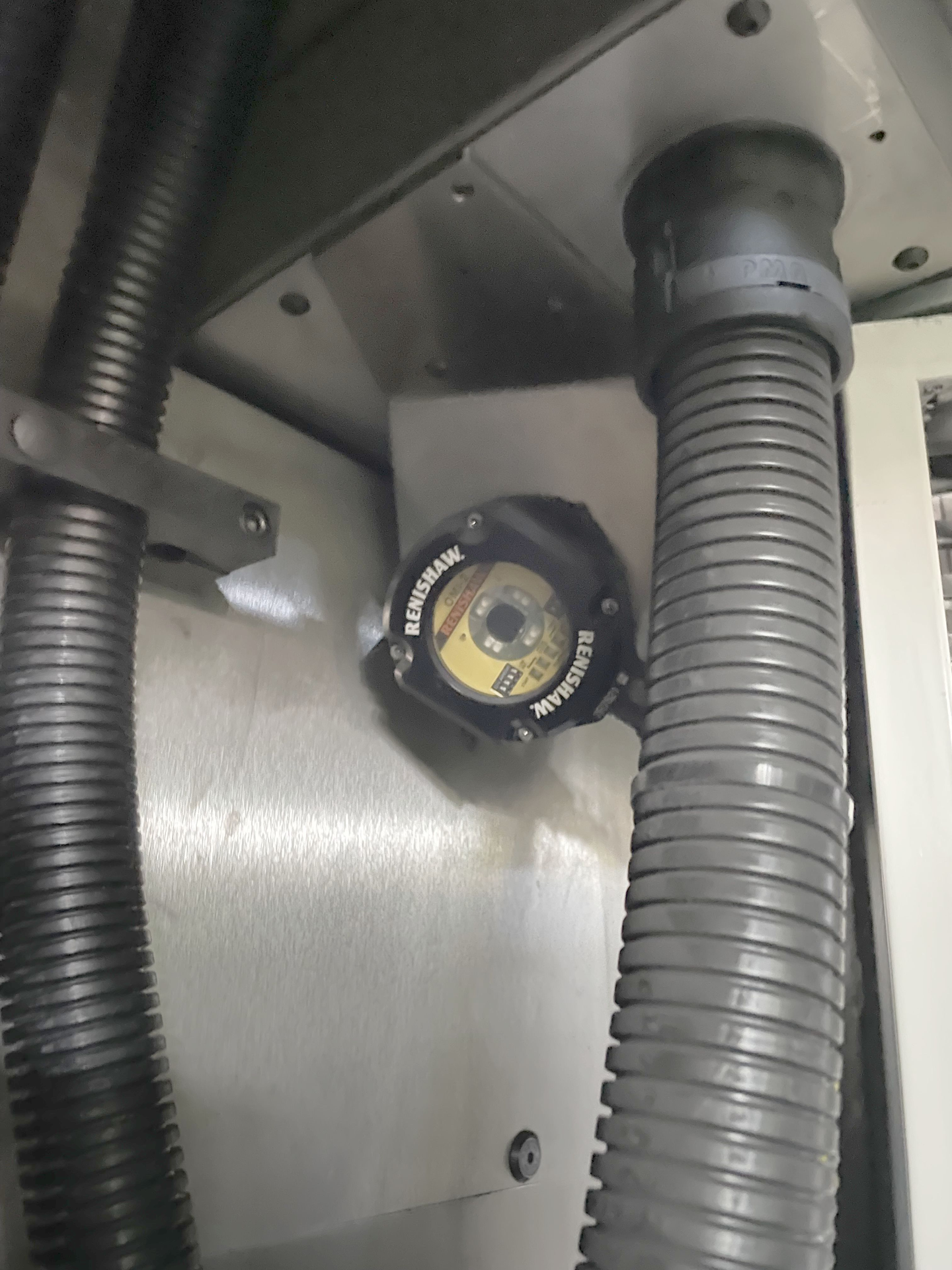

Preparation for Renishaw 3D touch probe: MP40.

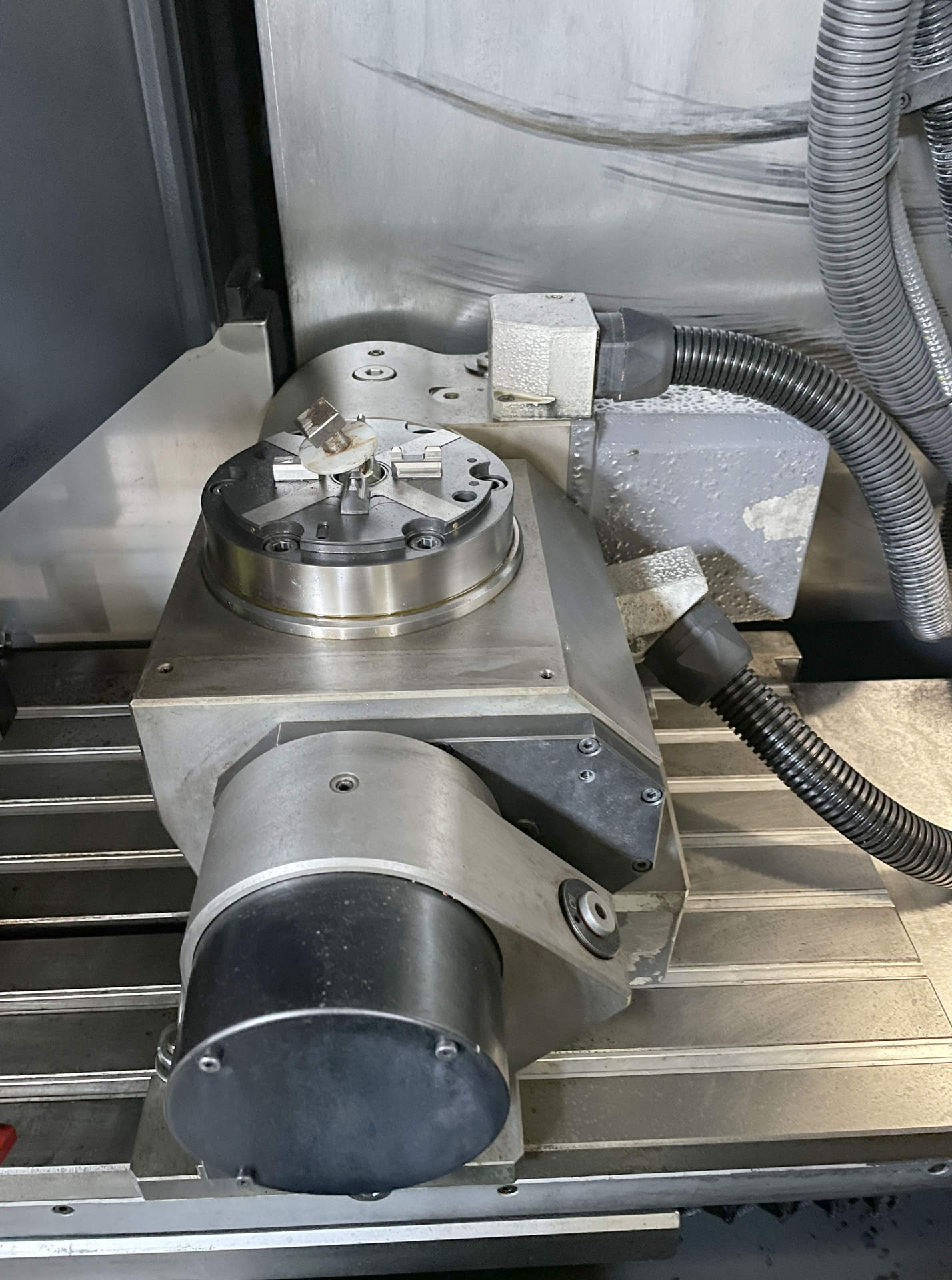

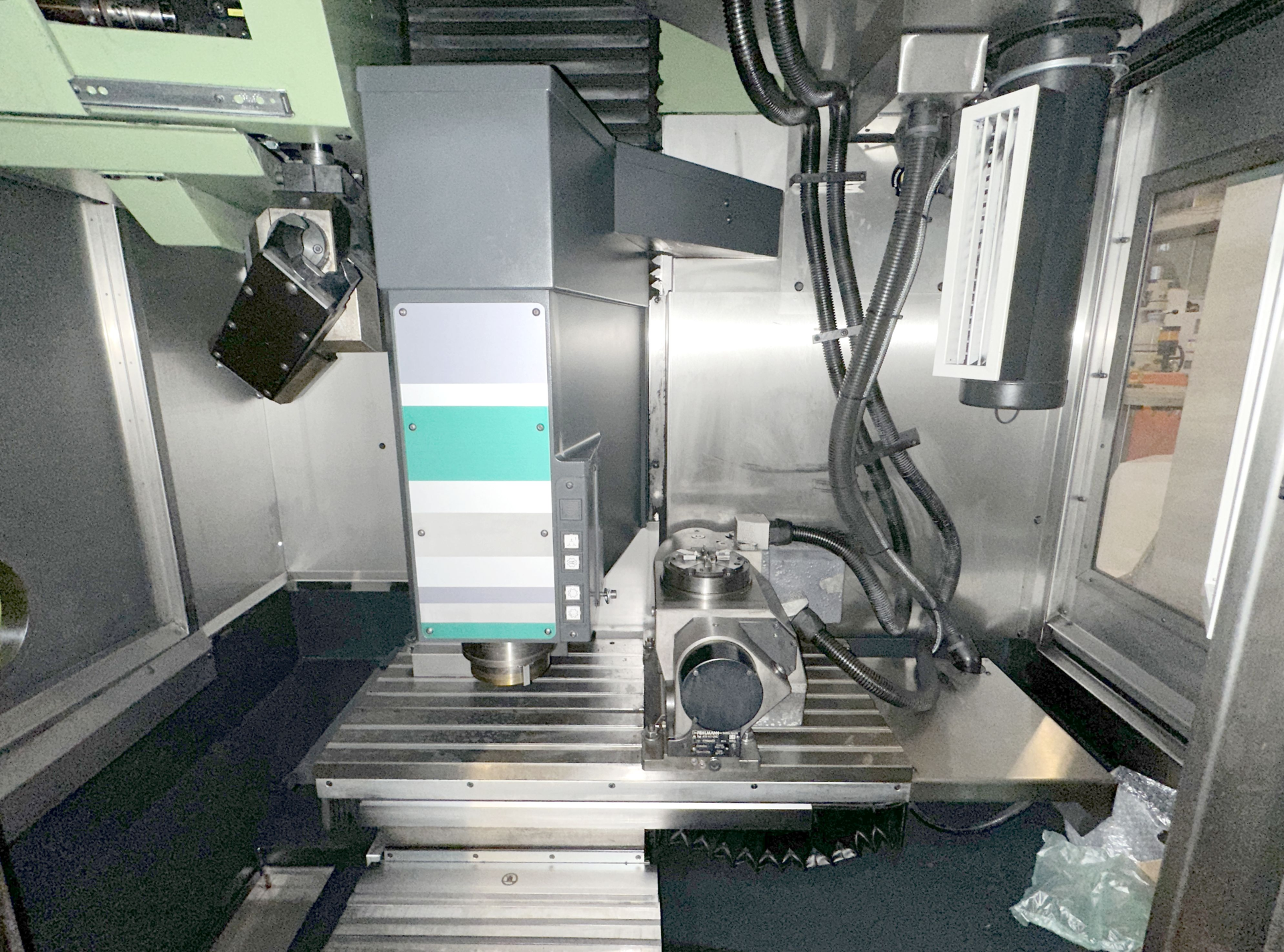

Dividing attachment 4th and 5th axis: ATS 160.
Spindle changed: 2016.
