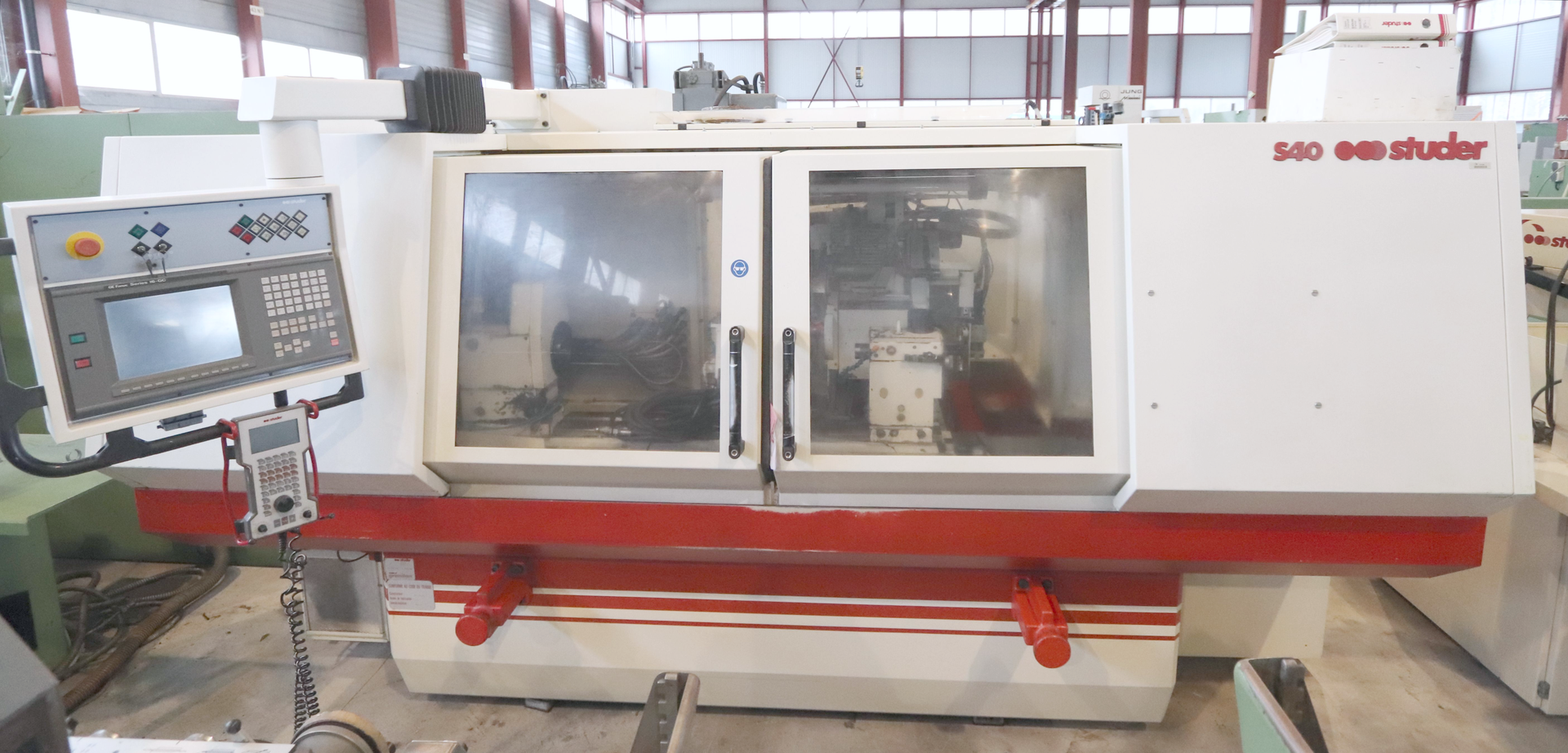

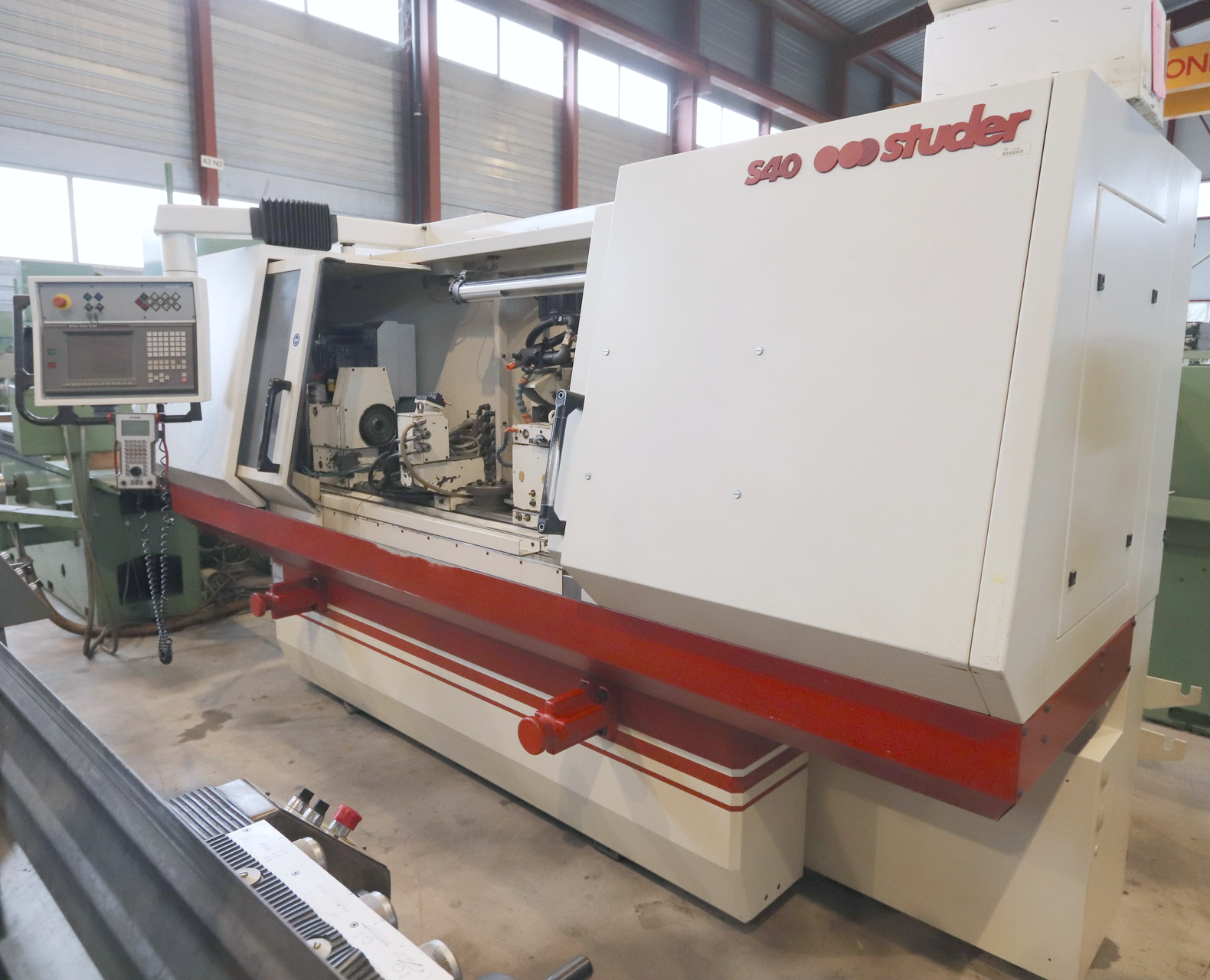

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • STUDER
  • Model:

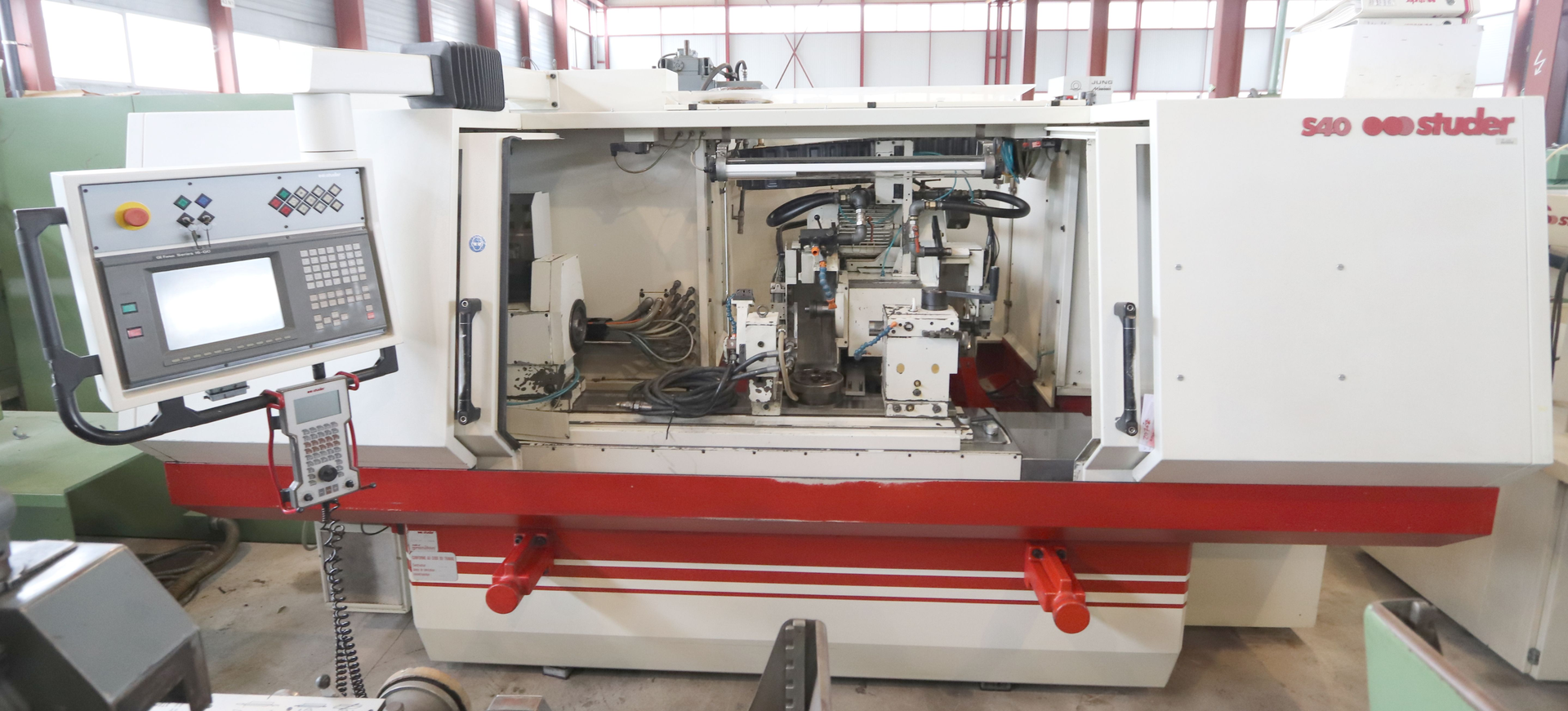

  • 020762 - STUDER S 40 CNC
  • Condition:
  • 1
  • YOM:
  • NA

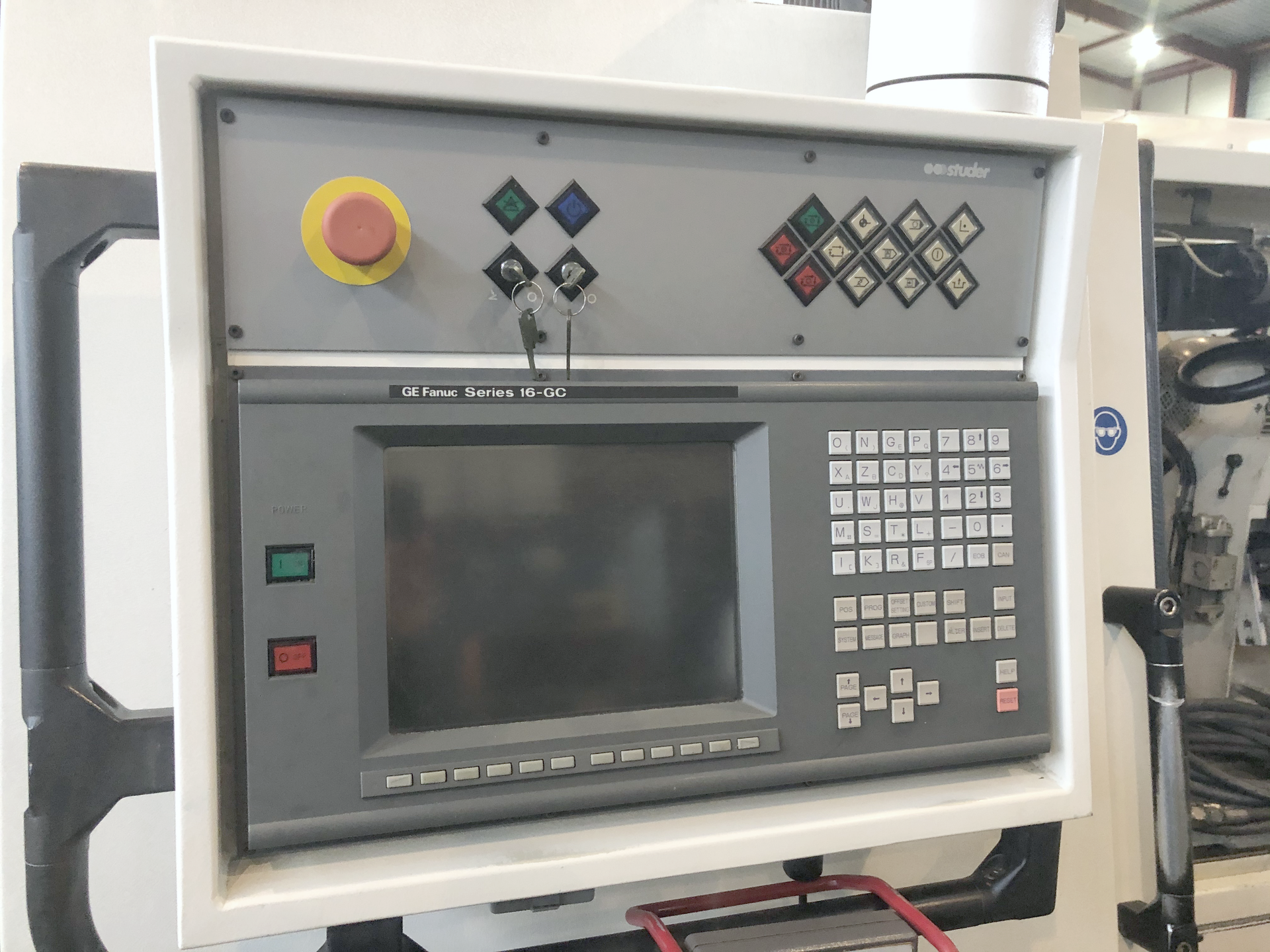

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 175 mm.
Distance between centres: 1000 mm.
Workpiece weight on centres max.: 130 kg.
Diameter: 400 mm.
Width: 1200 mm.
Bore: 127 mm.
B axis resolution max.: 5 °.
B axis swivelling range (automatic): 15° + 205 °.
number (steps): 2.
up to: 60000 t/min.
Rotatable grinding spindle head (b-axis): 5 °.
Peripheral speed: 35 m/s.
Max. travel: 275 mm.
Resolution: mm.
Feed speed up: 0.0001 - 10000 mm/min.
from: 30 t/min.
rotatable: 90 °.
taper in spindle: MT: 5.
Required power: 1 kW.
Taper in tailstock:: 3 CM.
Tailstock travel of barrel: 35 mm.
Max. table angular displacement: 8.5 °.
Air connect: 5 bar.
Voltage 50 Hz 3x: 400 Volt.
Workpiece spindle motor: 8 kW.
Total power required: 30 kVA.
Machine's weight about: 5100 kg.
Length: 3750 mm.
Height: 2300 mm.
Number of spindles: 1.
