MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

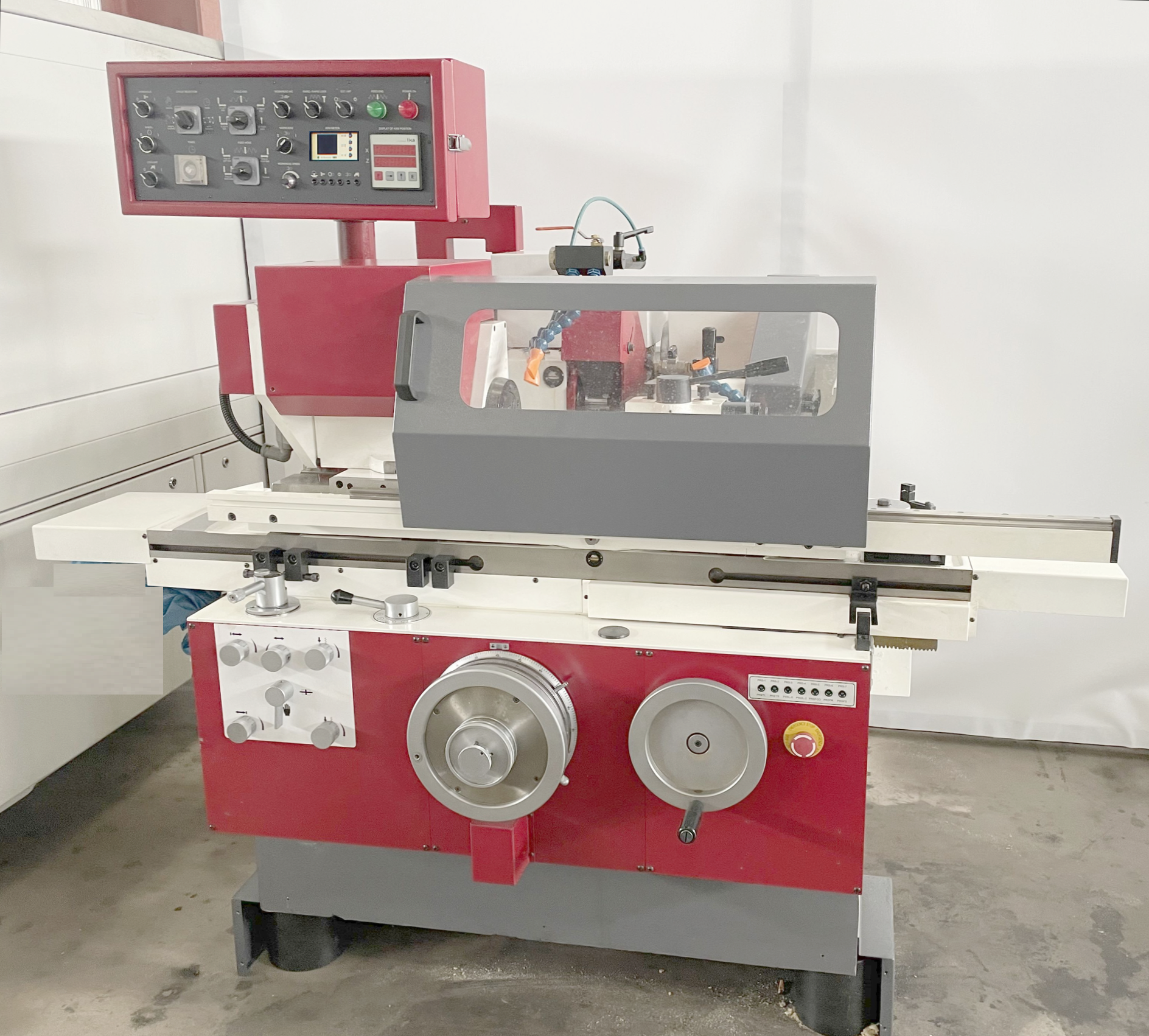

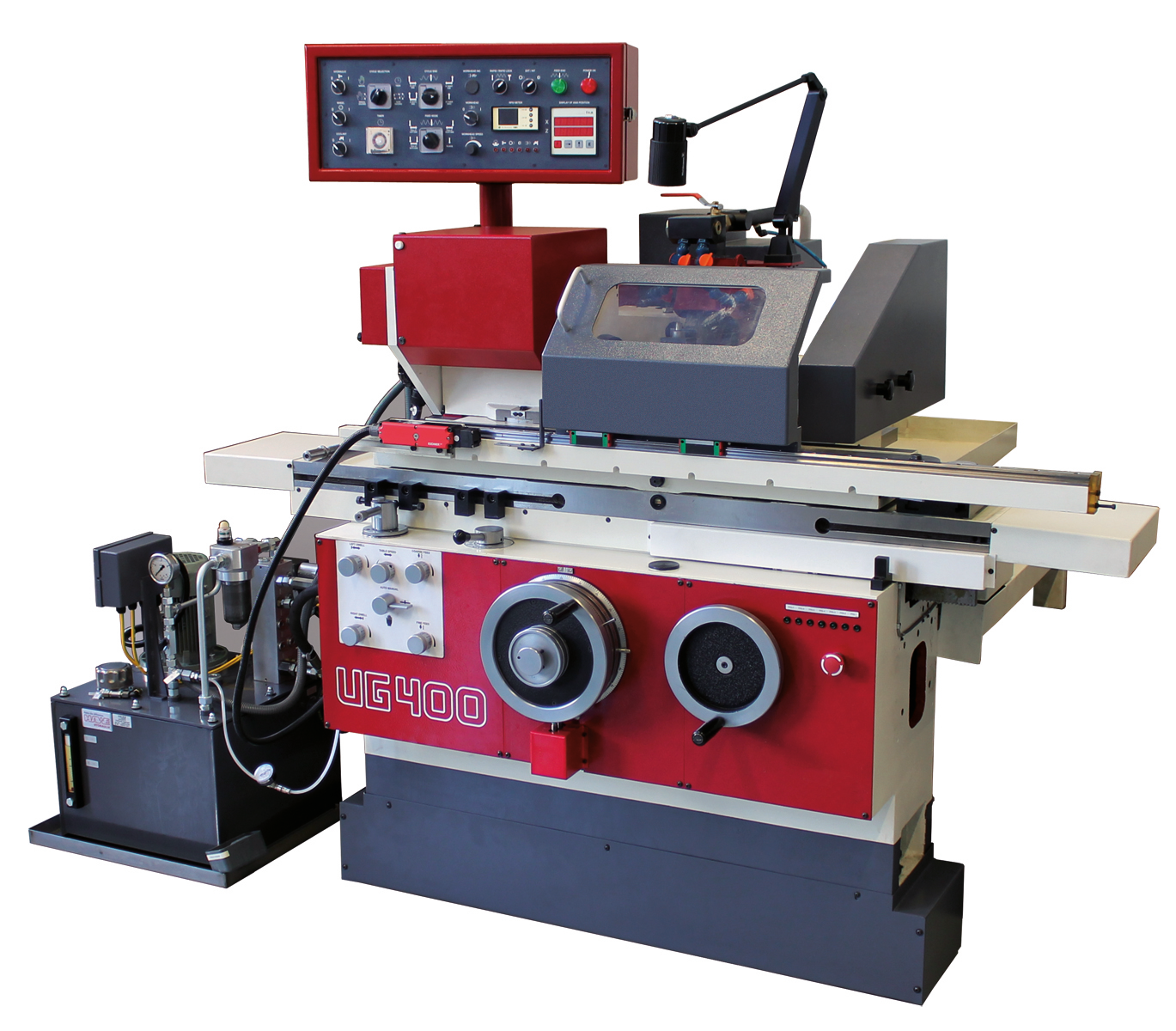

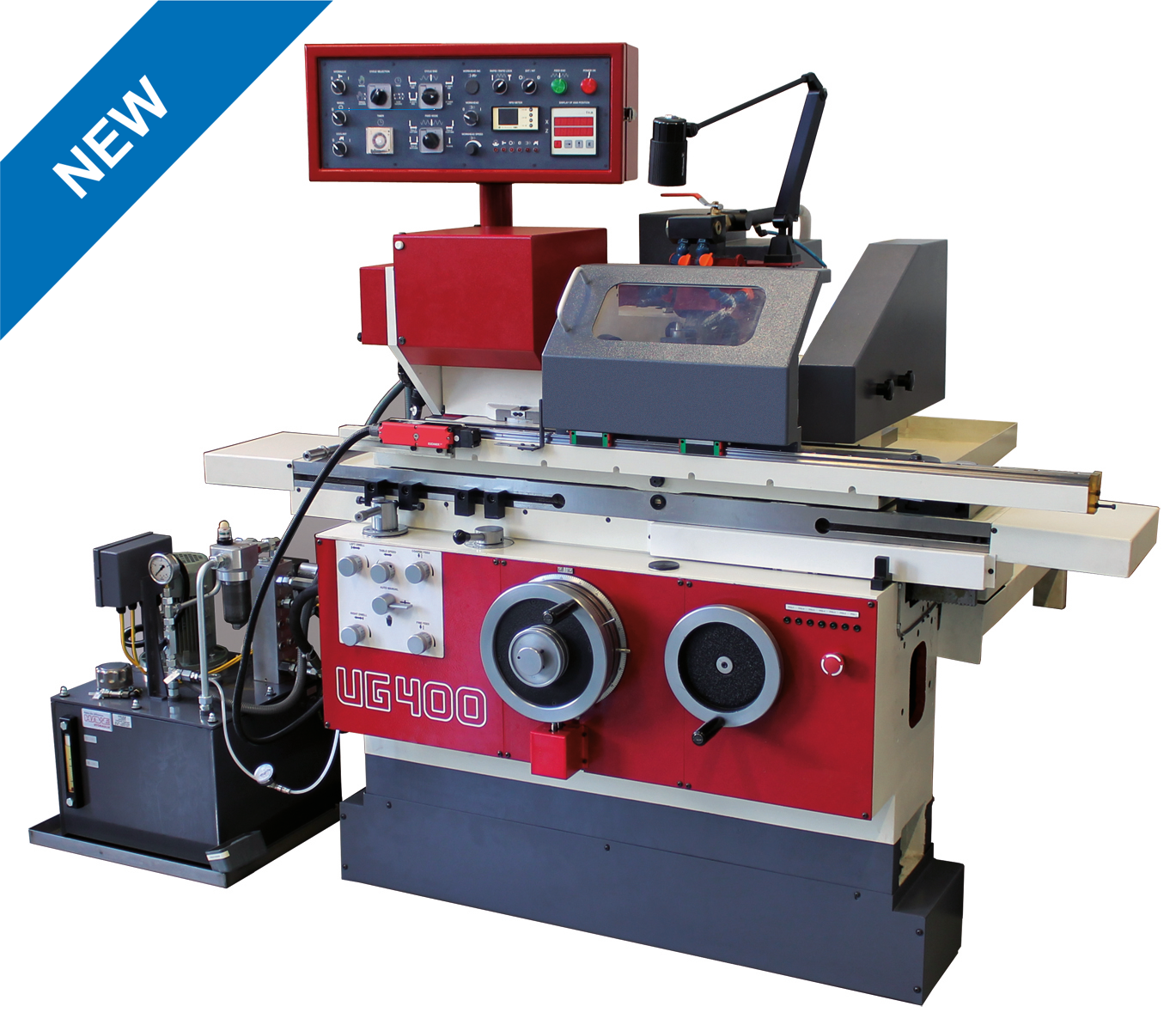

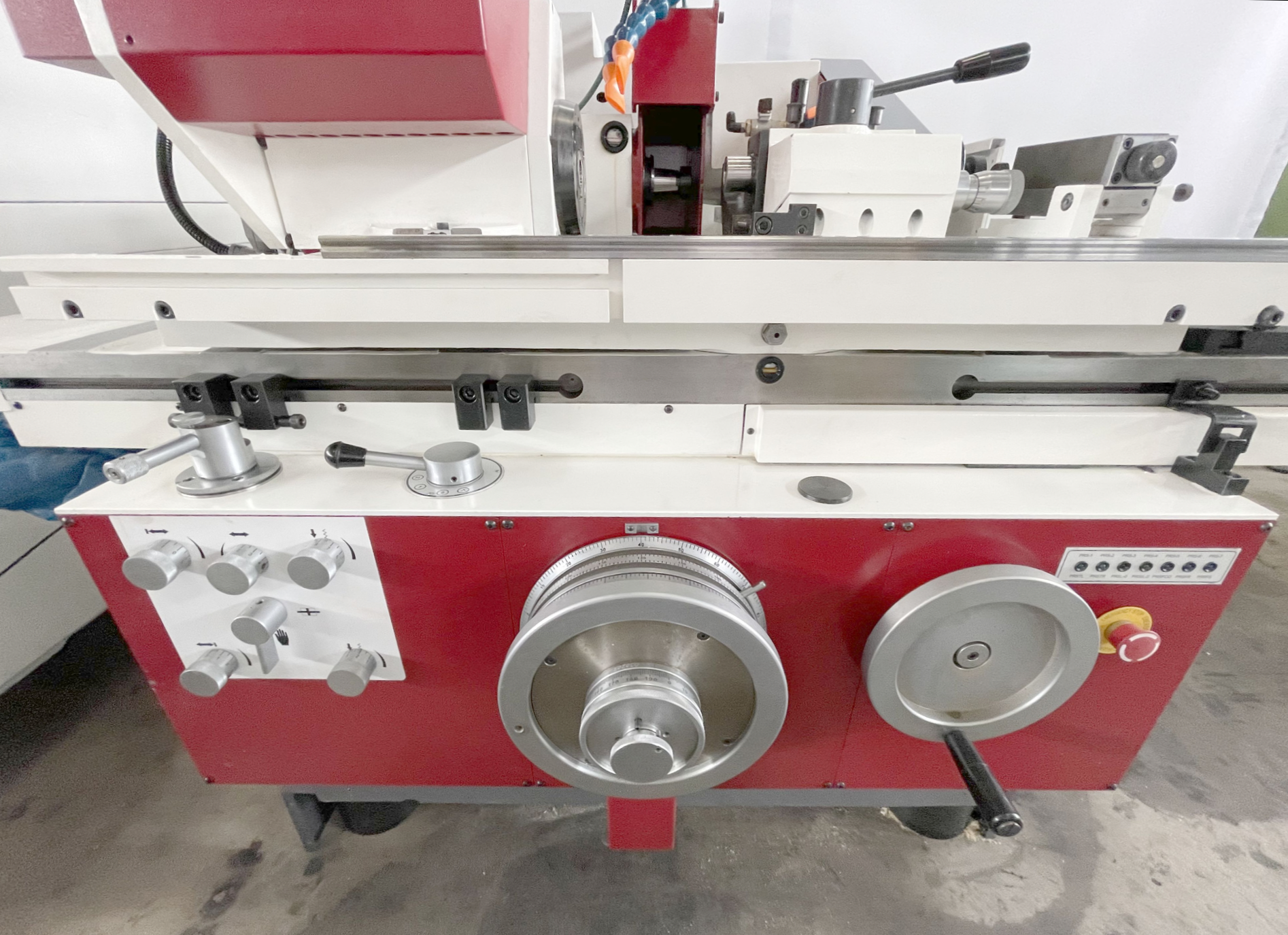

  • 019707 - UG 400 UG 400
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 100 mm.
Distance between centres: 400 mm.
Max. Longitudinal travel: 425 mm.
Diameter: 350 mm.
Width: 1750 mm.
Bore: 127 mm.
Workpiece weight on centres max.: 30 kg.
from: m/min.
up to: 5 m/min.
rotatable: 0 - 90 °.
Spindle taper (collets): 25mm.
Spindle taper: 4 CM.

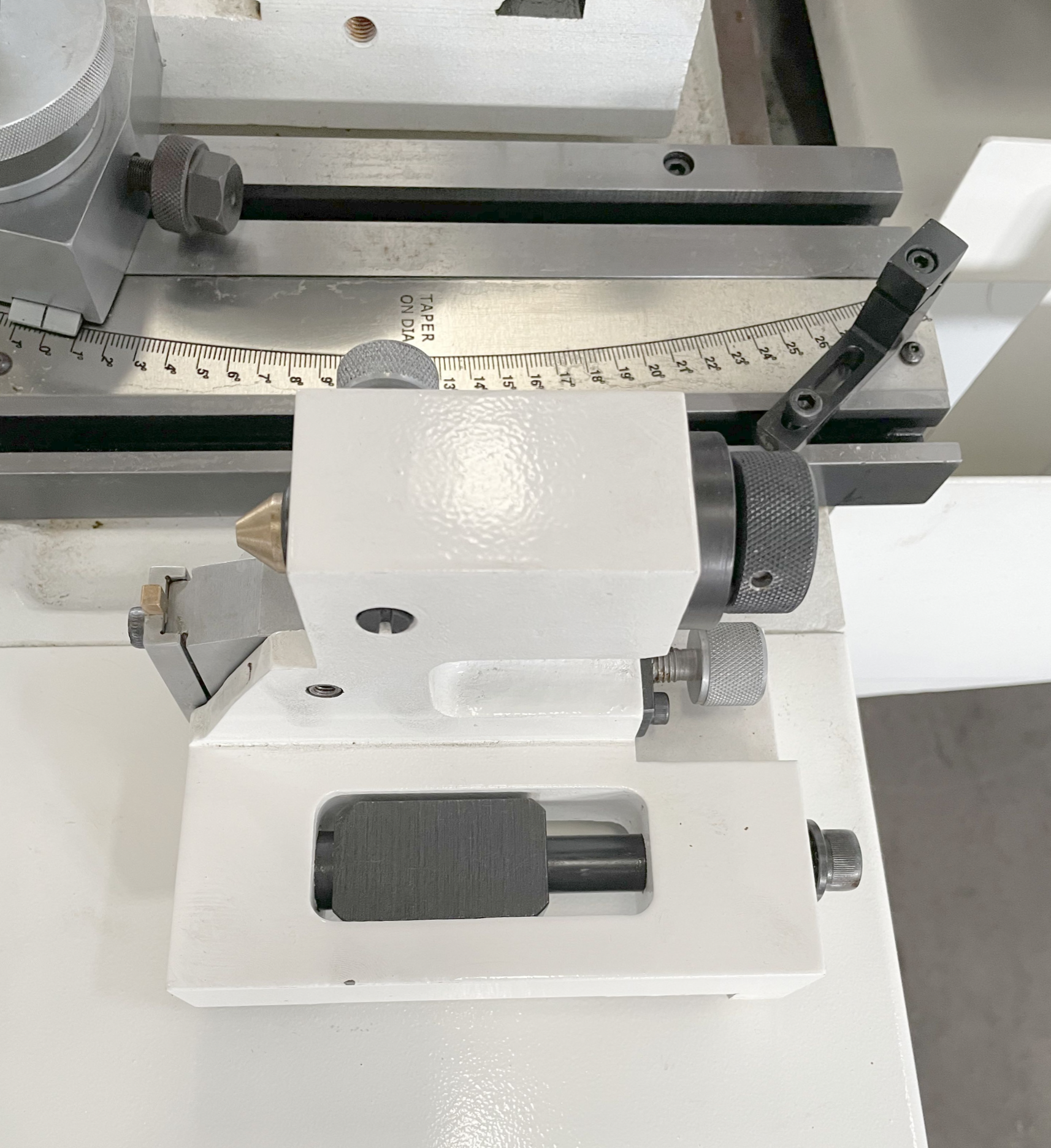

Taper in tailstock:: 3 CM.
Table angular displacement: 3 / 30 °.
Voltage 50 Hz 3x: 400 Volt.
External Grinding wheel motor: 3.7 kW.
Workpiece spindle motor: 1 kW.
Machine's weight about: 2200 kg.
Length: 3000 mm.
Height: 1600 mm.

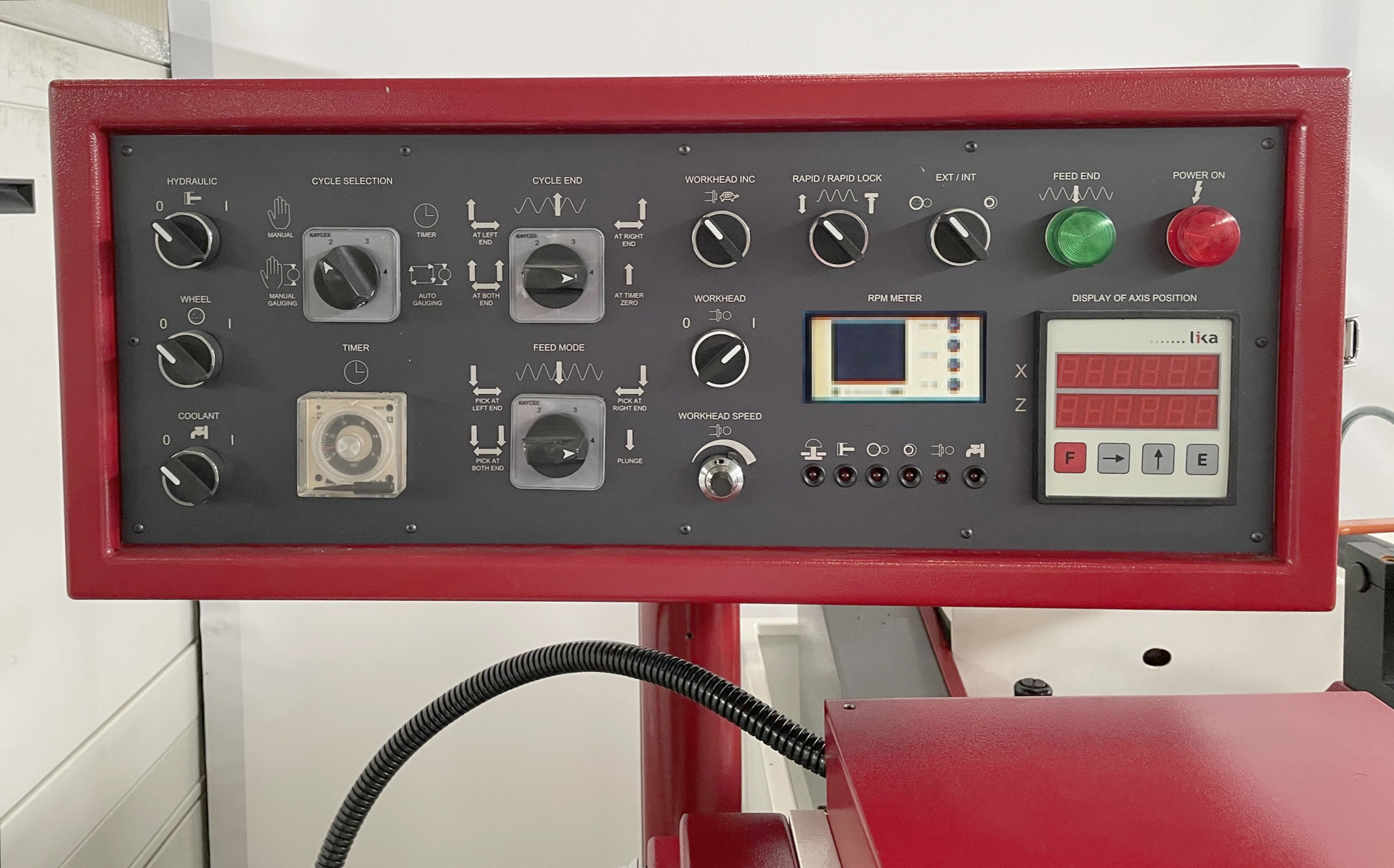

Digital readout number of axis:: 2.
Spindle speeds: 42000 t/min.
