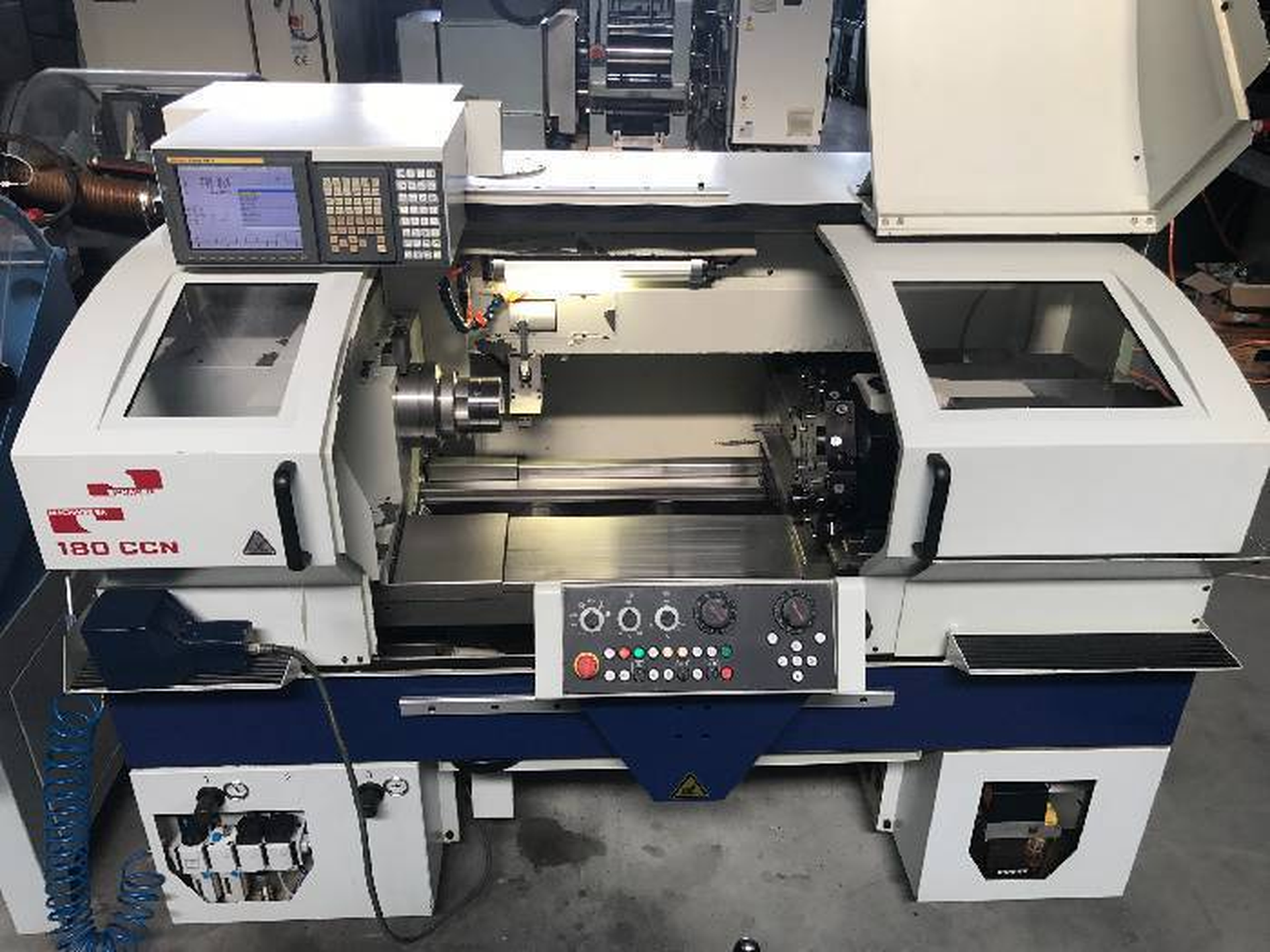

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • 019618 - SCHAUBLIN 180 CCN R-TM
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 275 mm.
Distance between centres: 600 mm.
Swing over cross-slide: 150 mm.
Swing over bed: 600 mm.
Turning length: 610 mm.
Longitudinal travel (Z-axis): 600 mm.
Transversal strocke (X axis): 460 mm.
Resolution: mm.

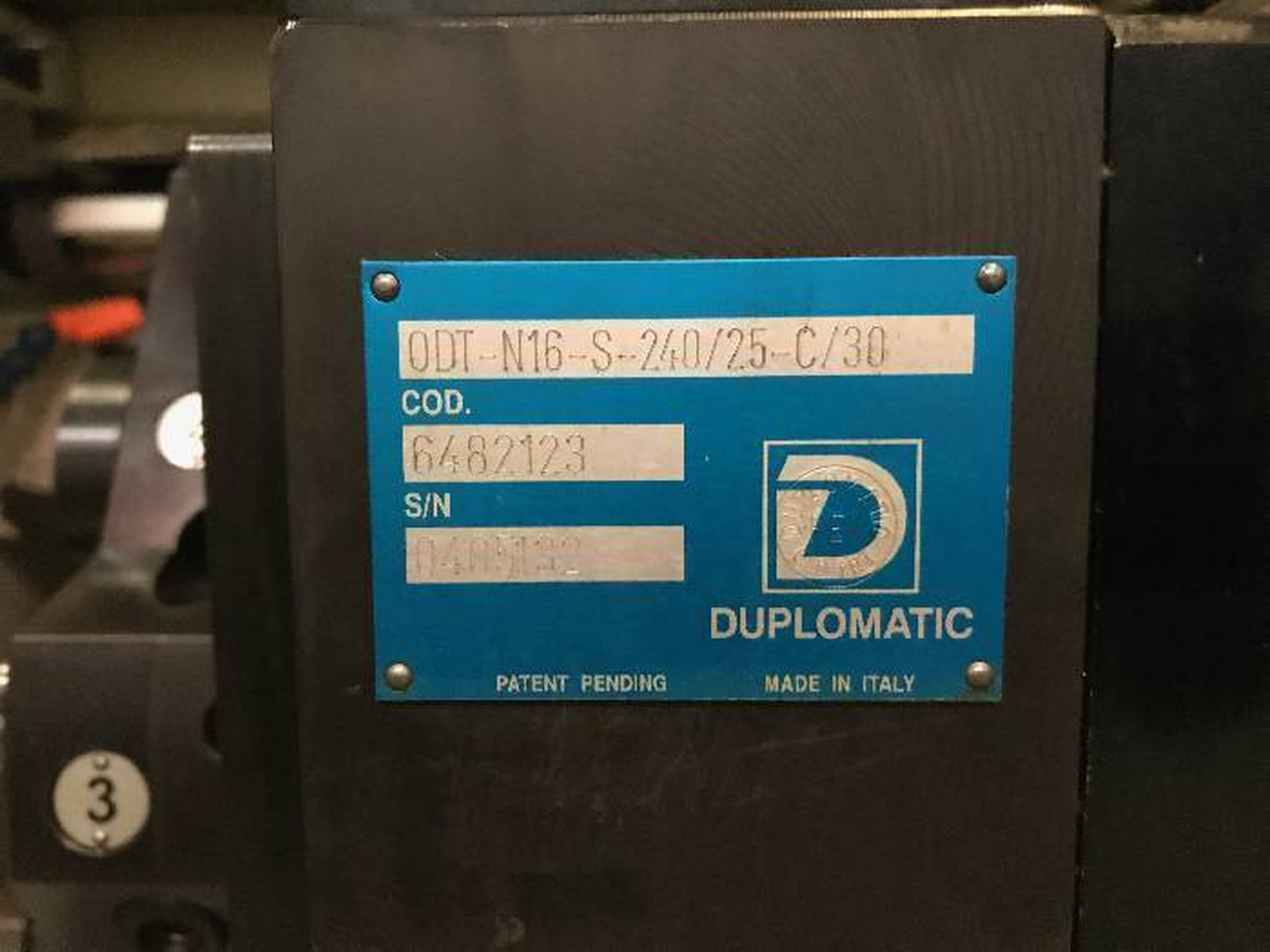

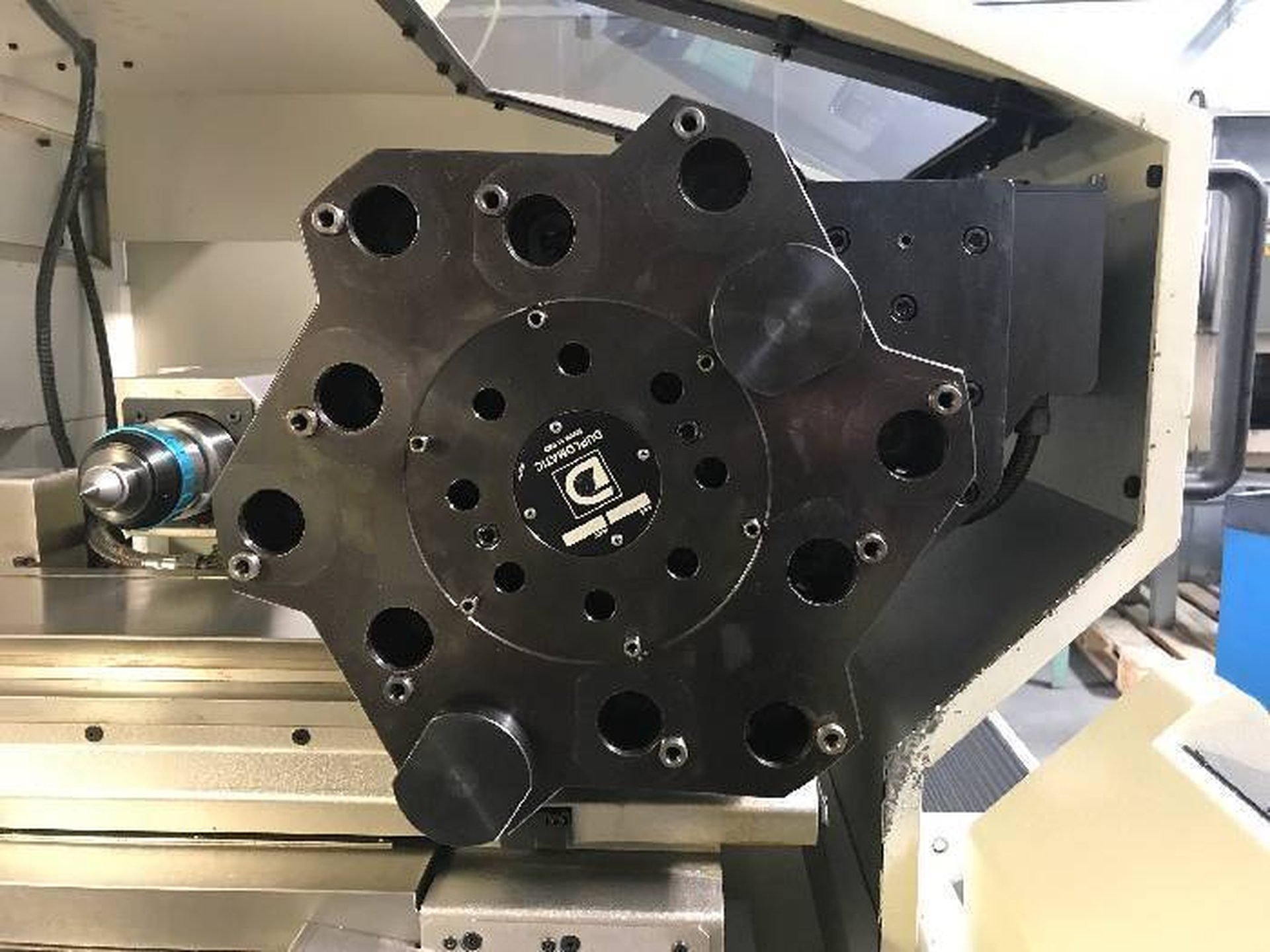

Turret slide: number: 1 "DUPLOMATIC".
Number of positions turret 1: 12.
Fixed tools turret 1: 6.

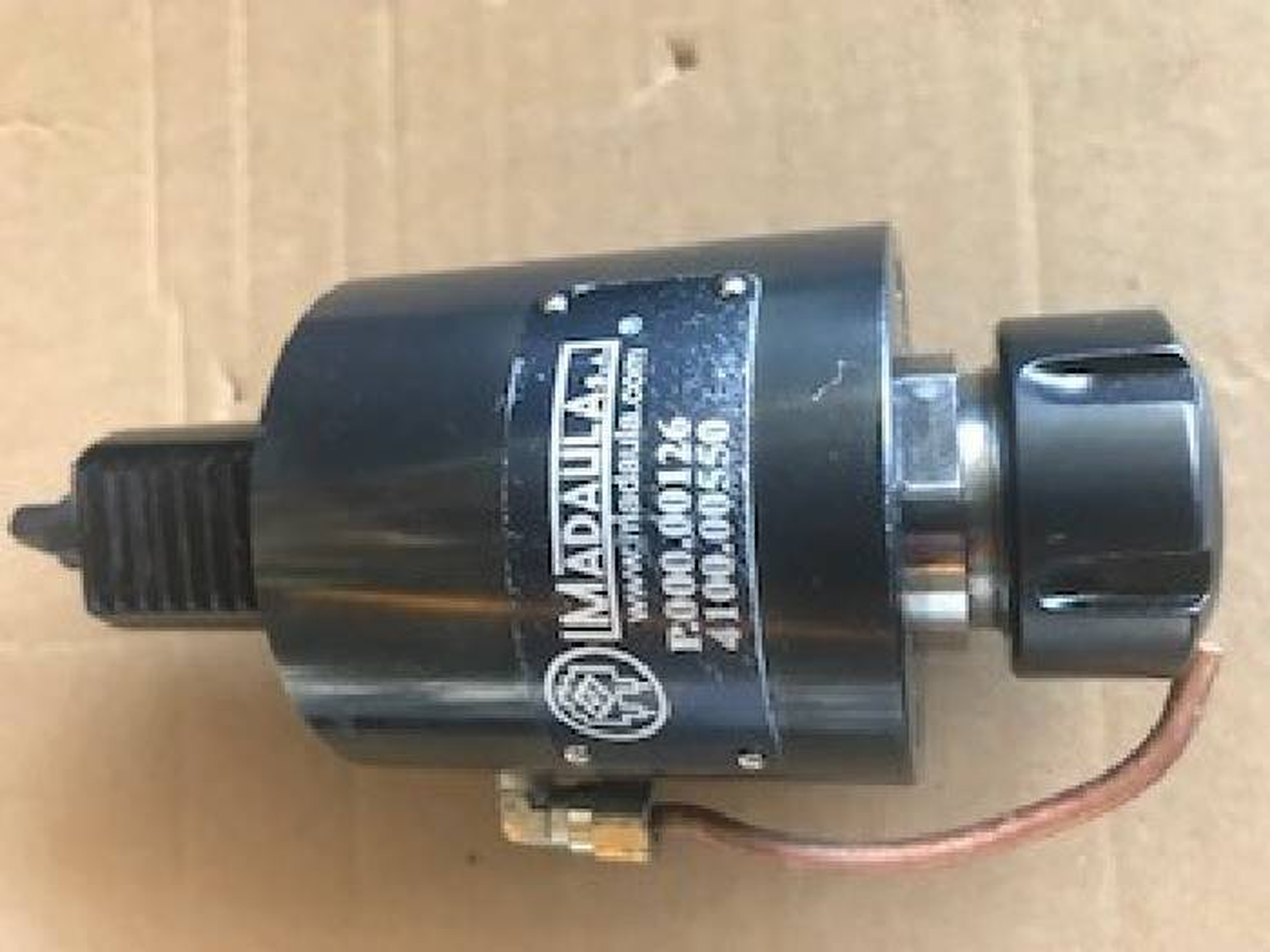

Driven tools turret 1: 6.
Inner cone diameter: 20 x 20 mm.
Inner cone DIN: VDI 30.
Camlock: A2-6.
Inner taper type: F66.

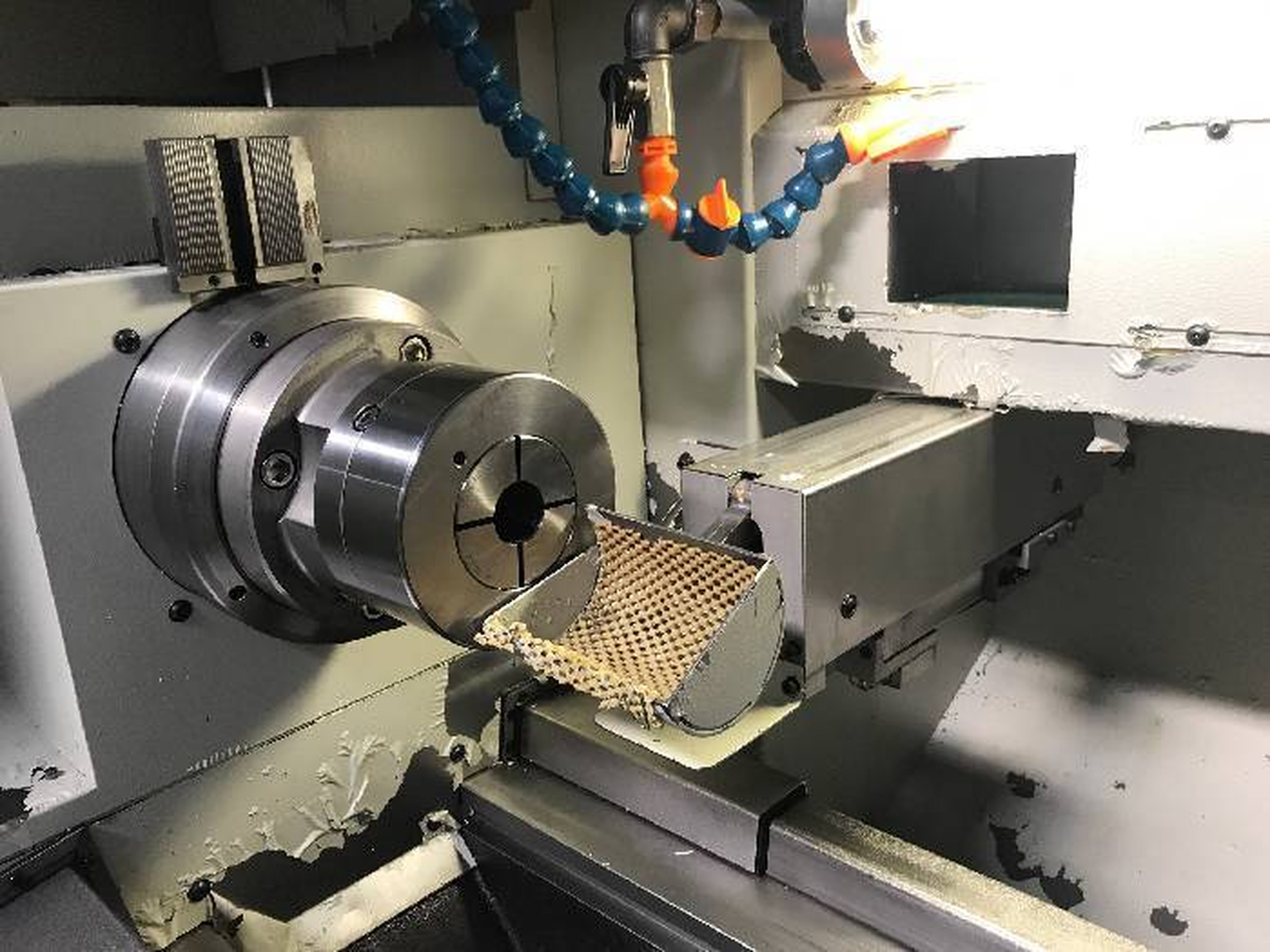

Collet bore: 24 / 36 / 42 mm.
up to: 5000 mm/min.
Internal spindle diameter: 60 mm.
longitudinal from: mm/min.
transversal from: mm/min.
Rapid traverse:: 8 / 10 m/min.
Spindle motor: 15 / 18.5 kW.
Voltage 50 Hz 3x: 380 Volt.
Machine's weight about: 2400 kg.
Length: 2500 mm.
Width: 2500 mm.
Height: 1800 mm.

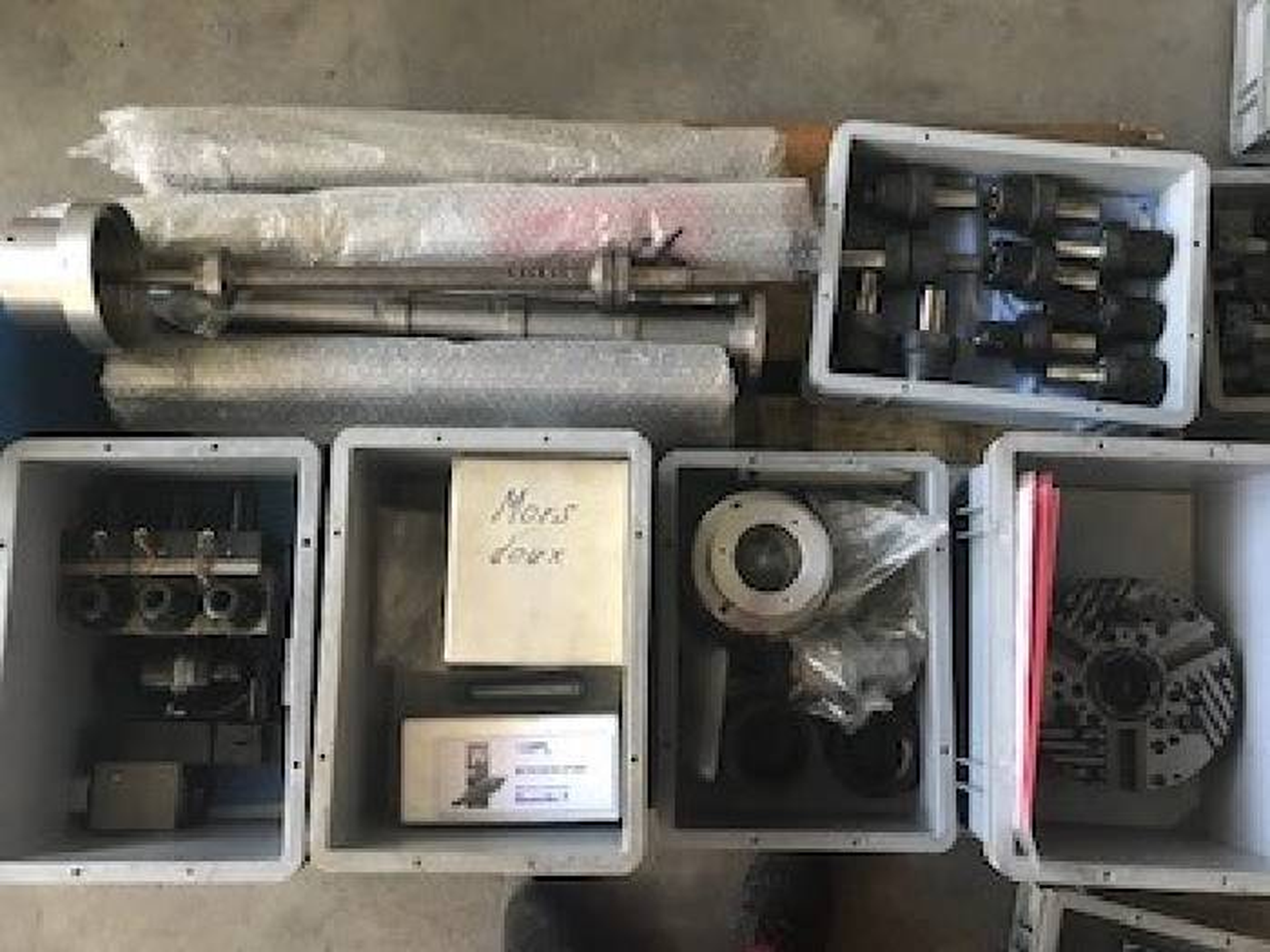

3-jaw chuck diameter: 210 mm.

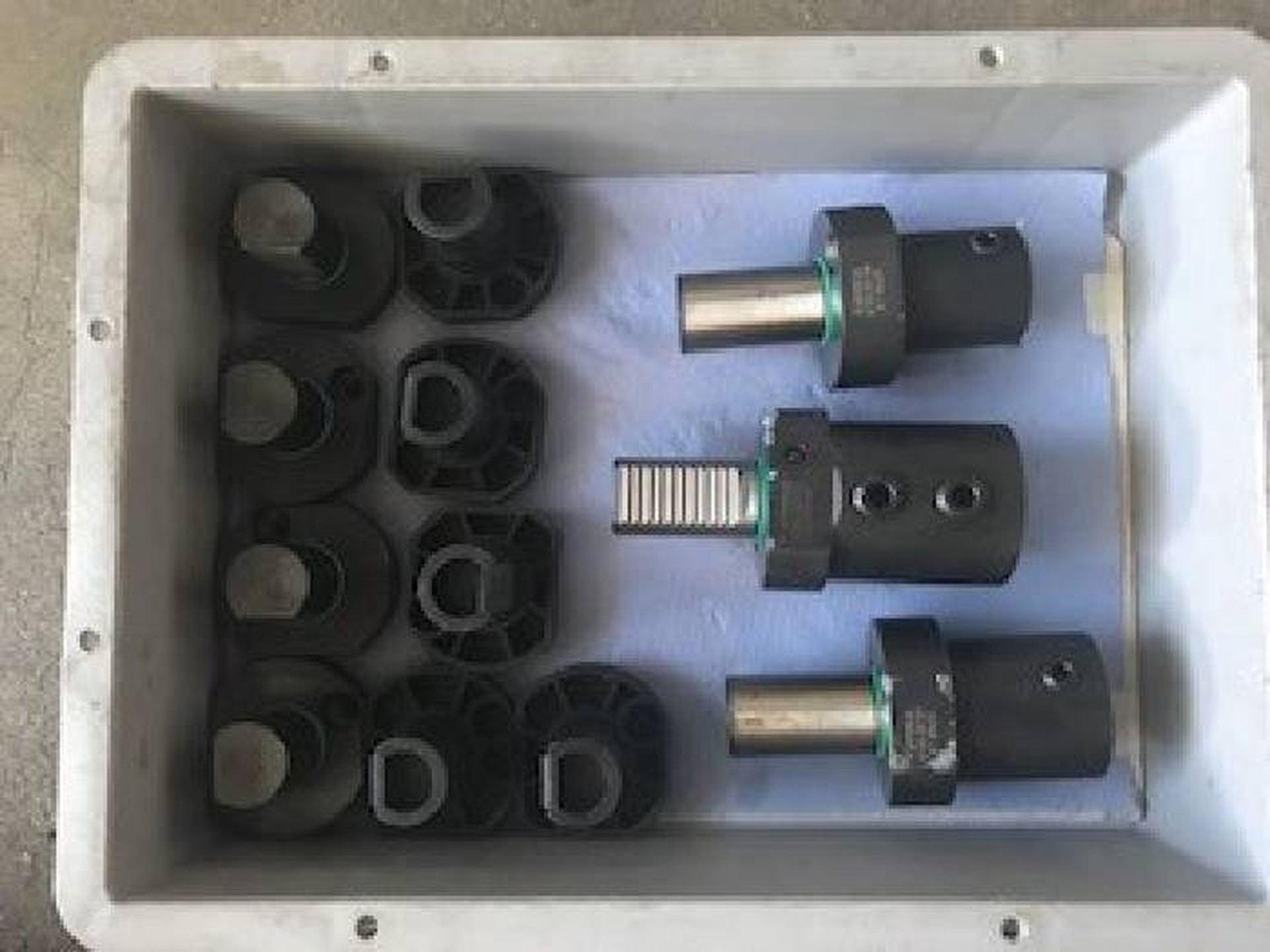

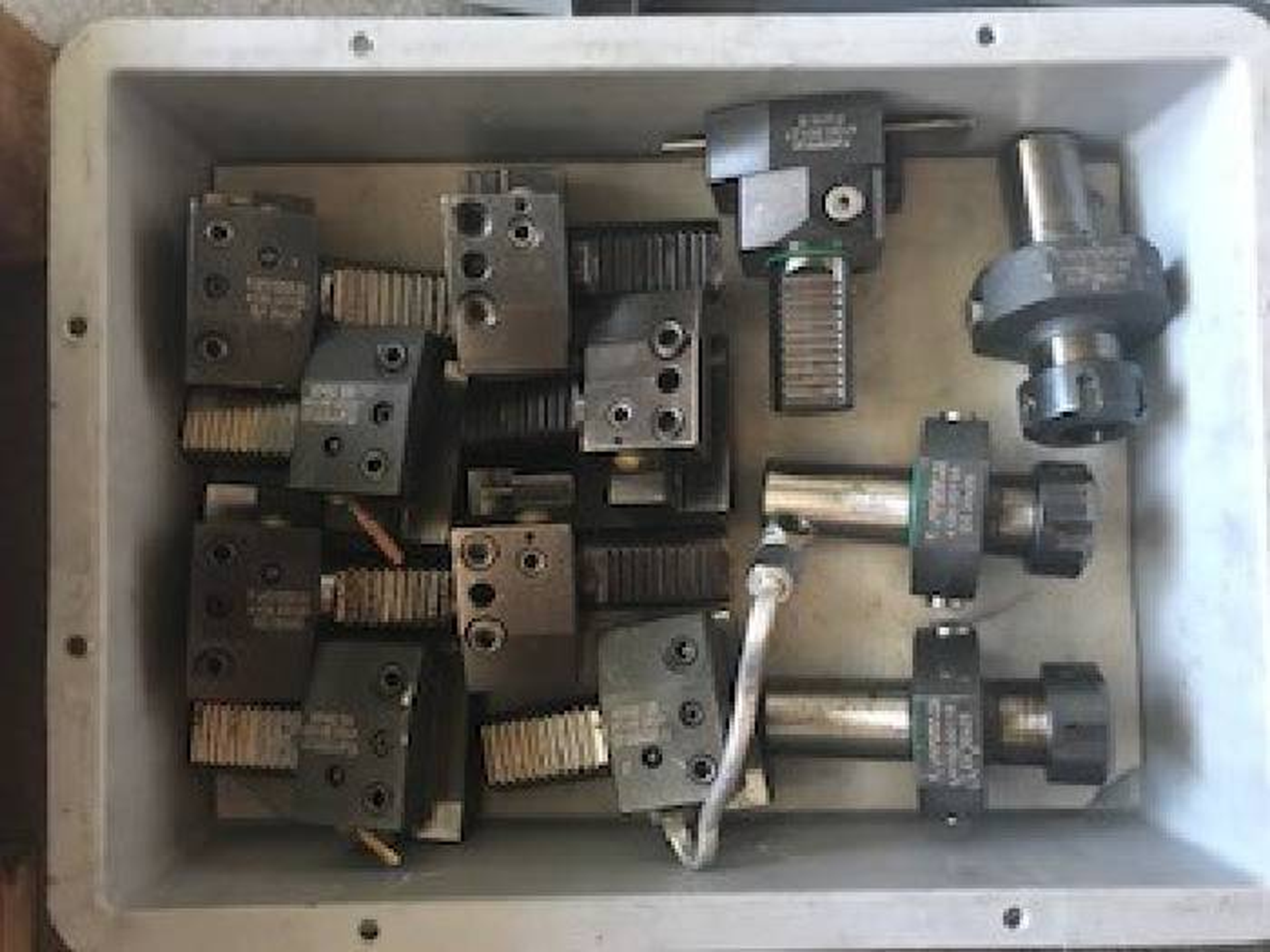

Fixed tool holders: 25 pce.

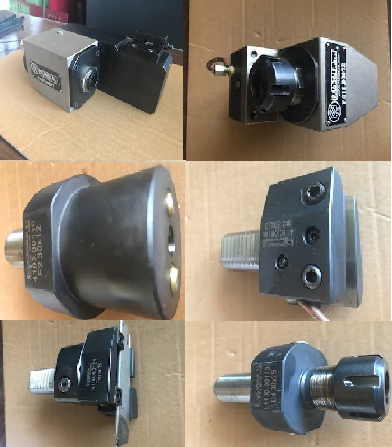

Driven tools (number): 6 pce.

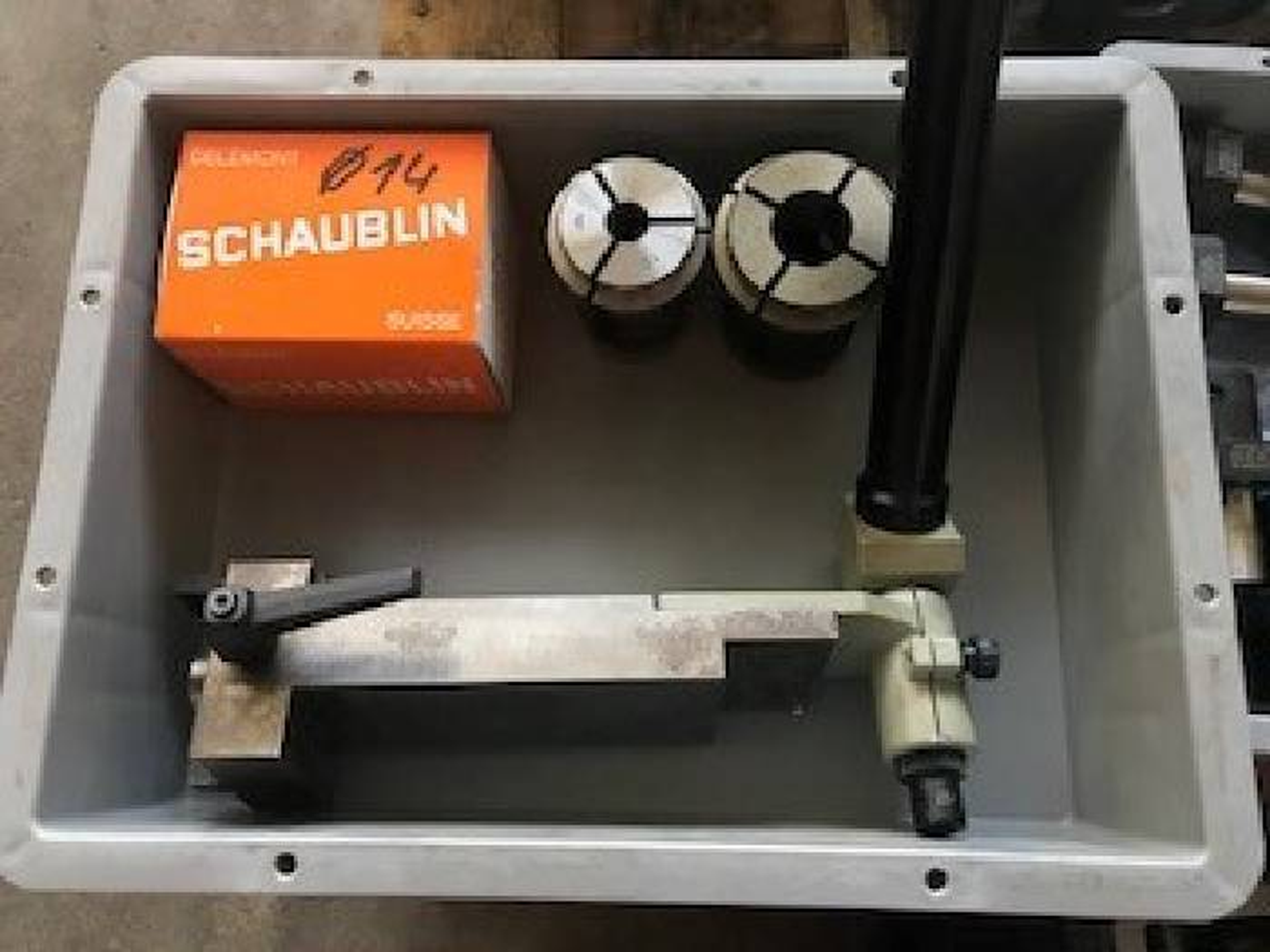

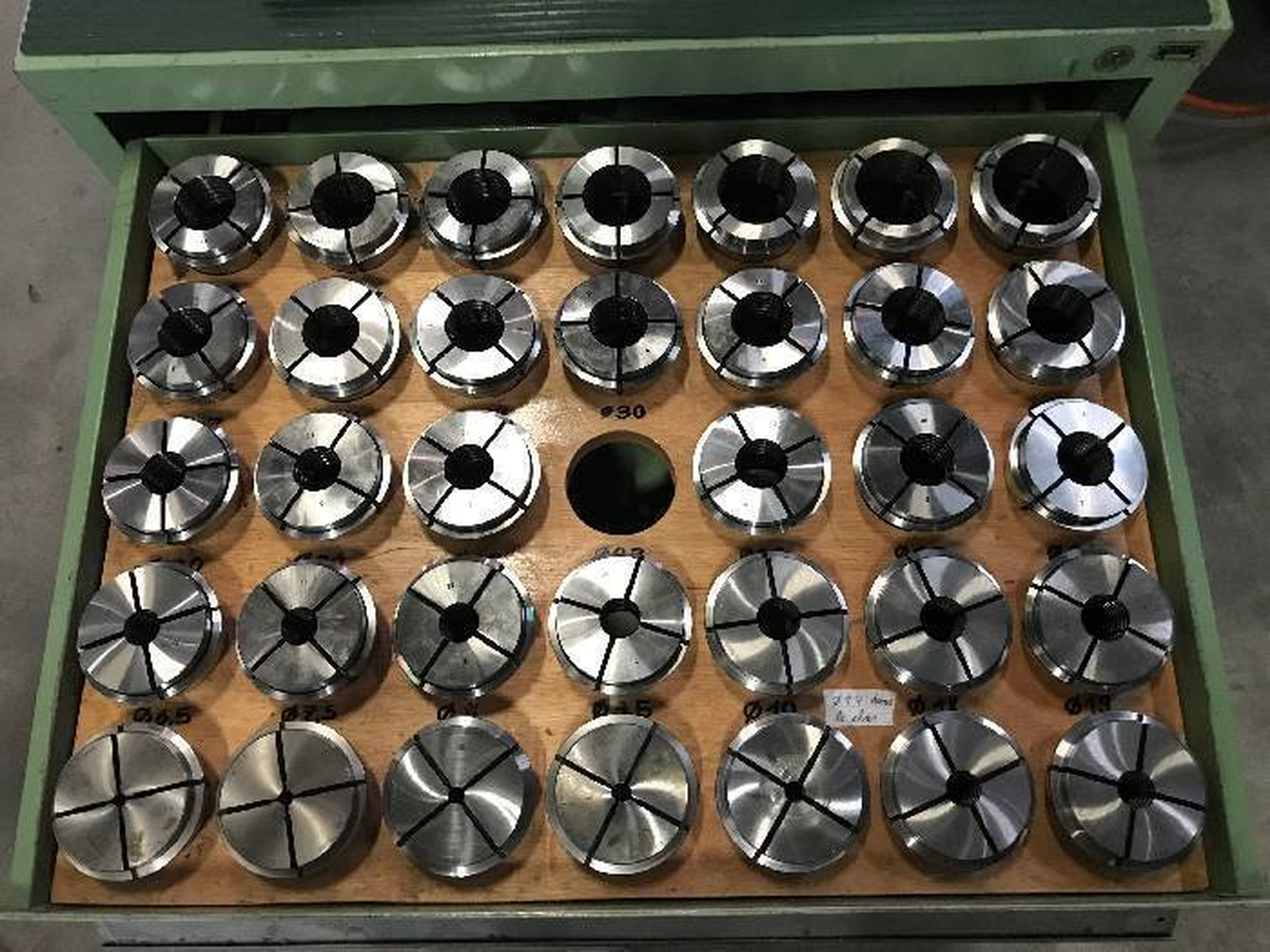

Set of collets: F66 (36x).
