MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • REIDEN
  • Model:

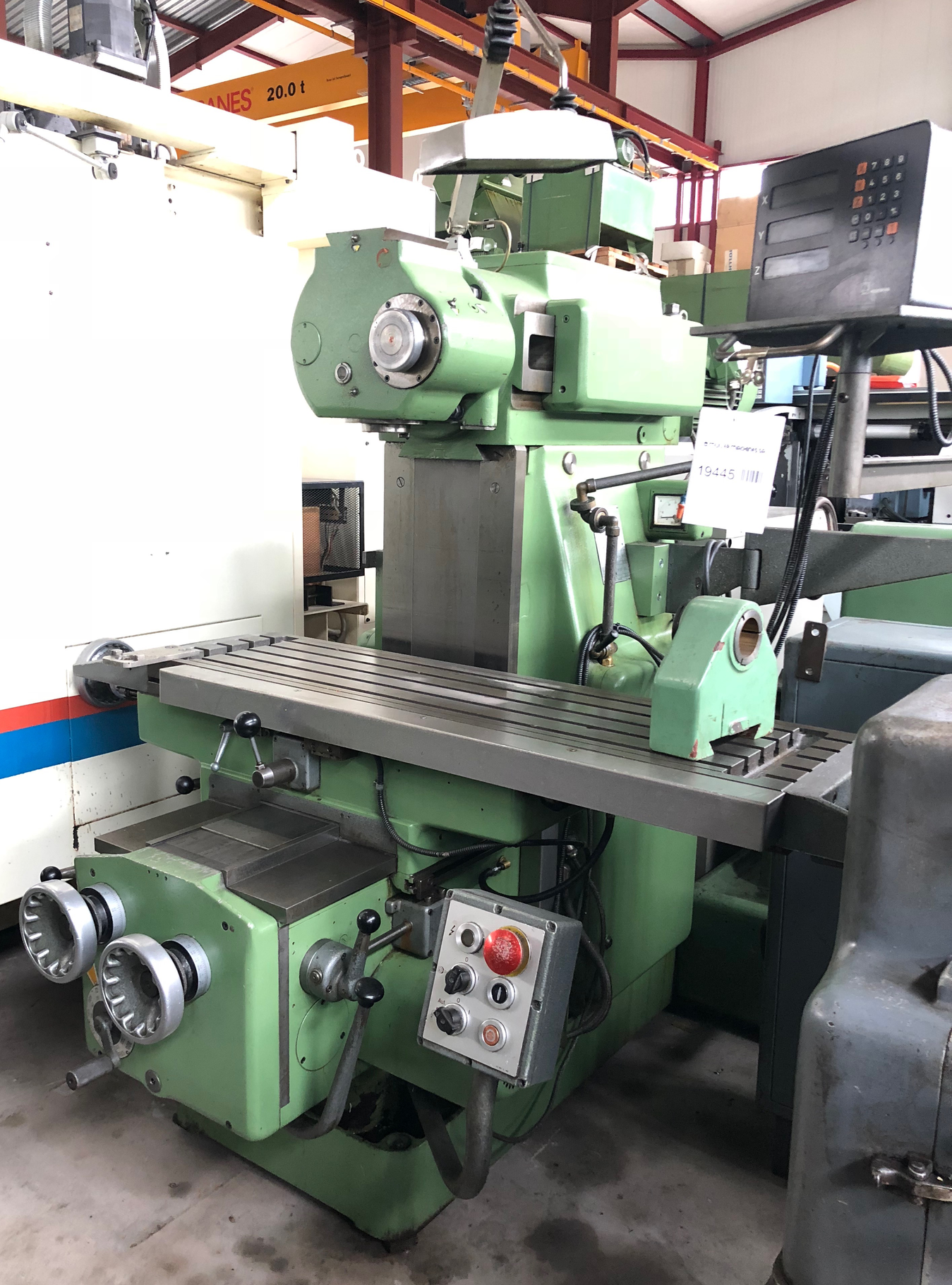

  • 019445 - REIDEN FU 150 A
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 1250 mm.
Table width: 350 mm.
Longitudinal travel (X-axis): 850 mm.
Transversal travel (y axis): 250 mm.
Vertical travel (z axis): 470 mm.
Table load max.: 400 kg.
number (steps): 12.
from: 45 t/min.
up to: 320 mm/min.

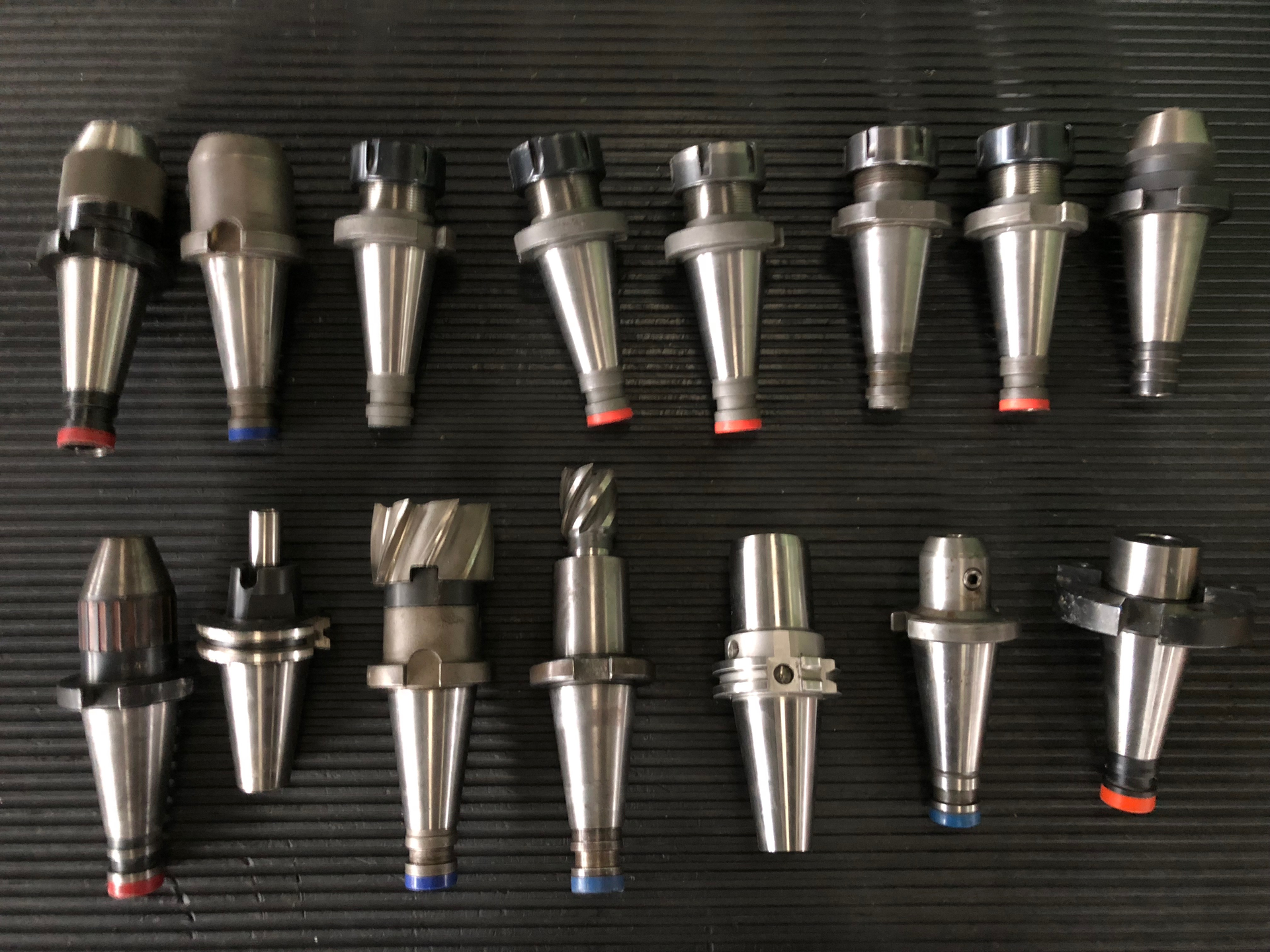

Taper in spindle: 40 ISO.
Feeds steps:: 12.
longitudinal from: 18 mm/min.
transversal from: 18 mm/min.
vertical from: 7.2 mm/min.
longitudinal: 2.70 m/min.
transversal: 2.75 m/min.
vertical: 1.10 m/min.
Voltage 50 Hz 3x: 380 Volt.
Motor output: 10 CV.
Total power required: 7 CV.
Machine's weight about: 1950 kg.
Length: 2000 mm.
Width: 1700 mm.
Height: 2000 mm.
