MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MIKRON
  • Model:

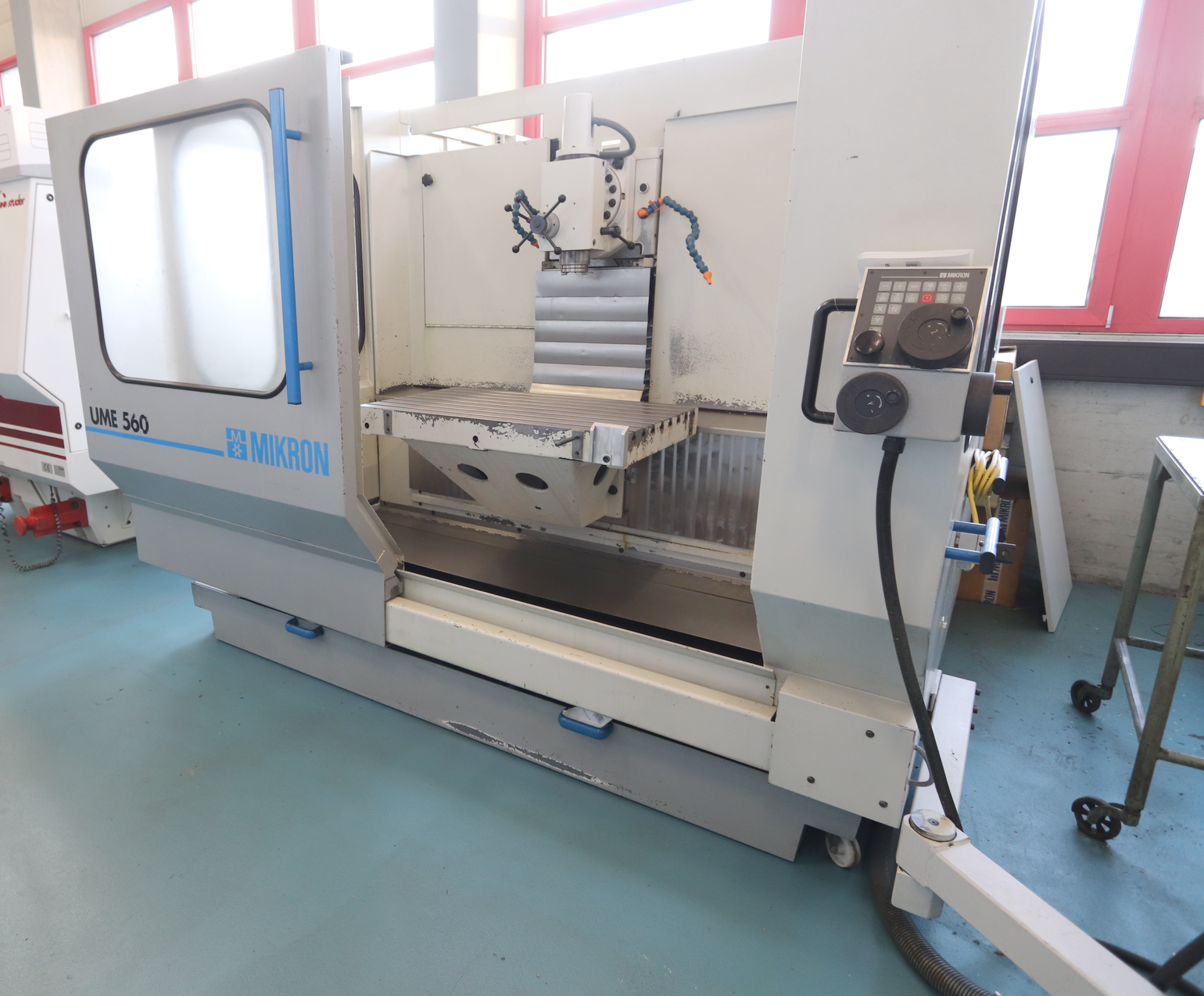

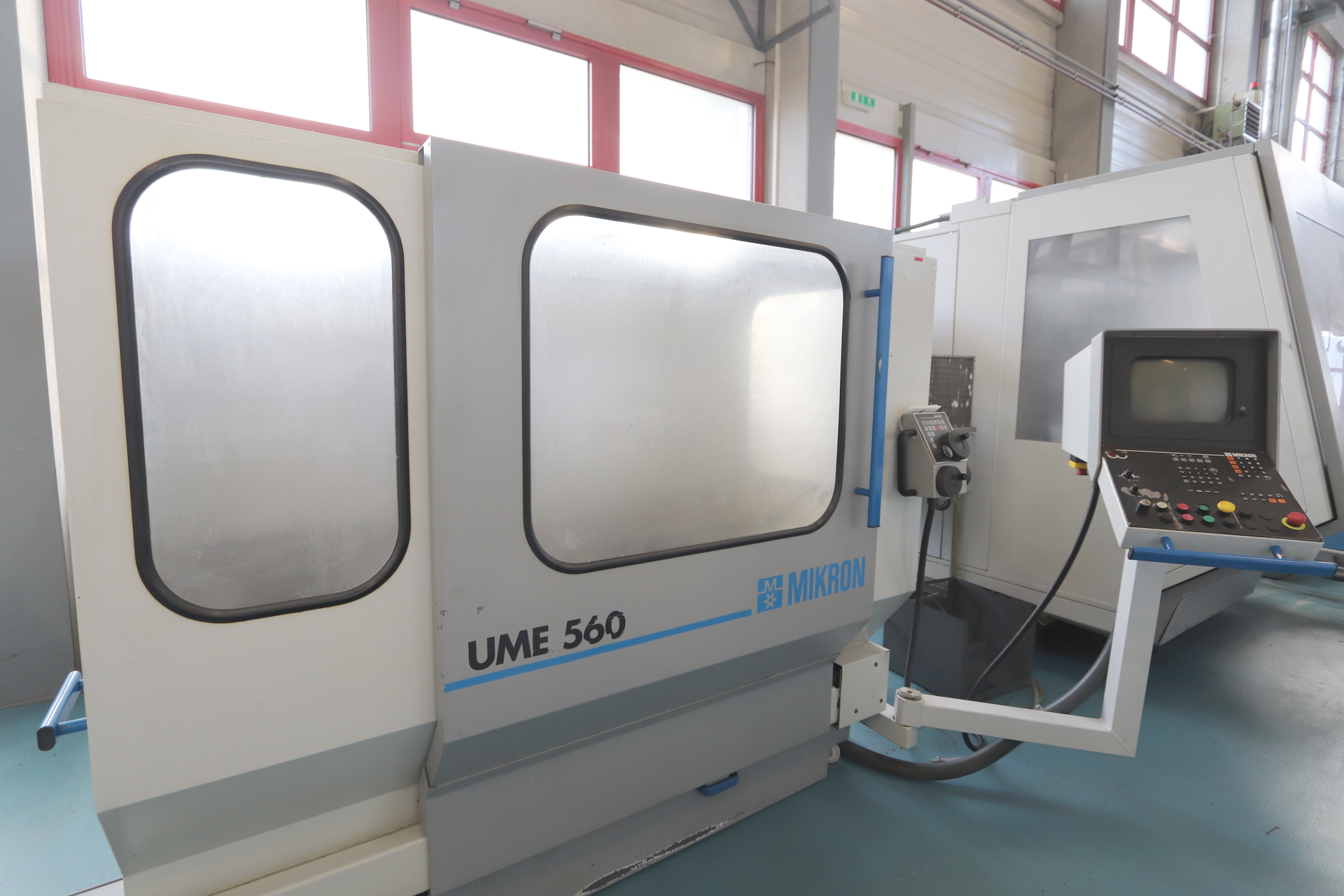

  • 017254 - MIKRON UME 560
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

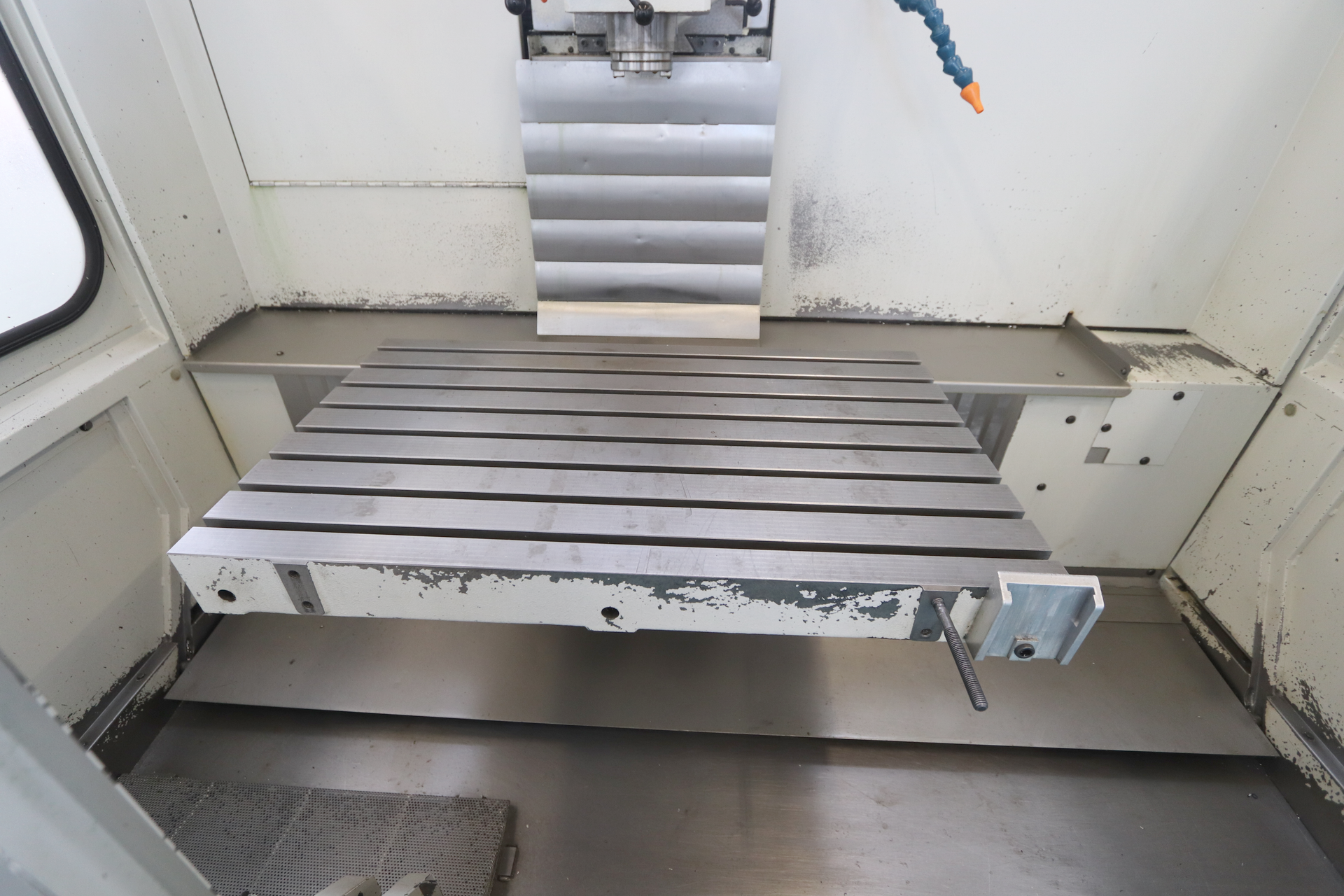

Table length: 900 mm.
Table width: 530 mm.
Longitudinal travel (X-axis): 560 mm.
Transversal travel (y axis): 500 mm.
Vertical travel (z axis): 400 mm.
horizontal from: 5 t/min.
up to: 8000 mm/min.
vertical from: 5 t/min.
Spindle nose: ISO: SK 40 DIN 69871.
longitudinal from: 1 mm/min.
transversal from: 1 mm/min.
vertical from: 1 mm/min.
Rapid traverse:: 10 m/min.
Voltage 50 Hz 3x: 380 Volt.
Machine's weight about: 3350 kg.
Length: 3930 (2625) mm.
Width: 2650 mm.
Height: 2140 mm.
