MACHINE INFORMATION AND SPECIFICATION

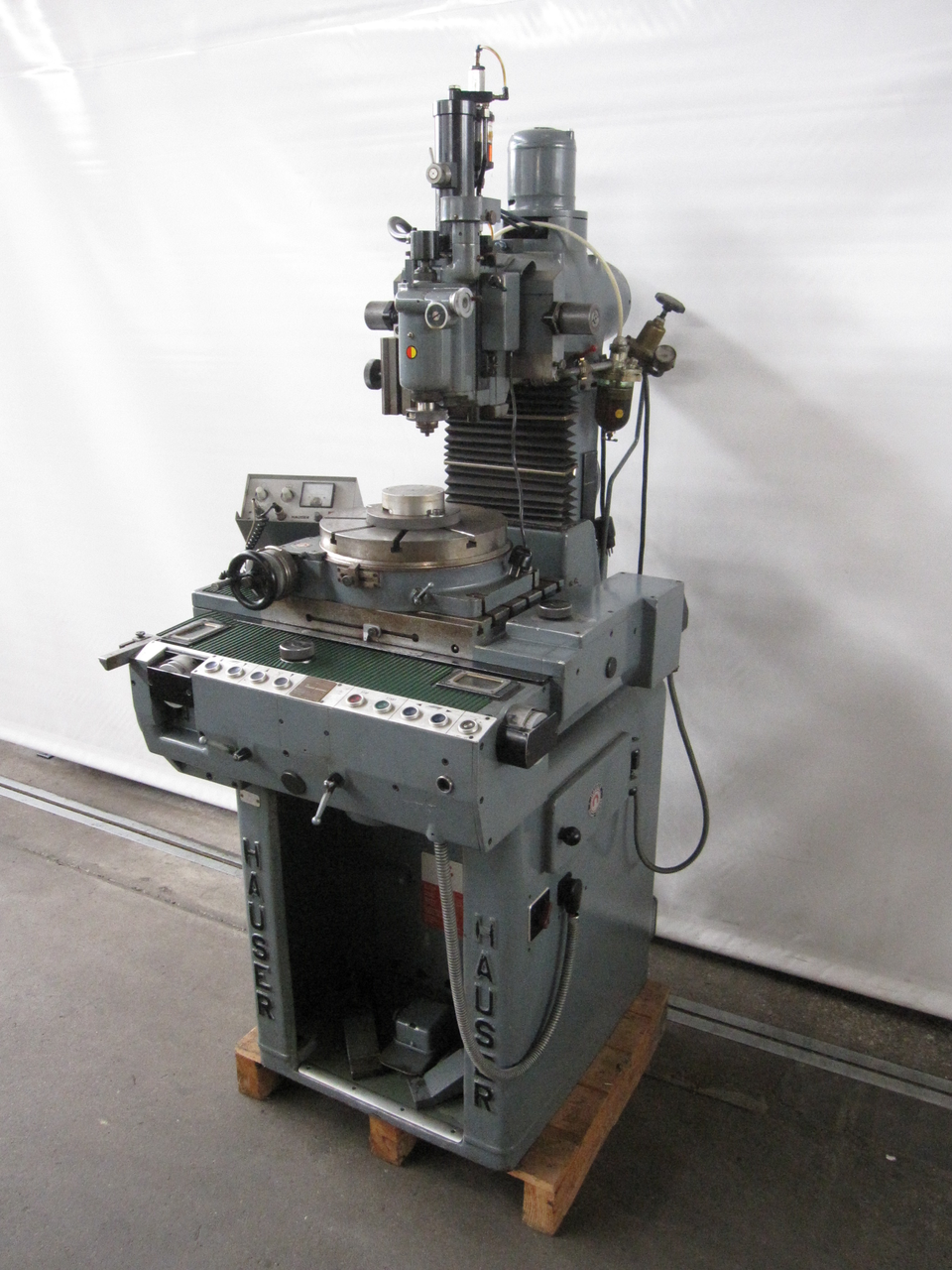

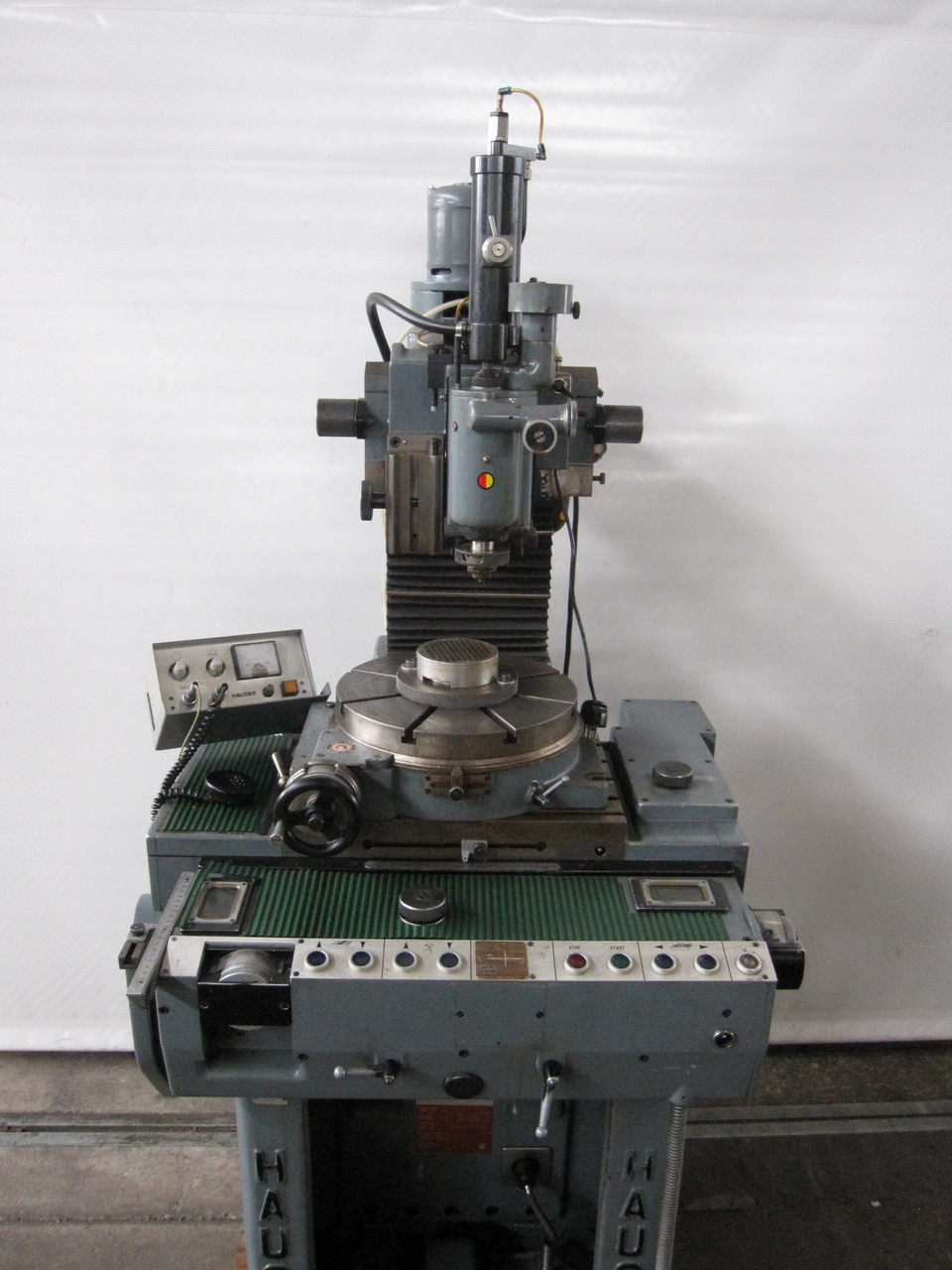

  • Manufacturer:
  • Hauser
  • Model:
  • 011936 - HAUSER 2 SO
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 400 mm.
Table width: 300 mm.
Longitudinal travel (X-axis): 200 mm.
Transversal travel (y-axis): 200 mm.
Travel of the vertical slide: 250 mm.
Passage from grinding motor to table: 270 mm.
Max. grinding diameter: 15 mm.
stepless from: 2 mm.
up to: 120000 t/min.
numbers: 2.
from: 4 m/min.
Voltage 50 Hz 3x: 380 Volt.
Machine's weight about: 750 kg.
Length: 1200 mm.
Width: 900 mm.
Height: 1600 mm.
Rotary table diameter: 300 mm.
