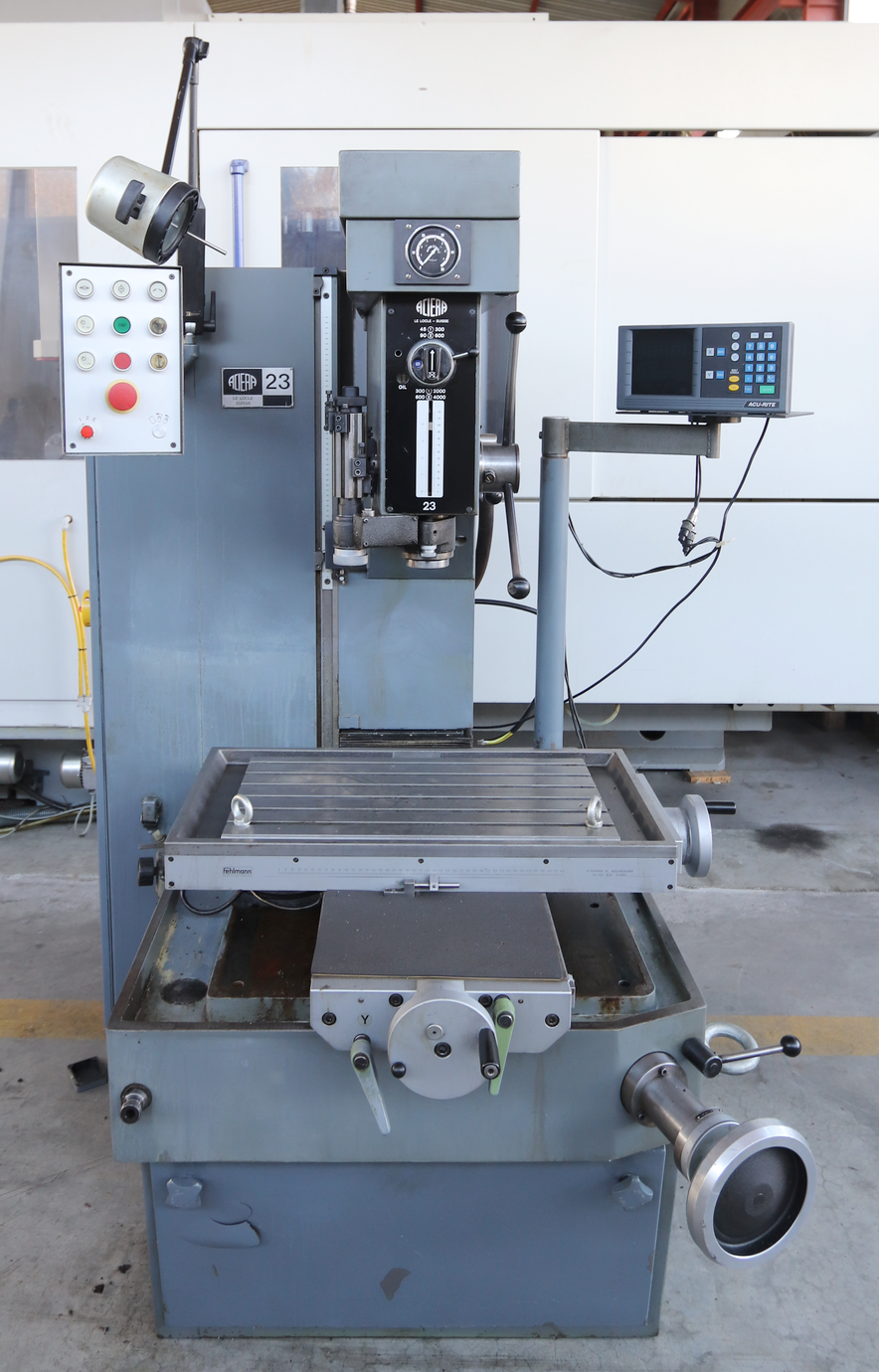

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Aciera
  • Model:
  • 011899 - ACIERA 23
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

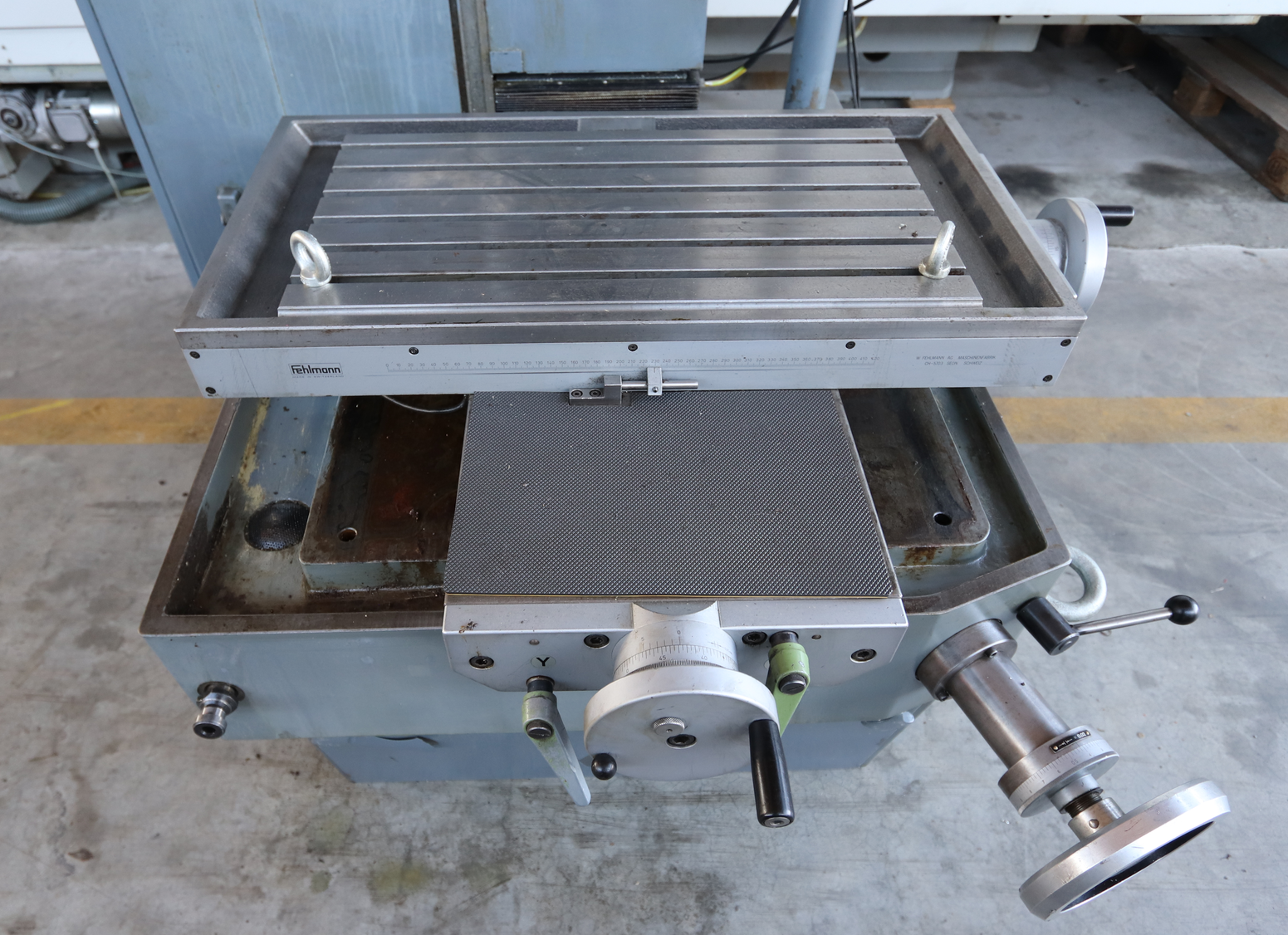

Table length: 760 mm.
Table width: 400 mm.
Length: 1700 mm.
Width: 1400 mm.
T-channel width: 12H8 mm.
Height of table above floor: 810 mm.
Drill capacity in steel: 23 mm.
Threat cutting in steel M: 18.
Drill depth (spindle stroke): 120 mm.
to spindle nose: 110 - 570 mm.
Longitudinal travel (X-axis): 500 mm.
Transversal travel (y-axis): 300 mm.
Vertical travel (z axis): 460 mm.
from: 0.04 mm/t.
up to: 0.6 mm/t.
number (steps): 6.
Voltage 50 Hz 3x: 380 Volt.
Machine's weight about: 2050 kg.
Height: 2100 mm.

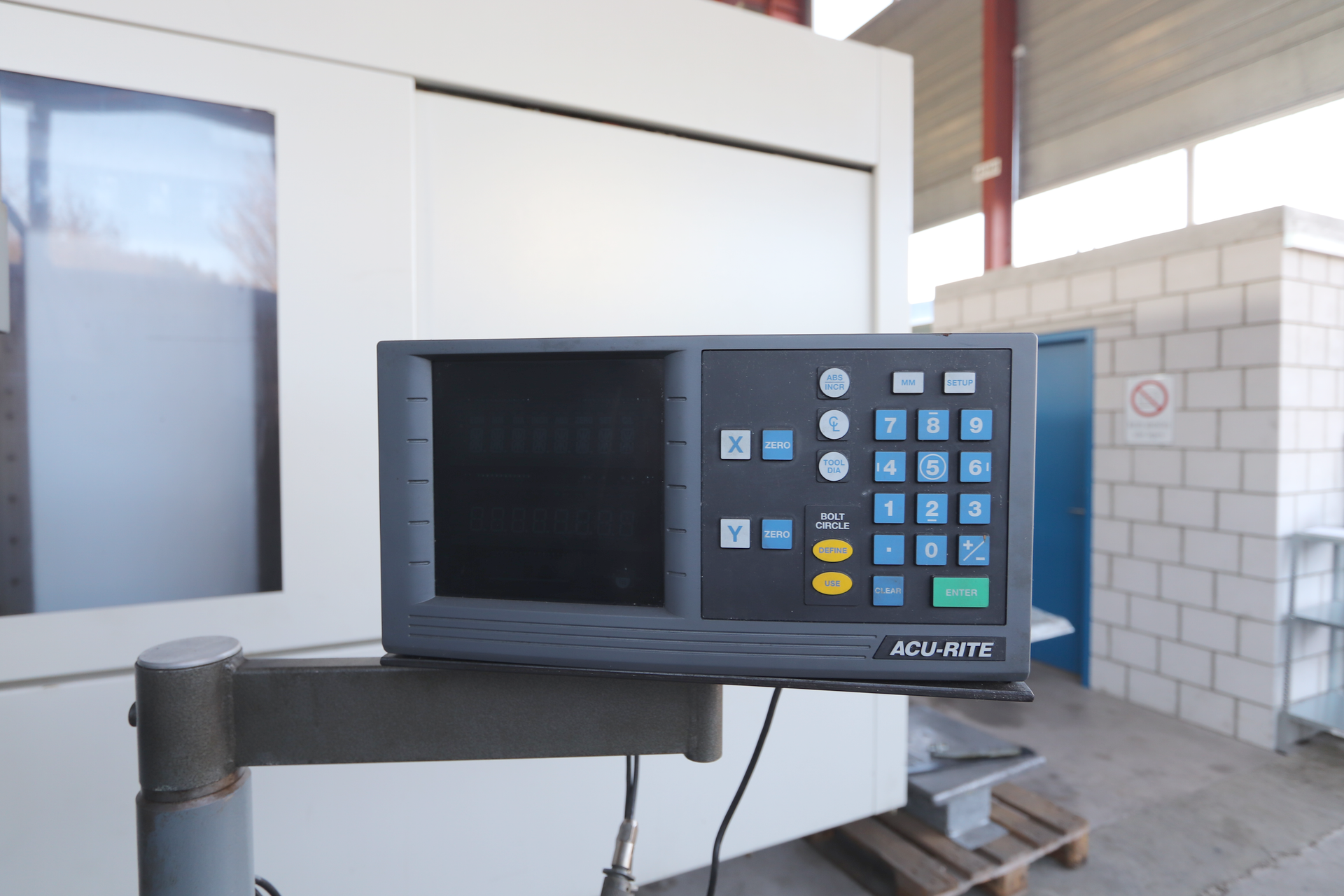

Digital readout number of axis:: 2.
Manufacturer: ACU RITE.
