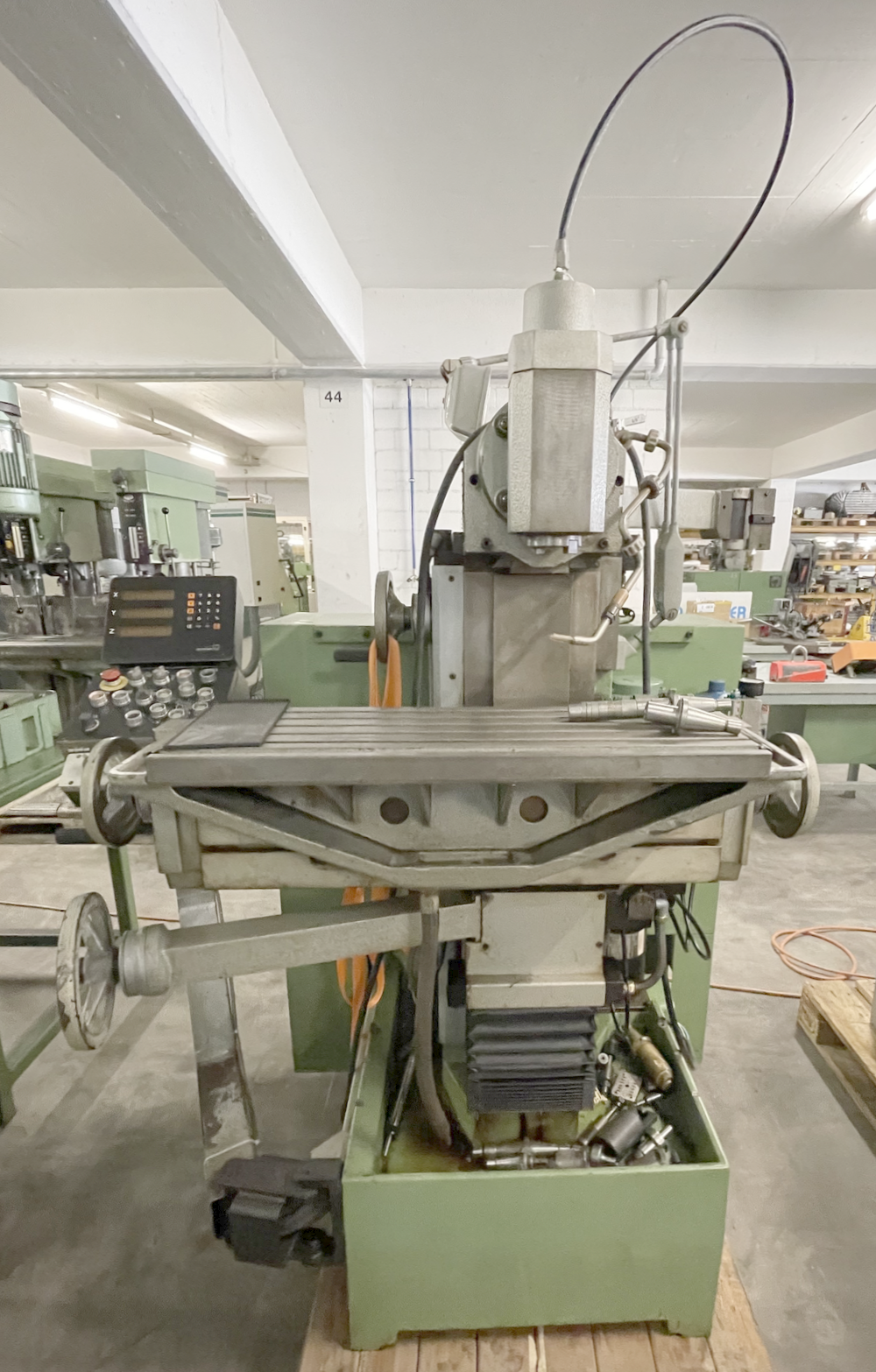

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • 008534 - SCHAUBLIN 213-P
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

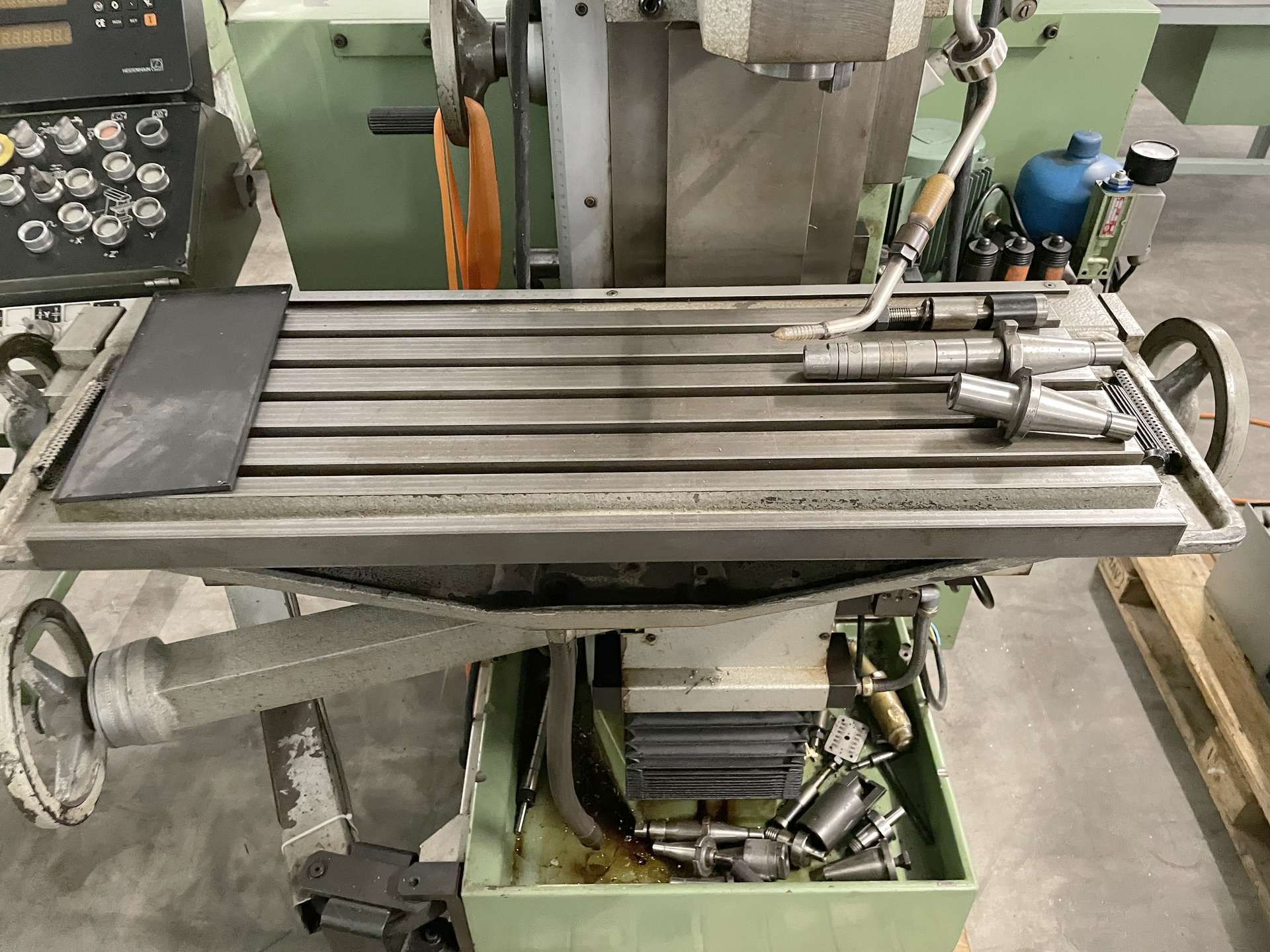

Table length: 700 mm.
Table width: 250 mm.
Longitudinal travel (X-axis): 320 mm.
Transversal travel (y axis): 220 mm.
Vertical travel (z axis): 410 mm.
from: 56 t/min.
up to: 1000 mm/min.

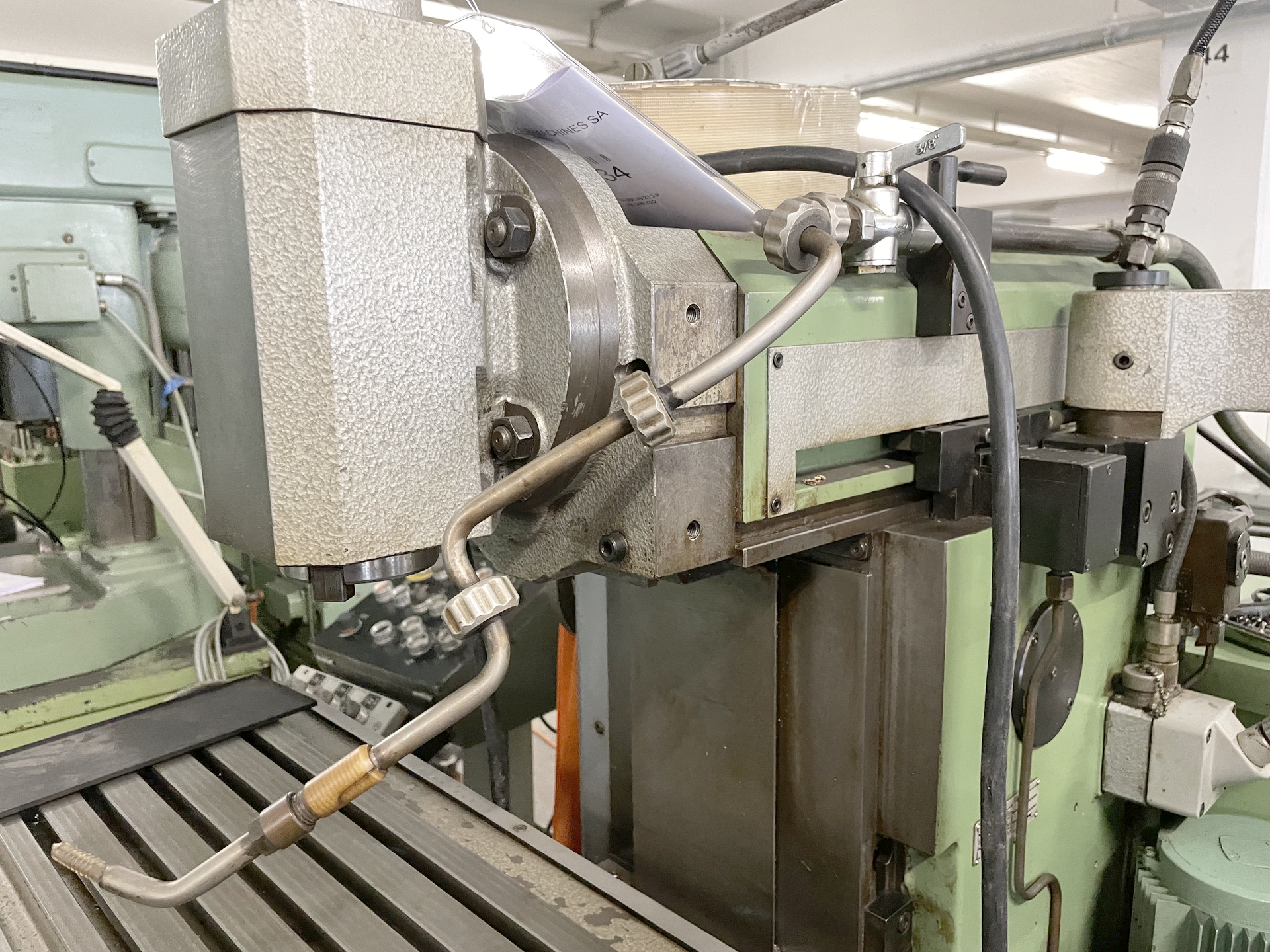

Taper in spindle: 30 ISO.
longitudinal from: 8 mm/min.
transversal from: 8 mm/min.
vertical from: 8 mm/min.
Vertical quill travel: 60 mm.
longitudinal: 2 m/min.
transversal: 2 m/min.
vertical: 2 m/min.
Voltage 50 Hz 3x: 380 Volt.
Motor power: 1.8 kW.
Total power required: 3 kW.
Machine's weight about: 1000 kg.
Length: 1800 mm.
Width: 1200 mm.
Height: 1500 mm.

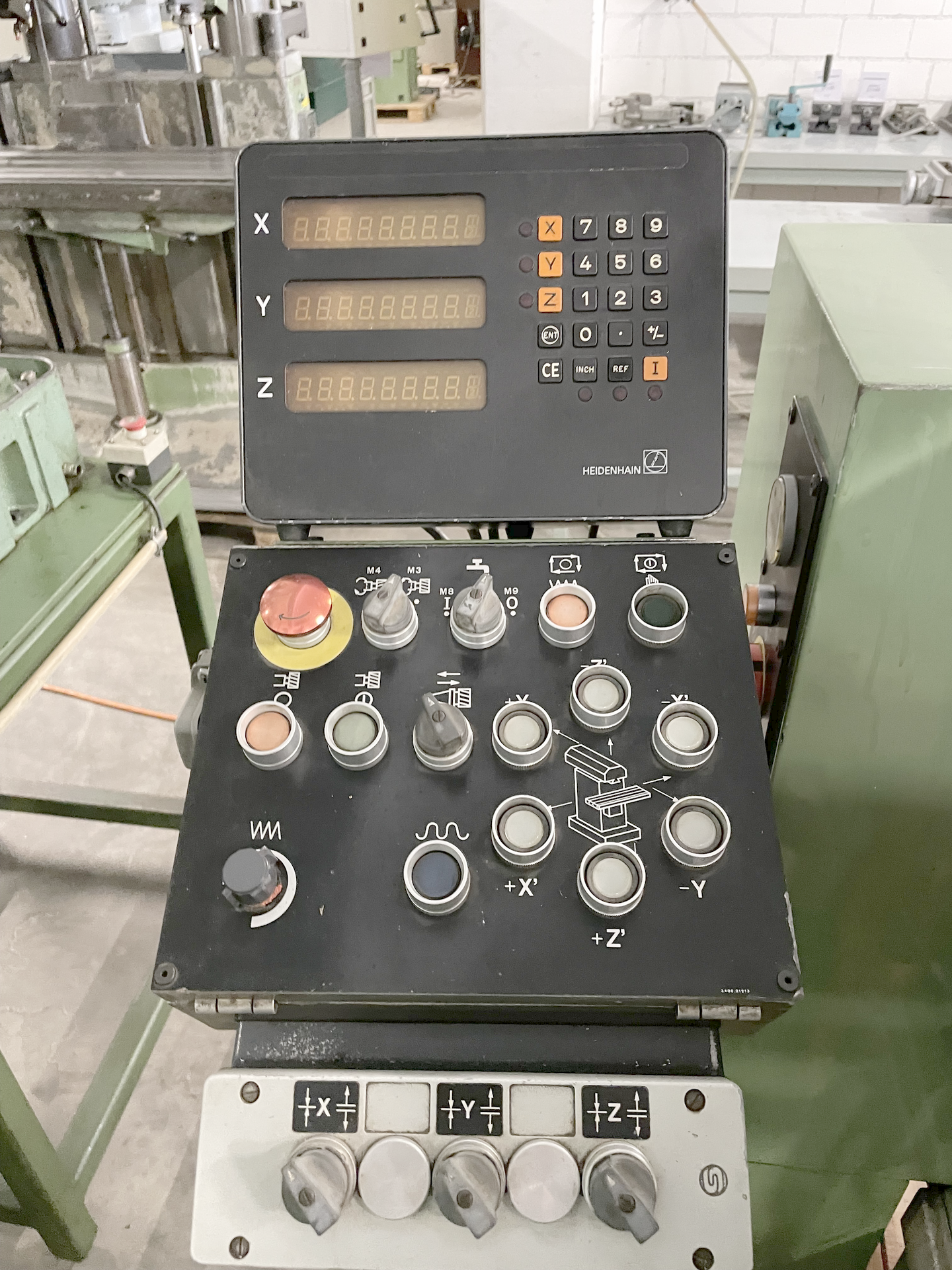

Digital readout number of axis:: 3.
Manufacturer: HEIDENHAIN.
