MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DECKEL
  • Model:

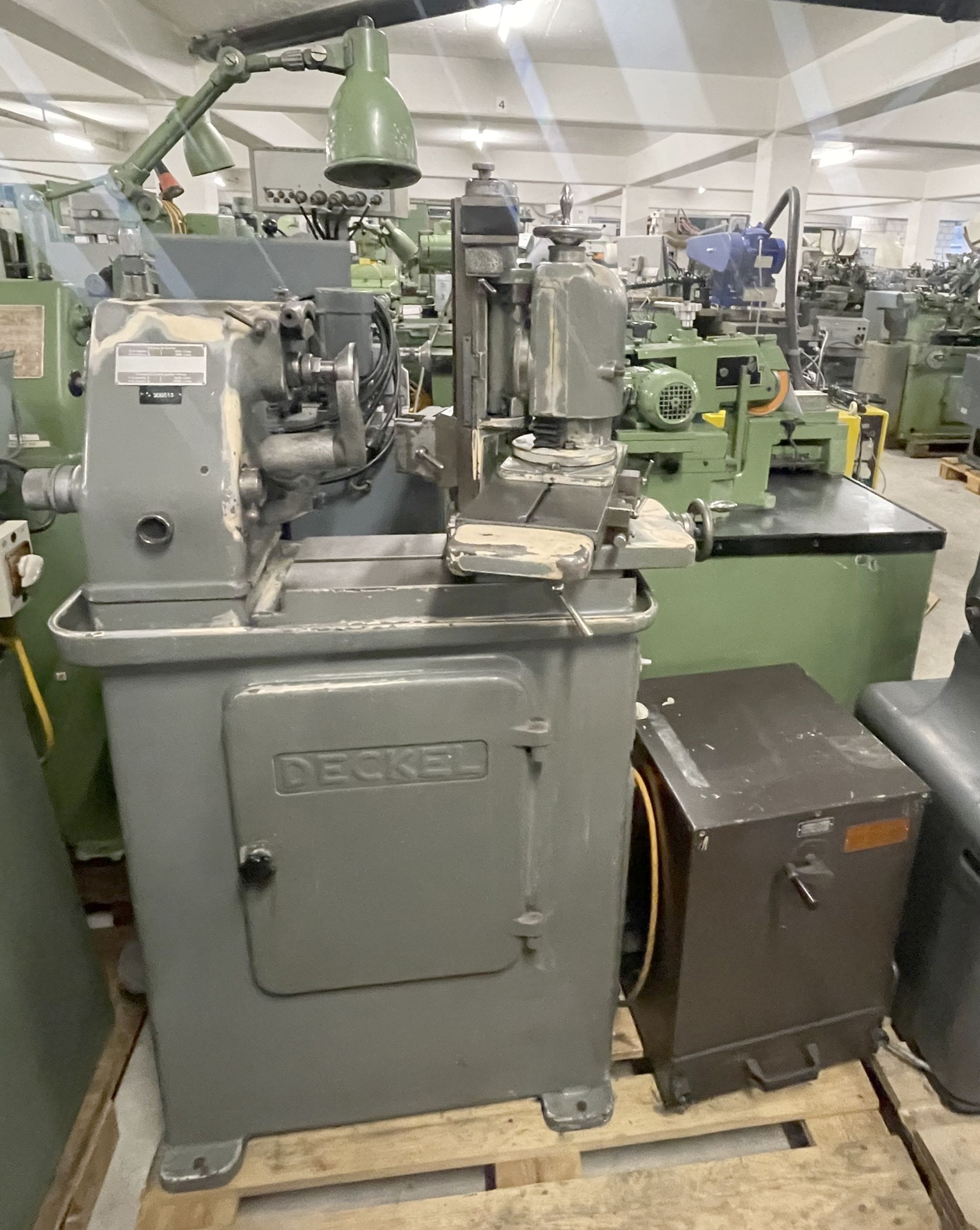

  • 006983 - DECKEL SVK (S1)
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 95 mm.
Distance between centres: 250 mm.
Table length: 450 mm.
Table width: 175 mm.
Max. grinding diameter: 130 mm.
Transversal way of the table: 260 mm.
Vertical adjustment of the table: 50 mm.
Vertical adjustment of grinding head: 50 mm.
Table swivels: 360 °.
horizontal: 360 °.
vertical: 220 °.
number (steps): 2.
from: 3750 t/min.
up to: 7500 t/min.
Voltage 50 Hz 3x: 380 Volt.
Total power required: 1 CV.
Machine's weight about: 450 kg.
Length: 1000 mm.
Height: 1500 mm.
Vice: width: mm.
