LEADWELL
06770
CNC FANUC O-M
TABLE:
-Table dimensions mm 1400x640
-Max load Kg 700
STROKES:
-Axis X mm 1020
-Axis Y mm 510
-Axis Z mm 610
-Distance between spindle nose/table mm 160-770
SPINDLE:
-Spindle taper 7/24(#40)
-Spindle speed rpm 80-8000
-Mo...

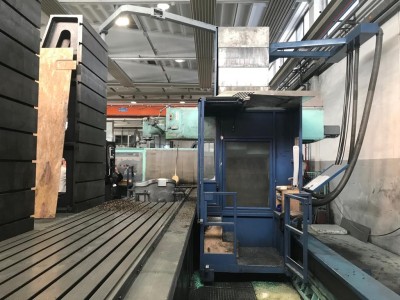

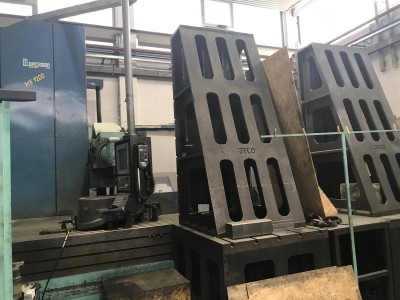

Cross travel 2,000 mm.
Table 2,500 x 960 mm.
Vertical stroke 1,300 mm.
Longitudinal stroke 1,500 mm.
RAM stroke 1,000 mm.
Spindle cone 50 ISO
Spindle motor power 20 Kw.
Spindle rotation speed 0 ?? ÷ 2,500 Rpm.
Total weight 20 Tons.

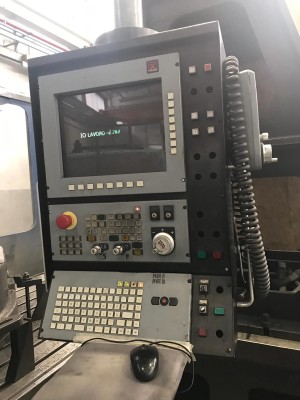

cnc SELC...
CAMS
08800
Adjustable tool stroke from 0 to 200 mm
Distance between column and tool holder mm 350
Distance between rotary table and head 360 mm
Vertical movement of the ram 370 mm
Rotary table dimensions (manual A axis) diam. 320 mm
Longitudinal stro...
