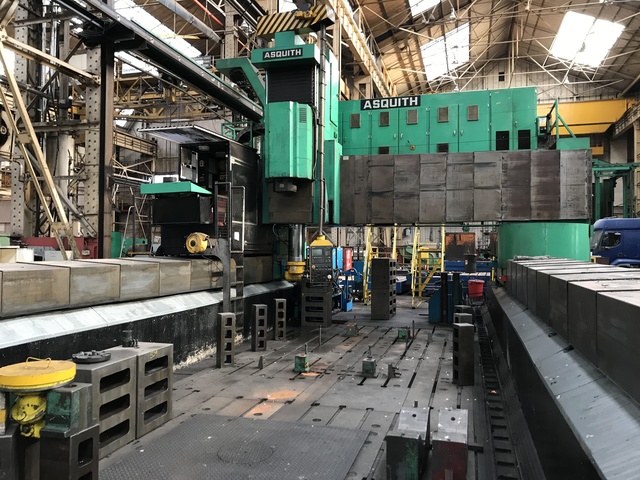

Siemens 850 control
Floor plate table
13,000mm x 3,660mm
Travel X 14,000mm
Between columns 4,850mm
60 ATC position
Main motor 63kW
Milling head
attachments
KIHEUNG
06971
BED TYPE
CNC HEIDENHAIN iTNC 530
TABLE:
-Table dimensions mm 3600x900
-T-slots (n.xwidth) 6x22H7
-Distance between T-slots mm 125
-Max table load kg 13.000
STROKE:
-Longitudinal stroke mm 3100
-Cross stroke mm 1000
-Vertical stroke mm 1...
TCS
10163
Clamping force 200 ton
Opening force 85 ton
Sliding table dimensions 3.000 x 2.300 mm
Table stroke 2.320 mm
Max weight on sliding table 60 ton
Max weight on tilting table 30 ton
Upper table rotation 115°
Max daylight between platens 2.750 ...
