MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • WEINGARTEN
  • Model:
  • WEINGARTEN
  • Condition:
  • Used
  • YOM:
  • 1970
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

  • Press capacity: 30 ton
  • Throat depth: 160
  • Ram stroke adjustable: 20 - 45 mm
  • Slide adjustment: 10 / 60 mm
  • Shut height (stroke down, adjustment up): 220 mm
  • Table surface area : 470 x 300 mm
  • Slide area: 250 x 190 mm
  • Number of strokes: 80 - 240 s.p.m.
  • Required power: 4 kW
  • Dimensions L x W x H: 1.400 x 1.800 x 2.000 mm
  • Weight of machine approx.: 2,67 ton

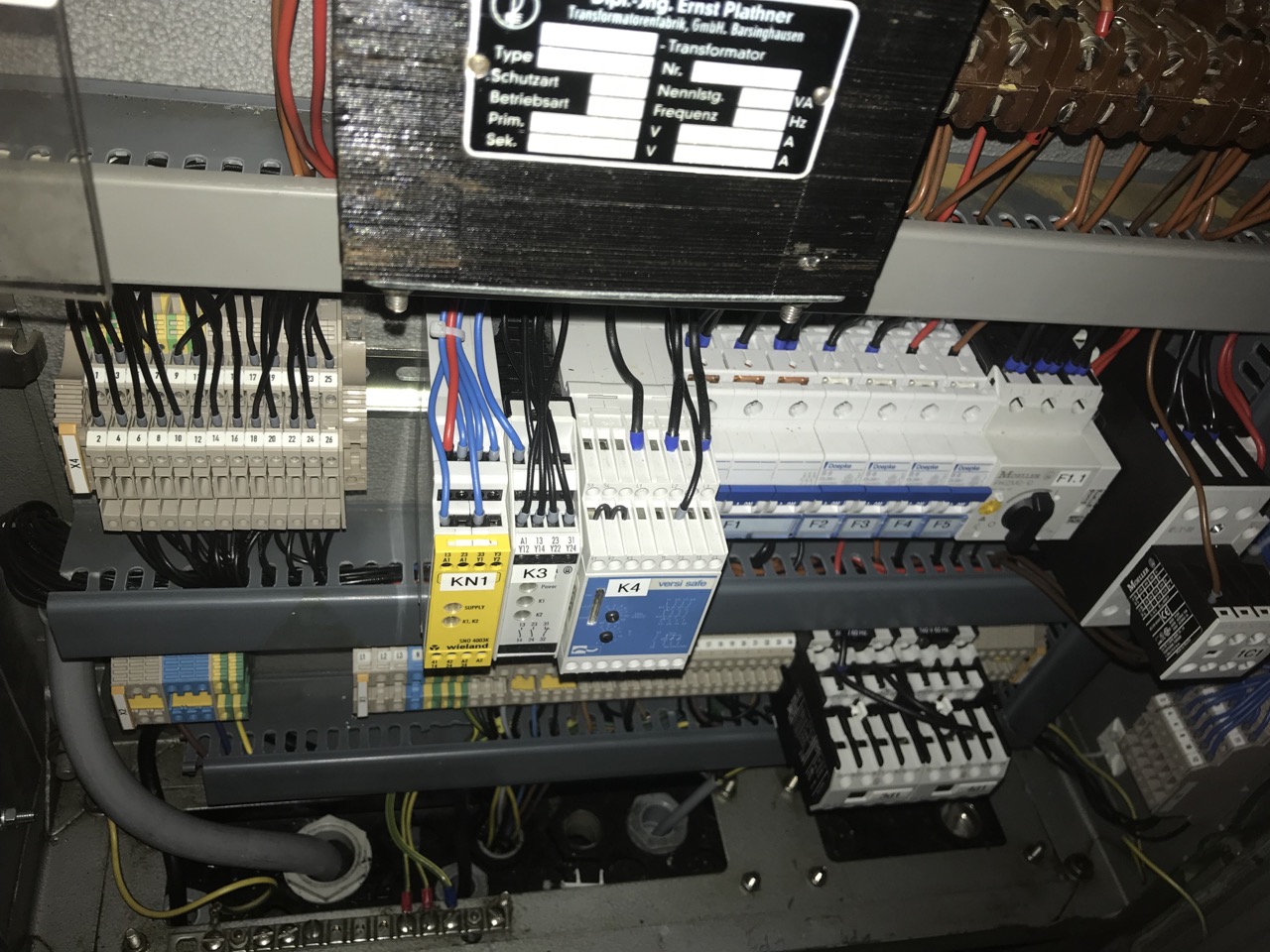

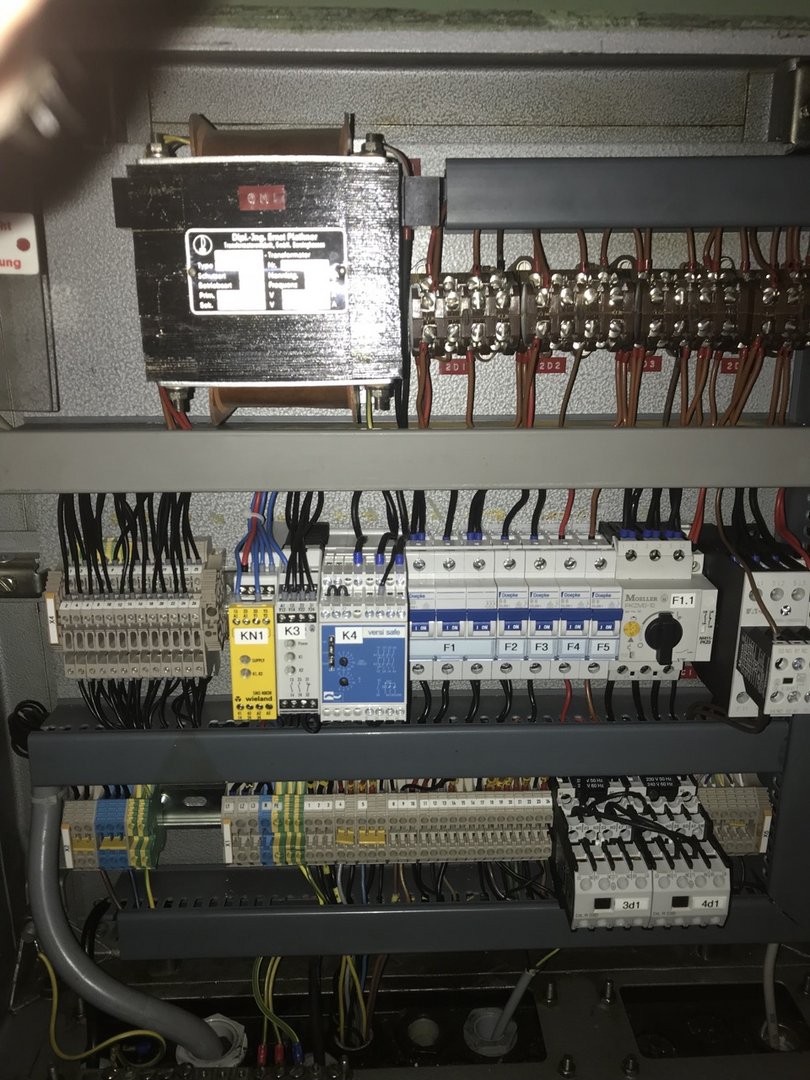

  • Standard configuration: the electric is new from 2015.
