Home > Spares & Accessories > Machine Vices Go Back
REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Biglia
  • Model:
  • LATHE BIGLIA B 501Y
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

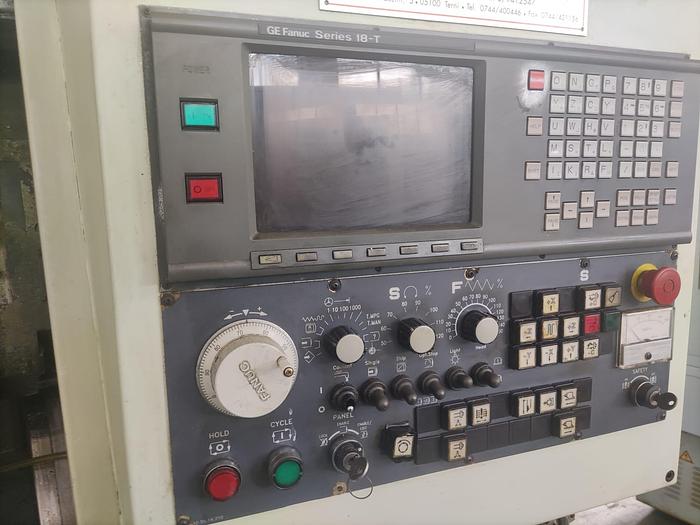

BIGLIA 10025 WITH Y-AXIS MOD. B 501Y CNC: Fanuc 18 - T Max turning diameter: 520 mm Max turning length: 500 mm Max turning diameter from bar: 68 mm X-axis travel: 210 + 5 mm Z-axis travel: 500 + 10 mm Y-axis travel: 120 (+60 -60) mm Spindle speed: 4000 rpm Spindle motor power: 22-26 kW Spindle connection: ASA 6 Spindle bore: 80 mm Autocenter diameter: 165 mm Turret stations: 12 Motor power: 3.7 kW (50%) Tailstock: MT 4 Dimensions: 3500 x 1670 x 1650 mm Weight: 4900 kg USED MACHINE
