Home > Spares & Accessories > Machine Vices Go Back
REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Lagun
  • Model:

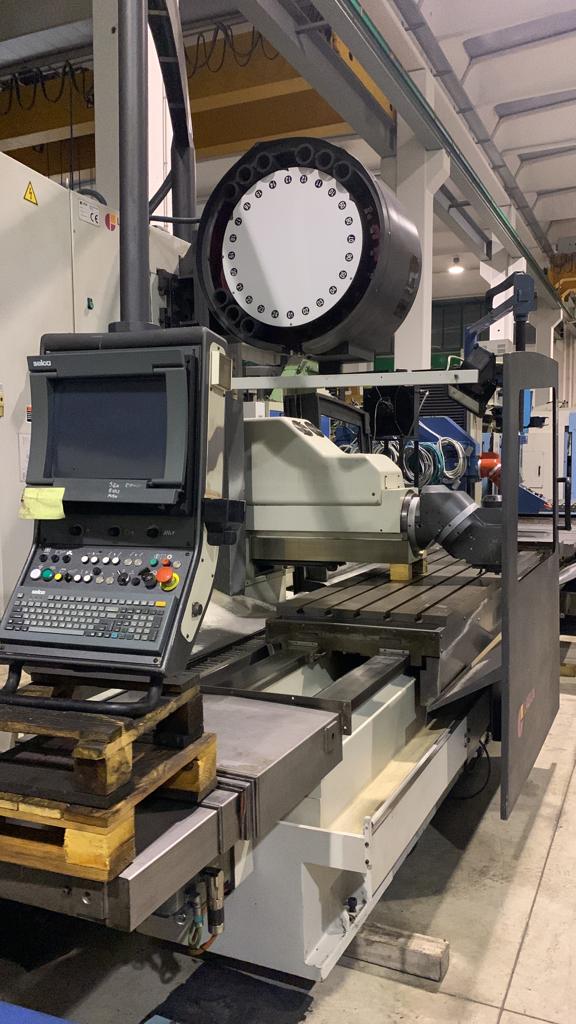

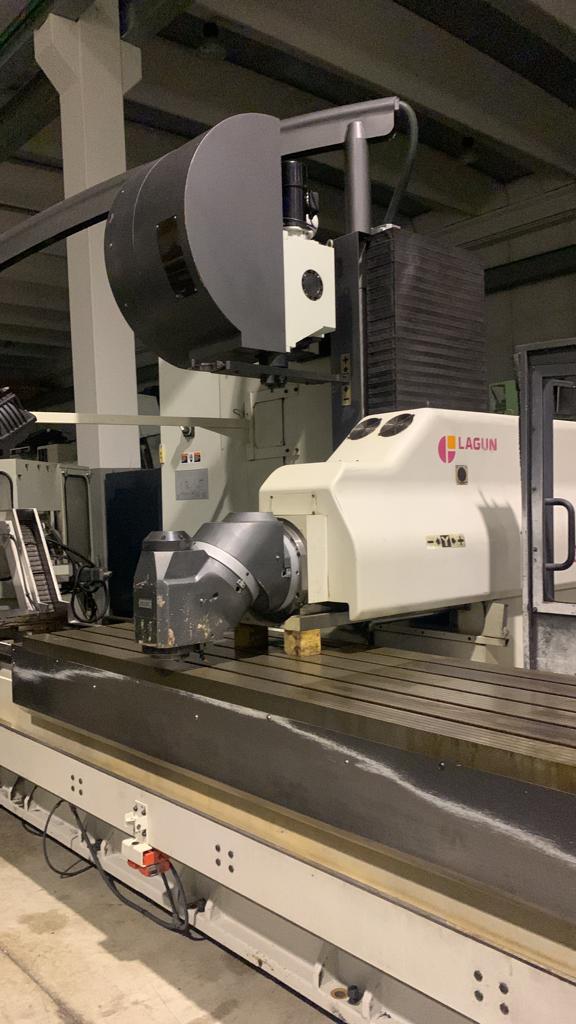

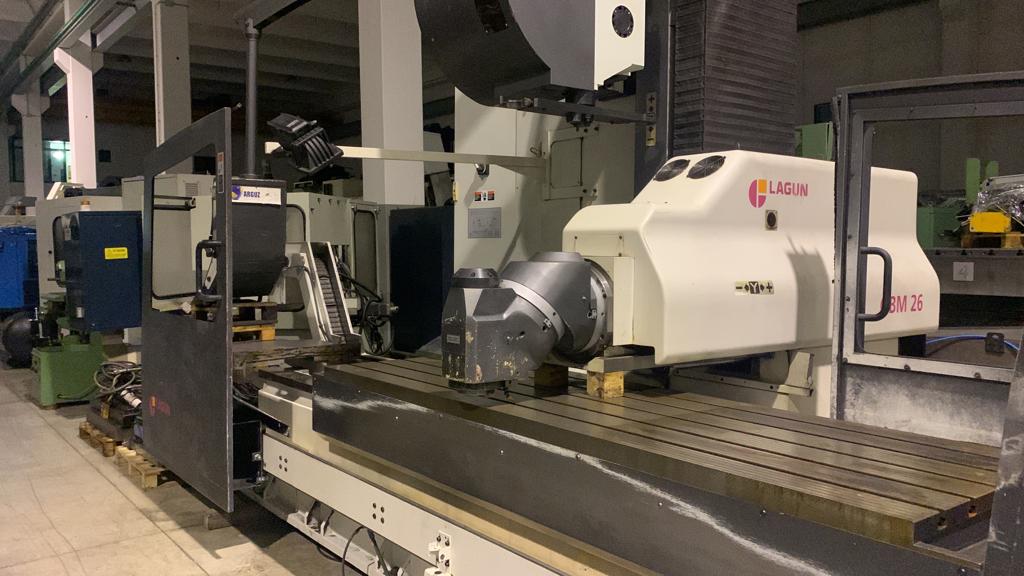

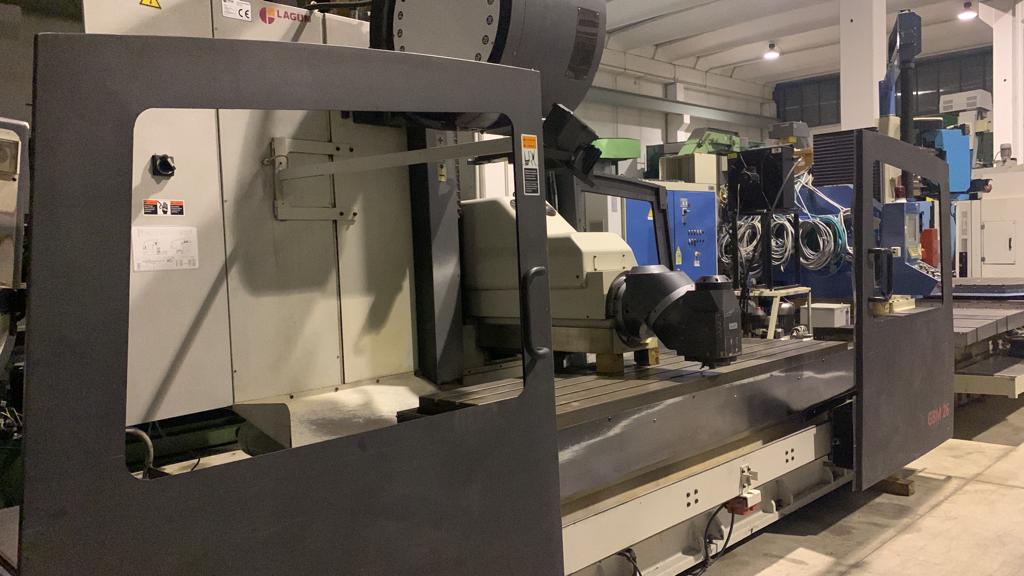

  • MILLING LAGUN MOD. GBM 26
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

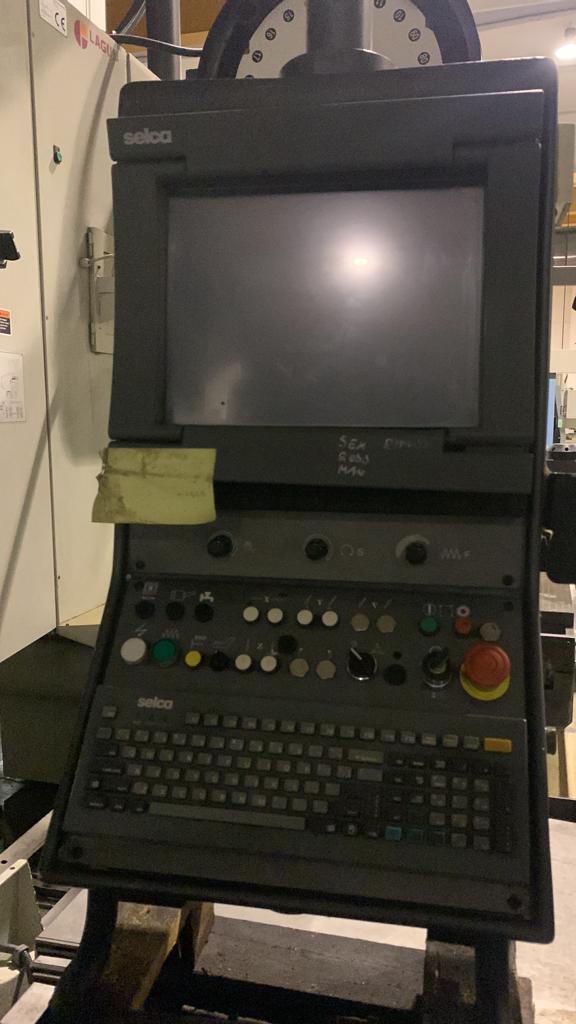

LAGUN 09525 CNC SELCA S4045D TABLE: Table dimensions mm 2600x800 N. and width T-slots mm 5-22 Distance between T-slots mm 140 Weight on the table Kg 6500 STROKES: Longitidinal X mm 2500 Cross Y mm 1000 Vertical Z mm 1200 AUTOMATIC HEAD 2,5°: Spindle taper ISO 50 SPEEDS: Motor power kW 22 Speed (in continuous variation) rpm 50:3000 TOOL MAGAZINE: Spindle cone 50 DIN 69871/A Tools number 24 Max tool diameter mm 200 Max tool weight Kg 15 MAx tool lenght mm 300 MACHINE WEIGHT: Approx. net machine weight Kg 12150 USED MACHINE
+ request more information
