MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MACH
  • Model:

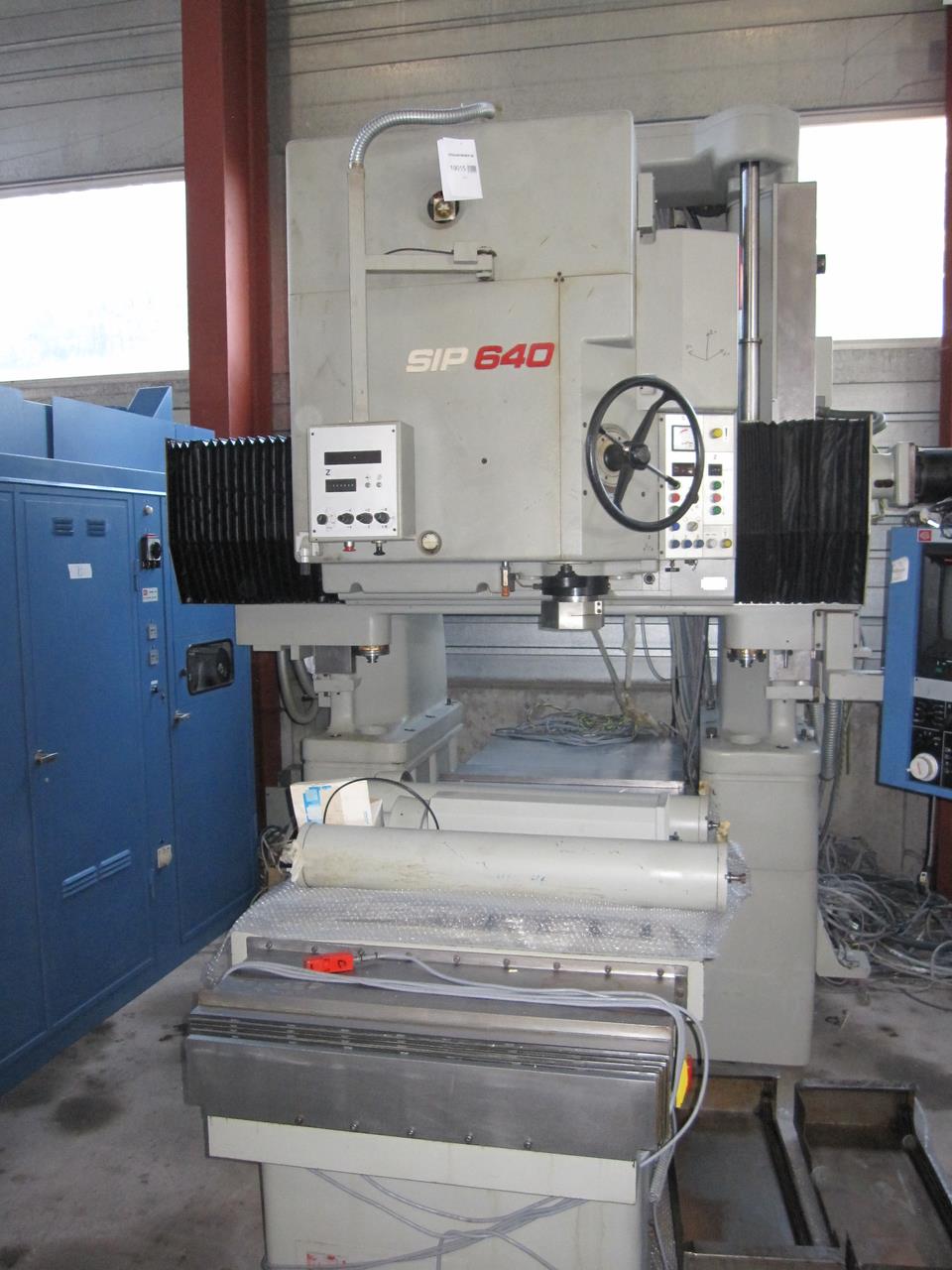

  • CNC Jig boring machine
  • Condition:
  • 1
  • YOM:
  • NA

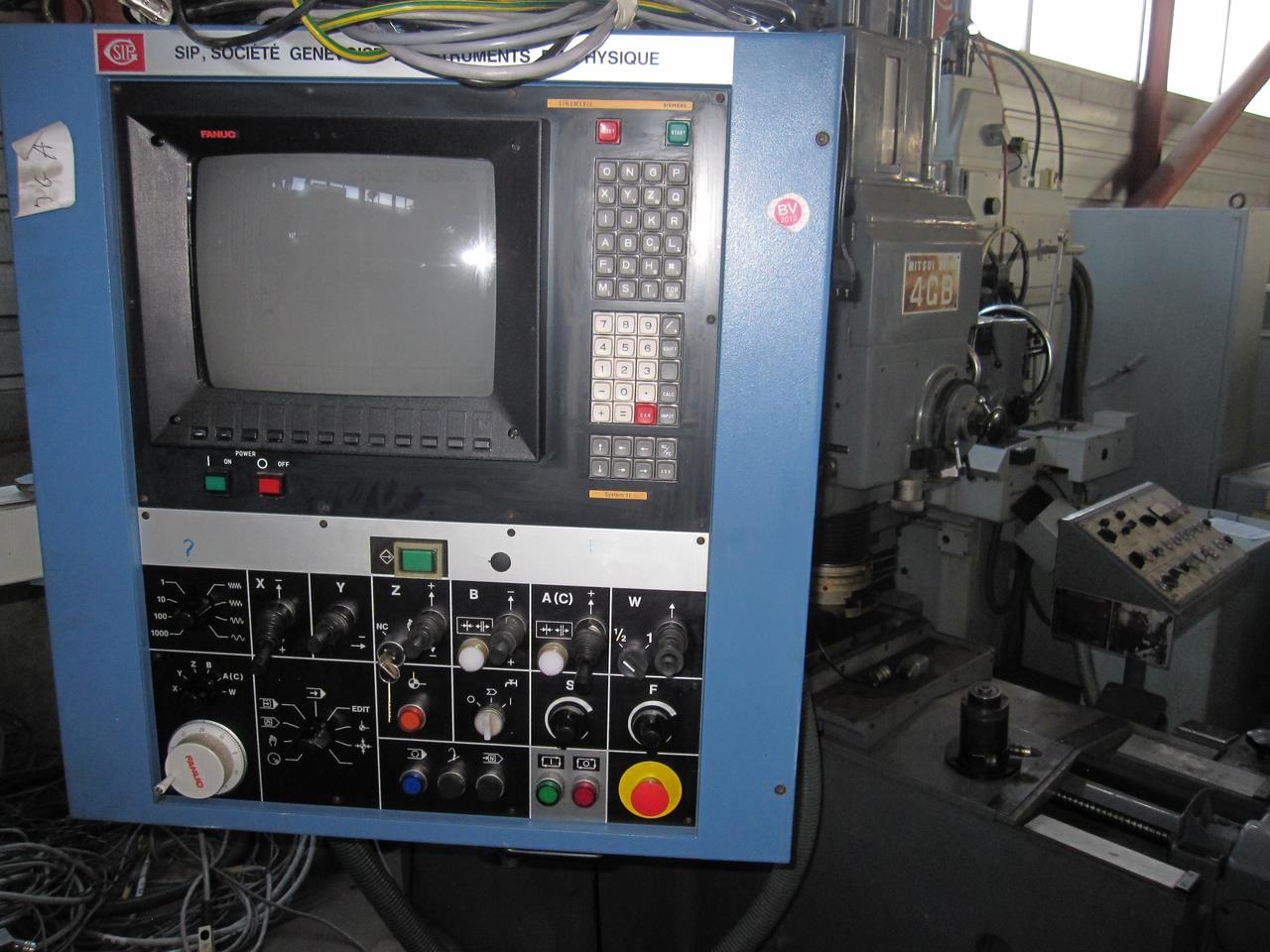

  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

{"Table length": "1100 mm", "Table width": "842 mm", "Table load max.": "1500 kg", "Longitudinal travel (X-axis)": "1000 mm", "Transversal travel (y-axis)": "700 mm", "Vertical travel (z axis)": "780 mm", "Drill capacity in steel": "60 mm", "Taper in spindle: ISO": "4 B", "Diameter of drilling spindle": "135 mm", "Stroke of drilling spindle (Z-axis)": "300 mm", "Bore diameter min.": "60 mm", "Bore diameter max.": "300 mm", "Distance table to spindle": "1000 mm", "Spindle speeds:": "", "number (steps)": "6", "from": "0.01 mm/r", "up to": "0.39 mm/r", "Feeds:": "", "Table:": "", "Drill spindle slide:": "", "Rapid traverse:": "", "Table:longitudinal": "6000 mm/min", "transversal from": "6000 mm/min", "vertical": "6000 mm/min", "Distance between columns": "1100 mm", "Voltage 50 Hz 3x": "380 Volt", "Spindle motor": "8.84 HP", "Machine's weight about": "10600 kg", "Overall dimensions machine:": "", "Length": "3280 mm", "Width": "2335 mm", "Height": "3205 mm"}
