MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • STUDER
  • Model:

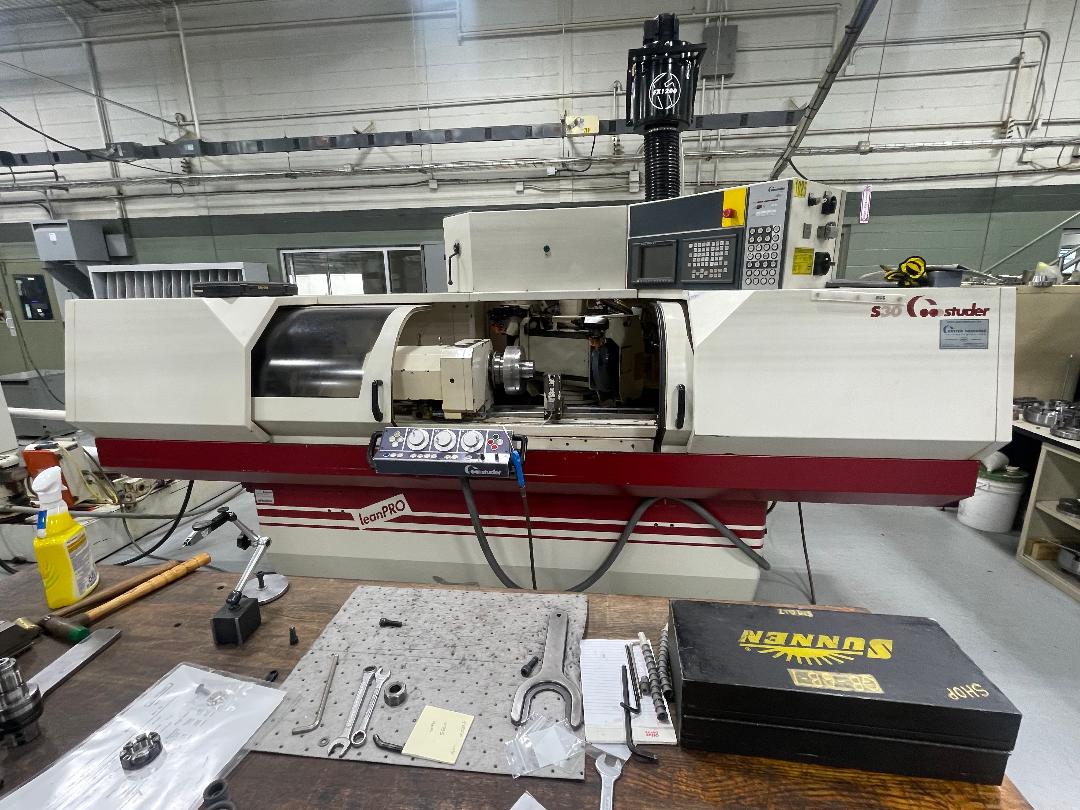

  • 023197 - STUDER S 30 LEAN PRO
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 175 mm.
Distance between centres: 1000 mm.
Workpiece weight on centres max.: 130 kg.
Diameter: 400 mm.
Width: 2300 mm.
Bore: 127 mm.
Turret grinding tool holder num. of spindles: 3.
Peripheral speed: 35 m/s.
Cross travel CNC: 275 mm.
Feed speed up: 0.001-5000 mm/min.
Rapid feed motion: 5 m/min.
Max. travel: 275 mm.
Max. grinding length: 1050 mm.
Resolution of the scale: mm.
from: 0.001 mm/min.
up to: 10000 mm/min.
taper in spindle: MT: 5.
Taper in tailstock:: 3 CM.
Tailstock travel of barrel: 35 mm.
Max. table angular displacement: 5 °.
Voltage 50 Hz 3x: 400 Volt.
Grinding spindle motor: 7.5 kW.
Total power required: 30 kVA.
Machine's weight about: 4800 kg.
Length: 4500 mm.
Height: 2200 mm.
