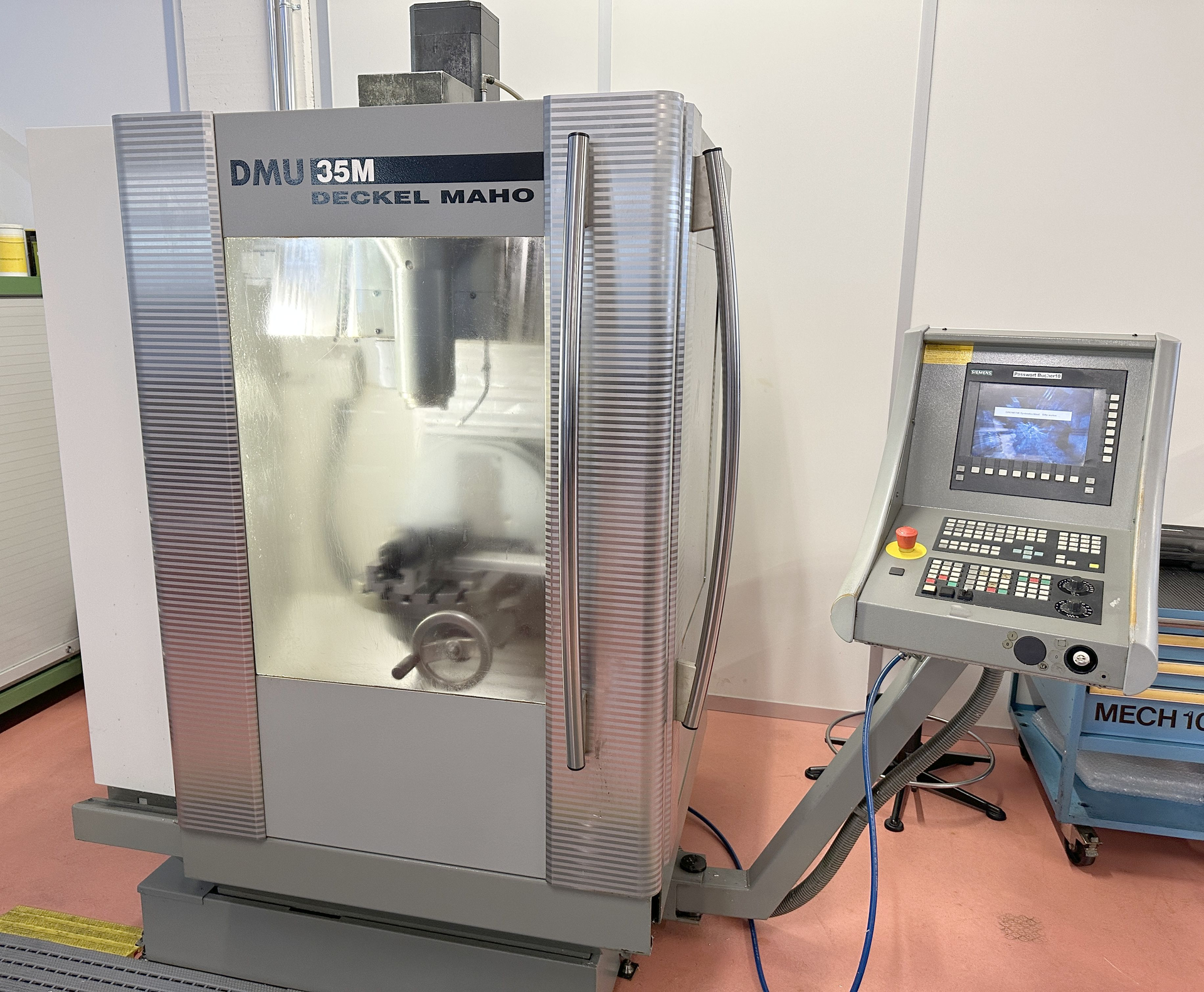

Number of axis total: 5 (3+2). Table length: 400 mm. Table width: 280 mm. Number of T-channels: 5. T-channel width: 12H7 mm. Distance of the T-slots: 50 mm. Centering bore diameter: 30H6 mm. Rotation range: 360 °. Swivelling range: + 105 / -15 °. Table load max.: 100 kg. Longitudinal travel (X-axis): 350 mm. Transversal travel (y axis): 240 mm. Vertical travel (z axis): 340 mm. from: 20 t/min. up to: 6300 t/min. Spindle nose SK: 40 DIN 69871. Pull-Studs: DIN 69872. Feeds (X, Y, Z): 5000 mm/min. Rapid traverse:: 5 m/min. Air connect: 6 bar. Voltage 50 Hz 3x: 400 Volt. Milling spindle motor: 6.3 / 10 kW. Total power required: 15 kVA. Machine's weight about: 1600 kg. Length: 1860 mm. Width: 1700 mm. Height: 2100 mm. Vice: width: 100 mm.
CSF
09723
CNC FAGOR 8055i TC PLUS
C-axis
Center height 550 mm
Center distance 8000 mm
Swing over bed 1100 mm
Swing over carriage 740 mm
Max weight between centers without steadies 6000 kg
Max overhung weight 1000 kg
Spindle speed 0–1100 rpm
Number ...
