MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Mazak
  • Model:

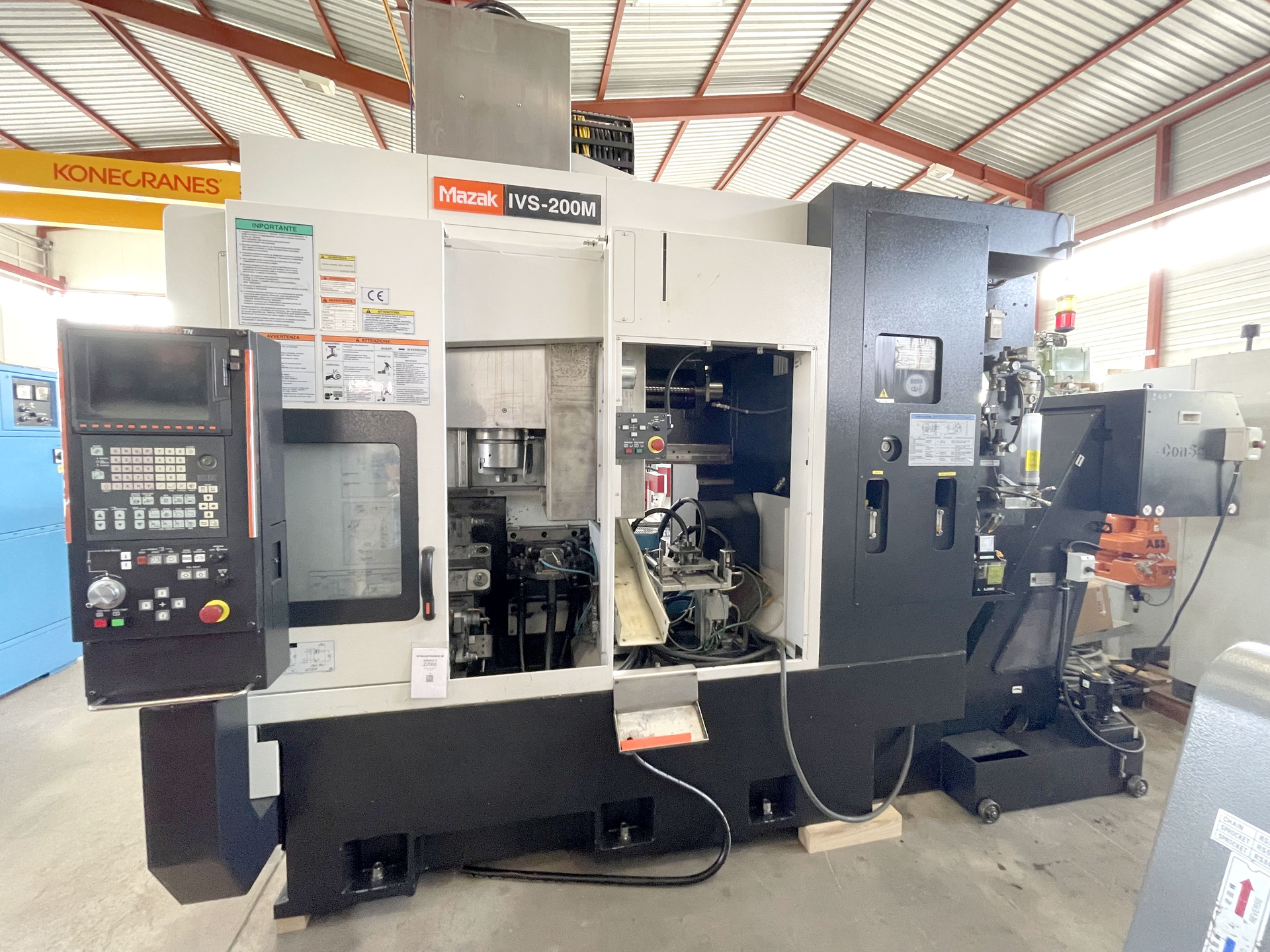

  • 022068 - MAZAK IVS 200 M
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Swing diameter: 280 mm.
Spindle hole: 52 mm.
Maximum turning length: 100 mm.
Max. turning diameter: 180 mm.
Longitudinal travel (X-axis): 880 mm.
Transversal strocke (Z axis): 280 mm.
Turret slide: number: 1.
Number of positions turret 1: 12.
Fixed tools turret 1: 6.
Driven tools turret 1: 6.
Spindle speeds: 25 - 4500 t/min.
Tool shank cross section: 25 mm.
Power of driven tools: 5.5 kW.
Max. drill capacity: 20 mm.
Max. taping diameter M: 12.
Indexing time: 0.6 s.
Tool lenght: 65 mm.
Max. tool-weight: 11 kg.
from: 0 t/min.
up to: 7000 t/min.
Torque max.: 200 Nm.
Spindle motor: 26 / 22 kW.
Total power required: 35.8 kVA.
Machine's weight about: 7000 kg.
Length: 3288 mm.
Width: 1235 mm.
Height: 2807 mm.
3-jaw chuck diameter: 200 mm.
Loading roboter: ABB IRB 1600.
