MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MERLI CLOVIS
  • Model:

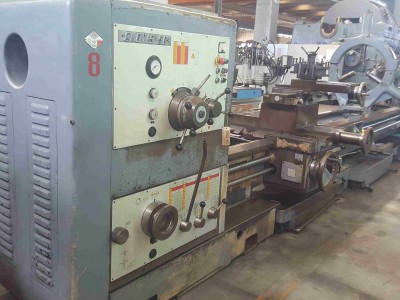

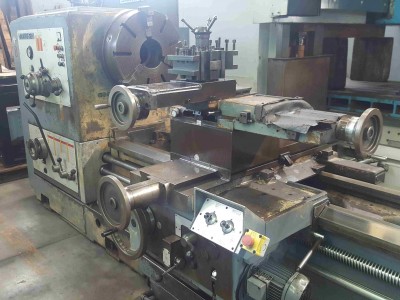

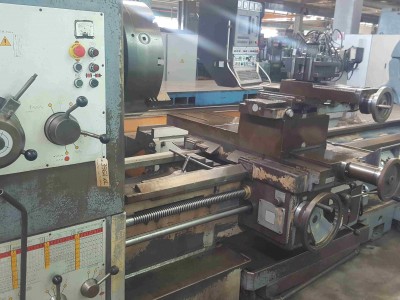

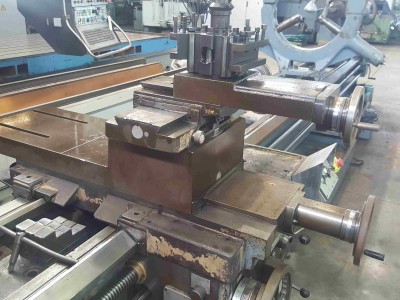

  • MERLI CLOVIS 50 x 5.000 LATHE
  • Condition:
  • Used
  • YOM:
  • 1979
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Centres height: 640mm.
Centres distance: 5.000mm.
Max. ? over saddle: 900mm.
Max. ? over bed: 1.300mm.
? Spindle: 160mm.
Bed width: 600mm.
Max. weight on centres: 10Tons.
Spindle power: 22Kw.
Spindle speeds: N. 16; 6 - 500Rpm.
Total Weight: 14Tons.
Year: 1979
Notes: COMPLETE WITH:- N. 1 THREE JAWS CHUCK ? 600 MM.- N. 1 CLOSED STEADY
