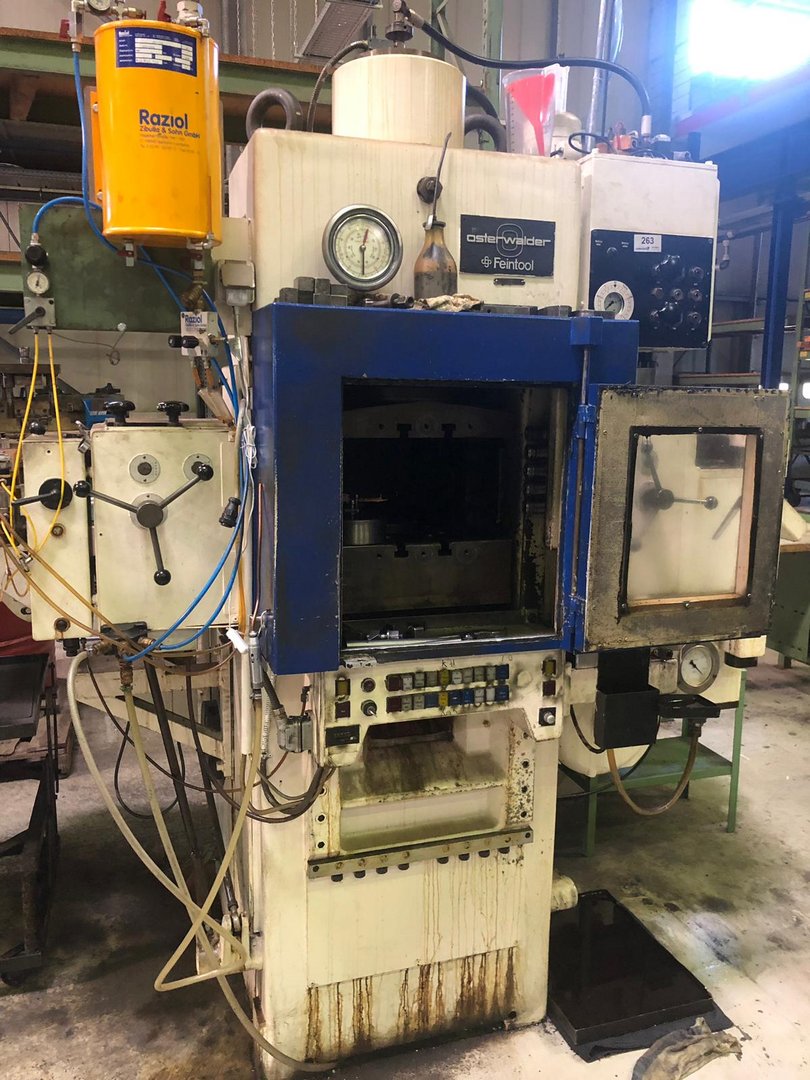

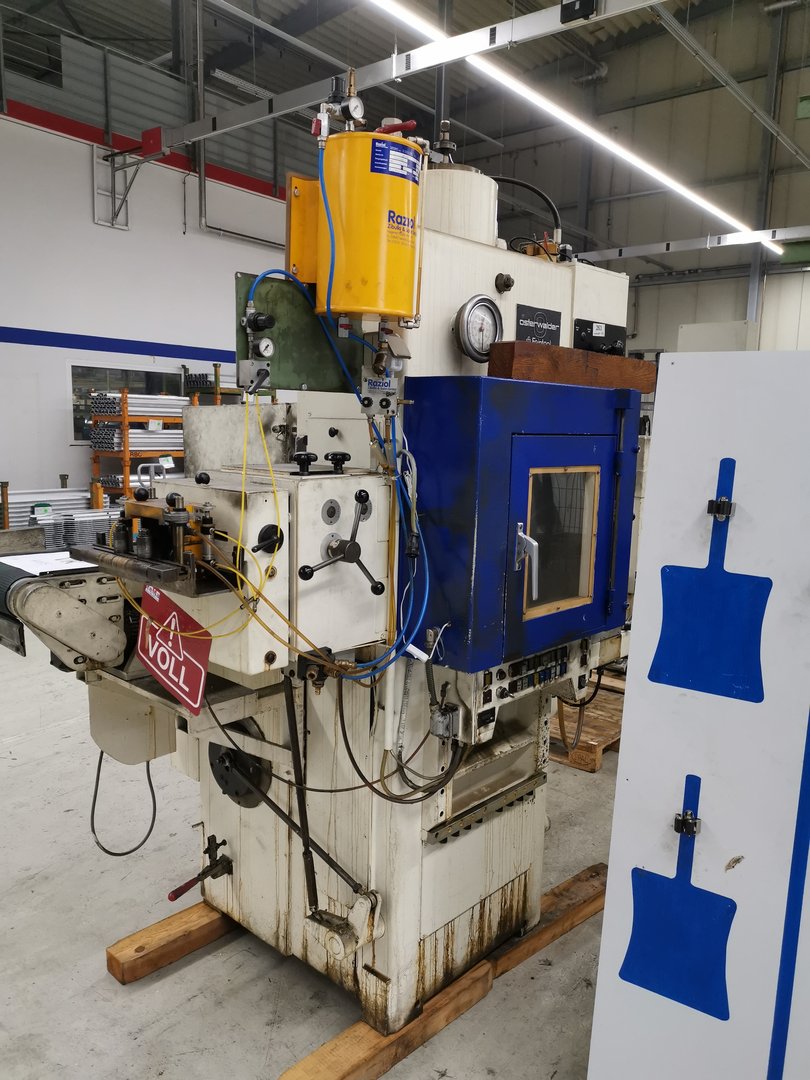

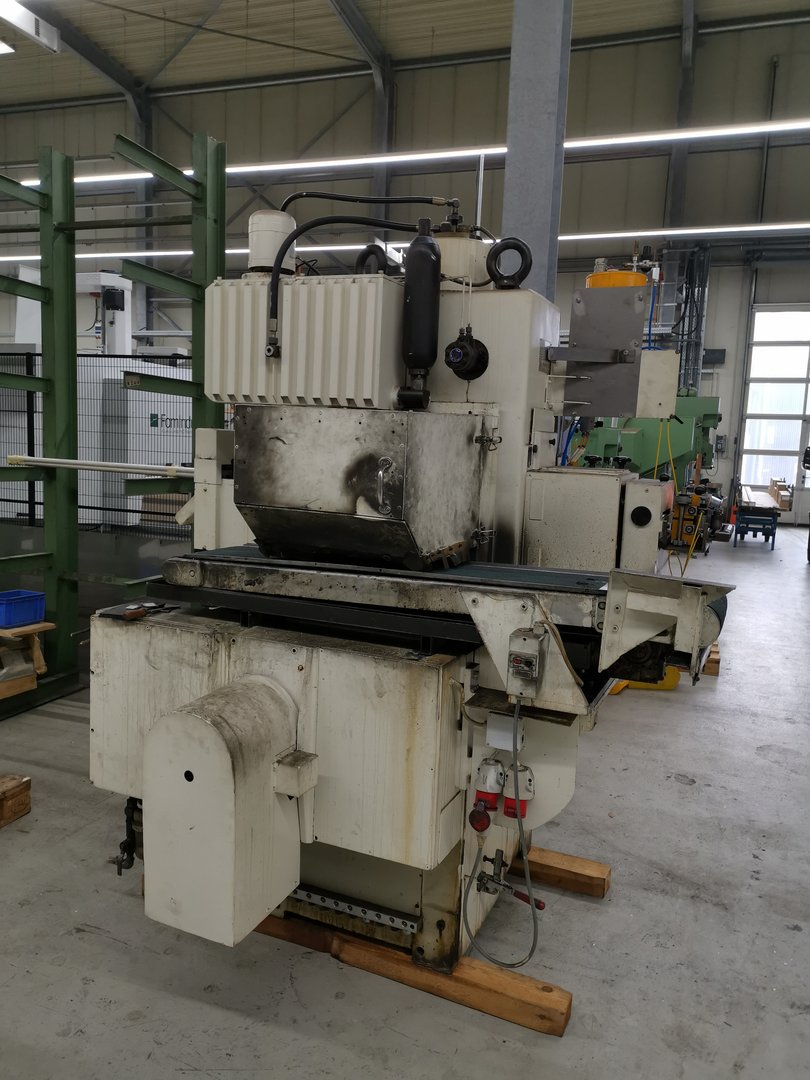

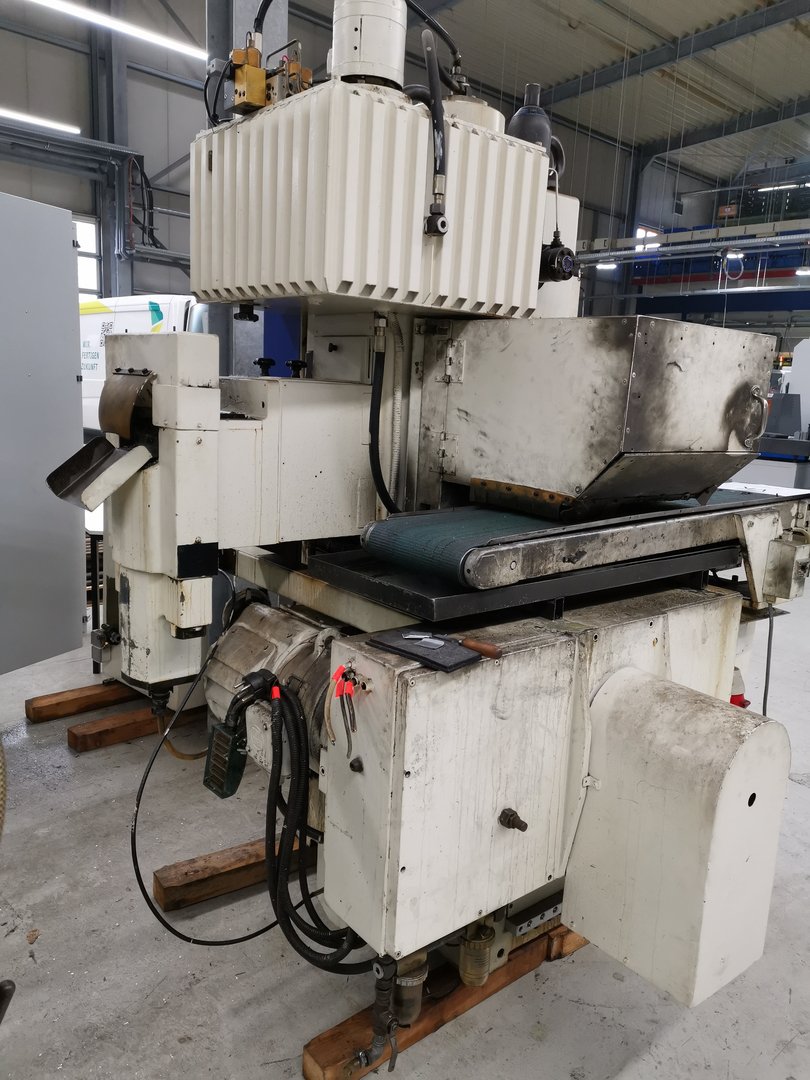

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • FEINTOOL
  • Model:
  • FEINTOOL GKP-F-50/80
  • Condition:
  • Used
  • YOM:
  • 1969
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

  • Capacity: 80 ton
  • V – Ring nominal force: 3 - 25 ton
  • Counter ram nominal force: 0,3 - 22 ton
  • Ejector Force: 2 - 4 ton
  • Ram stroke: 50 mm
  • Table stroke hydraulic max.: 12 mm
  • Ejector stroke in ram: 8 mm
  • Ram surface: 420 x 420 mm
  • Table surface: 420 x 420 mm
  • Number of strokes: 28 - 72 s.p.m.
  • Feeding length: 180 mm
  • sheet width: 180 mm
  • Max. sheet thickness: 5 - 15 mm
  • Required power: 8 kW
  • Dimensions L x W x H: 2.200 l
  • Machine weight: 45,2 ton
  • Standard configuration:
  • 2-Hand-Operation
  • Safety Fences
  • Ejector control
  • Die control
  • Air pressure control
  • Cam shaft control
  • Speed control
  • Feeder
