MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Amada
  • Model:
  • Amada H1600II semi-automatic bandsaw
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

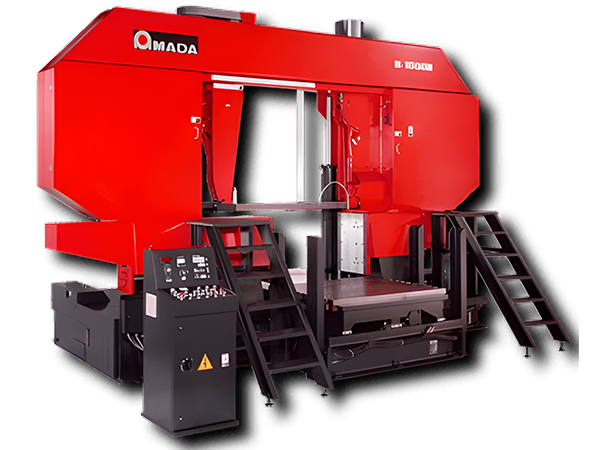

Bandsaw H 1600 II The Amada H1600II semi-automatic bandsaw is 1600mm capacity single column and guide industrial saw is very heavy and rigid in its construction. Amada have designed a series of heavy duty large capacity bandsaws to cope with adverse environments and conditions of use. The accessibilty of the machines allow large diameters and shapes to be loaded/unloaded with ease. Cutting Control The cutting rate has been simplified by dividing materials in to 9 groups when a particular material is selected the machine will automatically set the downfeed cutting rate and recommend the correct blade speed.Thus achieving maximum blade life. Blade deviation monitor Cutting depth control Light beam marking Motor and Drive Transmission A powerful 15kw motor coupled with a no torque loss helical bevel gear drive Bandsaw Blade Width A 80mm wide blade 15500mm long gives a high beam strength enabling faster down feeds achieving excellent cutting rates for all types of materials including Inconel, Hastelloy and Monel. Maximum Cutting Capacity Round bar : 1600mm Rectangular bar : 1600mm (w) 1600mm (h) For a full specification,demonstration or quotation call now on 01274 870311
