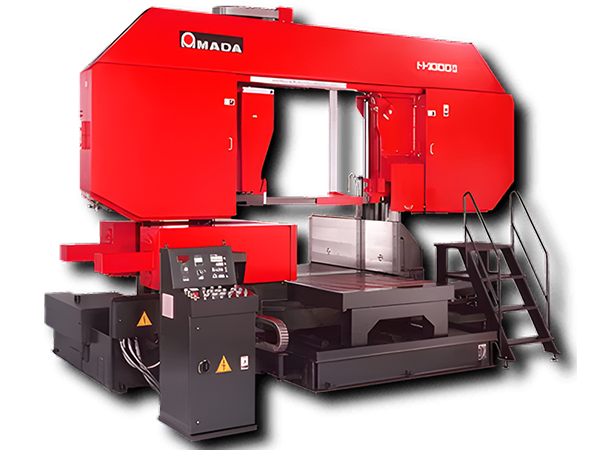

Amada Bandsaw H 1000 II
Amada H1000 large capacity bandsaw has 1000mm capacity, single column and guide with a heavy duty construction.
Amada have designed a series of heavy duty large capacity bandsaws to cope with adverse environments and conditions of use. The accessibility of the machines allow large diameters and shapes to be loaded/unloaded with ease.
Cutting Control
The cutting rate has been simplified by dividing materials in to 9 groups when a particular material is selected the machine will automatically set the down feed cutting rate and recommend the correct blade speed. Thus achieving maximum blade life.
Blade deviation monitor
Cutting depth control
Light beam marking
Motor and Drive Transmission
A powerful 11kw motor coupled with a worm wheel and worm shaft
Bandsaw Blade Width
A 80mm wide blade 11100mm long gives a high beam strength enabling faster down feeds achieving excellent cutting rates for all types of materials including Inconel, Hastelloy and Monel.
Maximum Cutting Capacity
Round bar : 1100mm
Rectangular bar : 1100mm (w) 1000mm (h)
