MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MACH
  • Model:

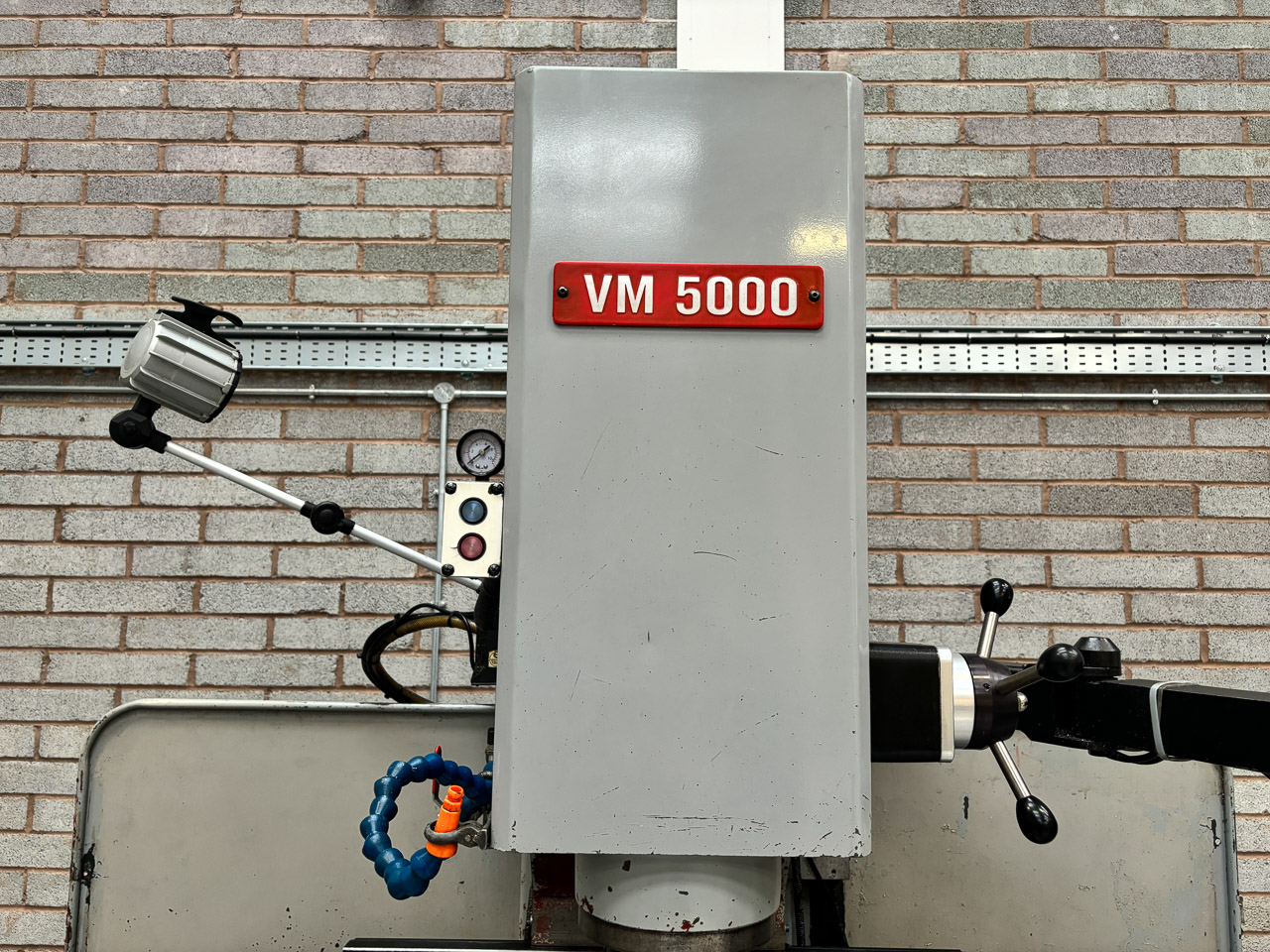

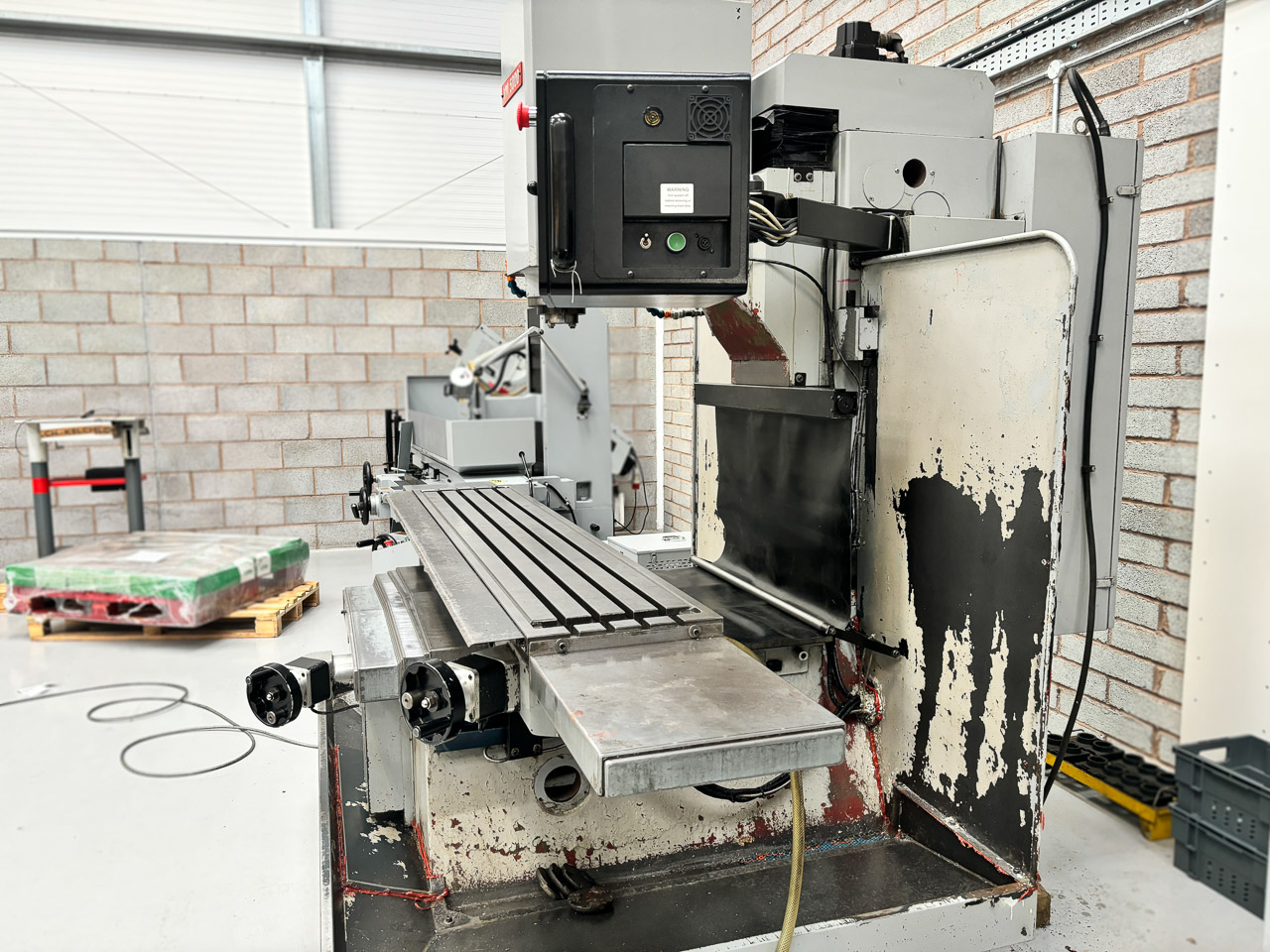

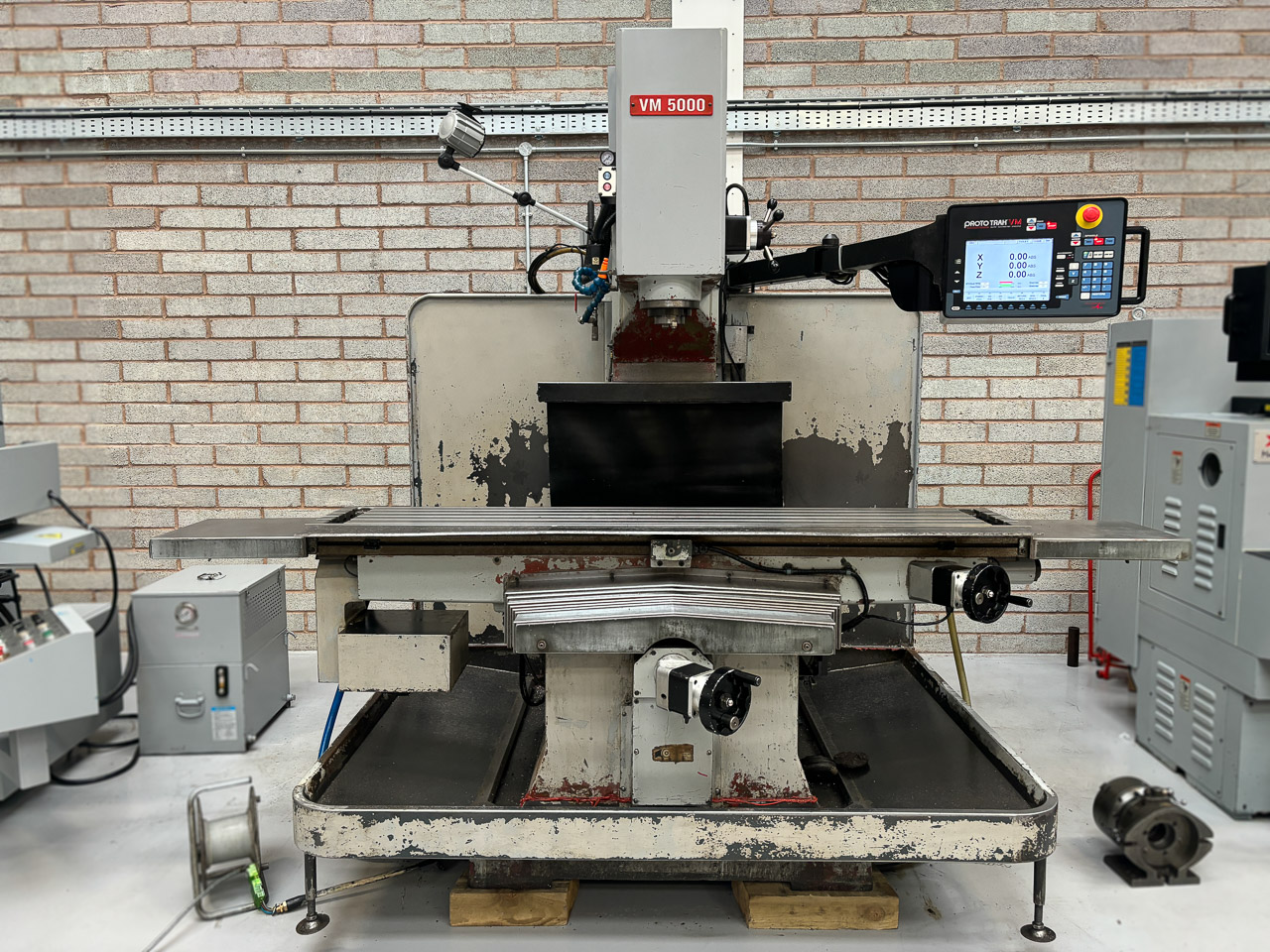

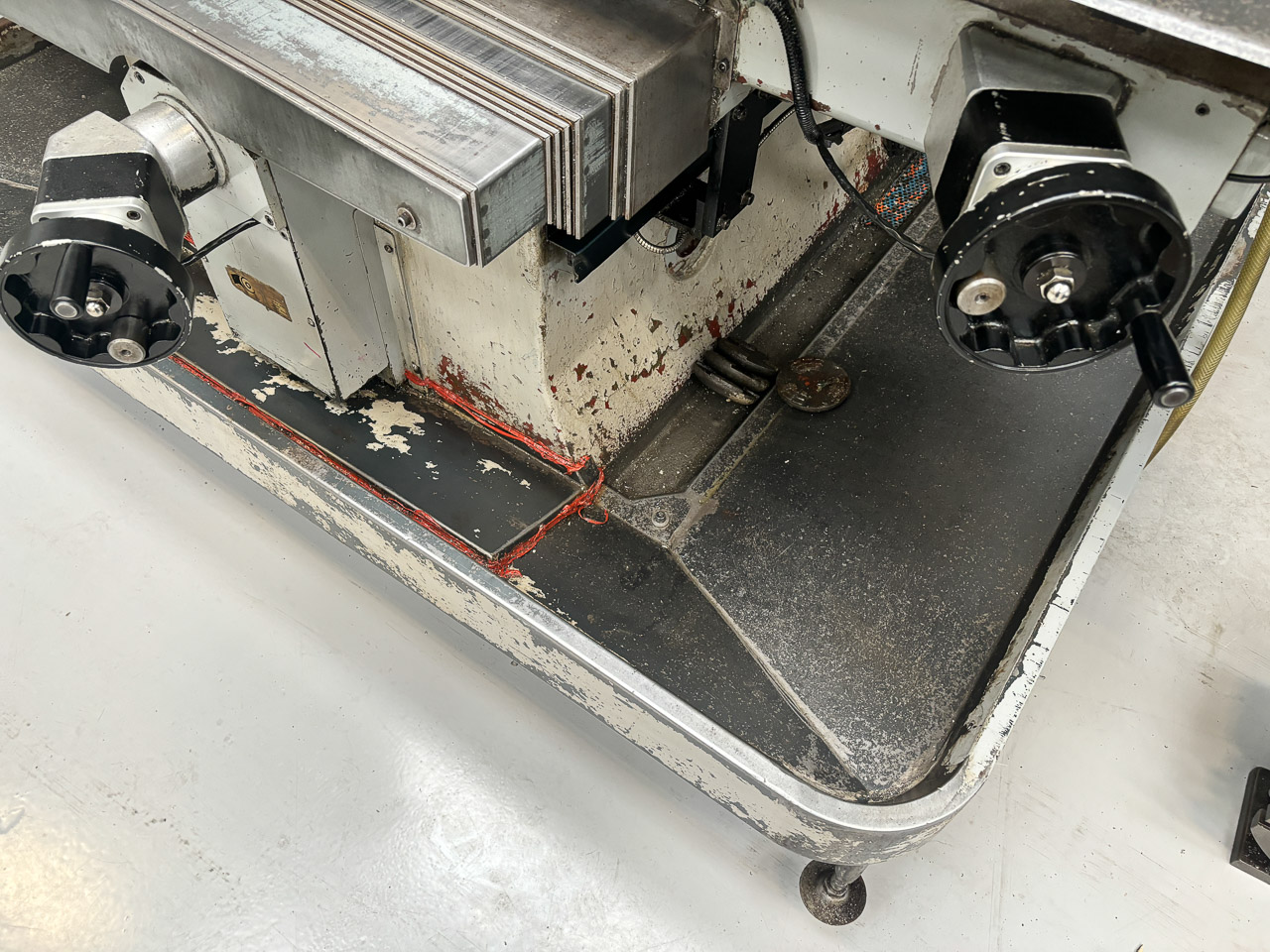

  • XYZ VM5000 CNC Milling Machine - Refurbished 2024
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Manufacturer: XYZ Machine Tools Ltd.
Model: VM5000.
Weight: 3400KG.

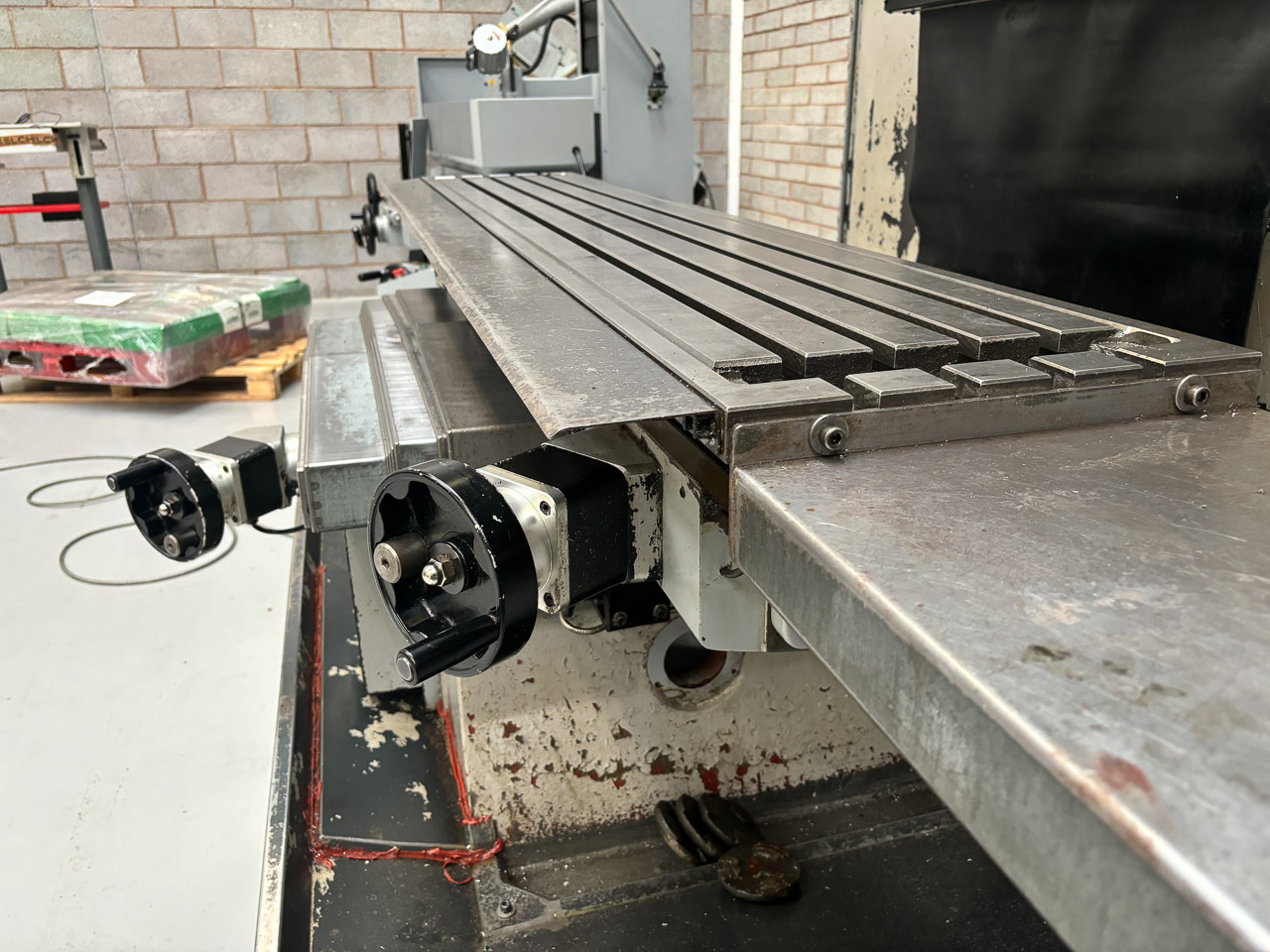

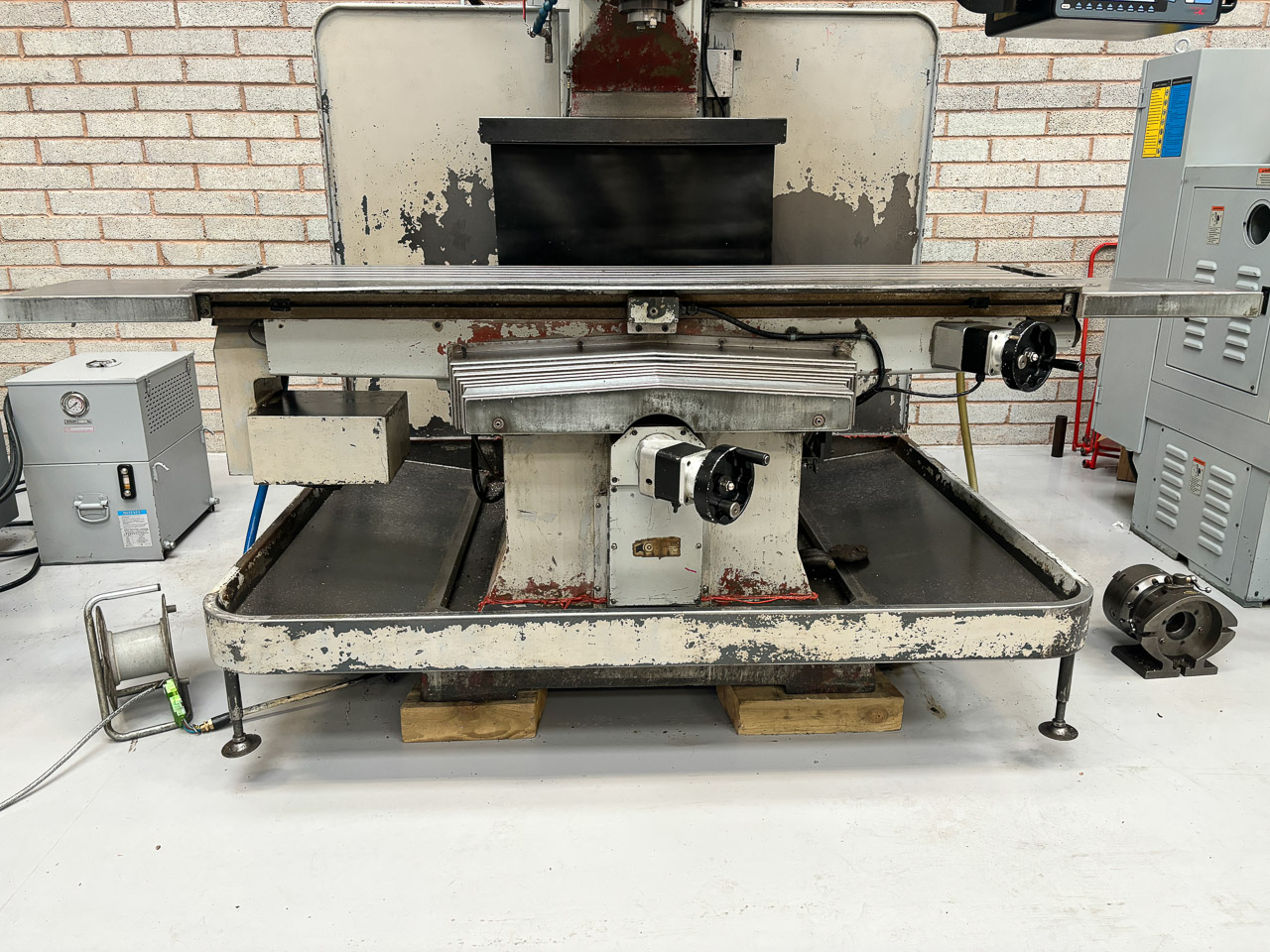

Working surface of table: 355 x 1930mm.
Longitudinal travel: 1500mm.
Cross travel: 600mm.

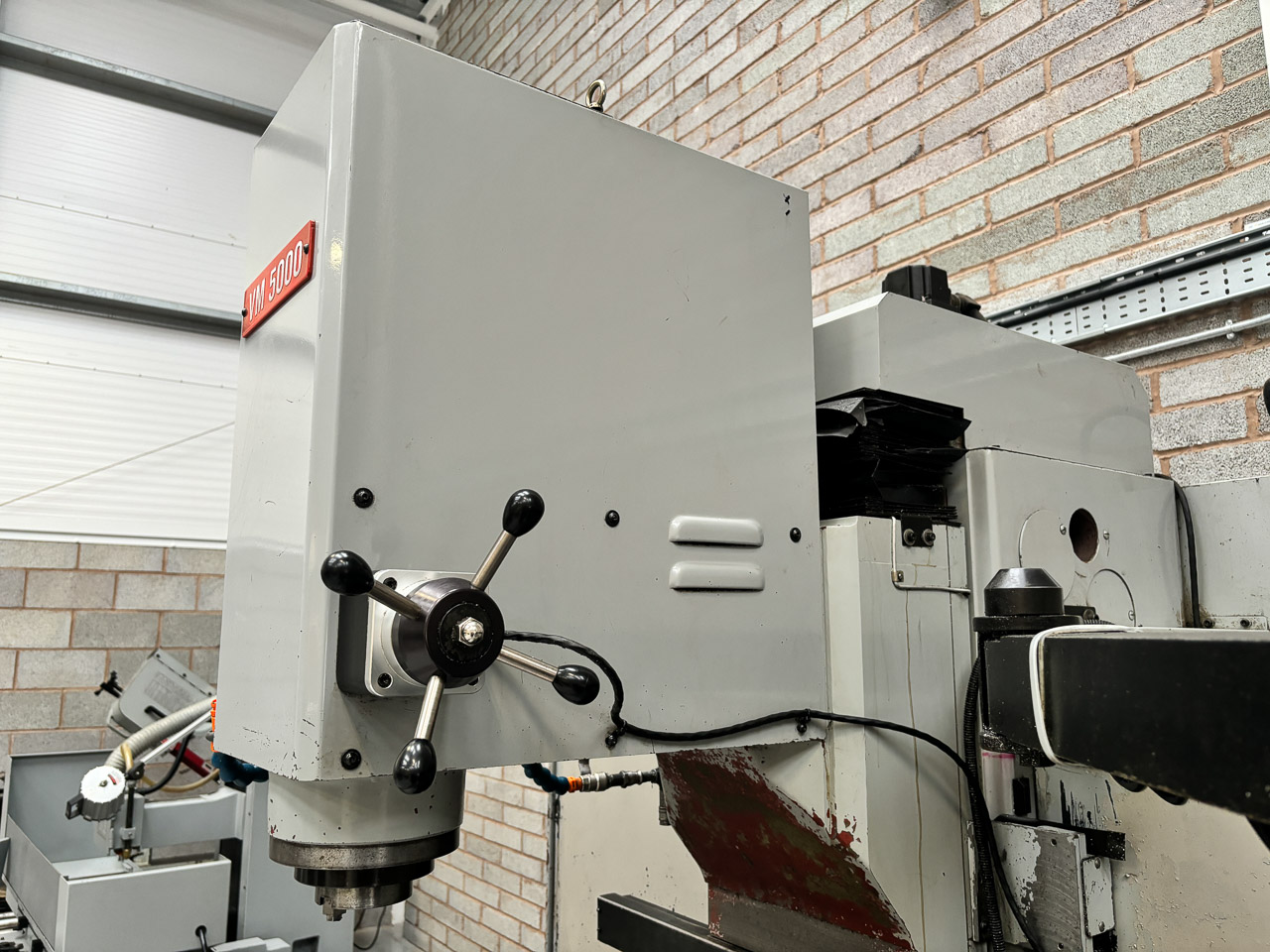

Vertical travel of head: 480mm.

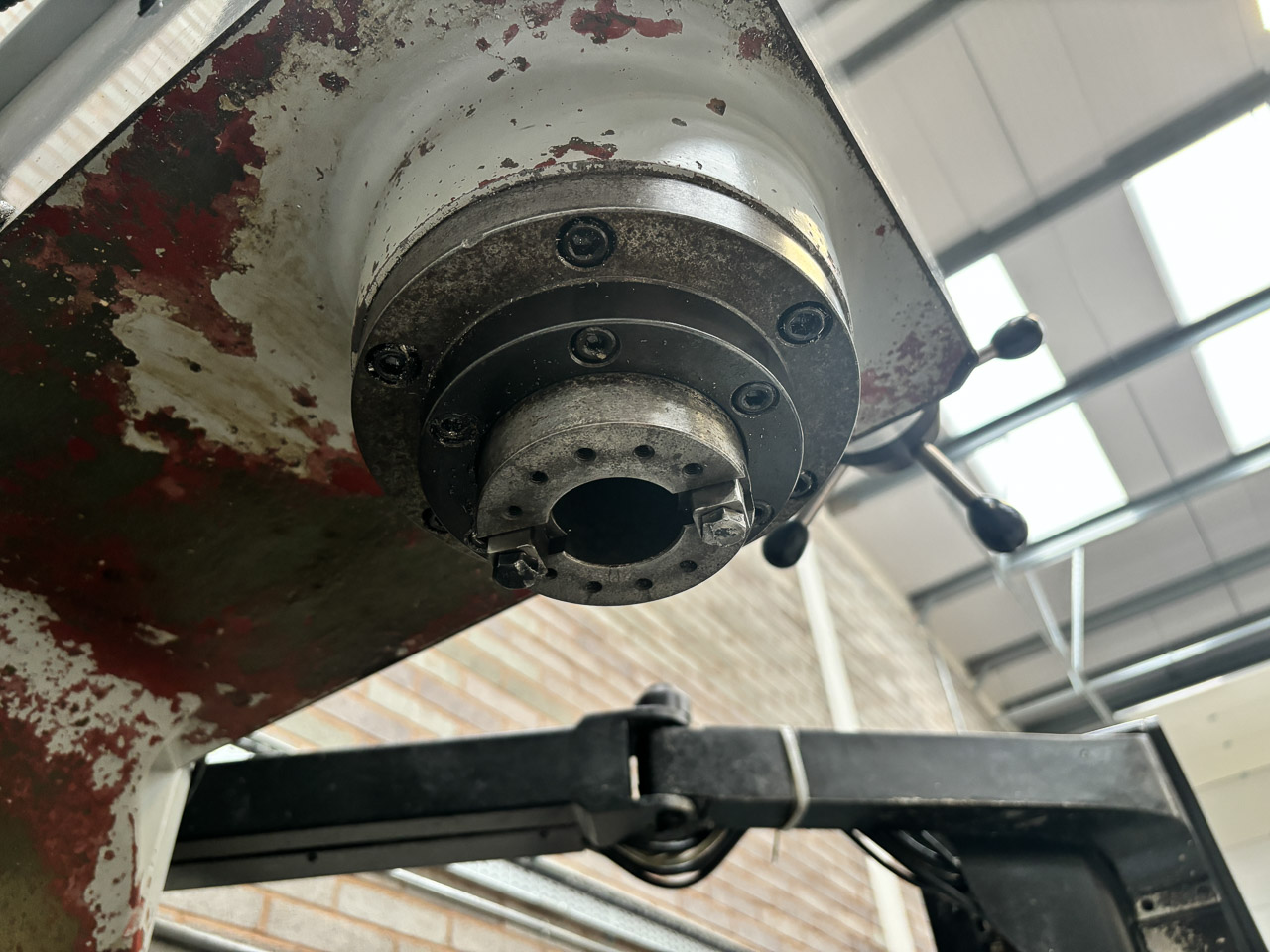

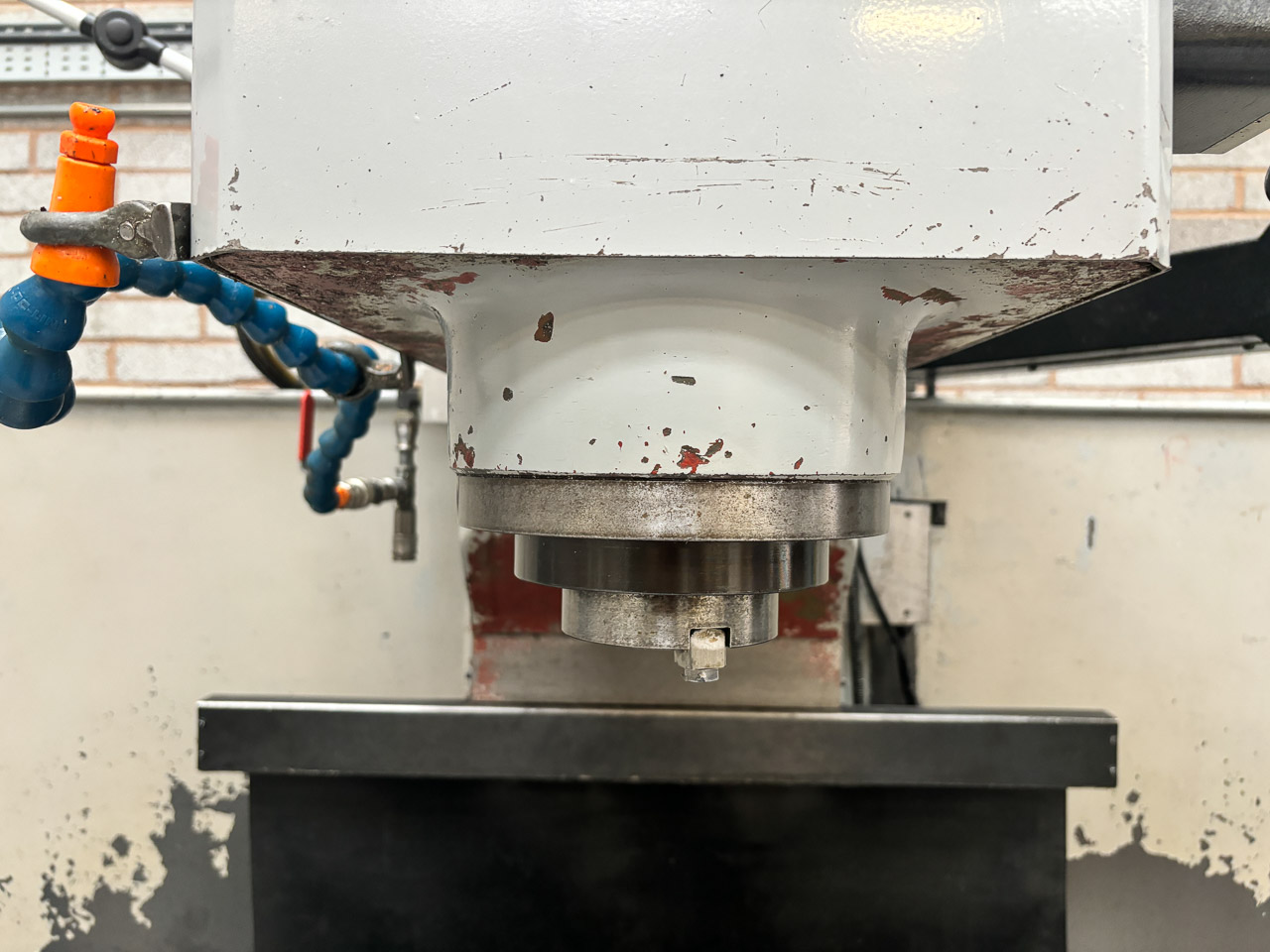

Quill diameter: 116mm.
Quill travel: 140mm.
Quill feeds: 0.0418 / 0.0786 / 0.1303 mm/rev.

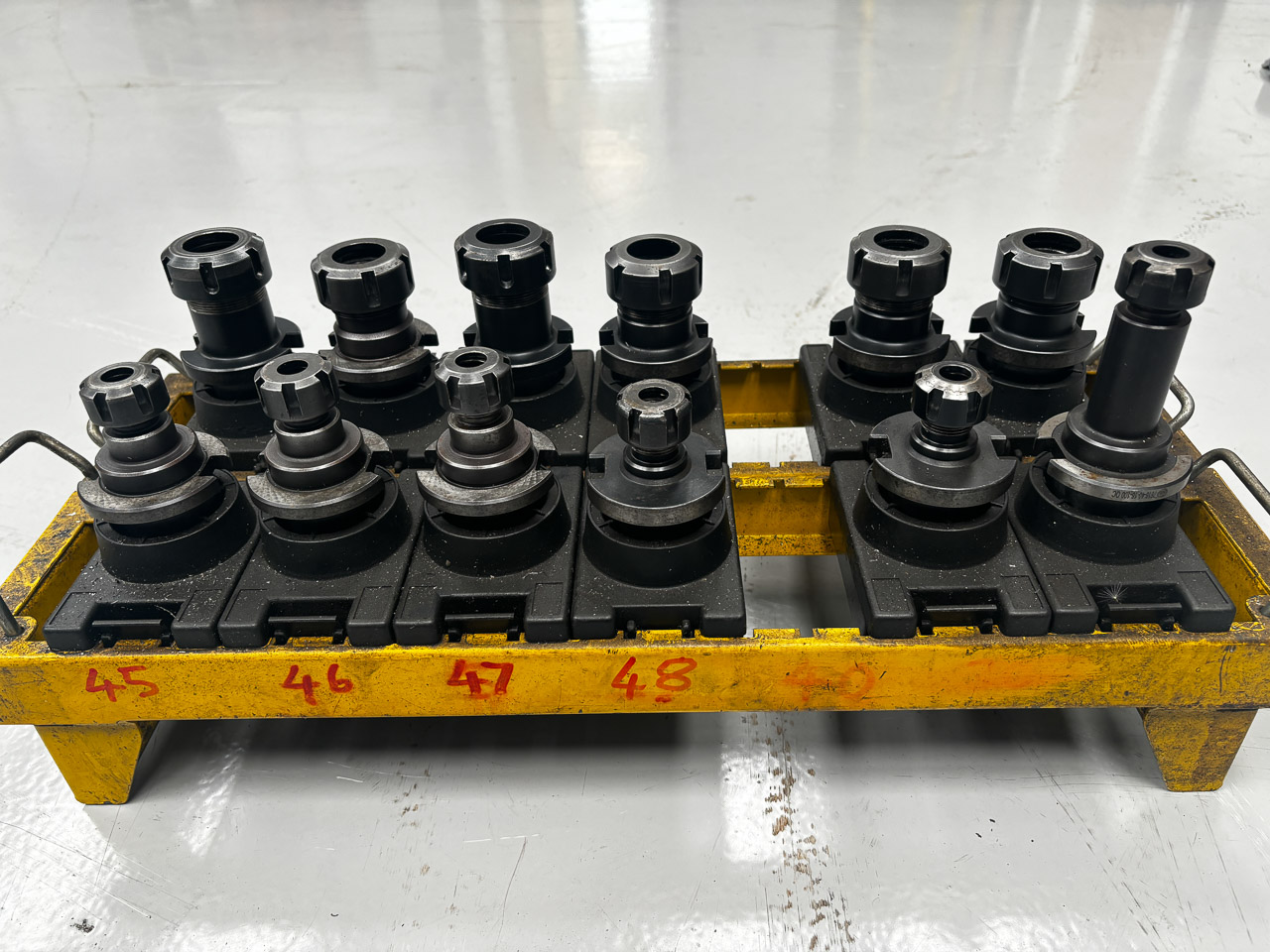

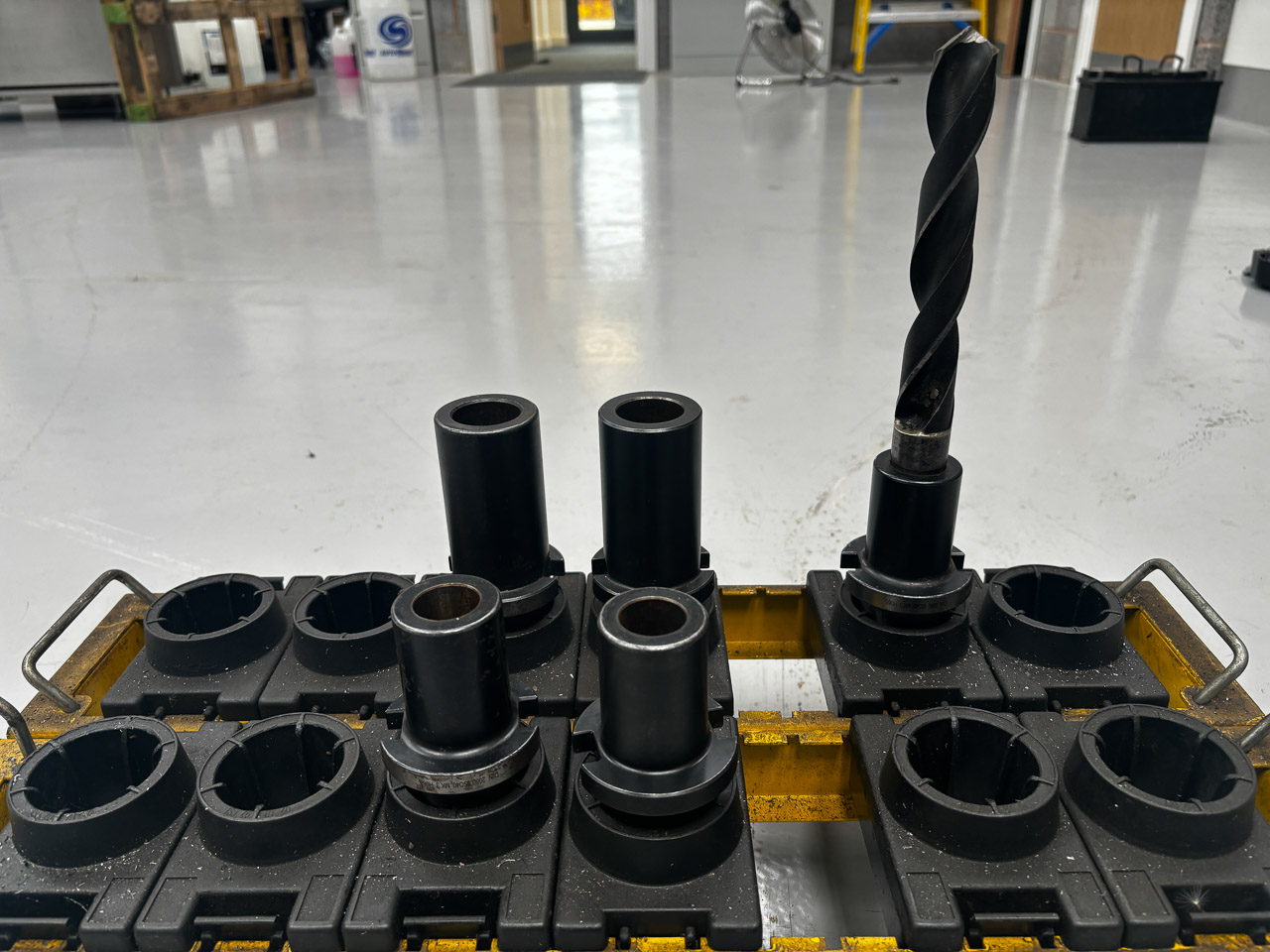

Spindle taper: NT40.
Spindle motor: 7.5Kw.

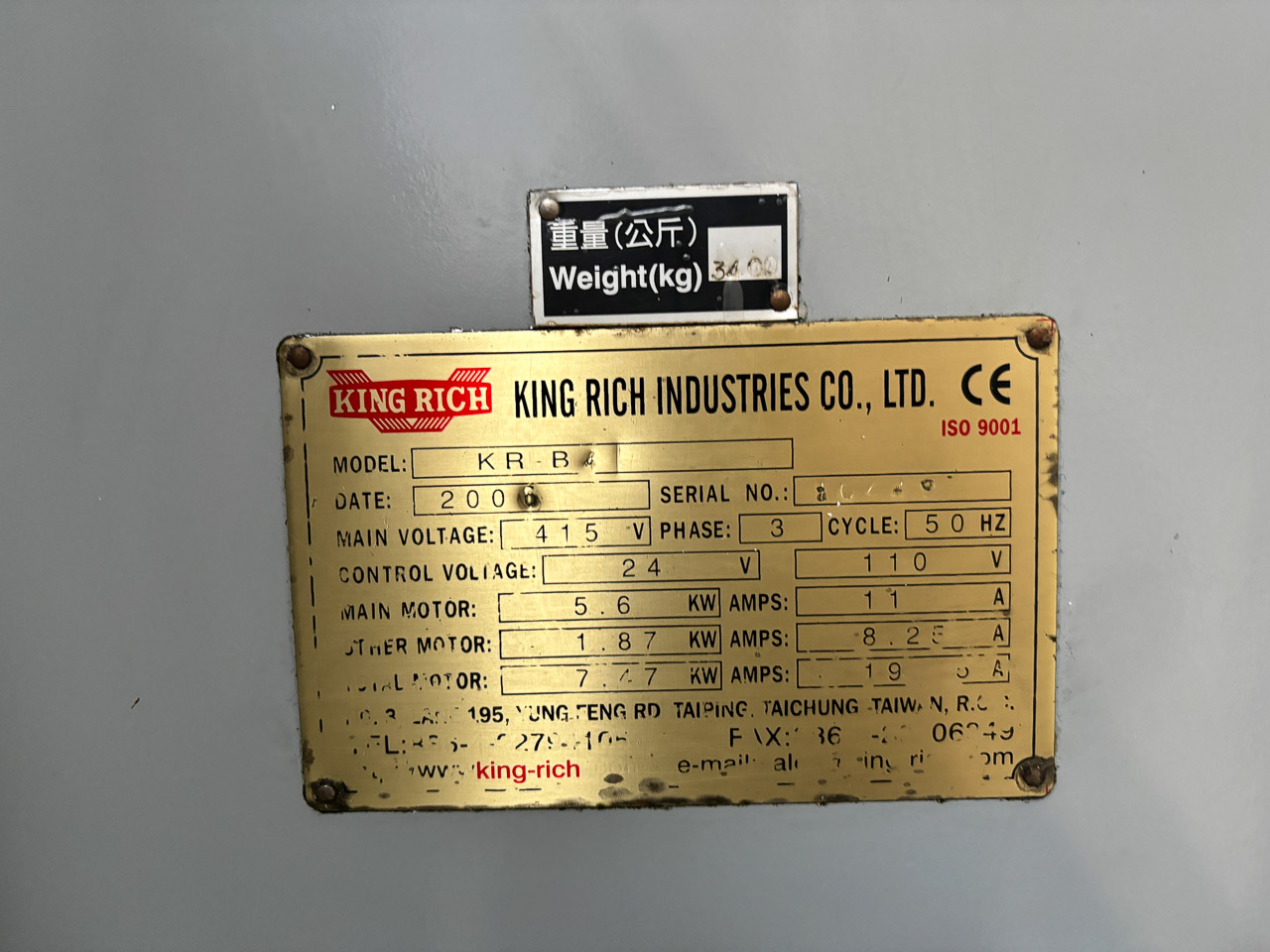

Main Motor Power: 5.6Kw.
Main Voltage: 415V.
Phase: 3.
Cycle: 50HZ.
Year: 2006 Base / 2024 Retrofit.
Serial Number: 10449.
