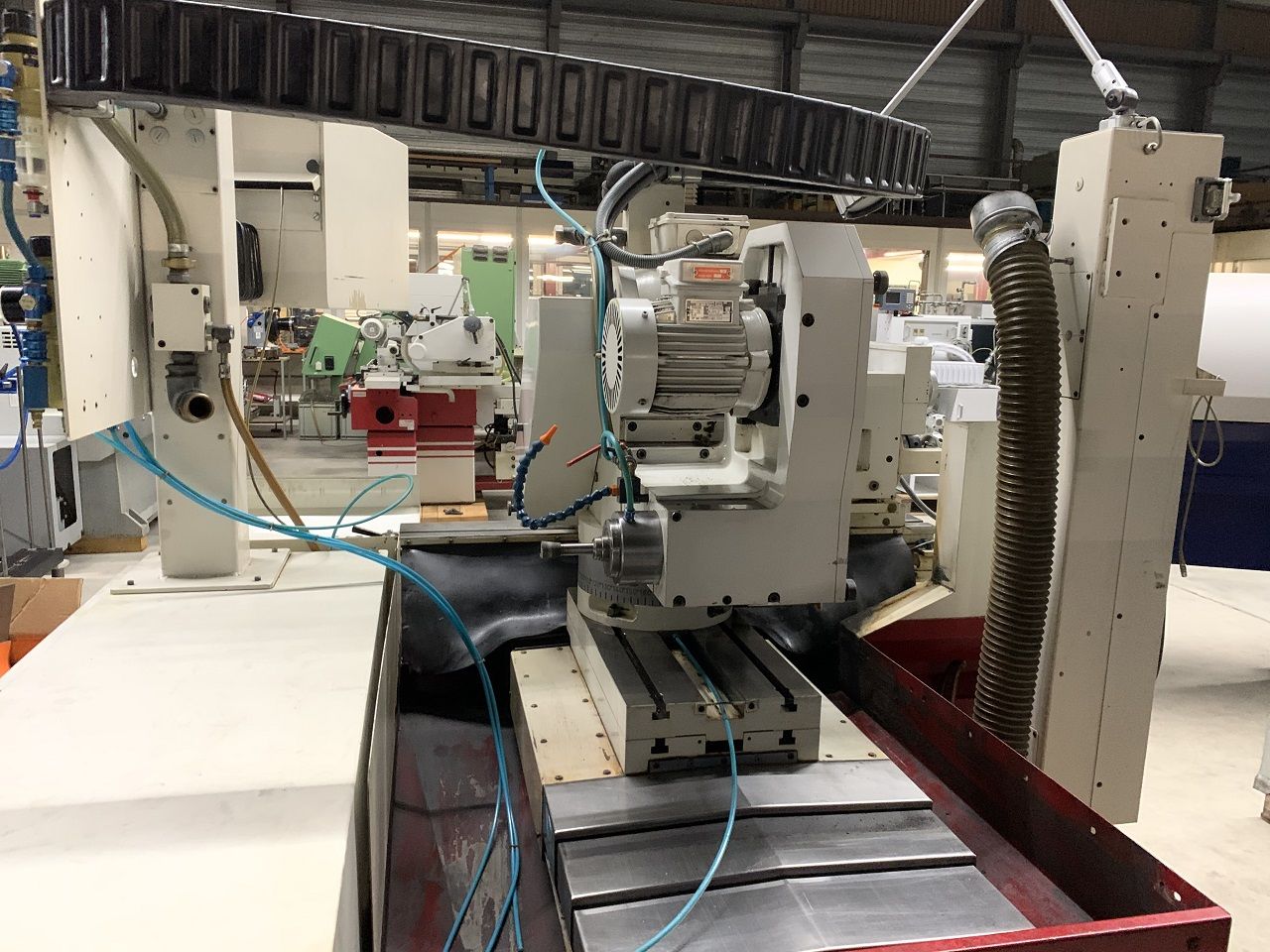

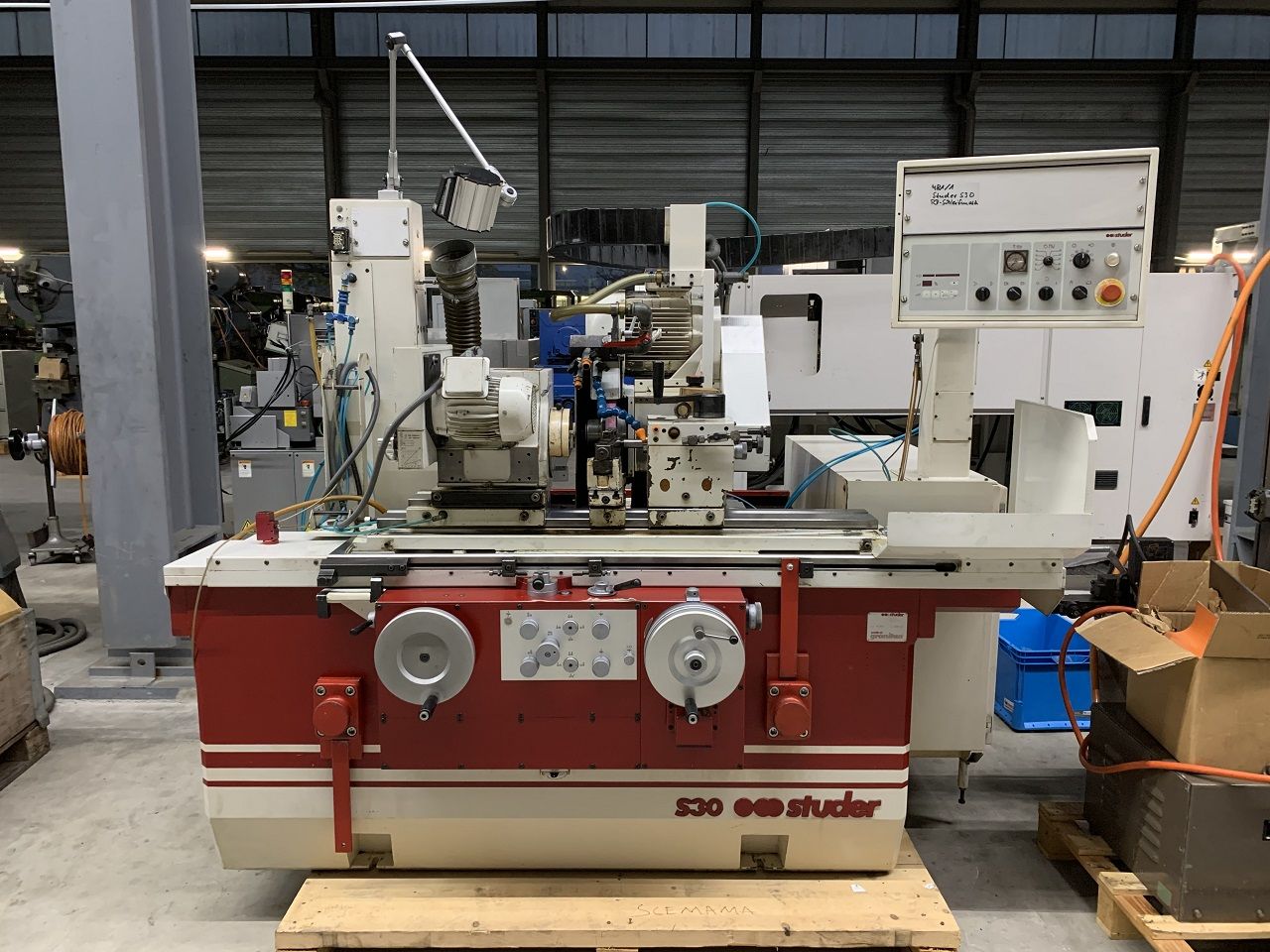

Cylindrical Grinders/STUDER S-30-1 CYLINDRICAL GRINDING MACHINE

Cylindrical Grinders/STUDER S-30-1 CYLINDRICAL GRINDING MACHINE

Cylindrical Grinders/STUDER S-30-1 CYLINDRICAL GRINDING MACHINE

Cylindrical Grinders/STUDER S-30-1 CYLINDRICAL GRINDING MACHINE

REQUEST PRICE VIEW MAP

MACHINE INFORMATION AND SPECIFICATION

Category:
Grinding

Subcategory:
Cylindrical Grinders

Manufacturer:
STUDER

Model:
STUDER S-30-1 CYLINDRICAL GRINDING MACHINE

Condition:
Used

YOM:
N/A

Control:
NA

Price:
POA

Seller:
SCEMAMA SA

Country:
Switzerland

DESCRIPTION

INFORMATION
Manufacturing origin : Swiss
Voltage : 380/50/3
Netweight : 3100 kg
Dimensions : 230x155x170cm
Total power : 13 kva
Custom position : 8460.2920
TECHNICAL DATA
MAIN DIMENSIONS
Centre height : 400-650-1000-1600 mm
Travel : 450-700-1050-1650 mm
LONGITUDINAL SLIDE
Max. travel : + 50 mm
Min. automatic travel : 1,5 mm
Speed : 50-5500 mm/min
Reversal dwell : 0-6 sec
Max. swivel of table : 12°/10°/8,5°/6°
Air cushion of table and of workhead
WHEELHEAD SLIDE
Max. travel : 300 mm
Rapid approach : 60 mm
Plunge depth in diameter : 3,4 mm
Infeed 1 : 0,012-6 mm/min
Infeed 2 : 0,012-1,2 mm/min
Incremental infeed : 0,001-0,05 mm
WHEELHEAD
External grinding wheel left : 400x80x127 mm
Power requirement : 5,5 kW
Peripheral speed : 35 m/sec
RPM : 1670/2110 min-1
Internal grinding attachment for belt spindles incl. drive
WORKHEAD
Swivel range : 0-90°
Speed stepless : 30-1000 min-1
Fitting taper : Morse 5
Collets : W-25
Power requirement : 0,55 kW
Max. workpiece weight between centres : 130 kg
Live grinding load : 100 Nm
TAILSTOCK
Fitting taper : Morse 3
Travel of barrel : 35 mm
Fine adjustment for cylindricity corrections : +- 40 um
GUARANTEED ACCURACY
Surface straightness over 630 mm : 0,003 mm
Roundness on live spindle : 0,0003 mm
CONNECTION LOADS
Total power requirement max. : 13 kVA
Max. permissible voltage fluctuations : -15% +10%
Max. permissible frequency fluctuations : +- 3%
Required air pressure : 5 bar
