Home > Grinding > Cylindrical Grinders Go Back
REQUEST PRICE VIEW MAP

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Tschudin
  • Model:

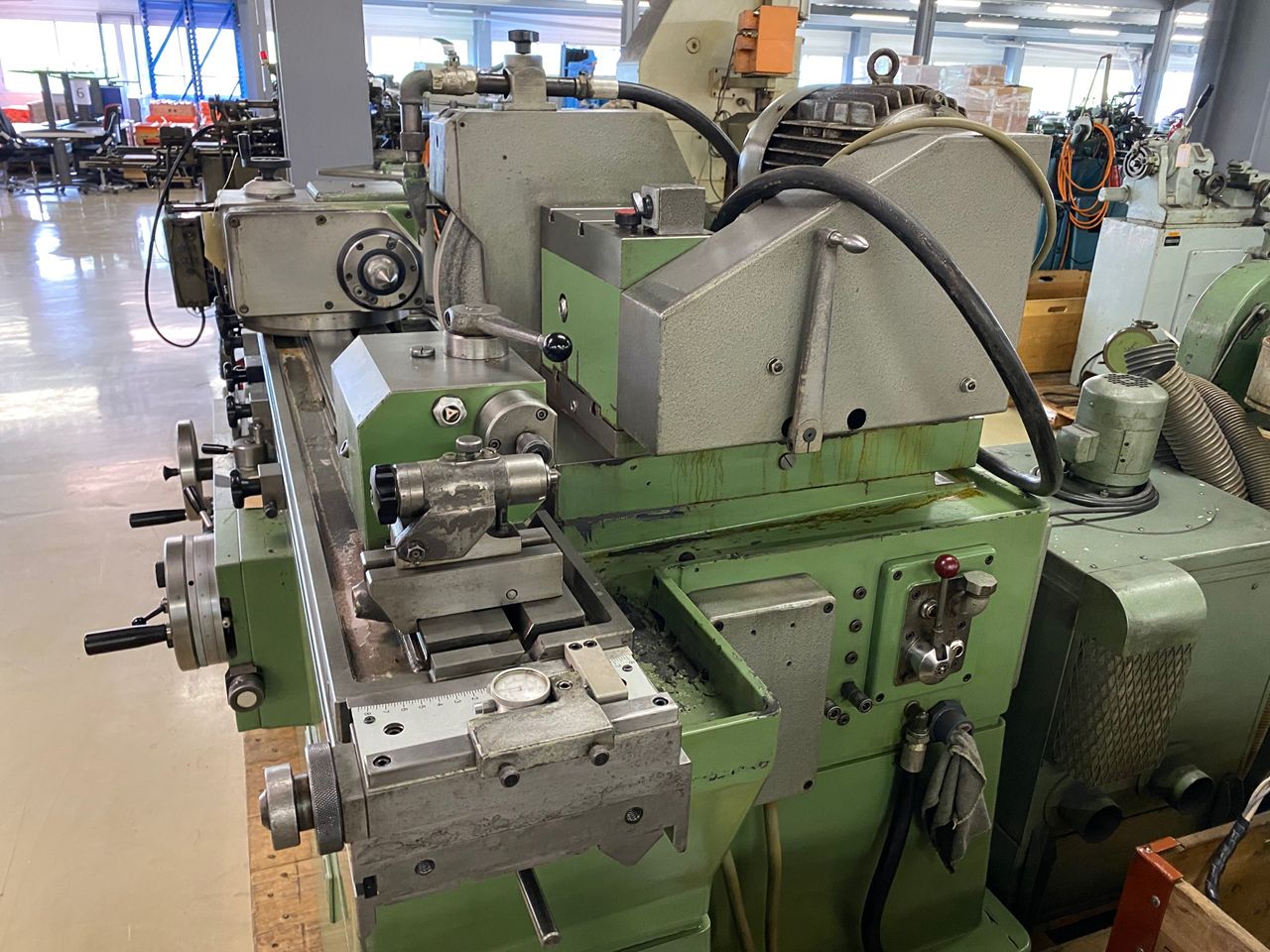

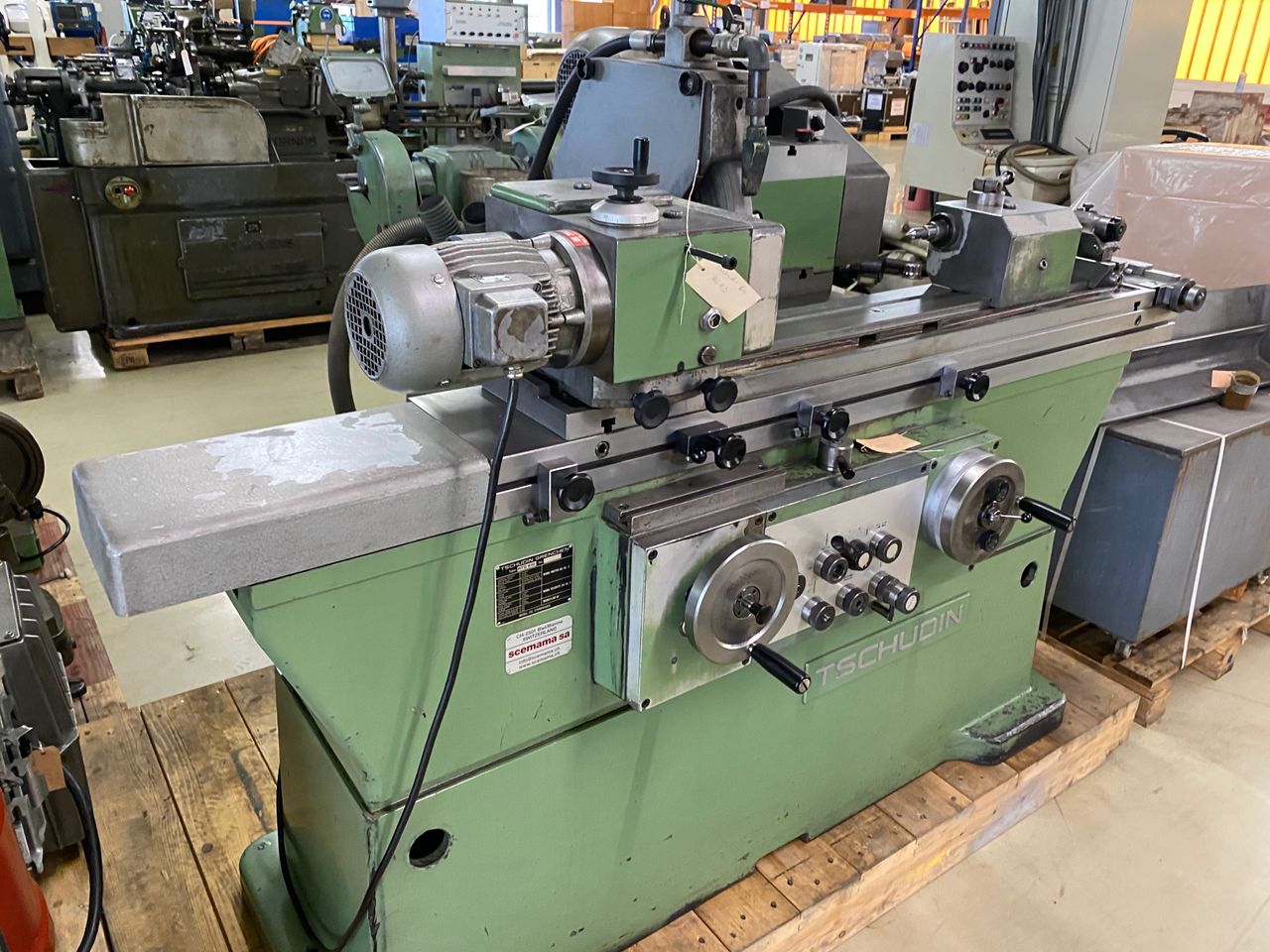

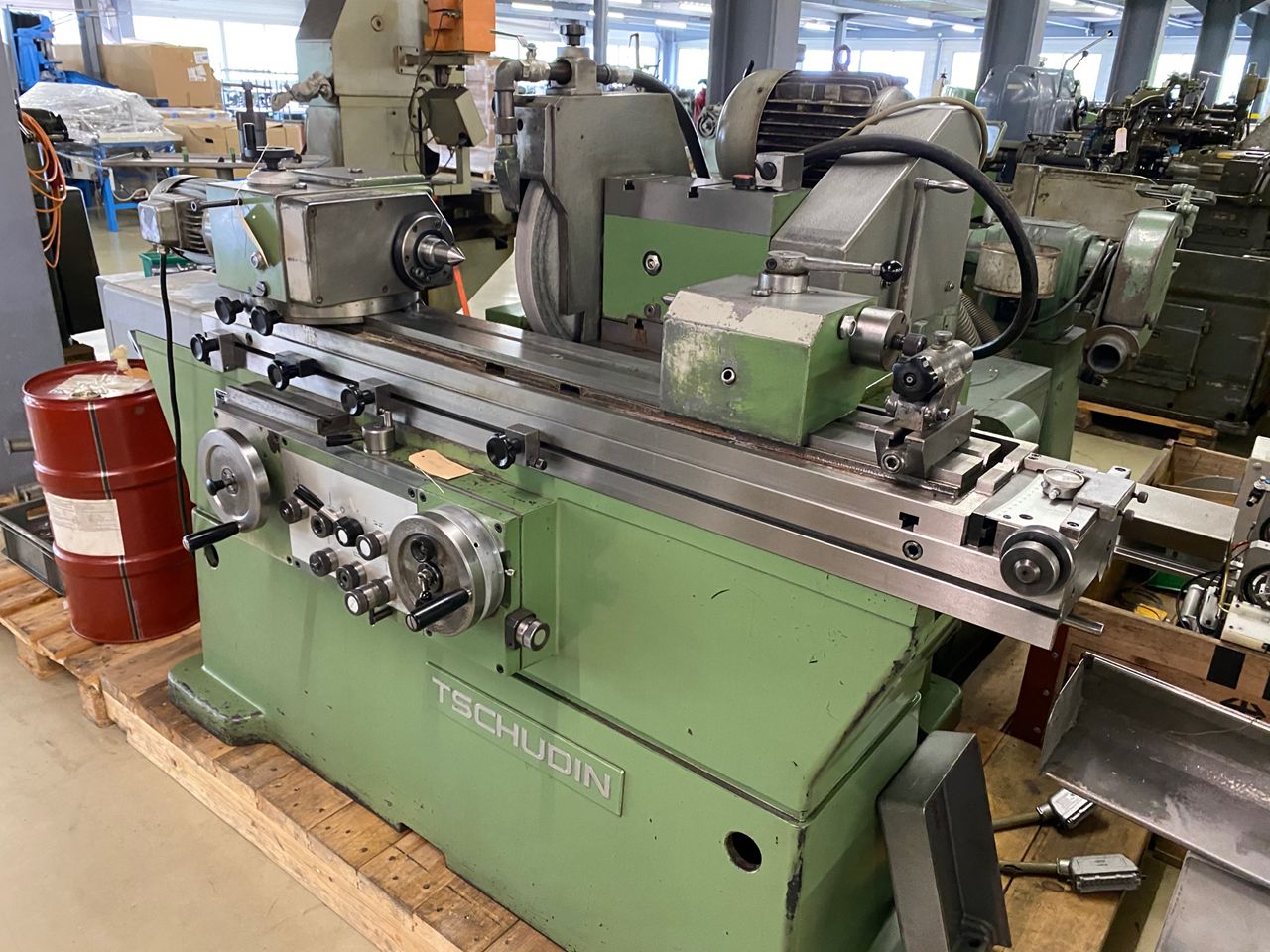

  • TSCHUDIN HTG-610 CYLINDRICAL GRINDING MACHINE
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland Switzerland

DESCRIPTION

  • INFORMATION
  • Manufacturing origin : Swiss
  • Voltage : 380/50/3
  • Netweight : 1800 kg
  • Custom position : 8460.2920
  • Dimensions : 2160x1200x1350 mm
  • TECHNICAL DATA
  • MAIN DATA
  • Distance between centres : 600 mm
  • Height of centres : 100 mm
  • Power required : 4 HP
  • MACHINE TABLE
  • Table travel max. : 620 mm
  • Table speed, stepless, up to : 5 m/min
  • Reversing dwell up to : 4 sec
  • Clamping base swivelling : 7°

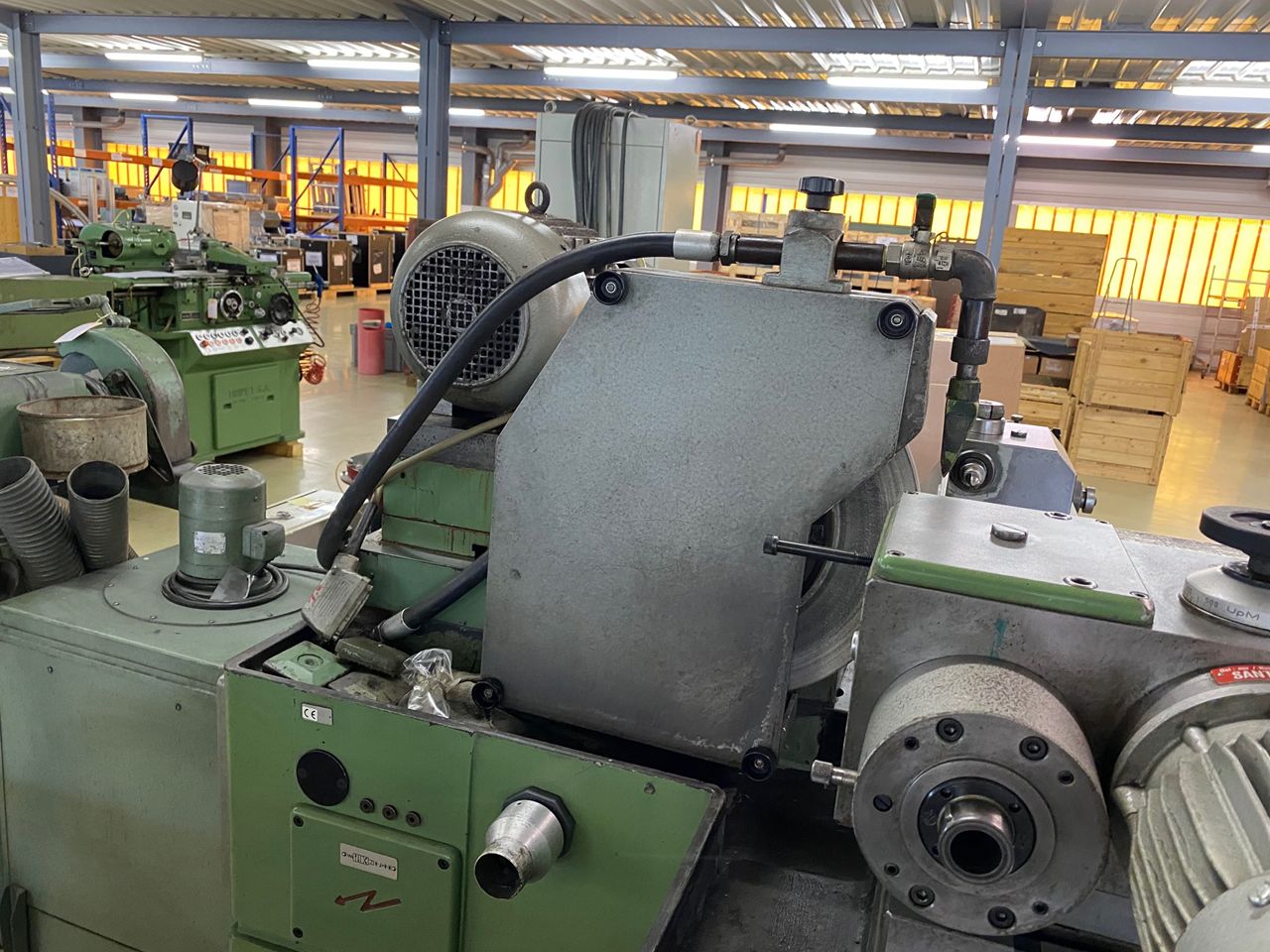

  • WHEELHEAD
  • Wheel diameter : 450 mm
  • Wheel feed, stepless, up to : 0,04
  • Rapid advance and return : 30 mm
  • WORKHEAD
  • Swivelling through : 360°
  • Spindle taper : Morse 4
  • Spindle speeds, stepless : 65-500 RPM
  • Power of motor : 0,5 HP
  • TAILSTOCK
  • Internal taper of sleeve : Morse 3
  • Travel of sleeve : 20 mm
  • INTERNAL GRINDING ATTACHMENT, HINGED TYPE
  • Spindle diameter max. : 80 mm
  • Power of motor : 1,5 HP
  • COOLANT TANK
  • Length : 780 mm
  • Breadth : 480 mm
  • Height including pump : 650 mm
  • Capacity : 100 lt
  • errors and omissions excepted data gived without obligation
  • Inventory Nr.2320010, machine equipped with :
  • Wheel headstock
  • Workpiece headstock, without drawbar
  • Tailstock MT3

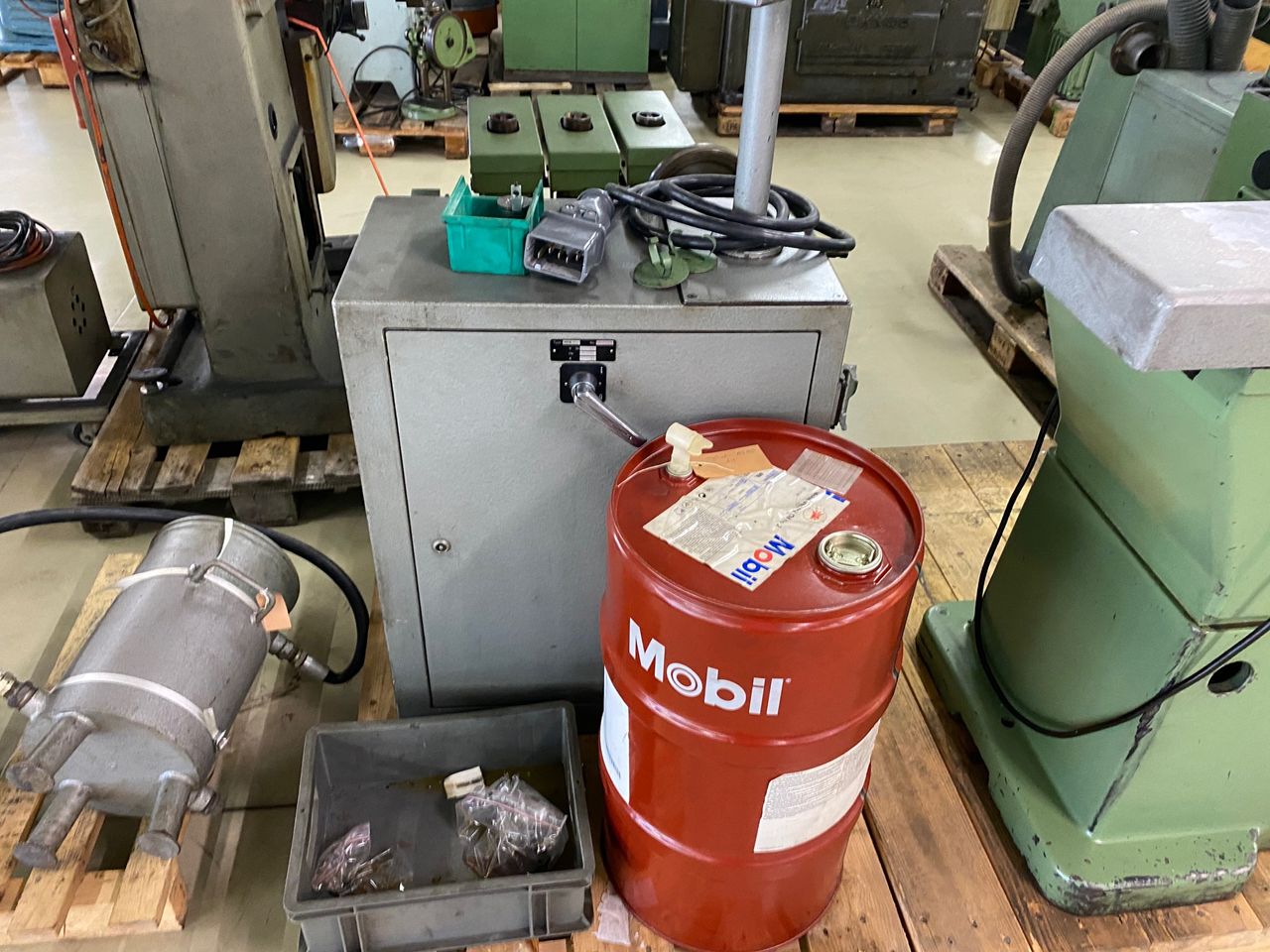

  • Hydraulic group
  • Coolant unit through decantation
  • Table setting device with watch
  • Retractable diamonding apparatus with diamond
