MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Doosan
  • Model:

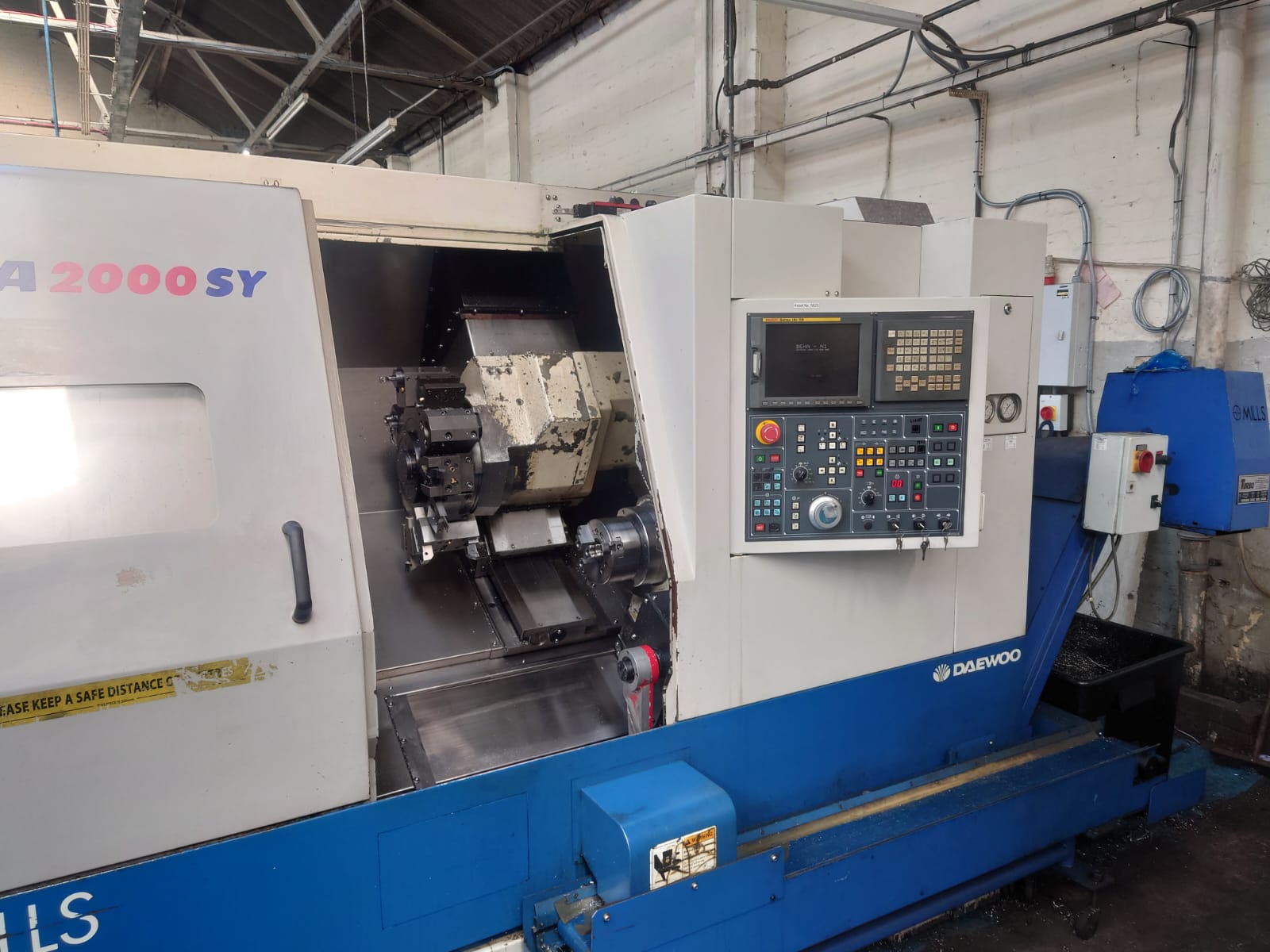

  • Used Doosan Puma 2000SY CNC Turning Centre (4244)
  • Condition:
  • Used
  • YOM:
  • 2005
  • Control:

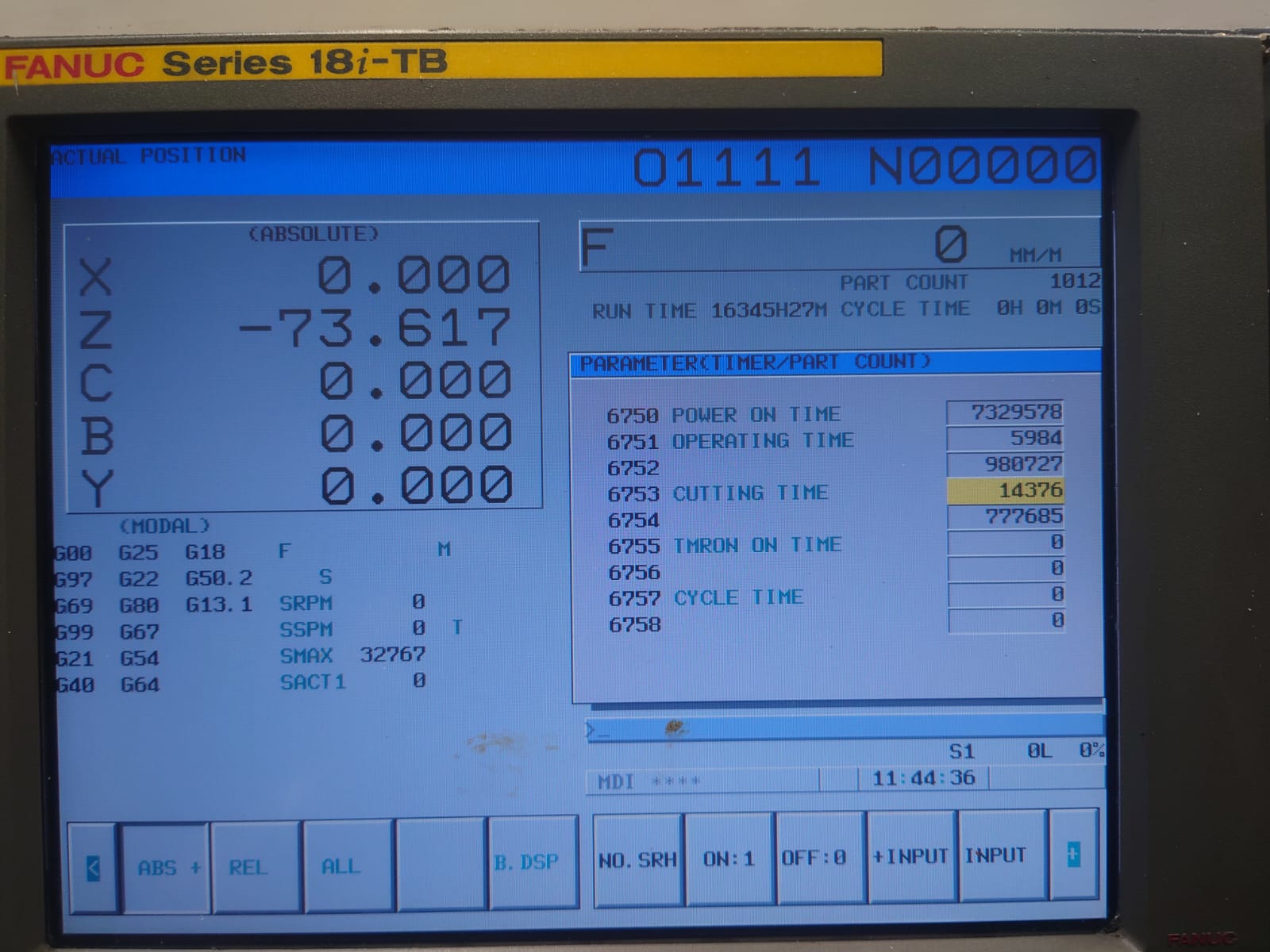

  • Fanuc 18TB
  • Price:
  • POA
  • Country:
  • United Kingdom

DESCRIPTION

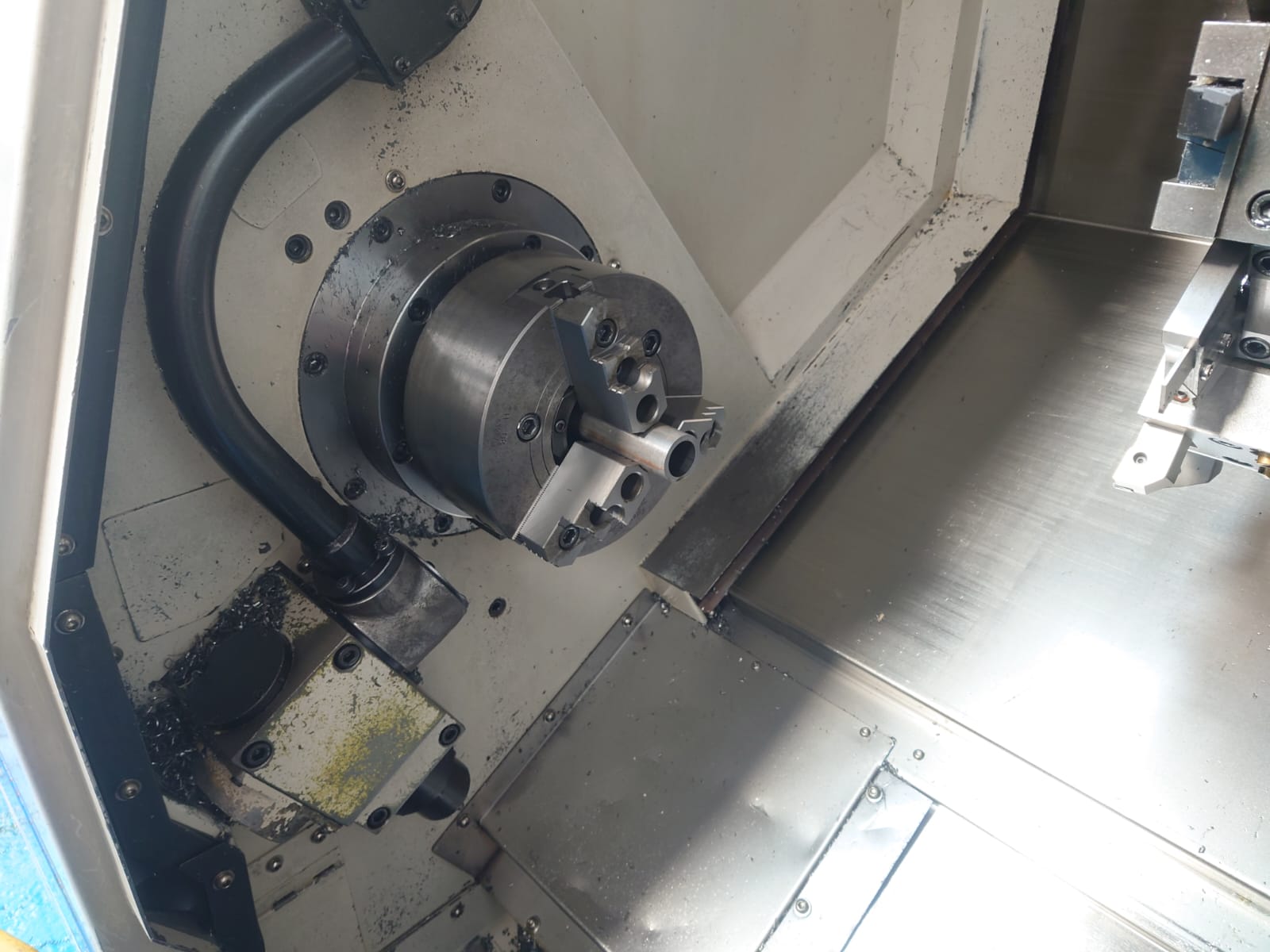

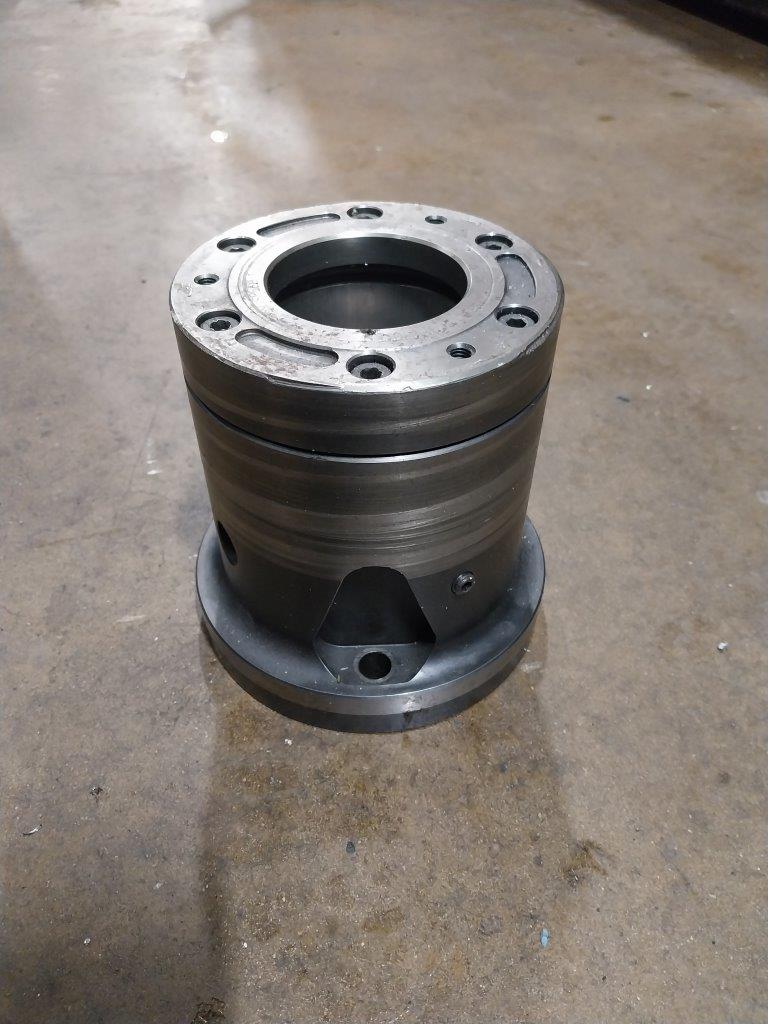

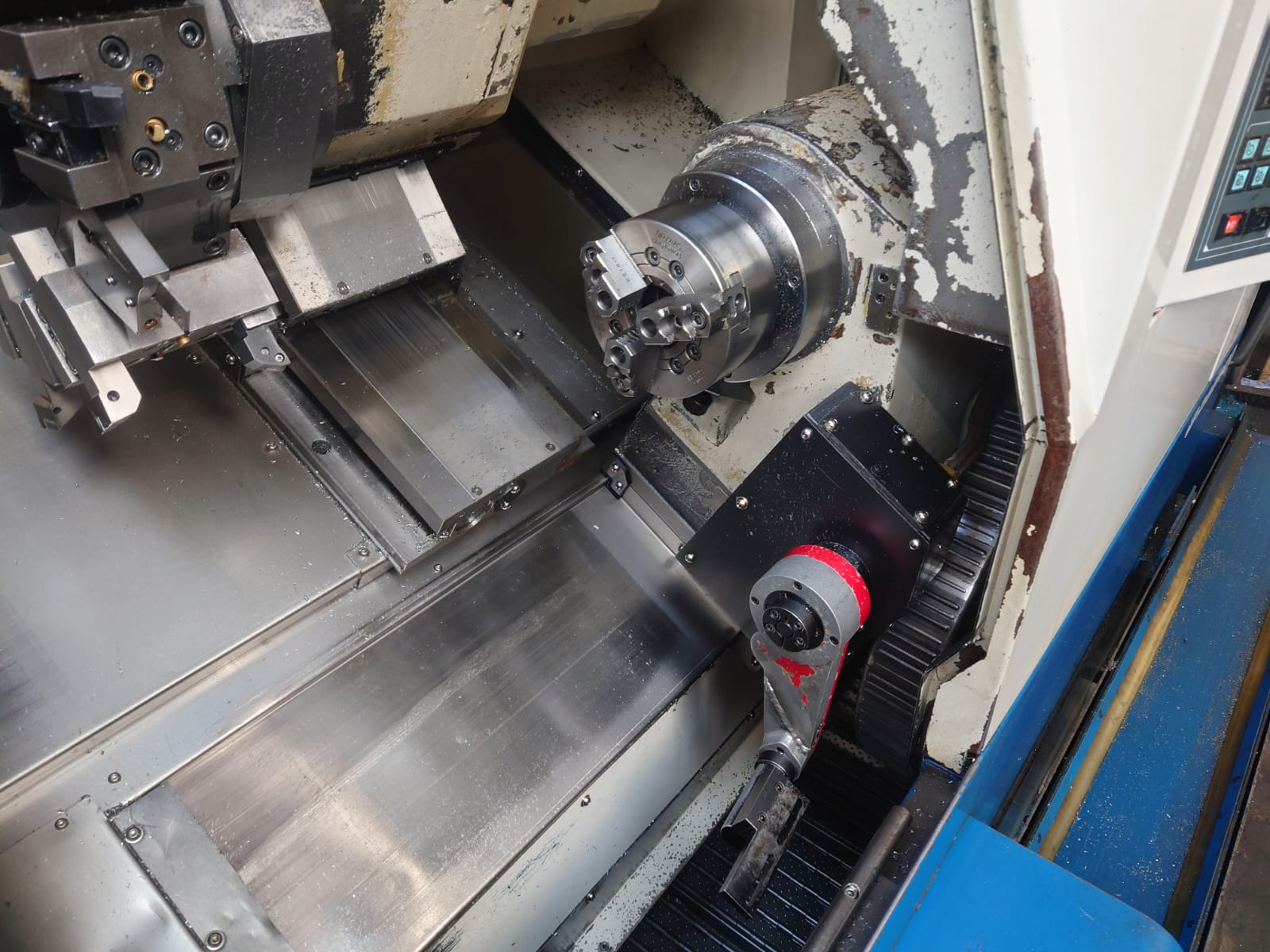

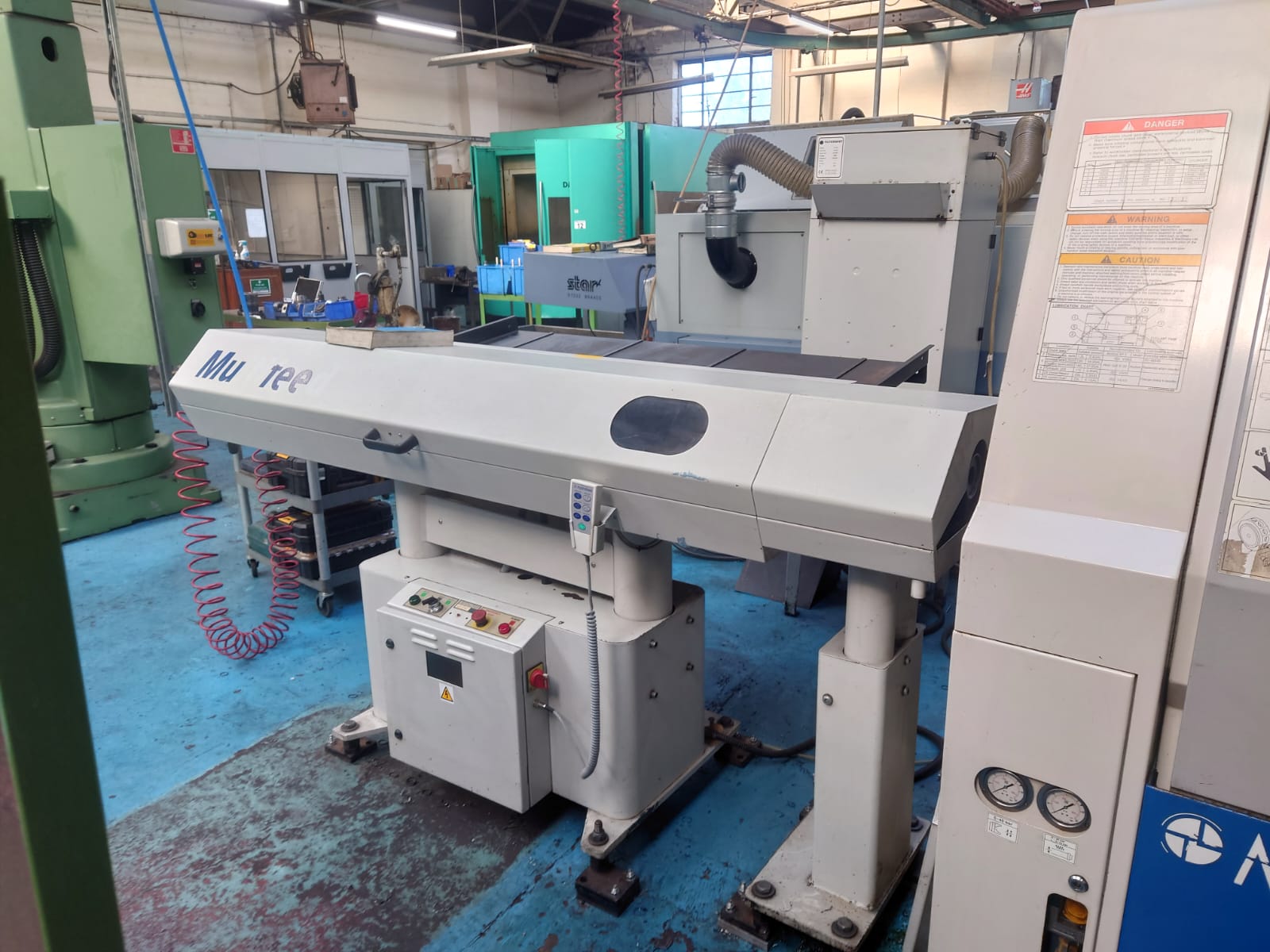

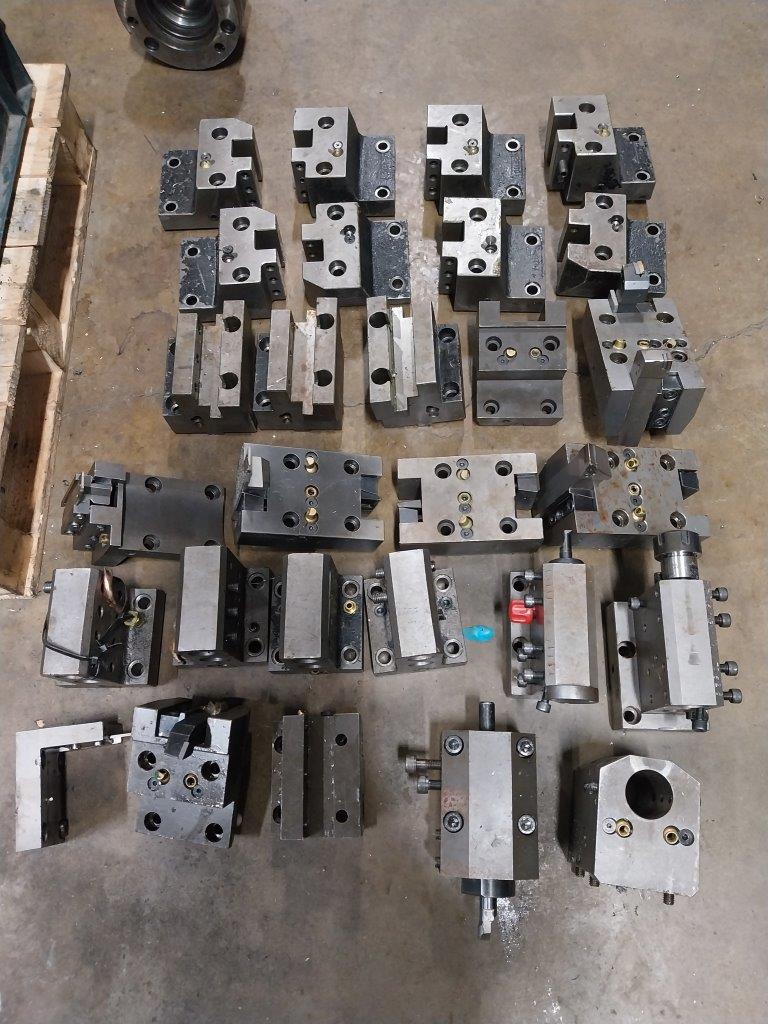

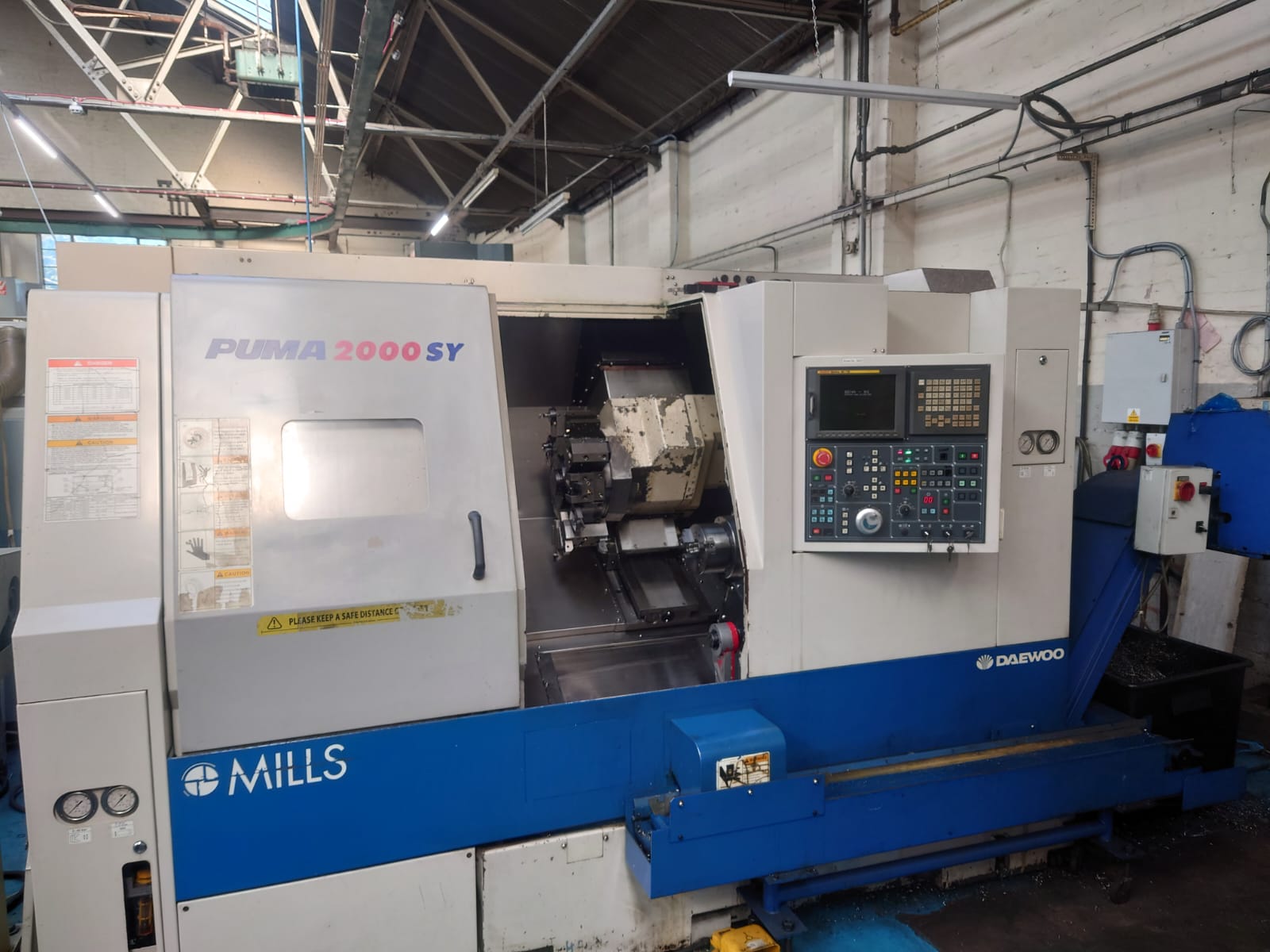

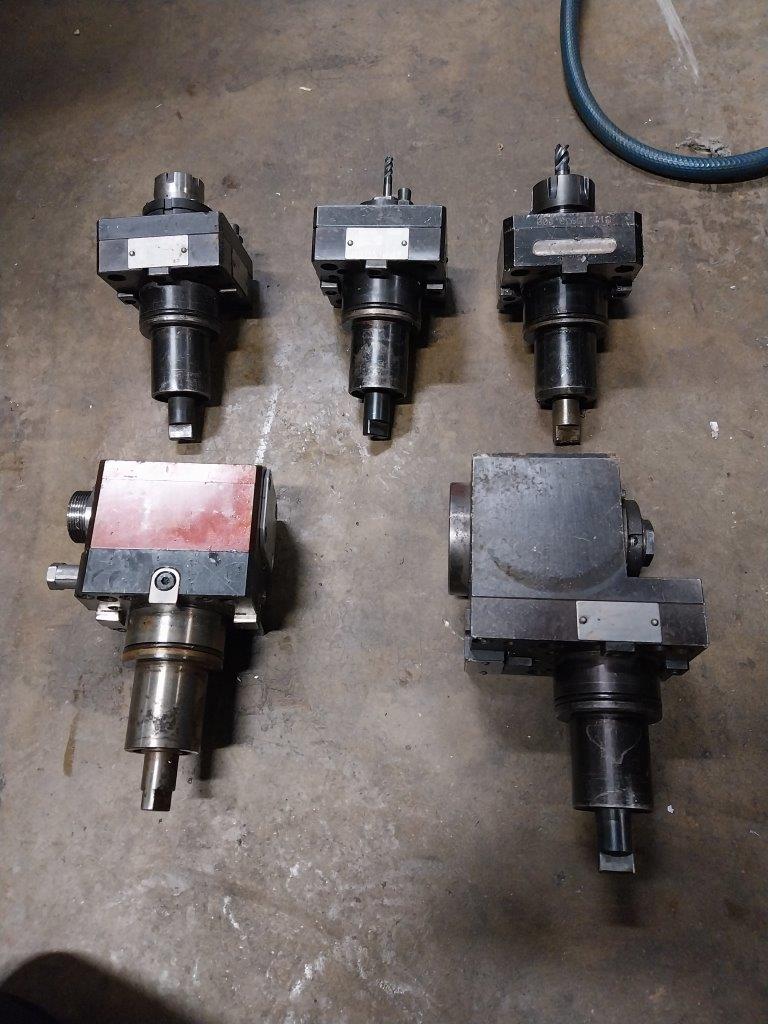

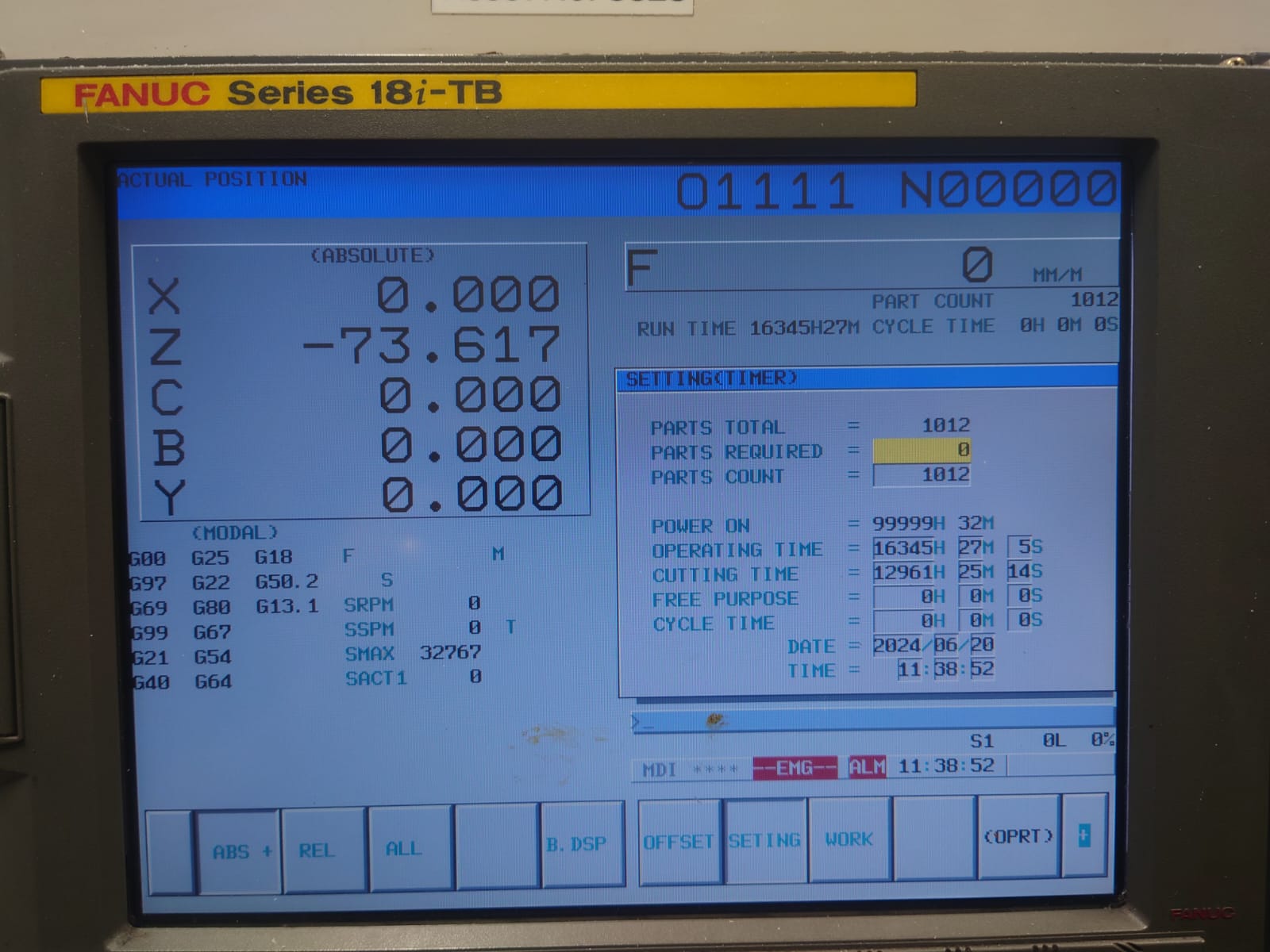

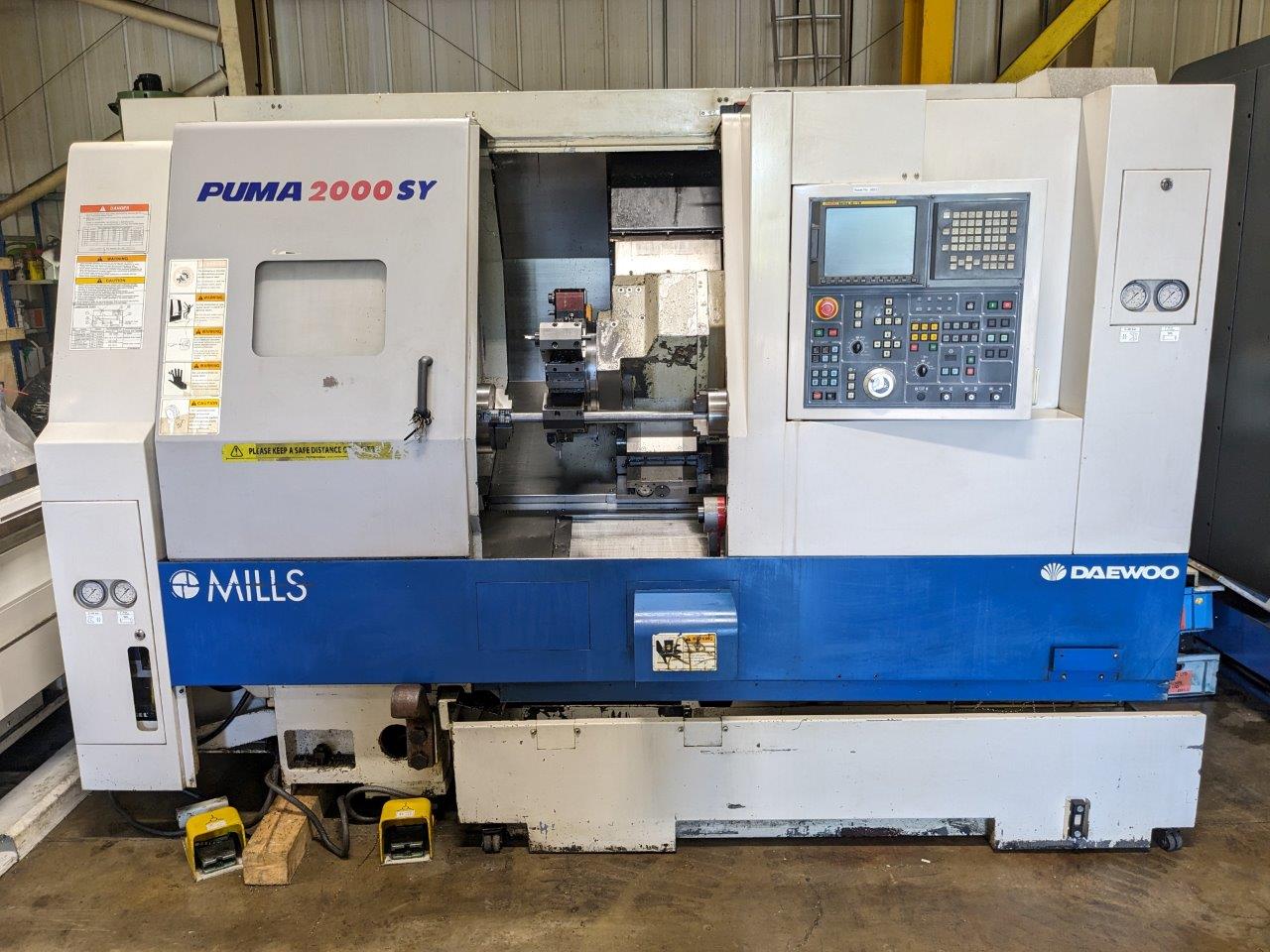

Used Doosan Puma 2000SY CNC Turning Centre, 2005, s/n P2000SY0441, Fanuc 18TB control, Swing over bed 600mm, Swing over saddle 550mm, Recommended turning dia 210mm, Maximum turning length 510mm, Maximum bar working 65mm dia, Travels - X250, Z580, Y100, B580mm, Spindle Speed 4,500RPM, Fitting A2-6, Spindle index 0.001 degree, Sub-spindle 6,000rpm, 45mm bore dia, Spindle index 0.001 degree, 8" chuck main spindle, 6" chuck sub-spindle, Collet chuck, 12 Station turret, C-Axis, Y-Axis, Sub-spindle, Parts catcher, Tool probe, Swarf Conveyor, 5 Driven Holders and Static tooling. MX1B Magazine Bar Feeder.
