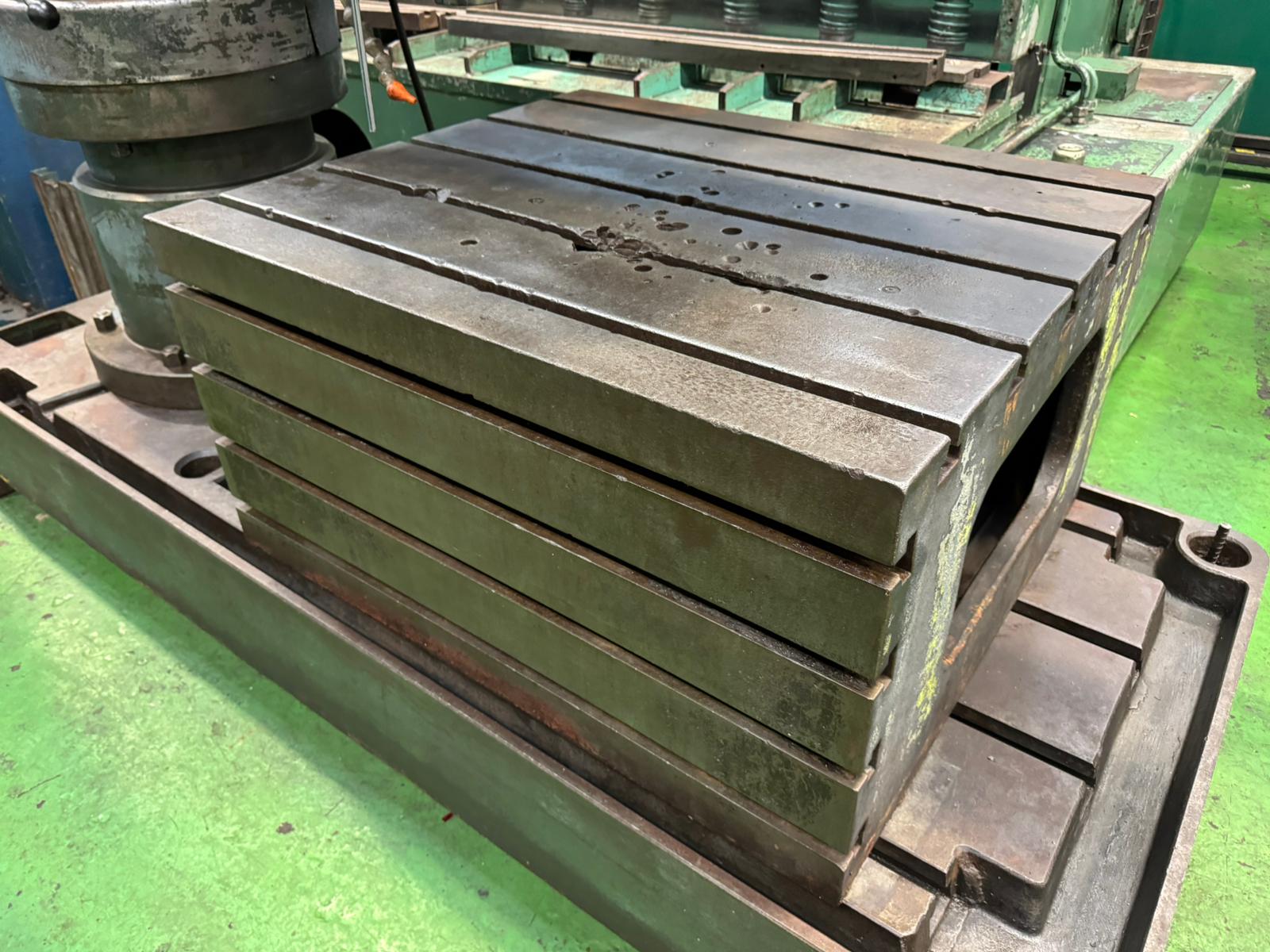

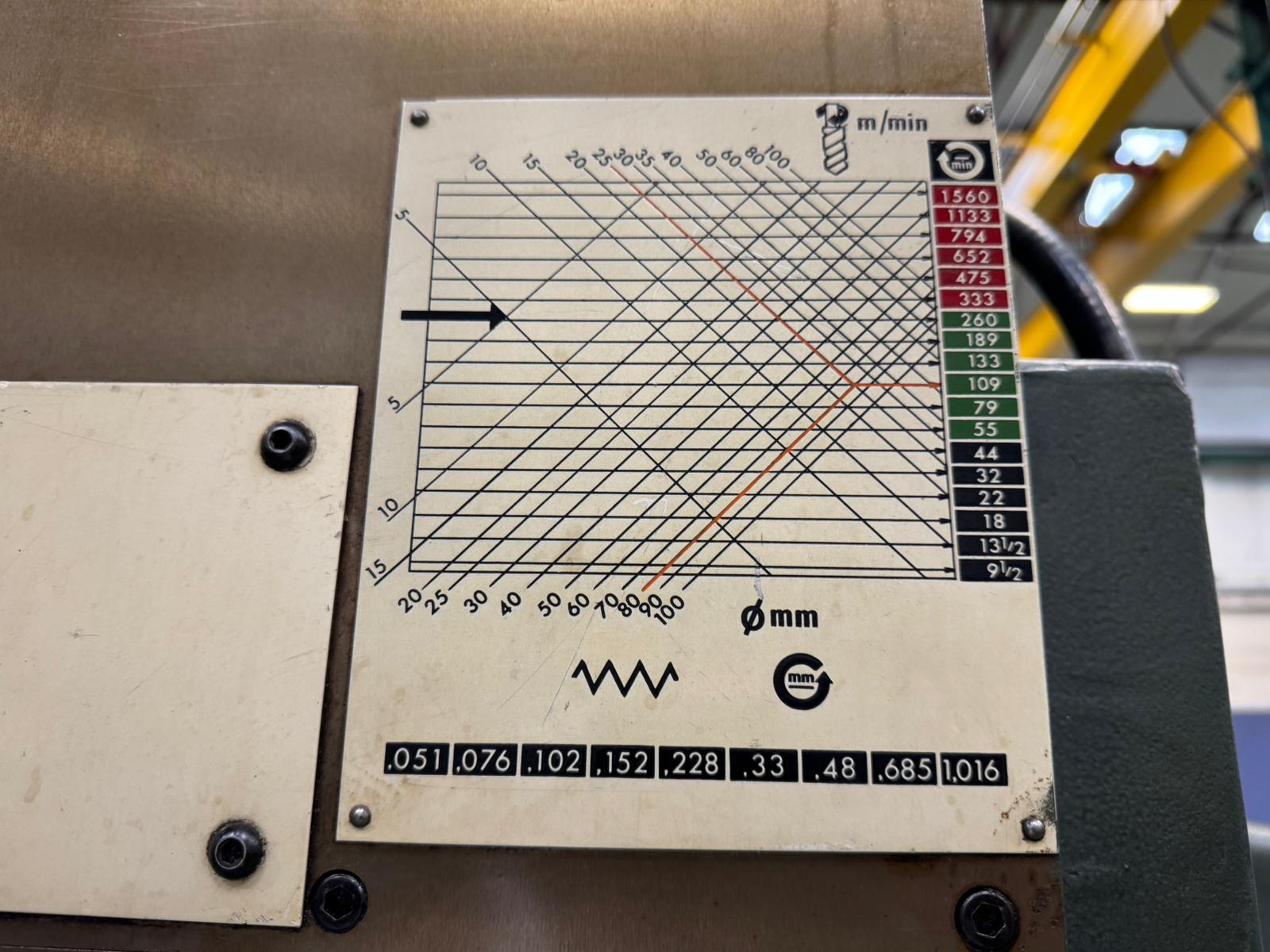

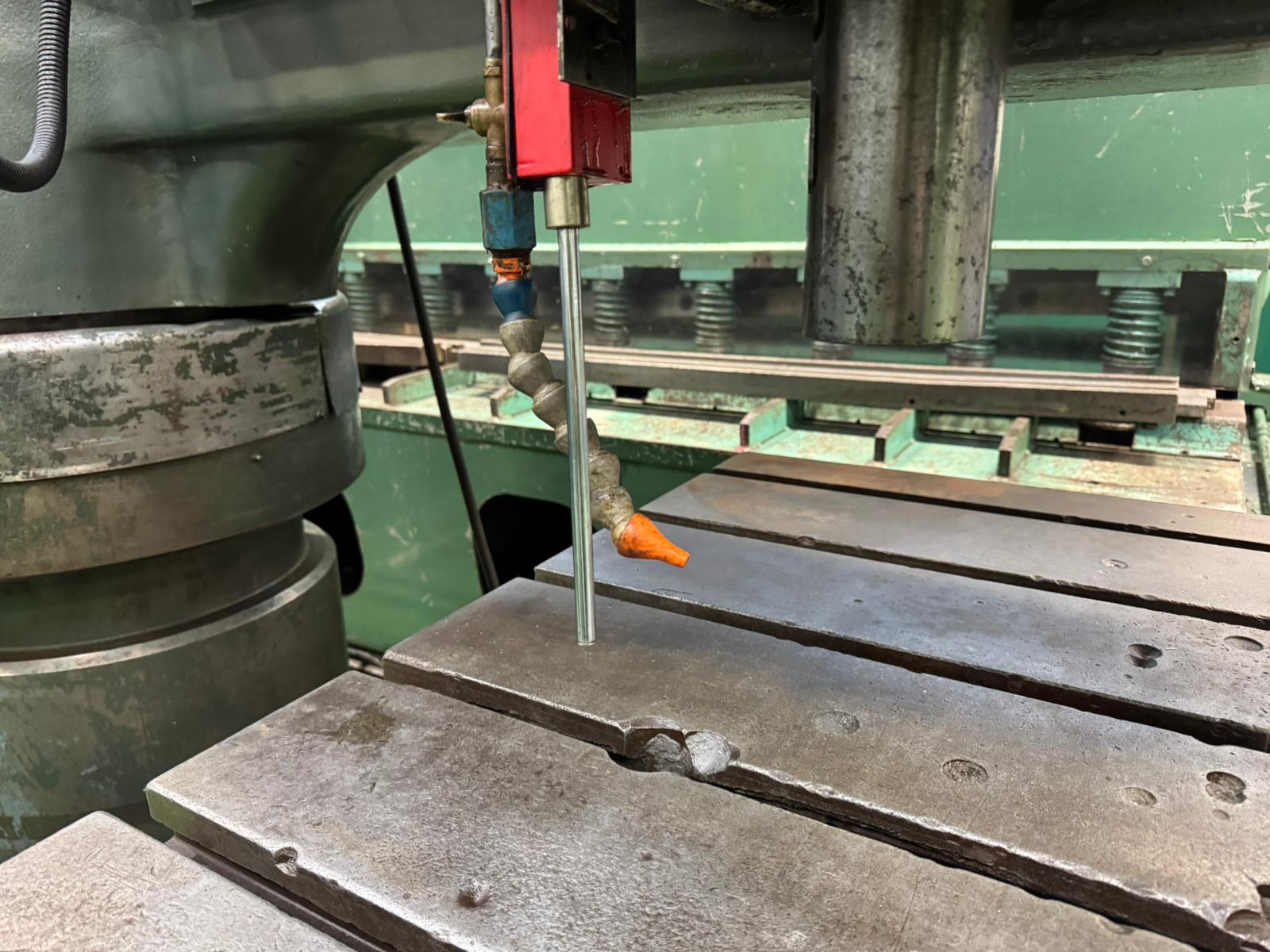

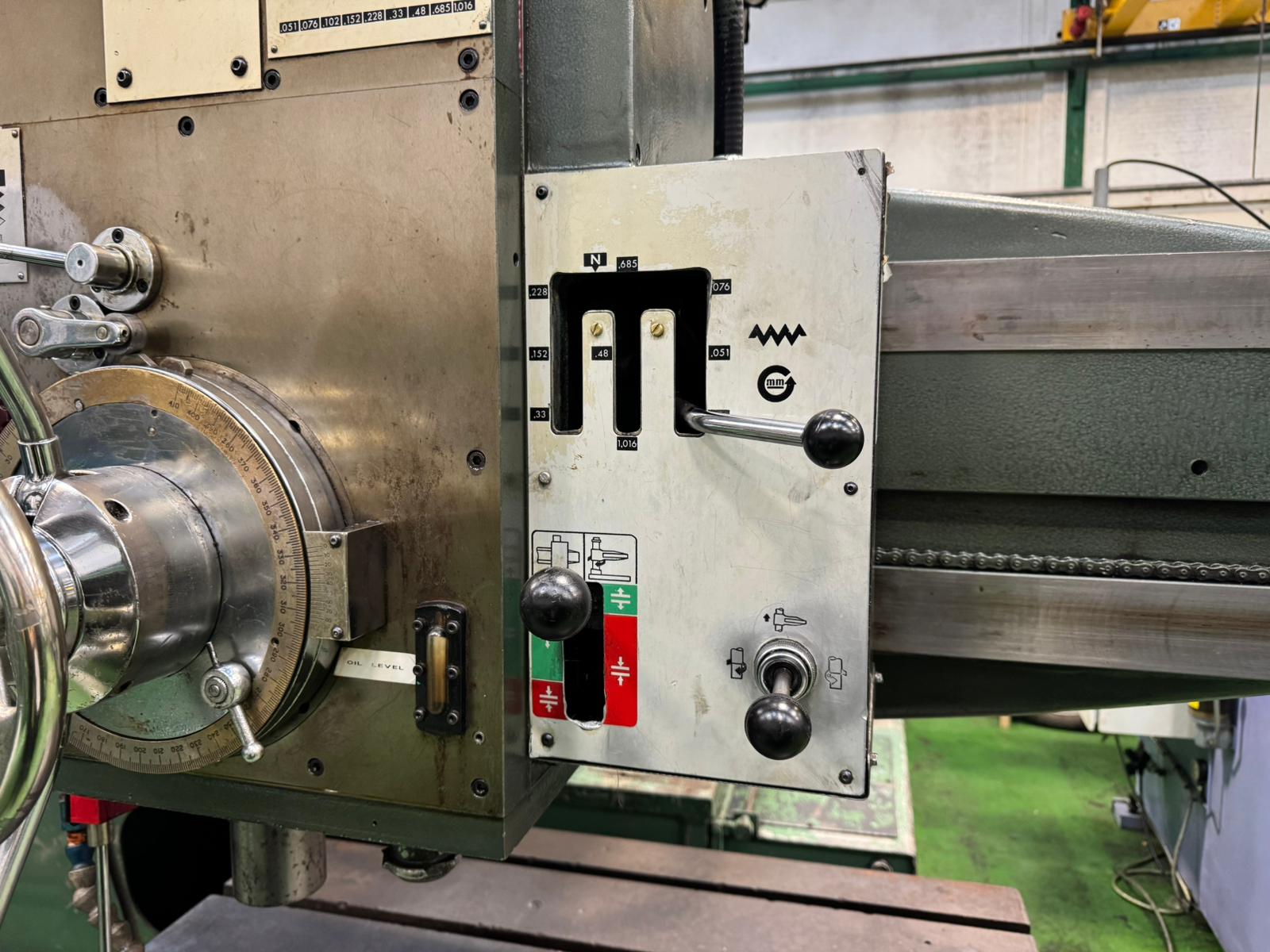

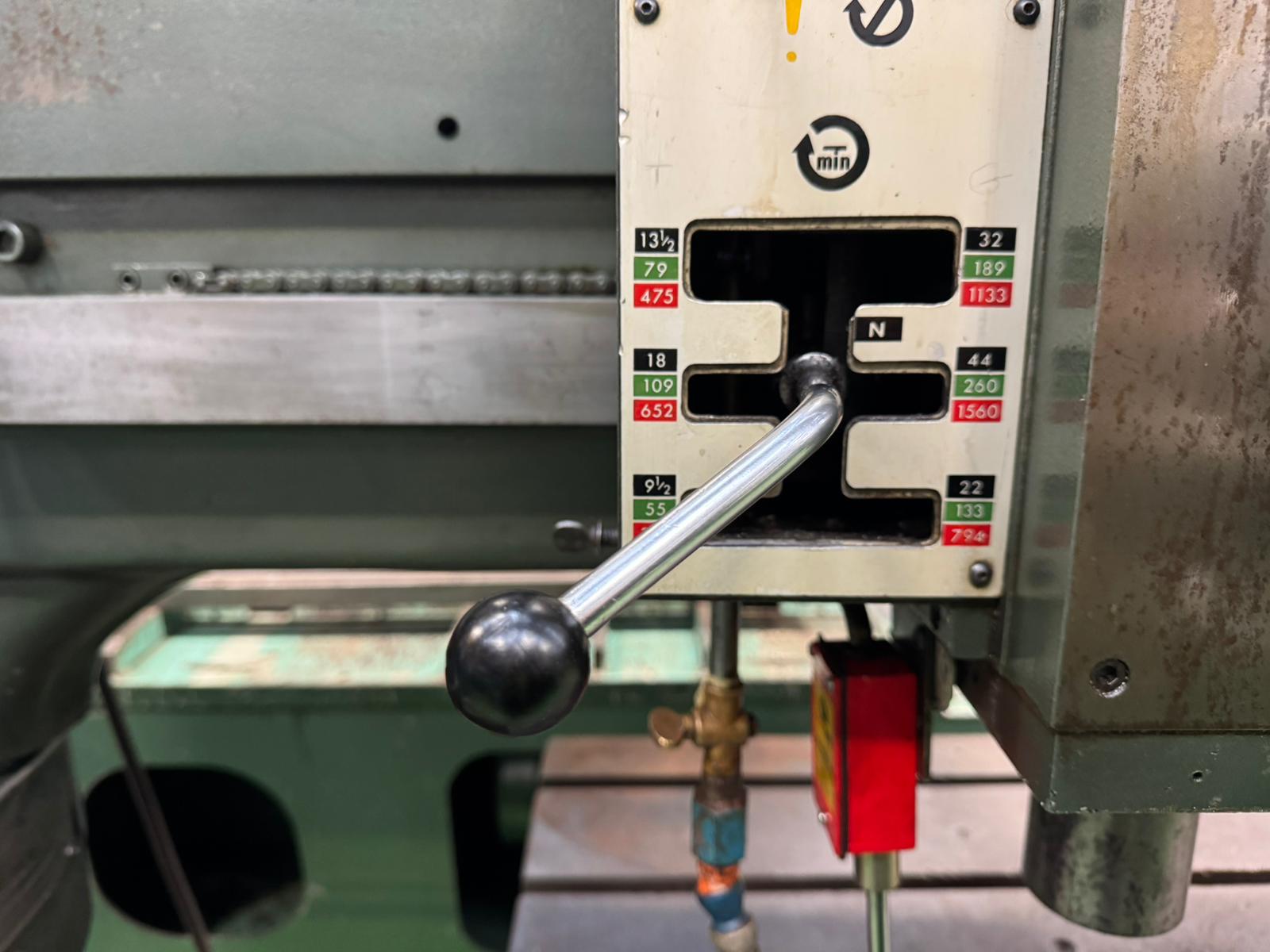

Spindle taper 5MT. Spindle speeds 9.5 – 1560 rpm. Feeds 0.051mm – 1.016mm/rev. Cast iron box table 48” x 36” x 20” high. Safety brake. Coolant. Overall dimensions L x W x H 104” x 43” x 128” high. Approximate weight 6.5 Tons.
DOOSAN
08535
CNC FANUC 21i-TB
CAPACITY:
Max swing diameter over bed mm 900
Max swing diameter over carriage mm 630
Max turning diameter mm 700
Max turning lenght mm 1575
Bar passaging mm 116,5
STROKES:
Axis X mm 370
Axis Z mm 1575
SPINDLE:
Spindle no...
