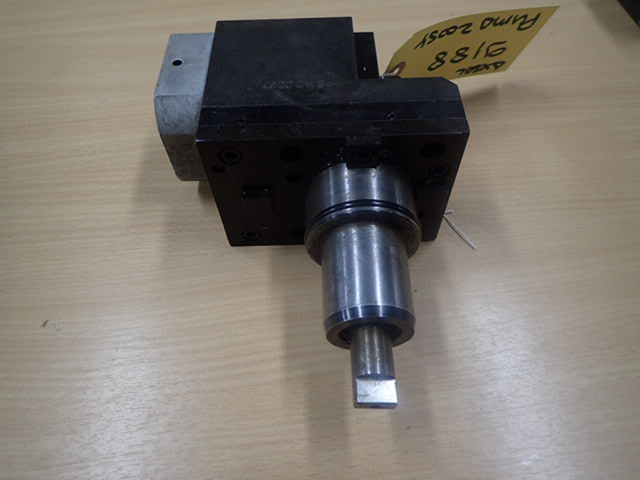

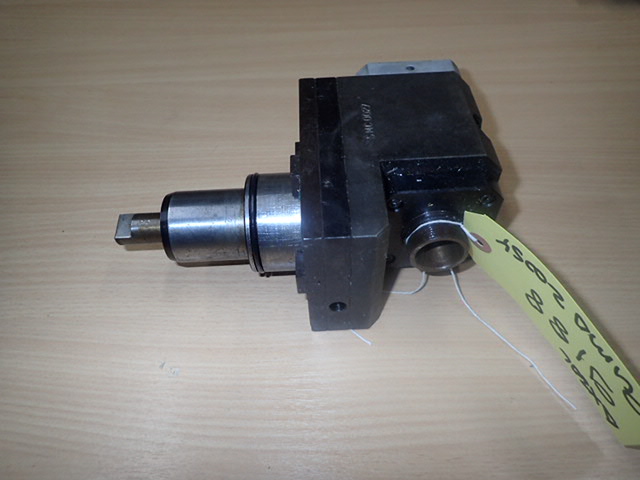

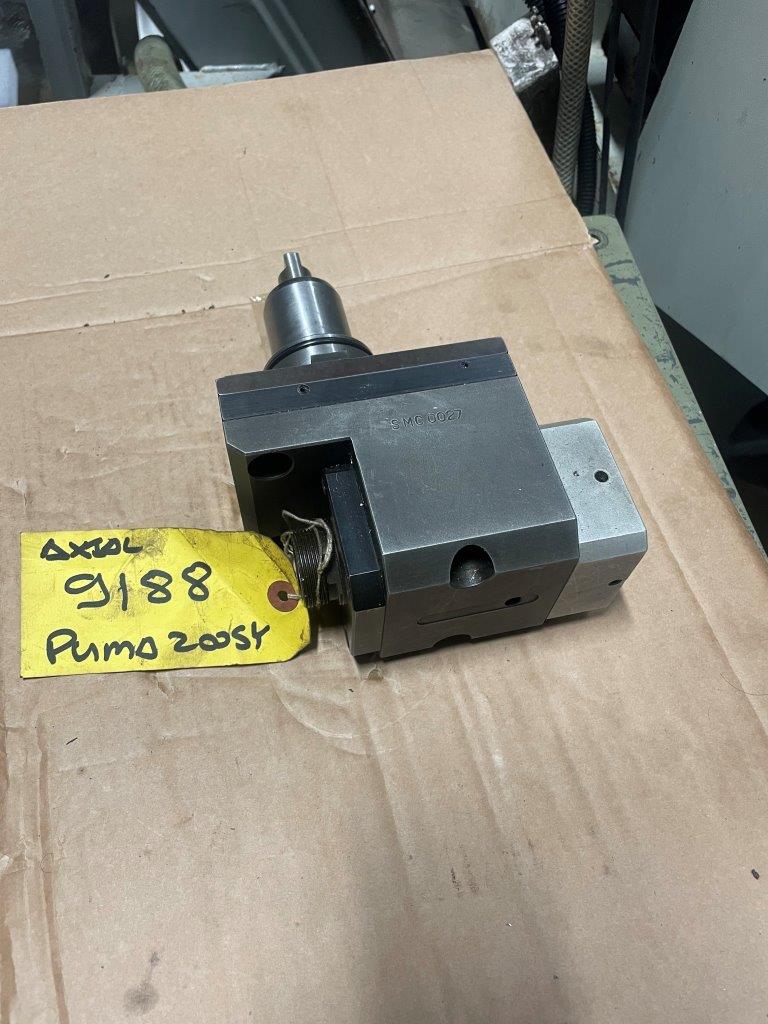

Used BMT55 Angular Driven Tool Holder for CNC Lathes, BMT55, ER25 Collet Chuck, Length of drive to the end of the tang - 103mm, (Suitable for Doosan Lathes)
KSJ-04 Steel serrated soft jaws to suit a 4 Inch power chuck. Jaws are manufactured from 080M15 Steel. Good Quality of material allows for machining with a good finish.Jaw Finder
Swing over bed dia 650mm. Standard turning dia 234mm. Maximum turning dia 260mm. Swing over carriage dia 365mm. Distance between centres 520mm. Bar capacity 66mm. Travels X/Z 50 + 130/400 mm. Rapid feed – X/Z axis m/min 30/30. Feed motor X/Z axis k...
Cast iron plain cross profile Tooling Column with mounting holes. Plain to allow for the machining of hole patterns and features required for specific fixtures. Ground flat parallel and perpendicular for accuracy. Holes for side location to allow pre...
