MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Kingsland
  • Model:

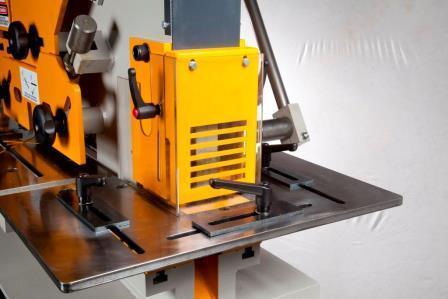

  • New Kingsland Steelworker Compact 65, 5 station, single operator, 65 tonne
  • Condition:
  • New
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Manufacturer: Kingsland
Model: Compact 65, Single Operator
Capacity:: 65 tonne
Punches:: 30mm diameter through 15mm or 38mm diameter through 12mm largest hole 110mm diameter with optional equipment
Shears Flats:: 200 x 20mm (max thickness) 300 x 15mm (max width)
Crops Angles:: 120 x 12mm @ 90 degrees 80 x 8mm @ 45 degrees
Sections:: 40mm dia round bar 35mm square bar
Notches:: 10mm thick
Optional Extras:: include bar bending, sheet bending and tube notching ask for details.
