MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SOMAB
  • Model:

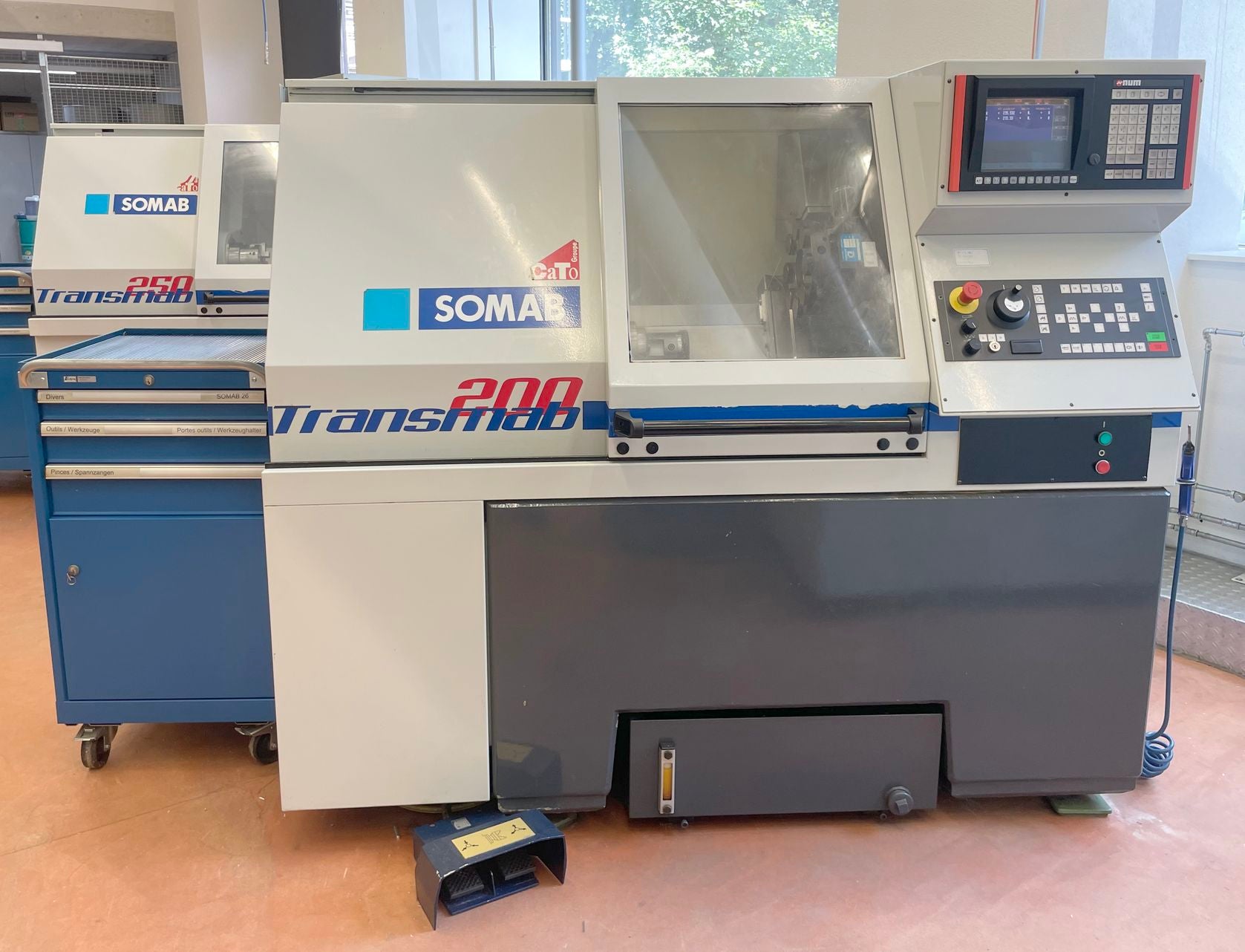

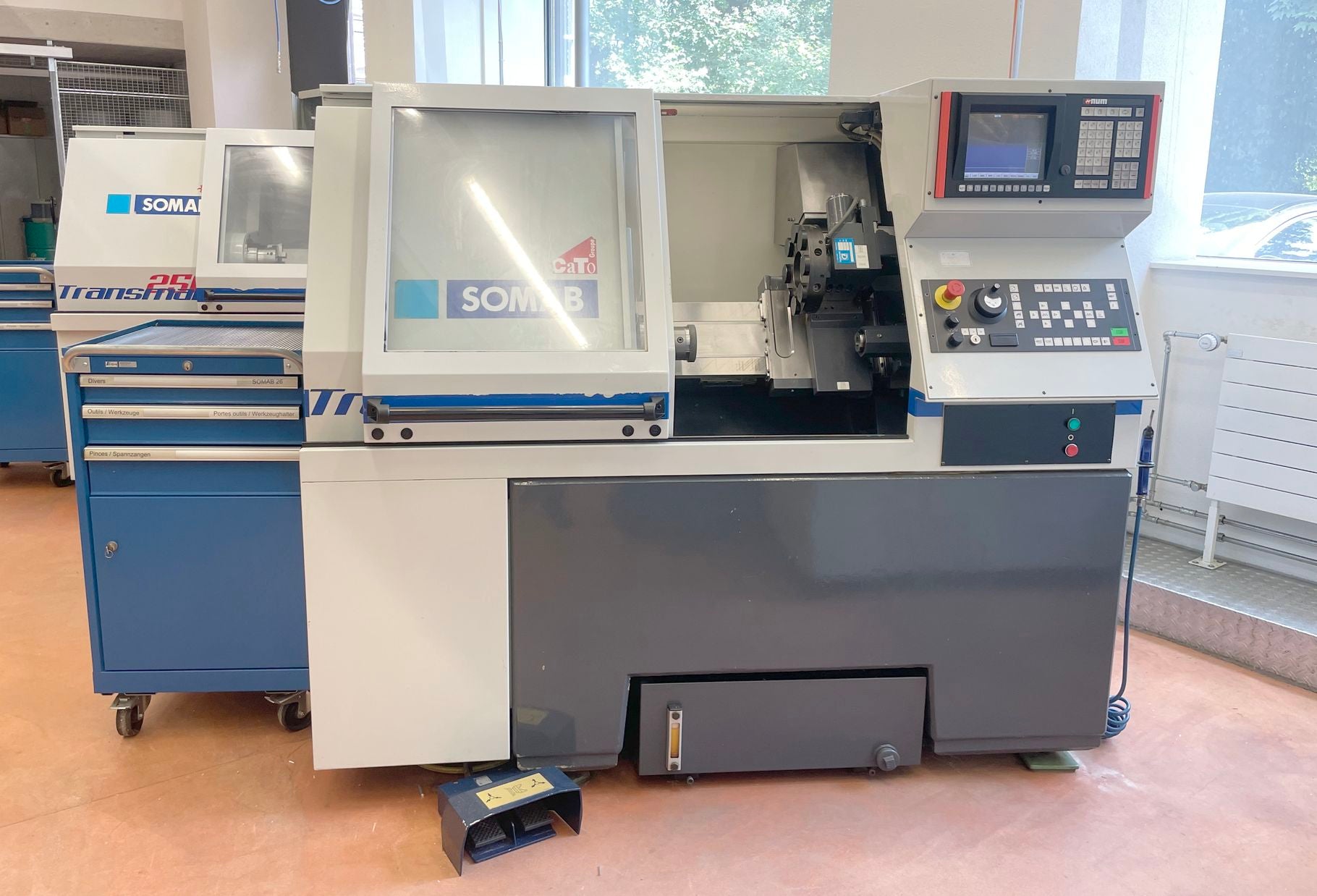

  • 023198 - SOMAB TRANSMAB 200
  • Condition:
  • 1
  • YOM:
  • NA

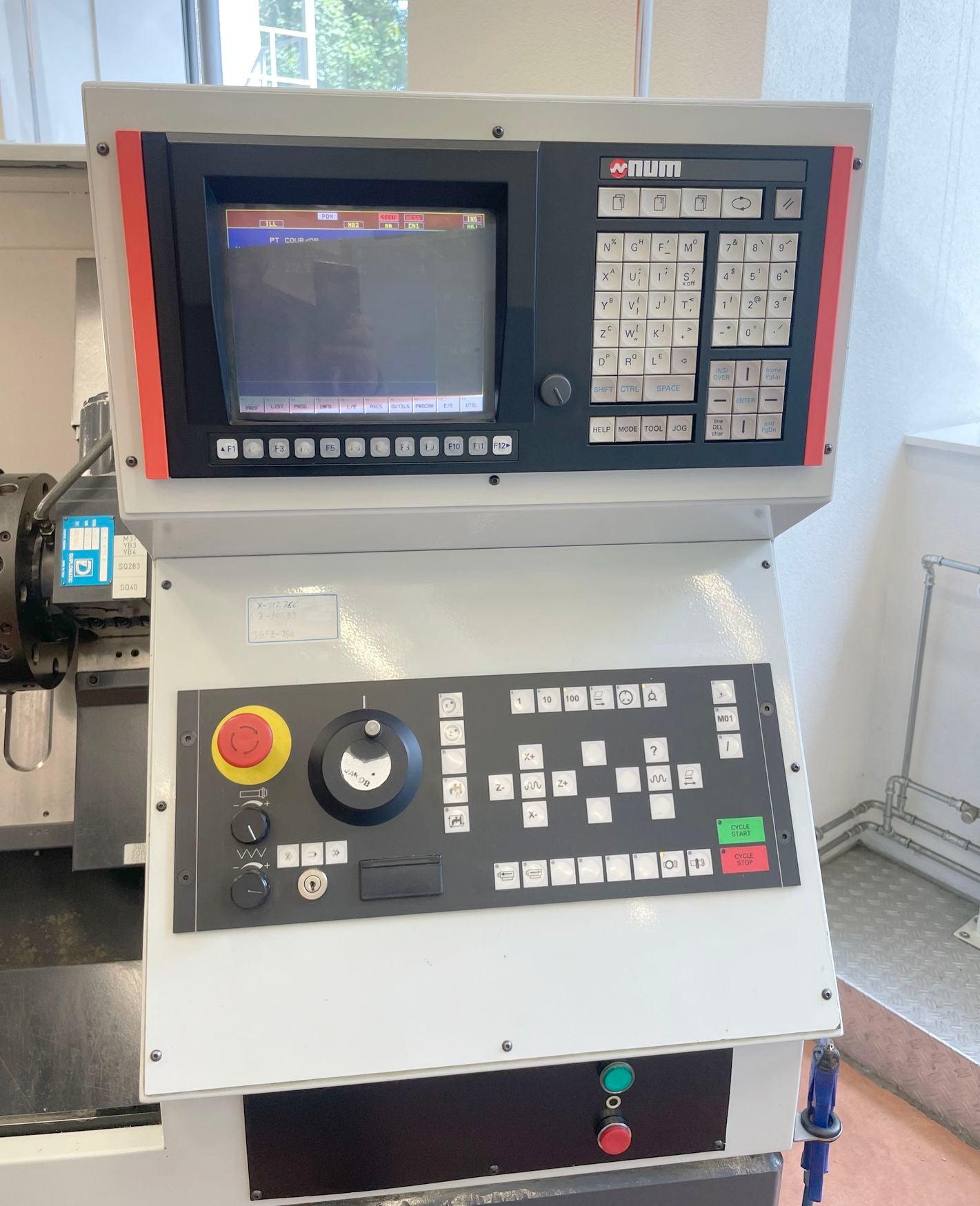

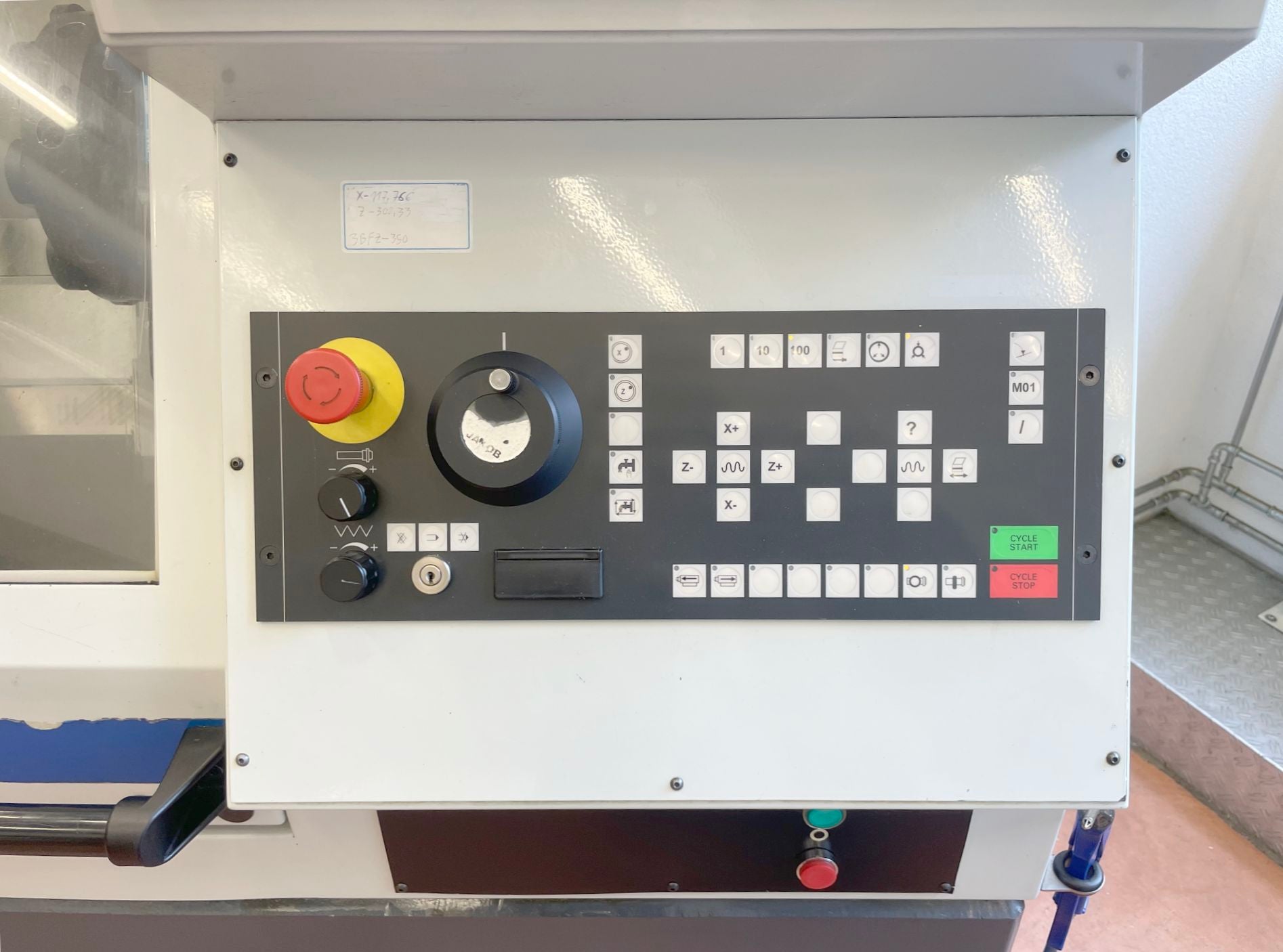

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Swing over bed: 260 mm.

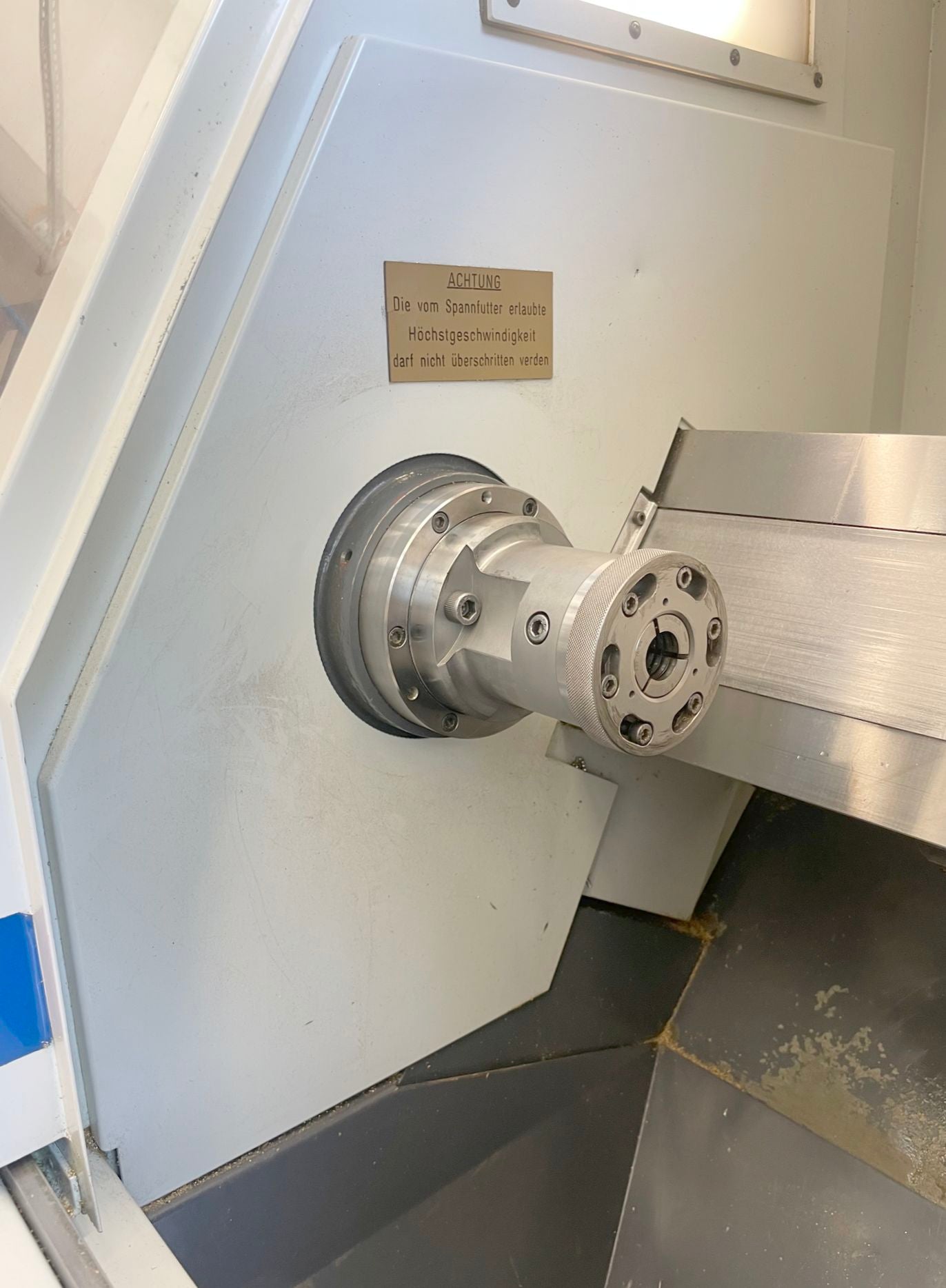

Taper in spindle: A2 4".
Spindle hole: 35 mm.

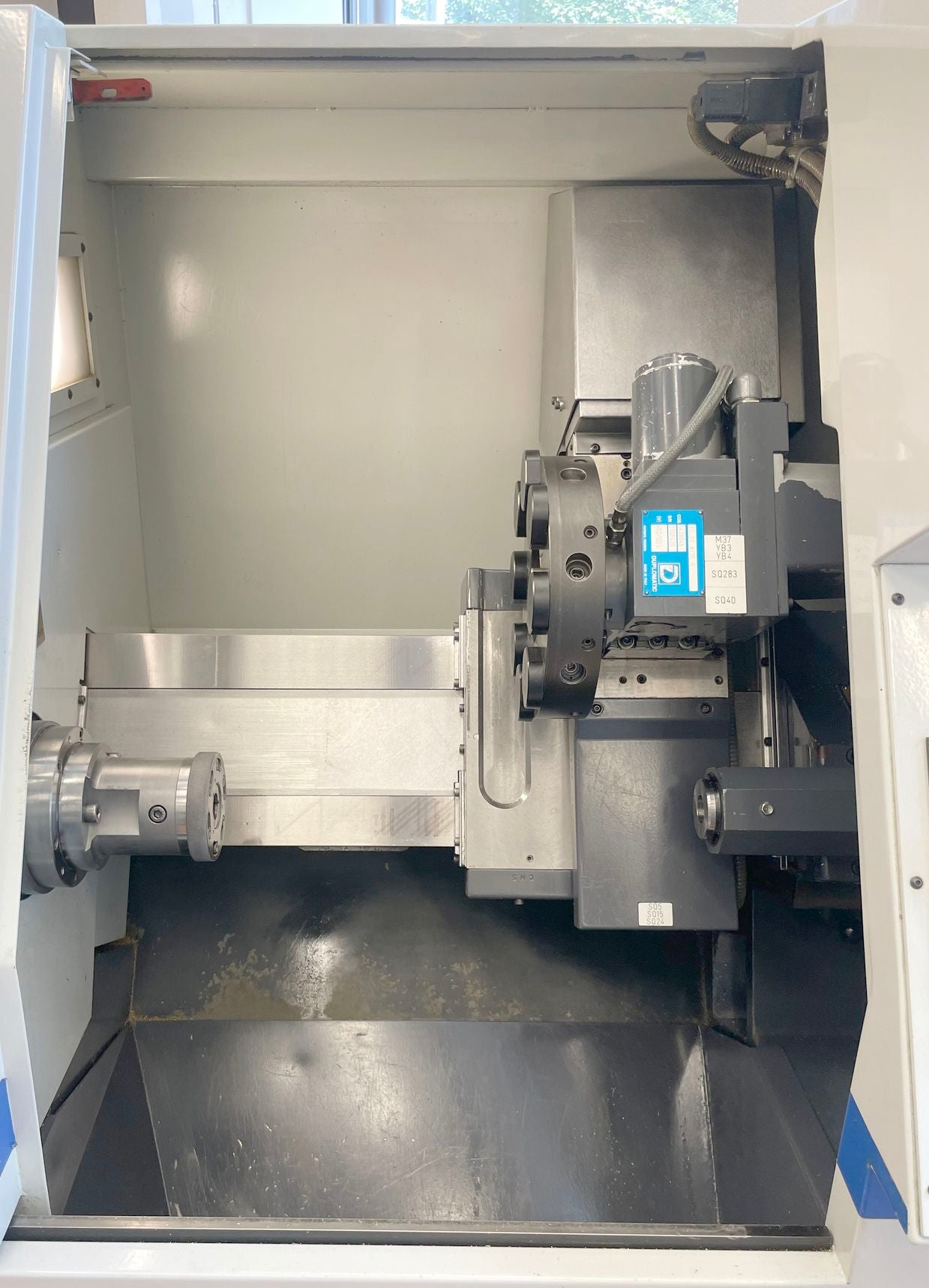

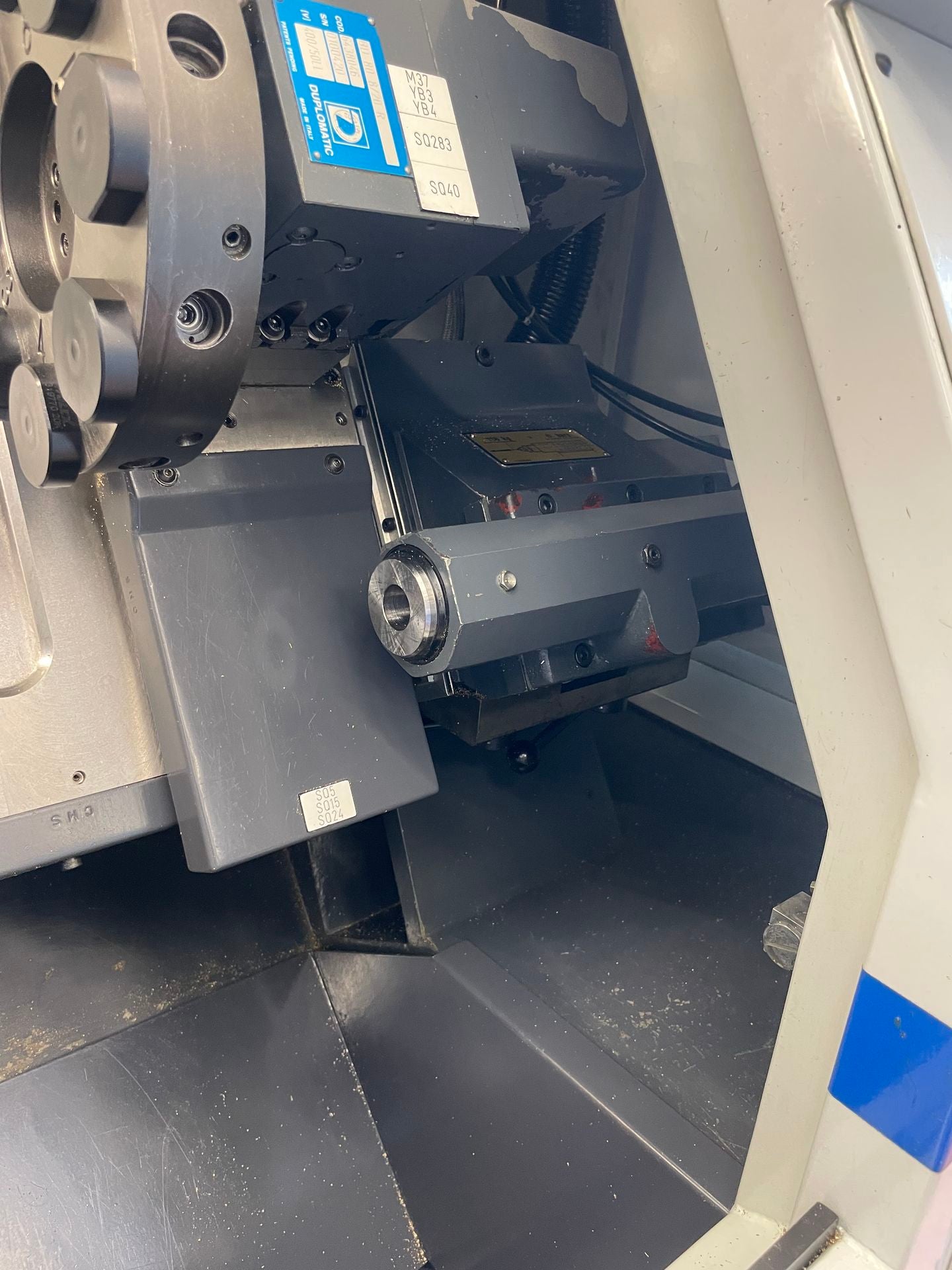

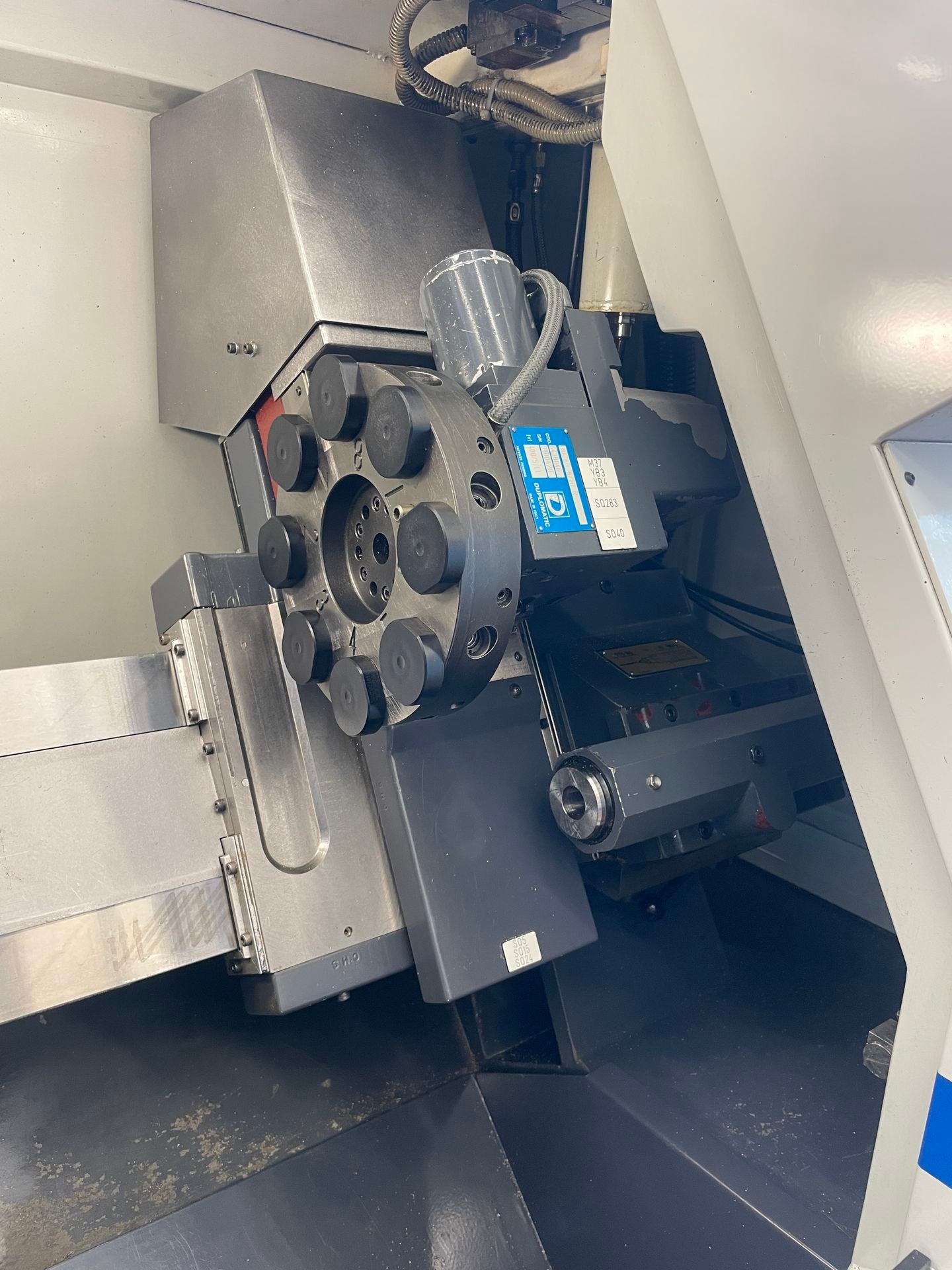

Turret carriage:: DUPLOMATIC.
Longitudinal travel (Z-axis): 300 mm.
Transversal strocke (X axis): 125 mm.
Number of positions: 8.
Fixed tools turret: 8.
Tool shank cross section: 16 mm.
Inner cone diameter: 20 mm.
from: 200 t/min.
up to: 5000 t/min.
Morse taper: 3 CM.
Spindle stroke: 80 mm.
Spindle diameter: 52 mm.
Pressure: 1200 N.
Inner taper type: F38.
Spindle motor: 4 kW.
Voltage 50 Hz 3x: 400 Volt.
Machine's weight about: 2500 kg.
Length: 1900 mm.
Width: 1400 mm.
Height: 1980 mm.
