MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SPINNER
  • Model:

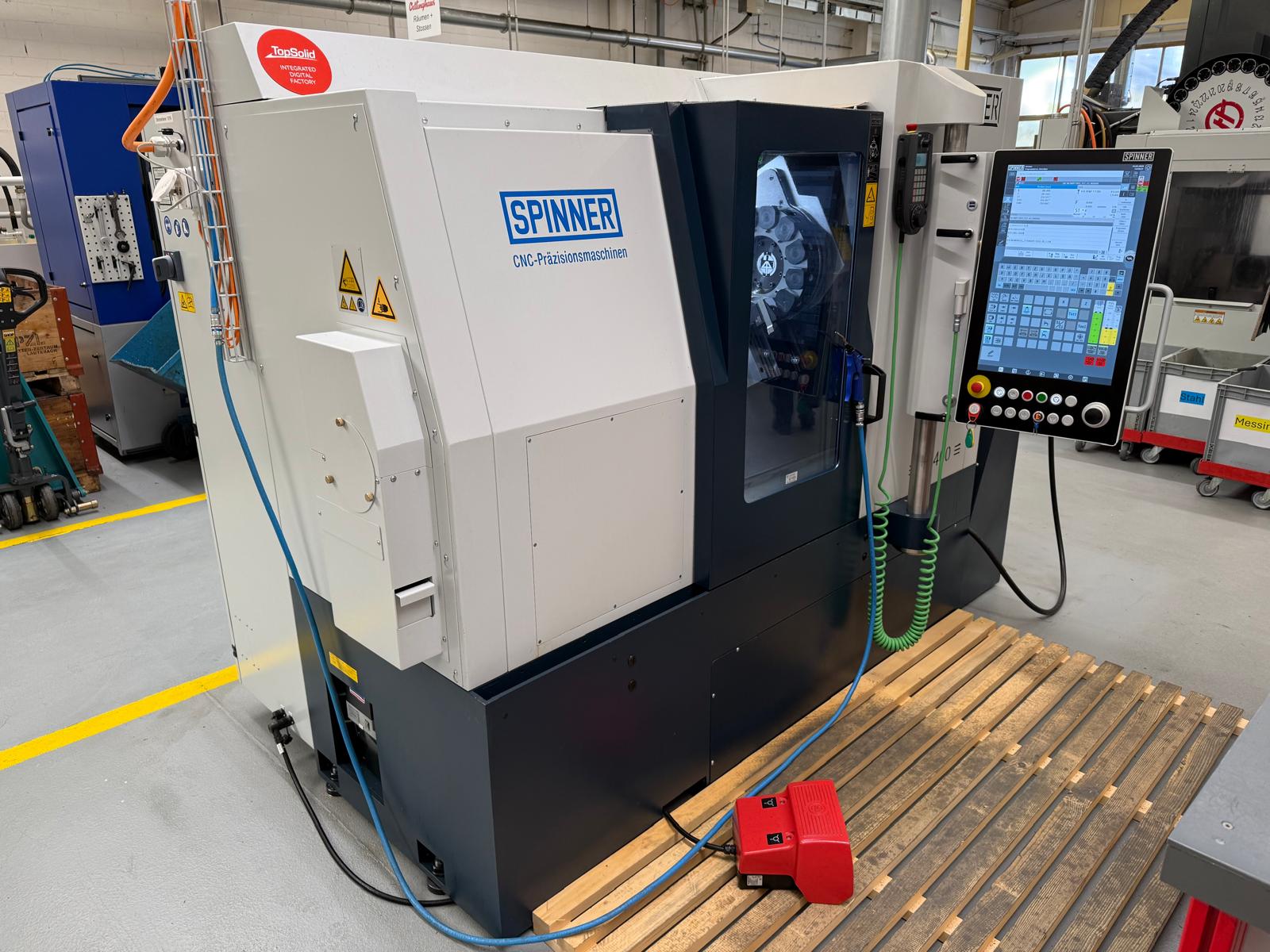

  • 023121 - SPINNER TC 400 52MC
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Distance between centres: 550 mm.
Swing diameter: 400 mm.
Spindle nose: A6 mm.
Spindle hole: 52 mm.
Max. turning diameter: 280 mm.
Longitudinal travel (Z-axis): 515 mm.
Transversal strocke (X axis): 200 mm.
Rapid traverse X: 15 m/min.
Rapid traverse Z: 24 m/min.

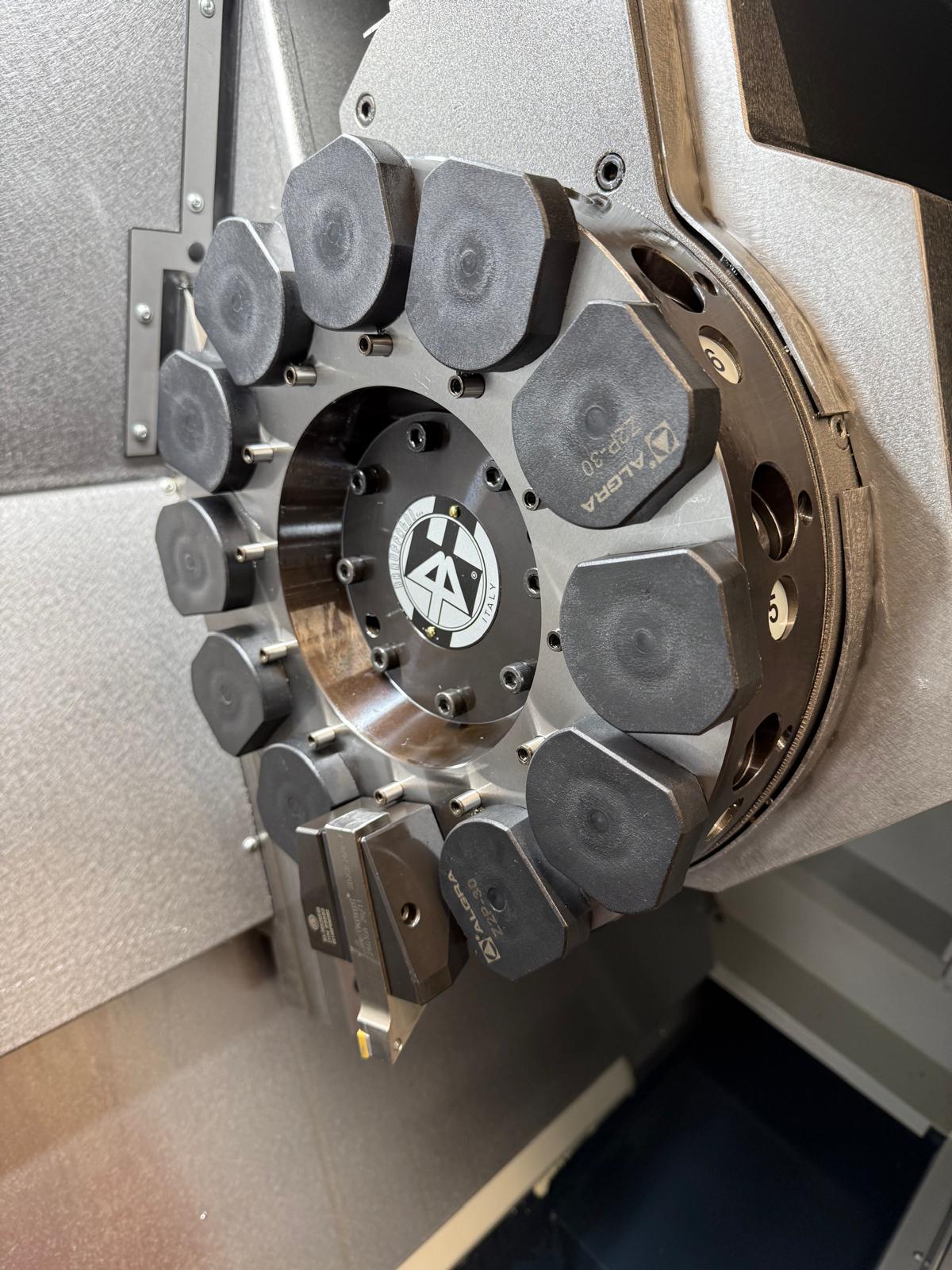

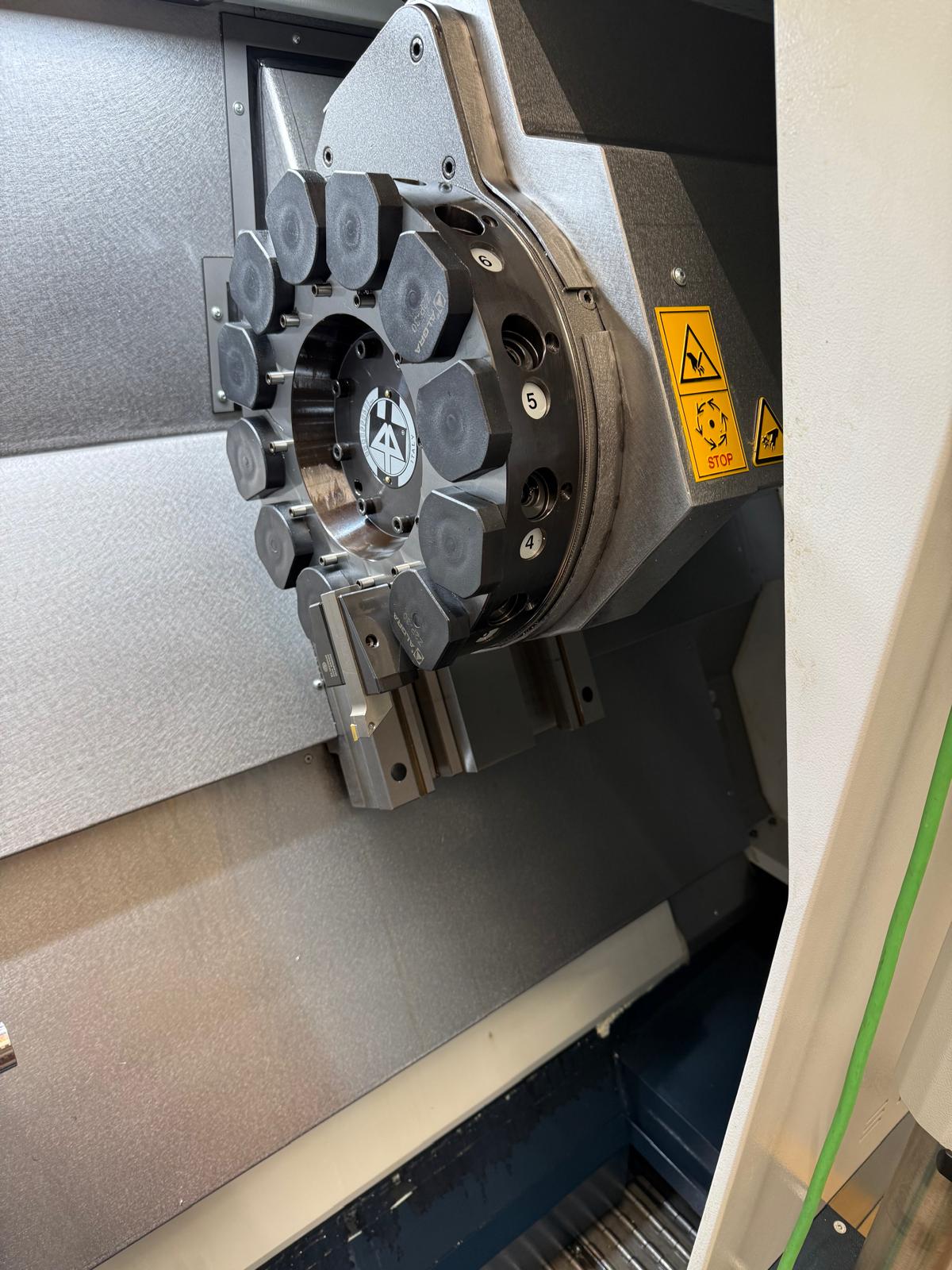

Number of positions: 12.
Milling cutter speeds: 4500 t/min.
Power of driven tools: 1.1/5 kW.
Torque max.: 150 Nm.
Spindle nose: VDI: 30.
from: 0 t/min.
up to: 5000 t/min.
Spindle power: 23.5 kW.
Air connect: 5 bar.
Voltage 50 Hz 3x: 400 Volt.
Noise level: 70 dB (A).
Machine's weight about: 3000 kg.
Length: 2100 mm.
Width: 1350 mm.
Height: 1800 mm.

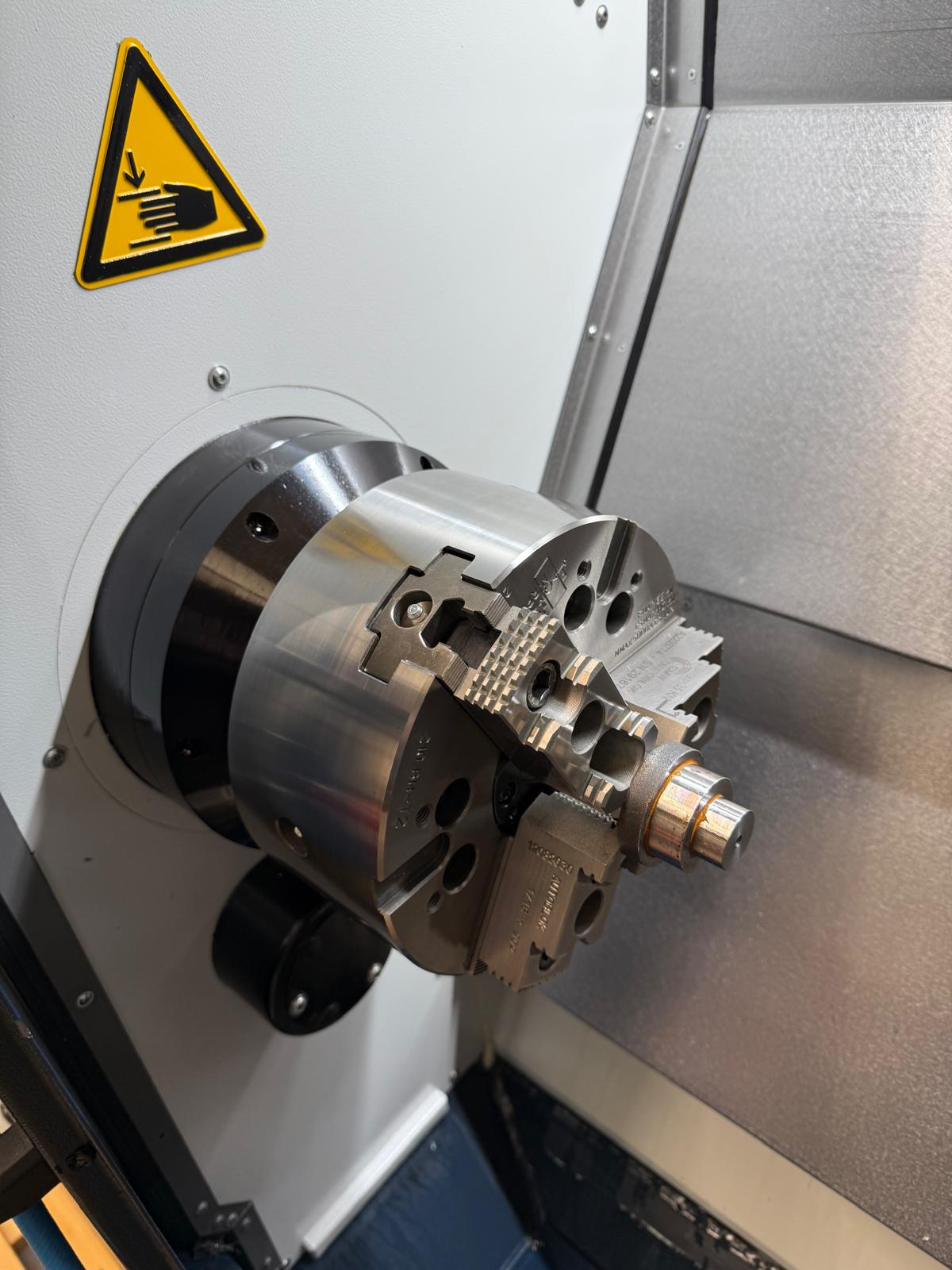

3-jaw chuck diameter: 210 mm.

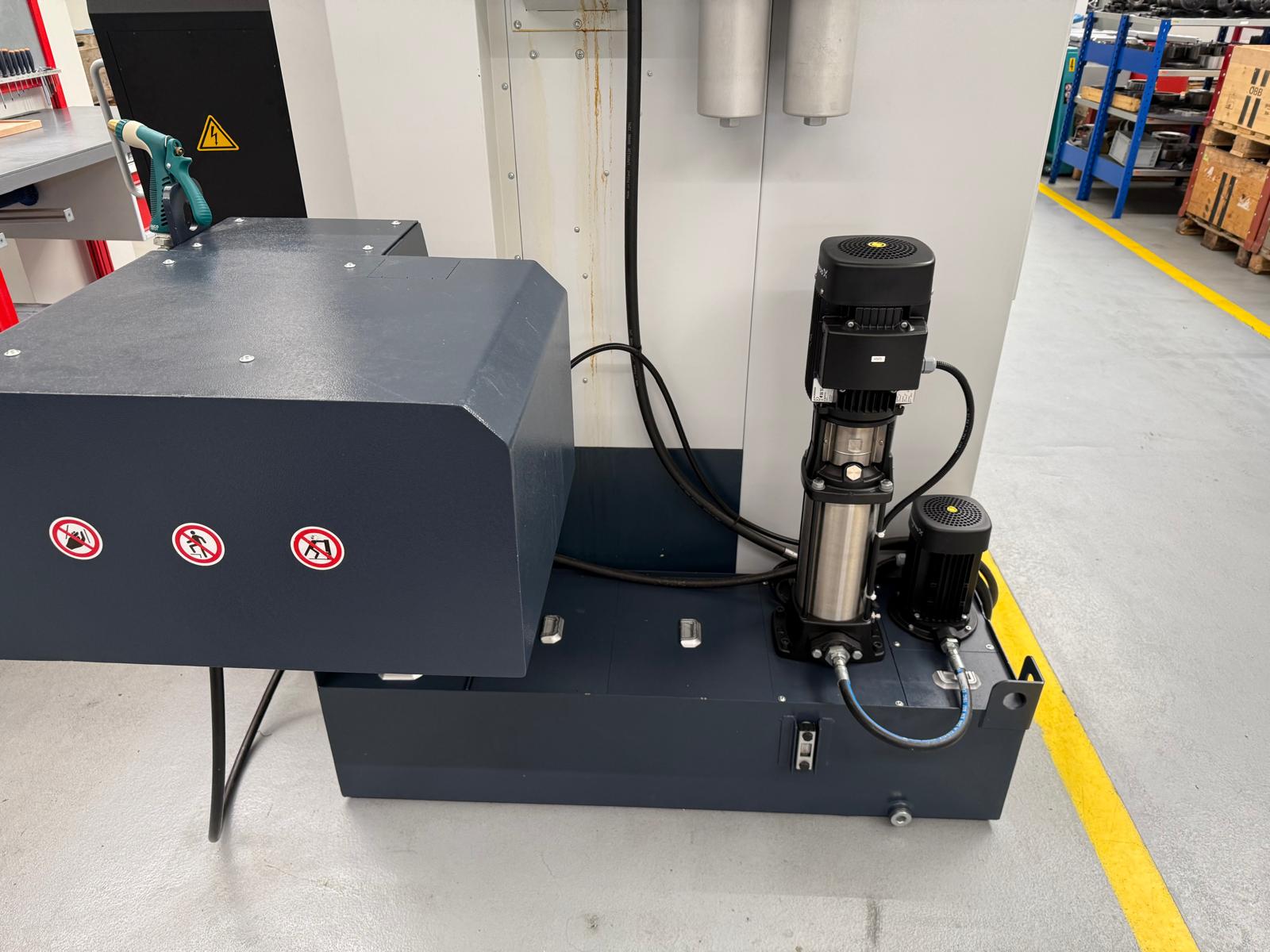

High pression colant device: 15 bar.
