MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • 023084 - OKK HM 63
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 4.
Longitudinal travel (X-axis): 620 mm.
Transversal travel (y-axis): 560 mm.
Vertical travel (z axis): 560 mm.
Length: 3940 mm.
Width: 2510 mm.
Maximum workpiece weight: 450 kg.

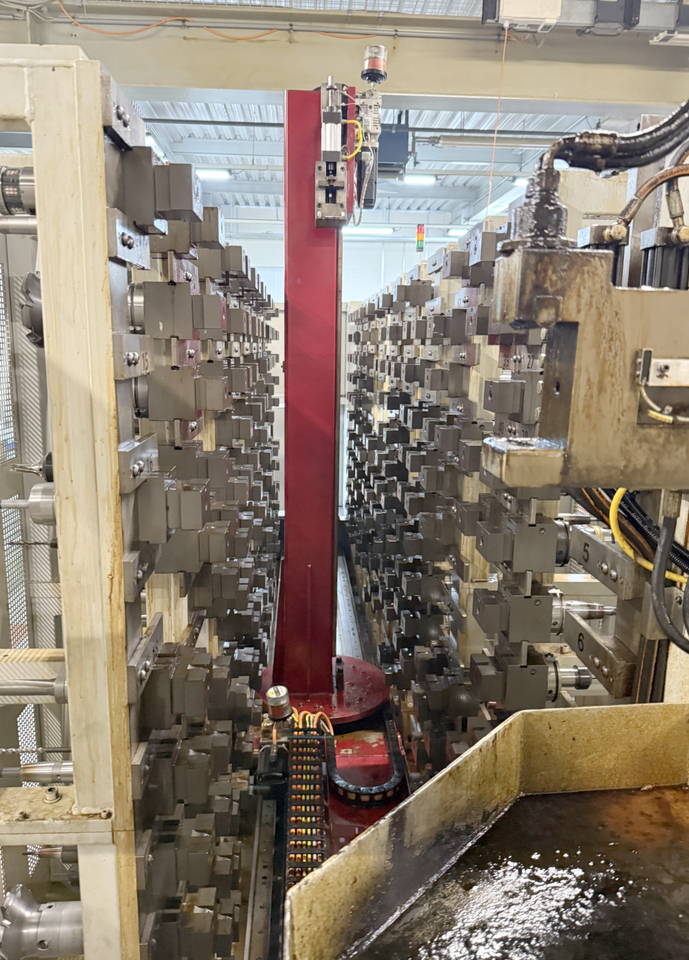

Number of tools: 40.
Tool diameter max.: 82 mm.
Diameter with free adjacent pockets: 140 mm.
Tool lenght: 300 mm.
Max. tool-weight: 12 kg.
Time of tool changing: 1.3 s.
Average chip-to-chip time: 4 s.

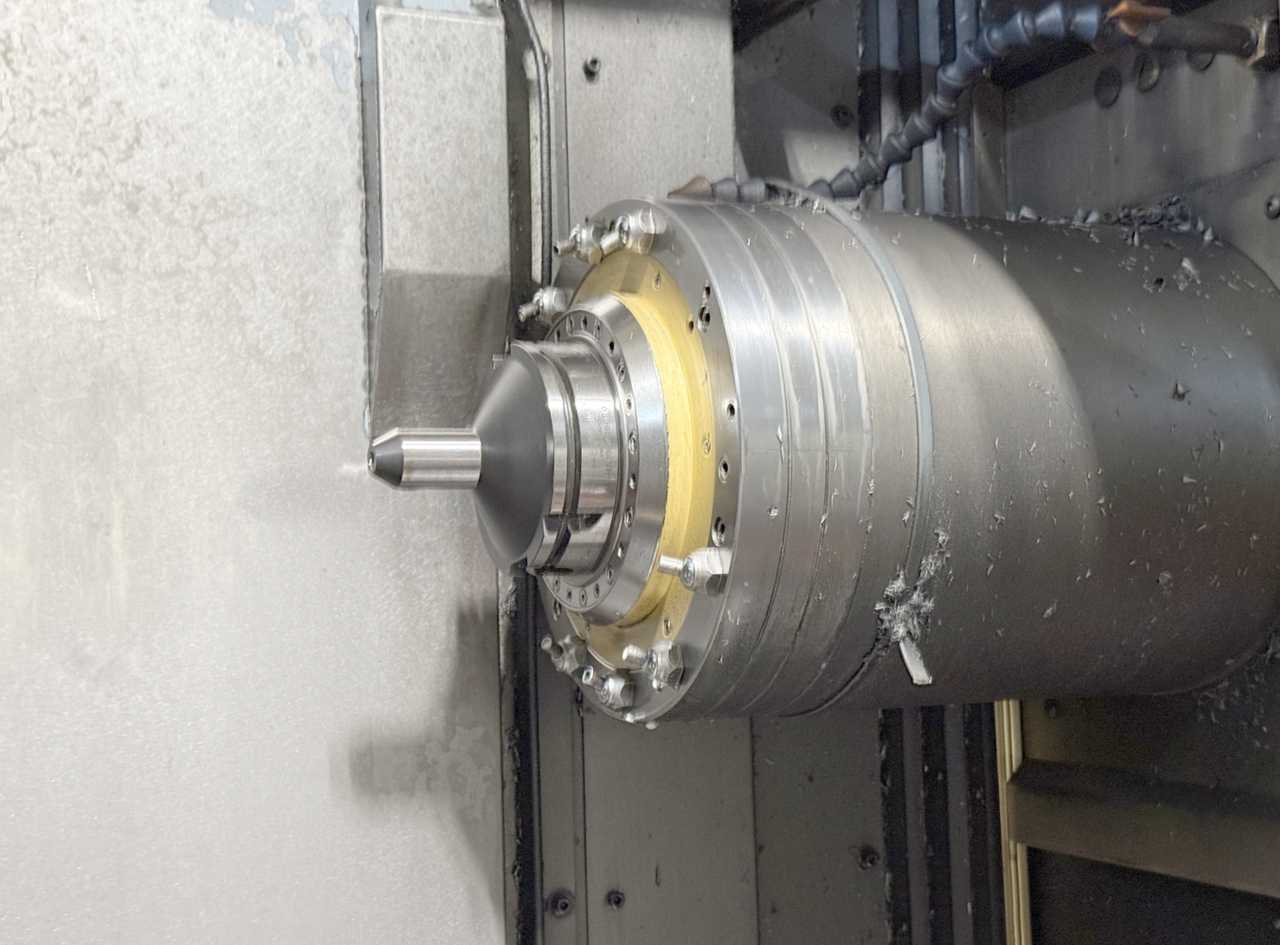

Spindle nose: BT: 40.
Distance spindle nose to table: 150 - 710 mm.
number (steps): 2.
from: 30 t/min.
up to: 16000 t/min.
Feed range: 1 - 40000 mm/min.
Rapid traverse:: 40 m/min.
Air connect: 4 - 6 bar.
Spindle motor: 18.5 / 22 kW.
Machine's weight about: 10000 kg.
Height: 2900 mm.
Coolant system: 400 l.
Coolant through spindle (cts): 20 bar.
