MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MIKRON
  • Model:

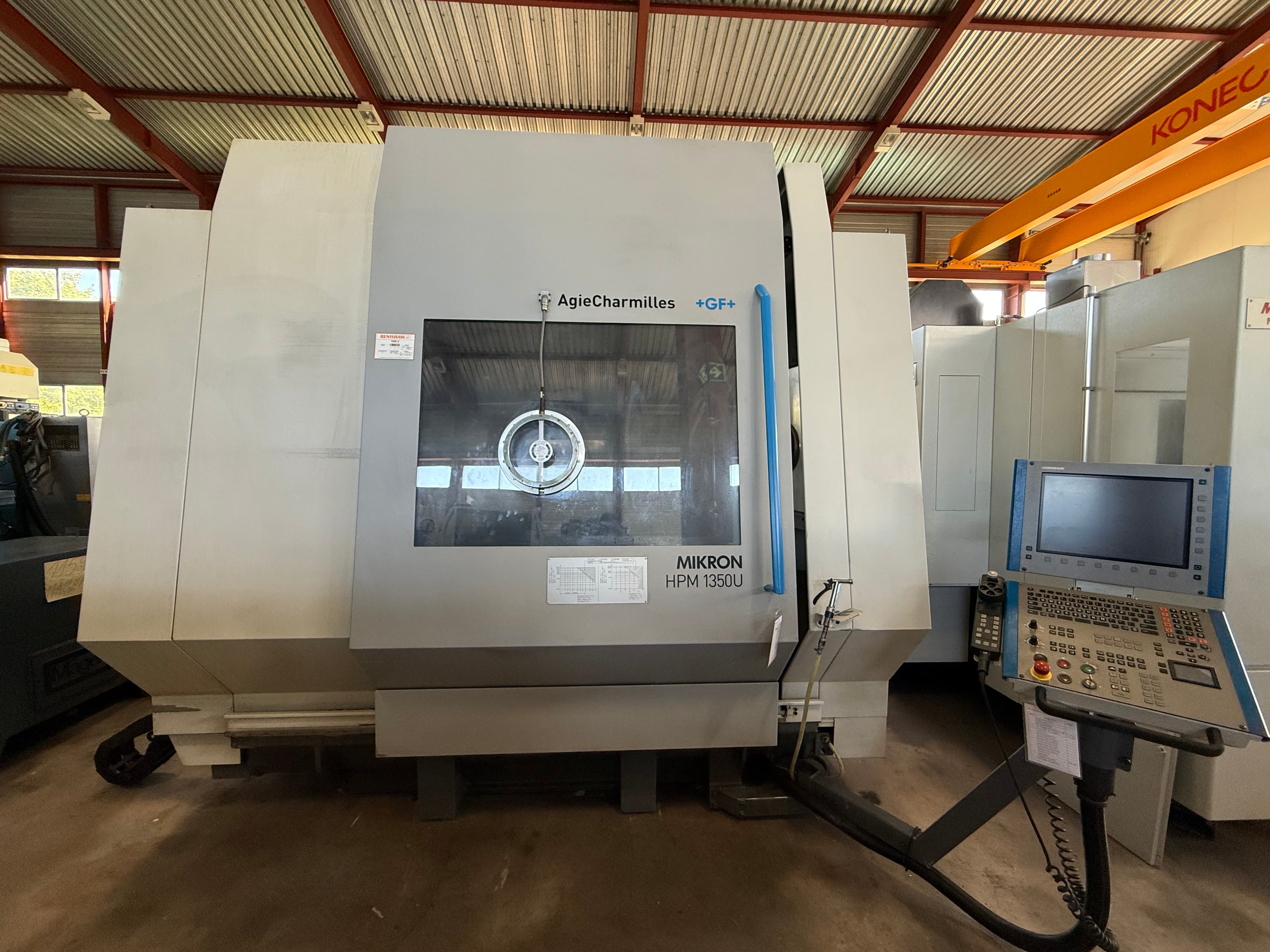

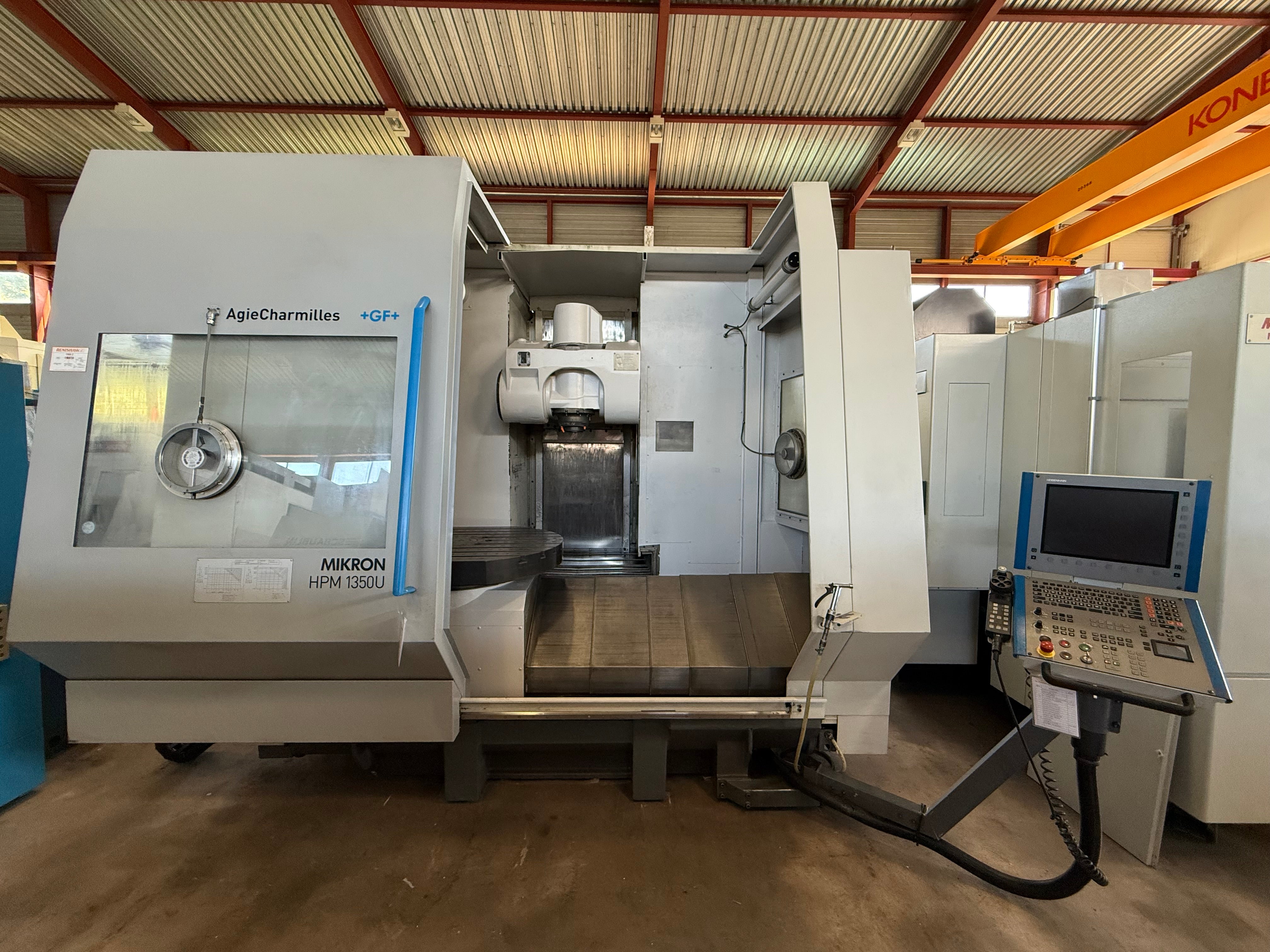

  • 023018 - MIKRON HPM 1350 U
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 5.
Number of spindles: 1.

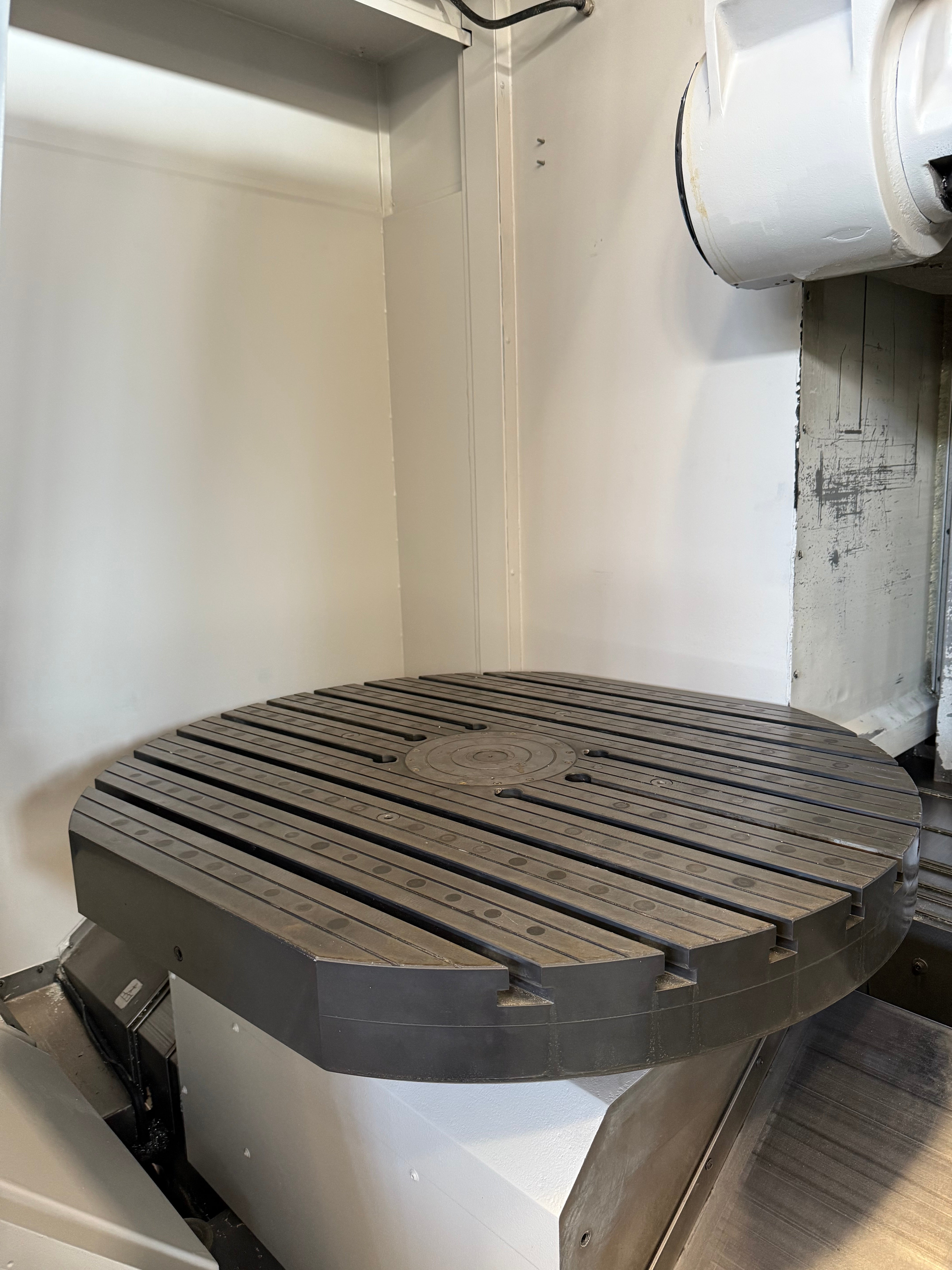

Circulary table diameter: 1100 mm.
Table load max.: 1600 kg.
Longitudinal travel (X-axis): 1350 mm.
Transversal travel (y-axis): 1150 mm.
Vertical travel (z axis): 895 mm.
Swivel angle (a-axis): +16 - / 120 °.

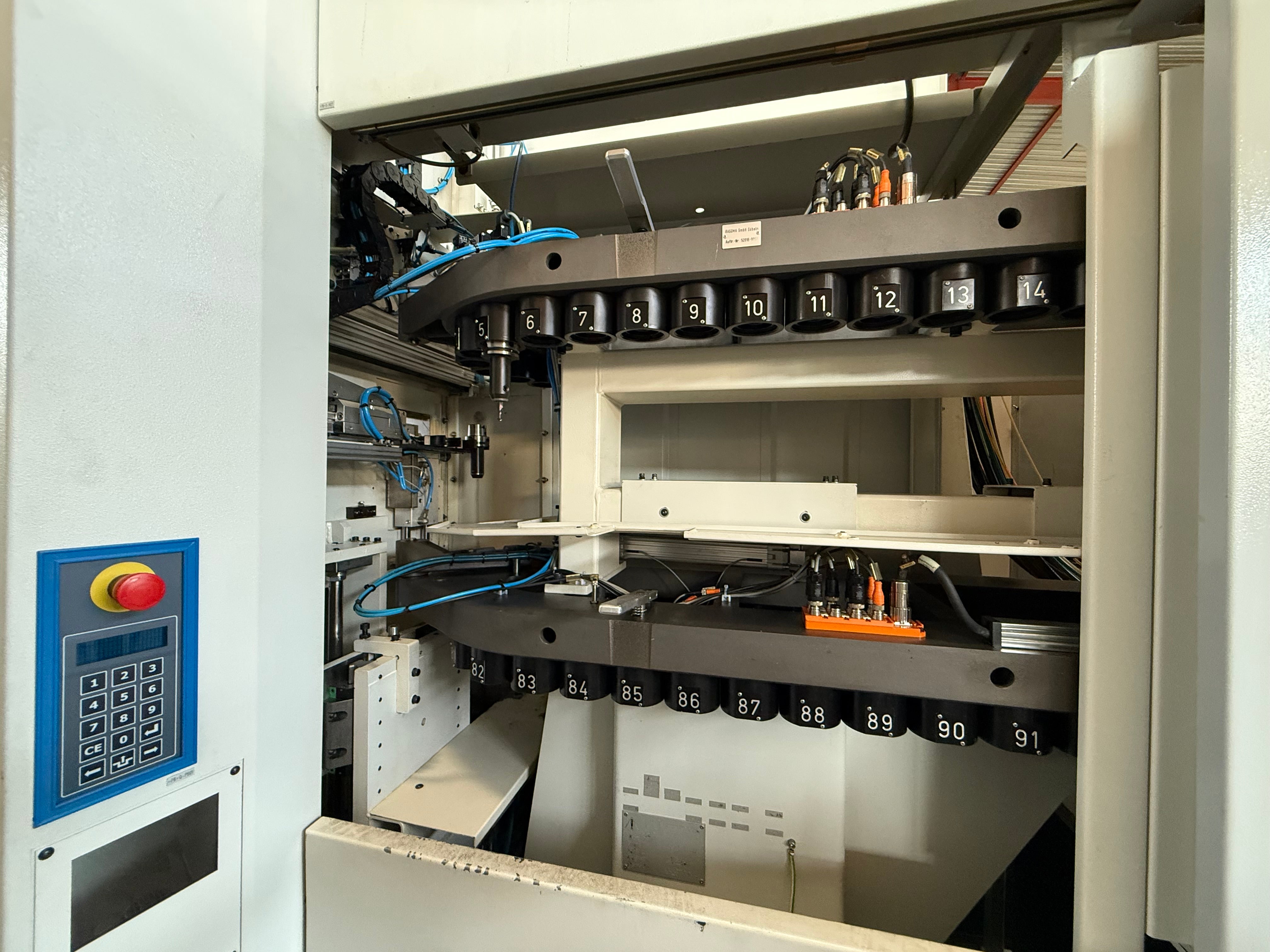

Tool magazine number of tool places: 92.

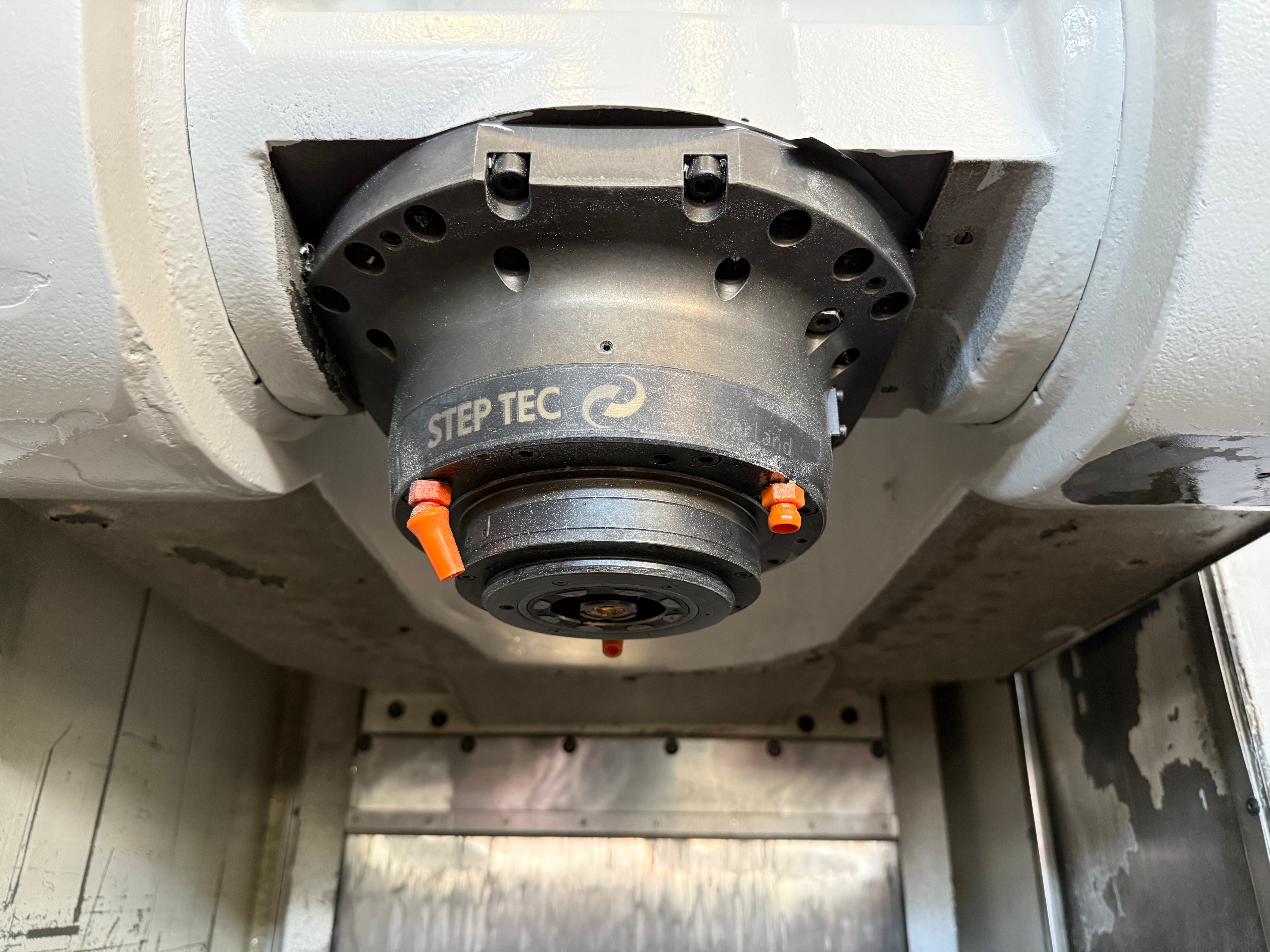

Spindle nose: HSK-A: 63.
from: 0 t/min.
up to: 18000 t/min.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 68 kW.
Noise level: 68 dB (A).
Machine's weight about: 12600 kg.
Length: 4500 mm.
Width: 3600 mm.
Height: 3500 mm.
