MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Citizen
  • Model:

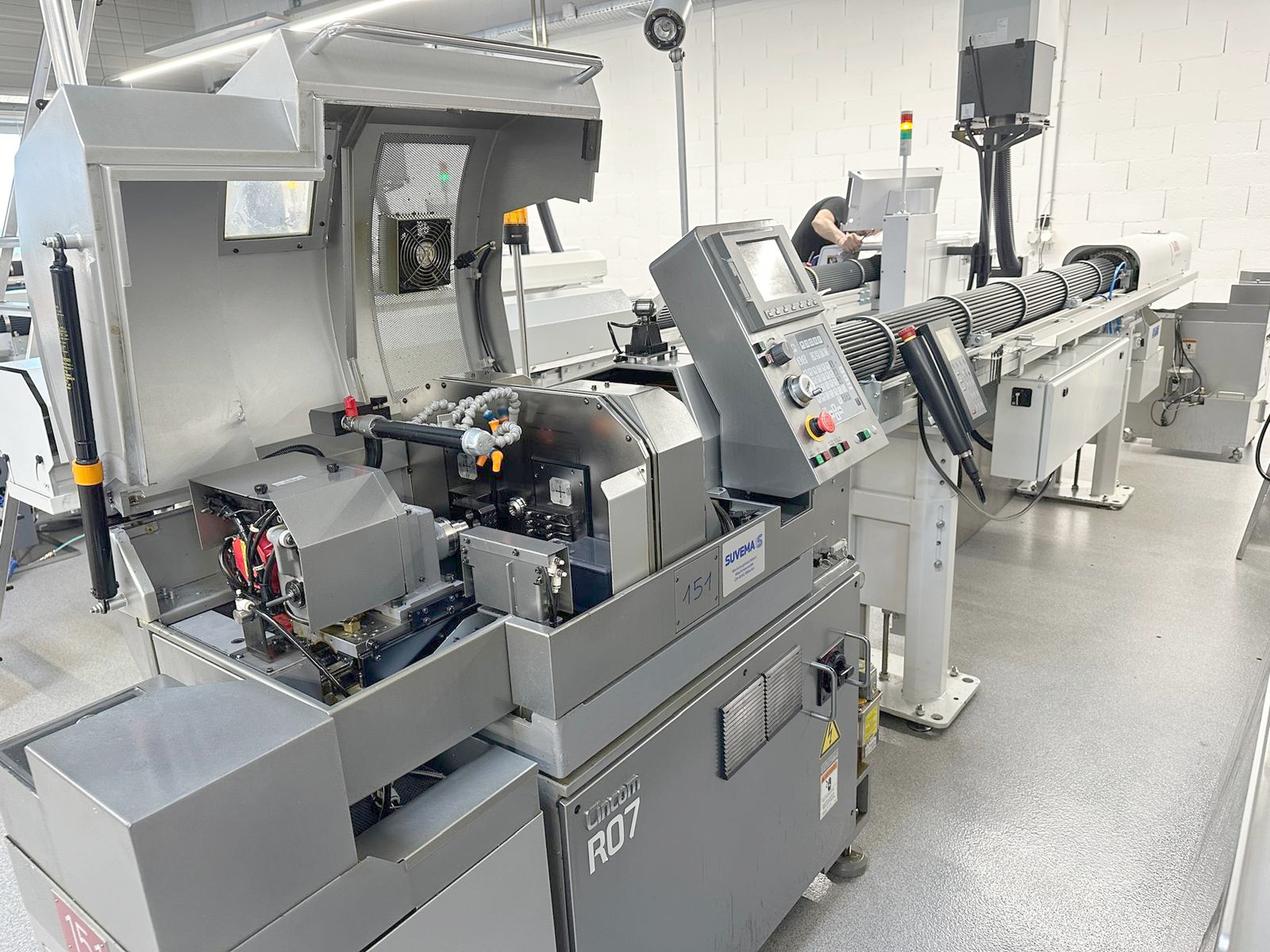

  • 022936 - CITIZEN CINCOM R 07 VI
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 6.
Number of spindles: 2.
Max. turning diameter: 7 mm.
Maximum turning length: 40 mm.
Max. threading diameter: 4 M.
Internal spindle diameter: 12 mm.
from: t/min.
up to: 10000 t/min.
Spindle power: 1.1 kW.
C axis (spindle,resolution): 1 °.
Max. tapping length: 40 mm.
Thread drill diameter: 3 M.
numbers: 2.
Number of stations: 13.
Turning tools: 5 pce.
Drilling tools: 4 pce.
Tool shank cross section: 8 mm.
number of tools: 4.
Voltage 50 Hz 3x: 400 Volt.
Power of back spindle: 0.5 kW.
Total power required: 4 kVA.
Machine's weight about: 950 kg.
Length: 1465 mm.
Width: 560 mm.
Height: 1410 mm.

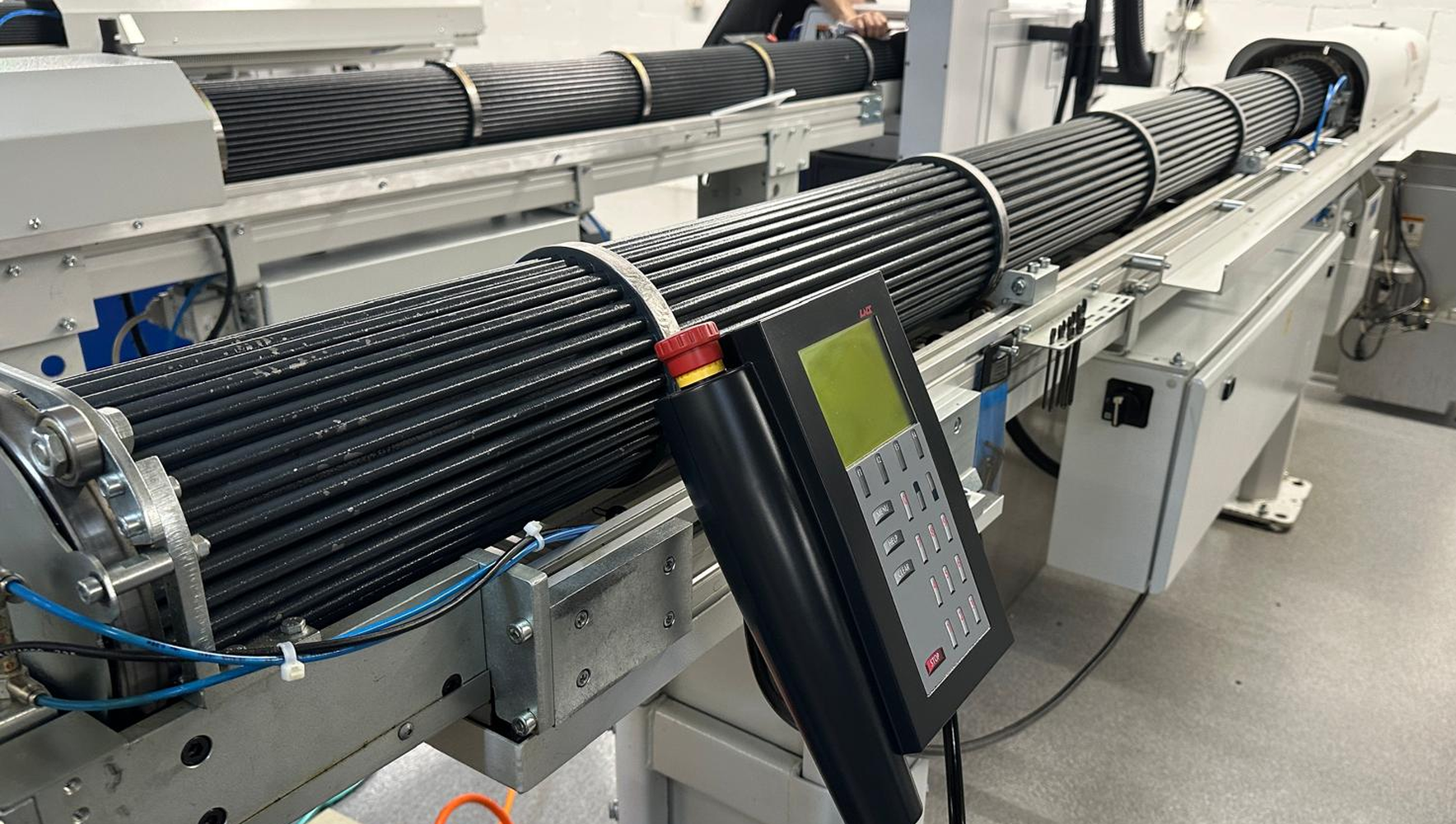

Manufacturer: LNS.
Type: TRYTON 112.
+ request more information
