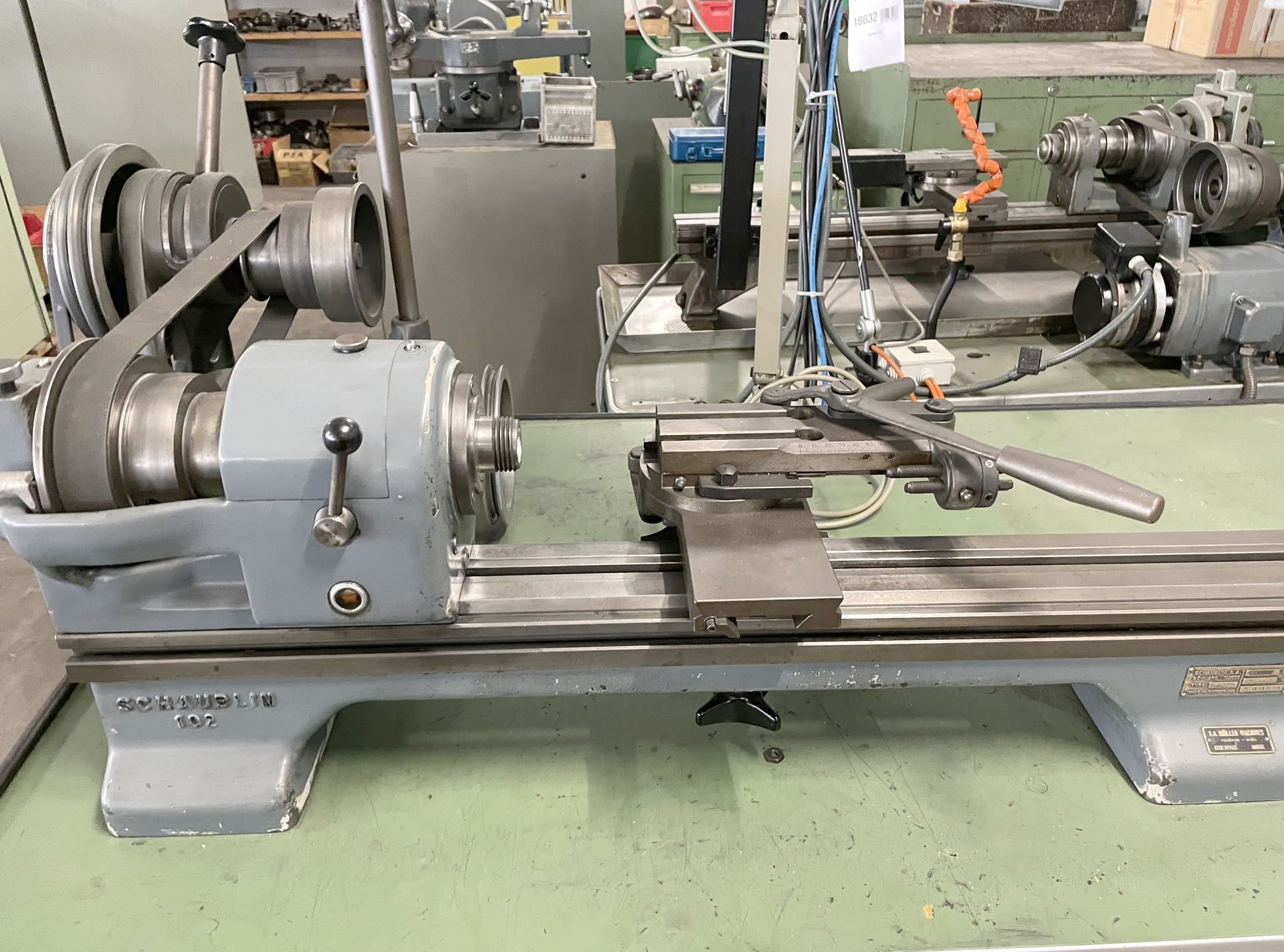

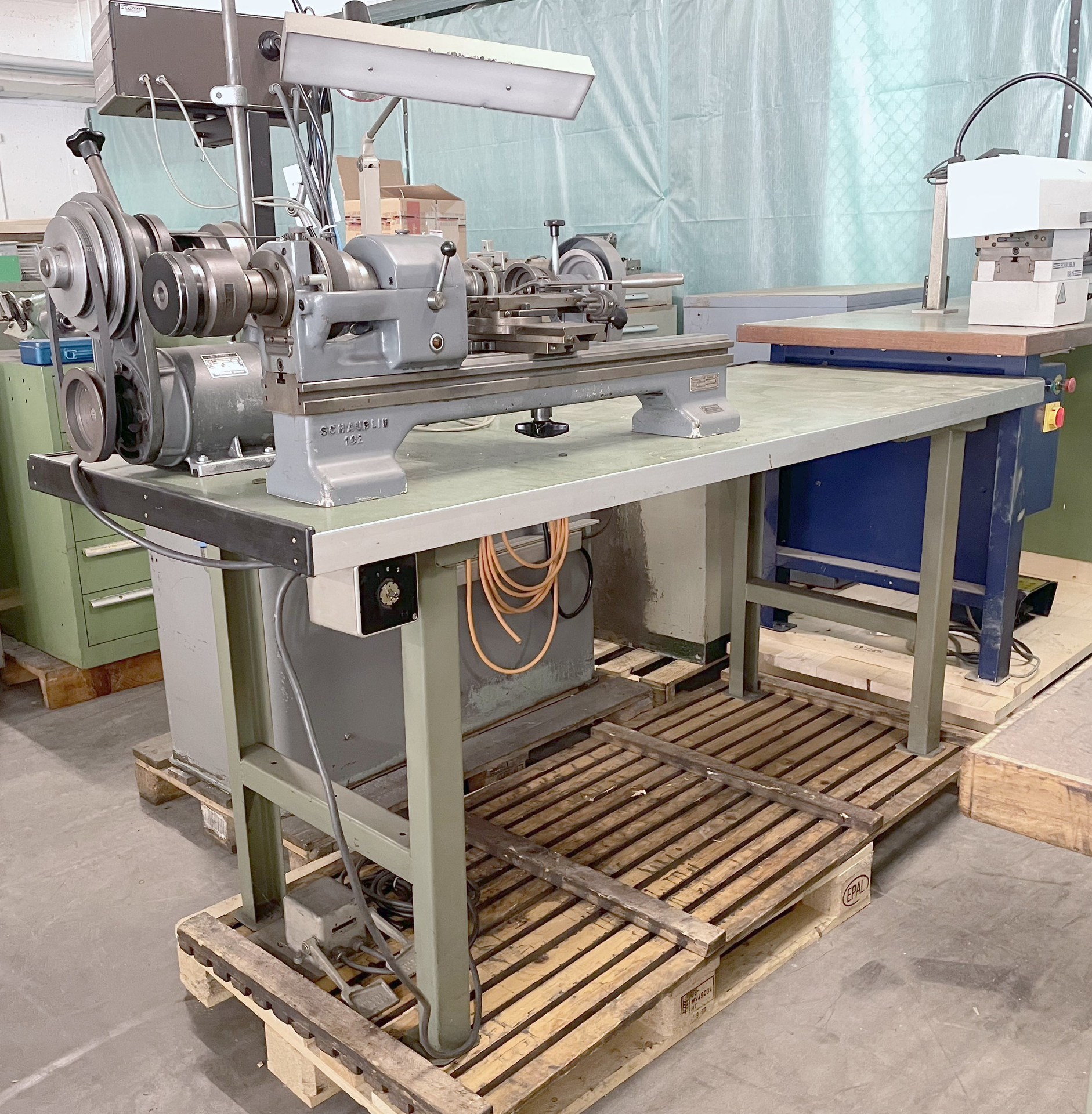

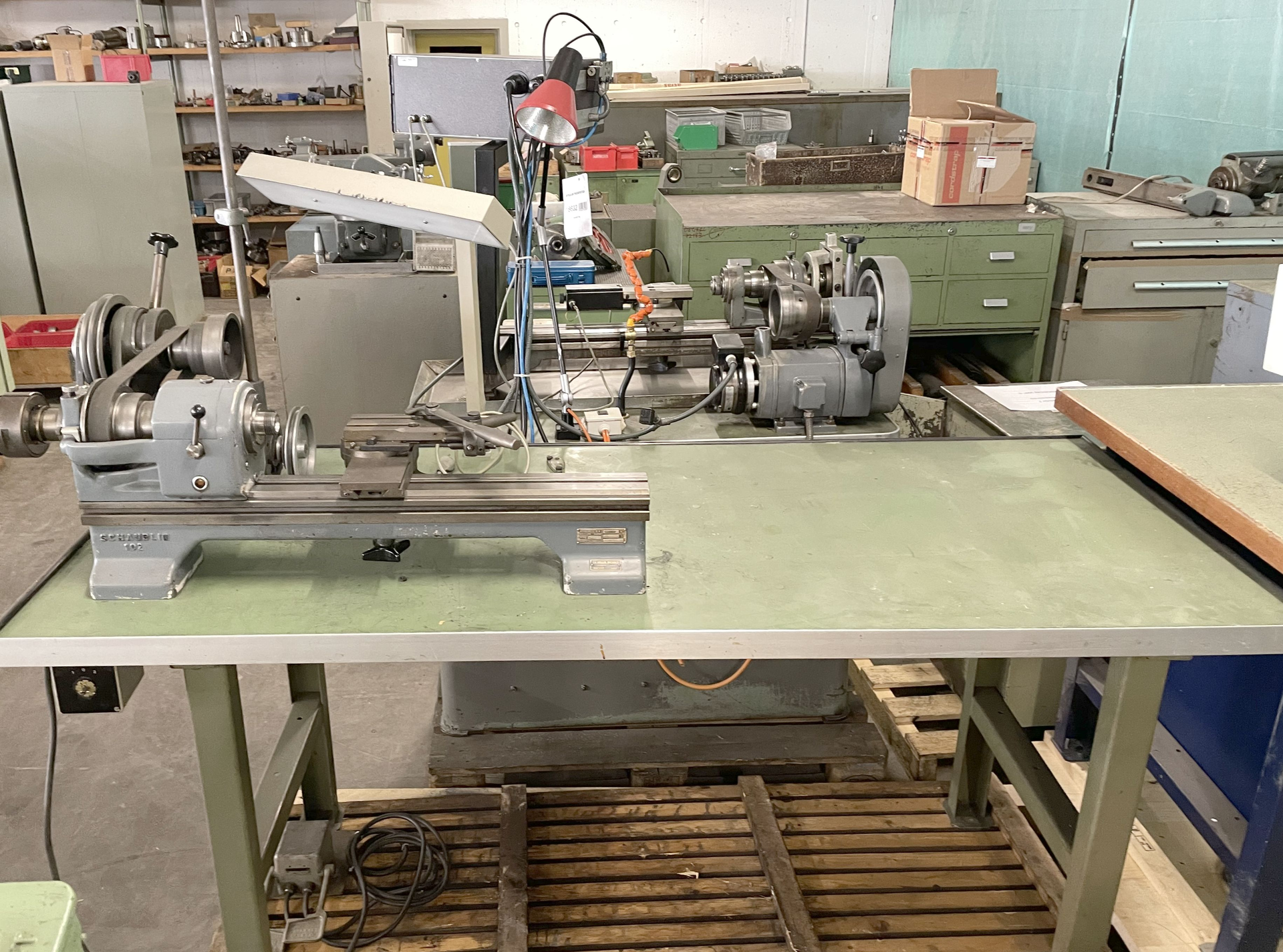

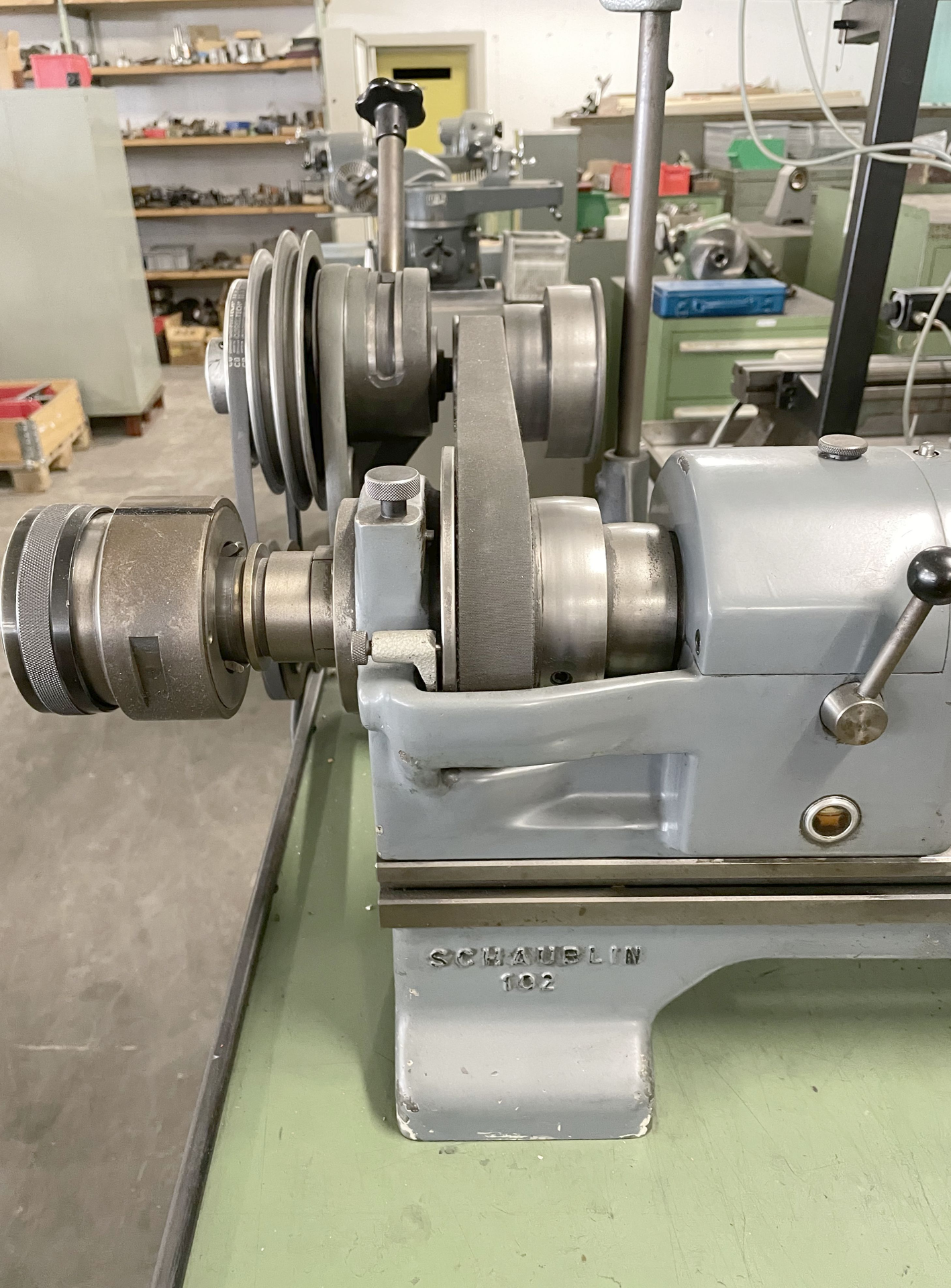

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • 022490 - SCHAUBLIN 102
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 102 mm.
Distance between centres: 350 mm.
Swing over cross-slide: 120 mm.
Swing over bed: 200 mm.
Spindle hole: 20 mm.
Inner taper type: 20 W.
from: 55 t/min.
up to: 3000 t/min.
Taper in tailstock:: 2 CM.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 1.5 CV.
Total power required: 2 CV.
Machine's weight about: 500 kg.
Length: 2000 mm.
Width: 800 mm.
Height: 900 mm.
