MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
Stanko

Model:

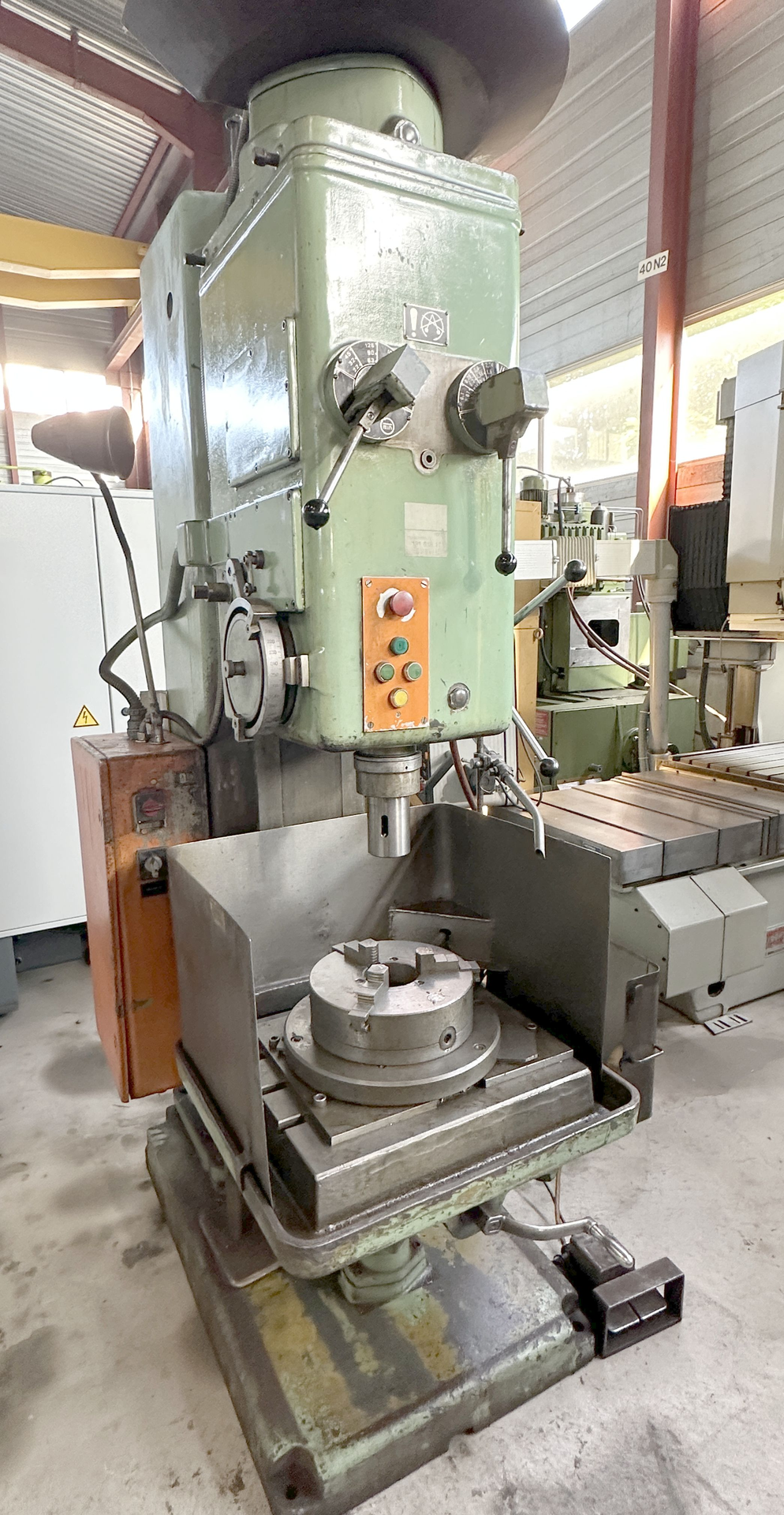

022299 - STANKO 2N 150

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Table length: 570 mm.
Table width: 500 mm.
Number of T-channels: 3.
Distance of the T-slots: 110 mm.
T-channel width: 22 mm.
Taper in spindle: MT: 5.
Depth of throat: 300 mm.
Drill depth (spindle stroke): 300 mm.
Spindle diameter: 100 mm.
number (steps): 12.
from: 0.05 mm/t.
up to: 2.24 mm/t.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 3 CV.
Machine's weight about: 1200 kg.
Length: 1200 mm.
Width: 1200 mm.
Height: 2500 mm.
3-jaw chuck diameter: 315 mm.

+ request more information

SEND ENQUIRY

REQUEST MORE INFORMATION

SEND ENQUIRY

Sellers

Muller Machines SA

Contact Name
Laurent Muller
