MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MOORE
  • Model:

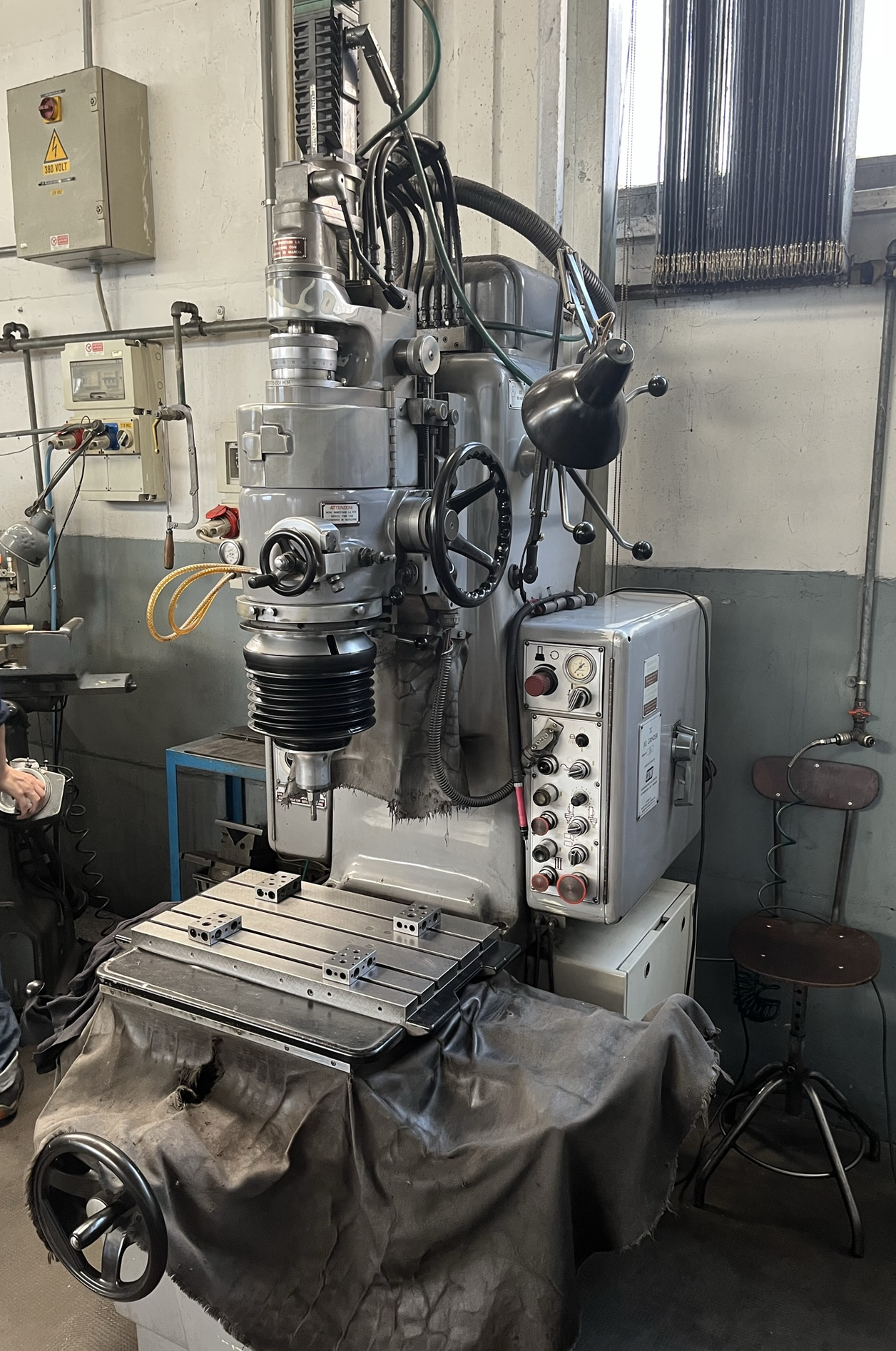

  • 022084 - MOORE CATMUR 2C
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

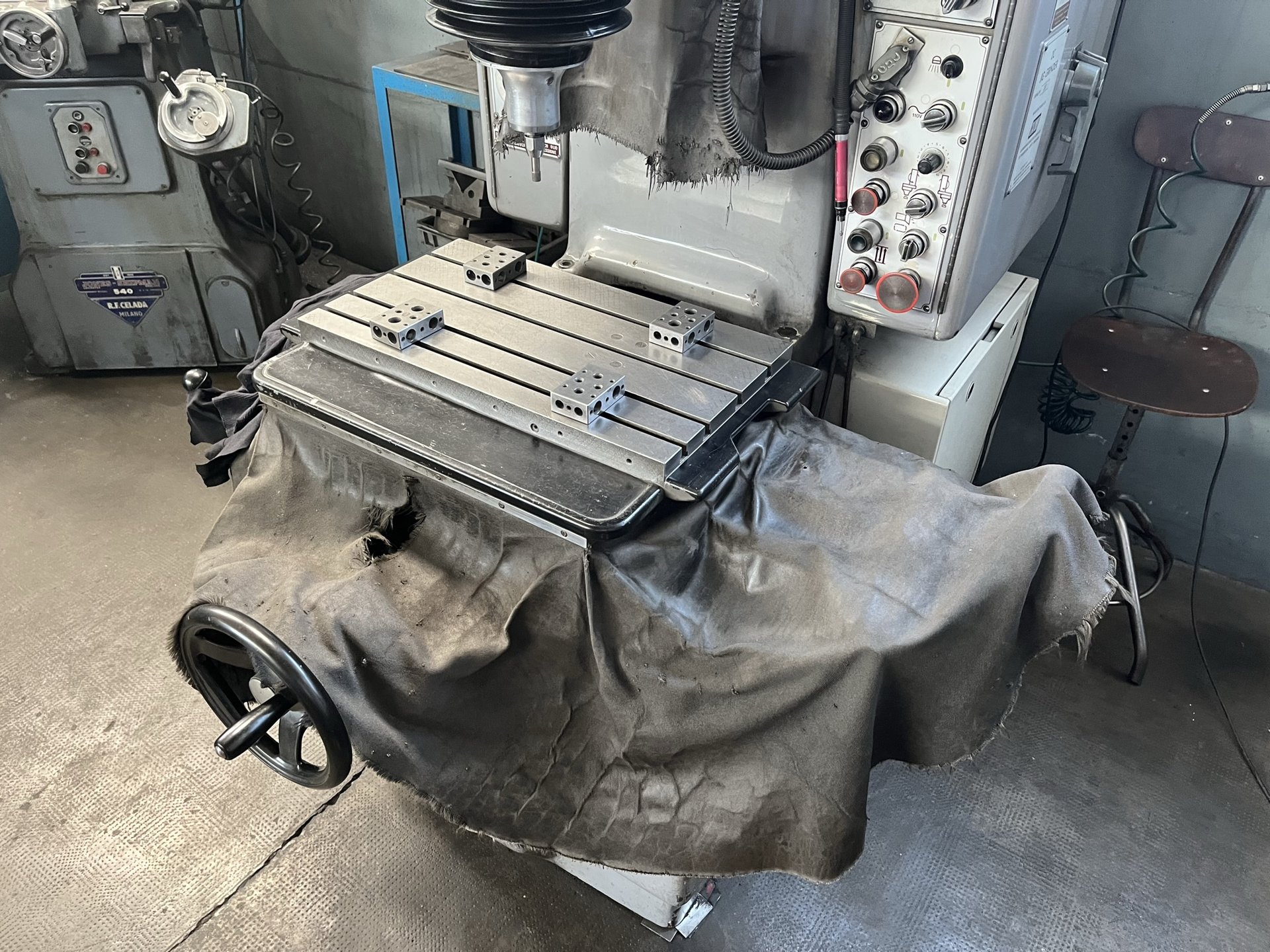

Table length: 610 mm.
Table width: 280 mm.
Longitudinal travel (X-axis): 450 mm.
Transversal travel (y-axis): 280 mm.
Vertical travel (z axis): 250 mm.
Max. grinding diameter: 127 mm.

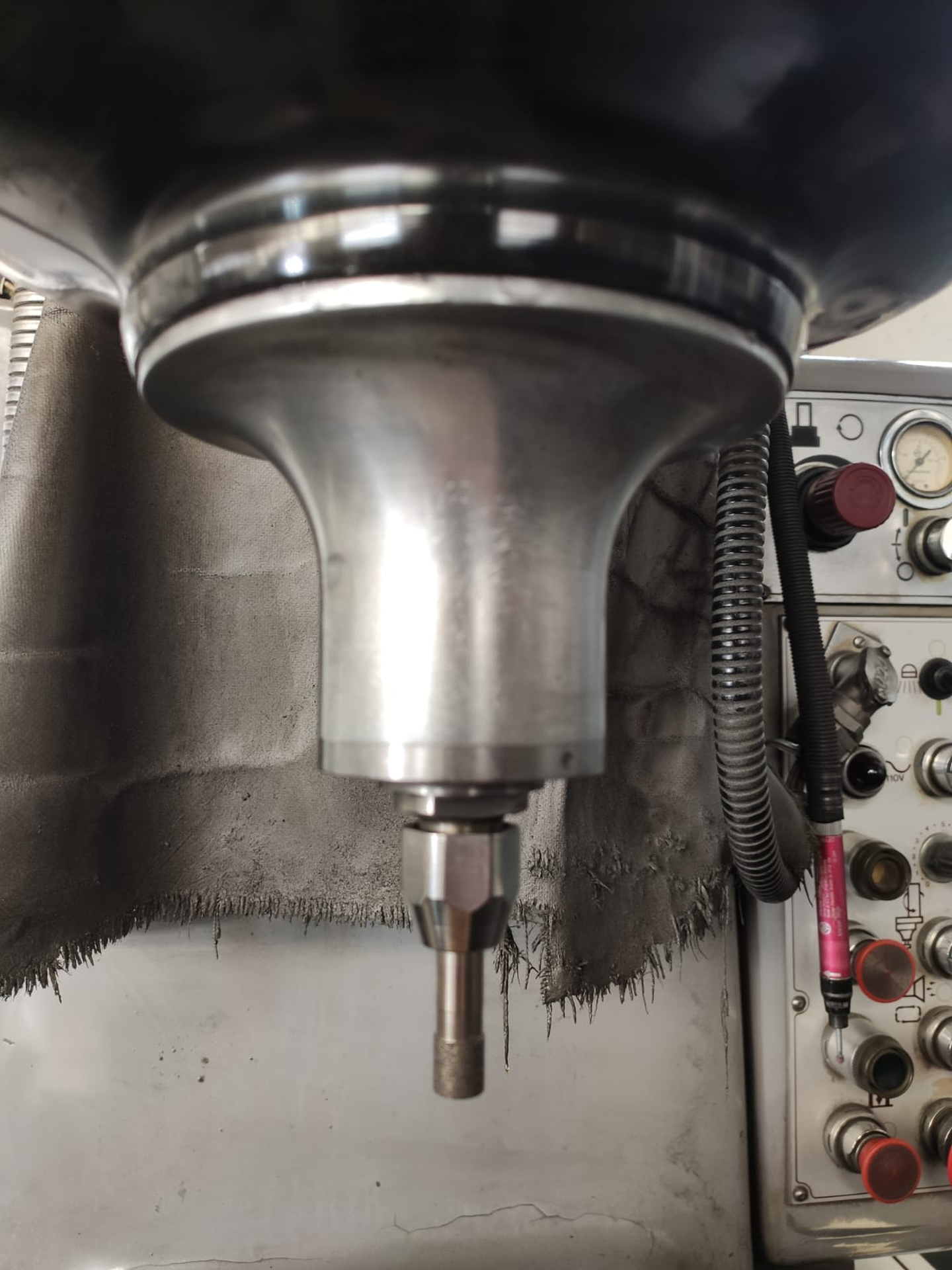

Stroke of spindle-nose: 340 mm.
Machine's weight about: 1660 kg.
Length: 1650 mm.
Width: 1085 mm.
Height: 2000 mm.

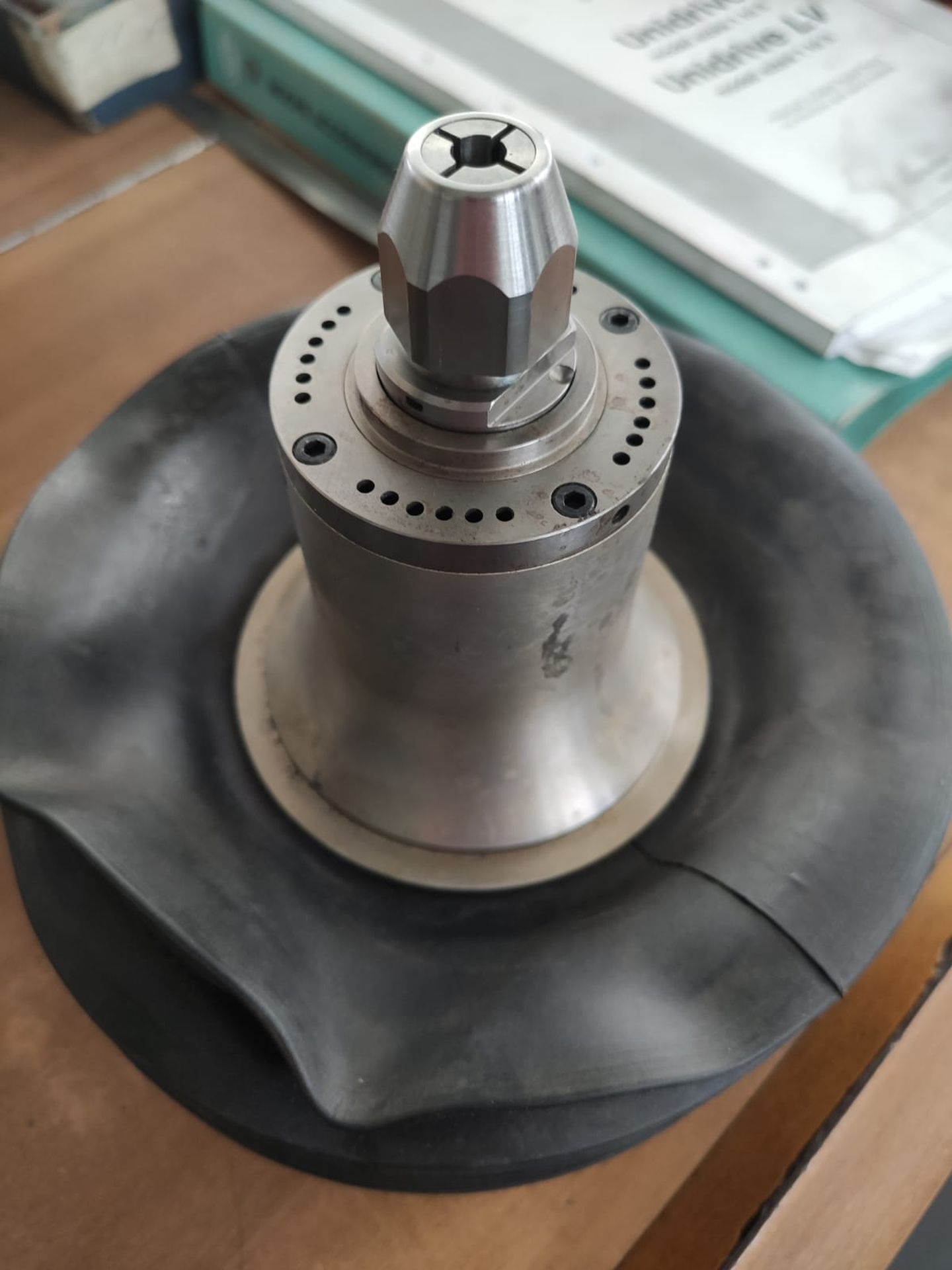

max. speed: 160000 t/min.
