MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Mazak
  • Model:

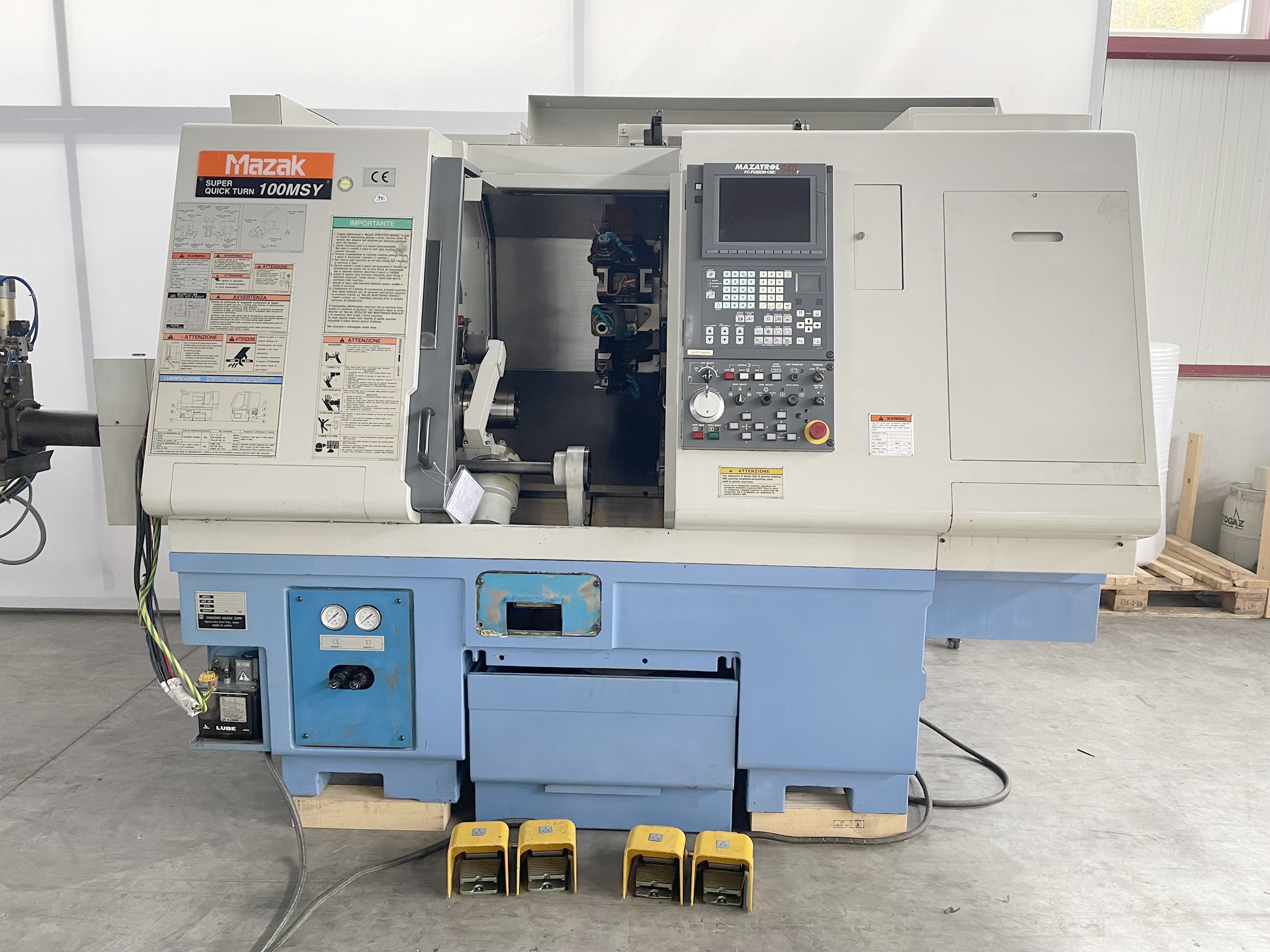

  • 022008 - MAZAK SUPER QUICK TURN 100MSY
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of spindles: 2.
Number of revolvers: 1.
Swing diameter: 550 mm.
Spindle hole: 61 mm.
Maximum turning length: 305 mm.
Max. turning diameter: 280 mm.

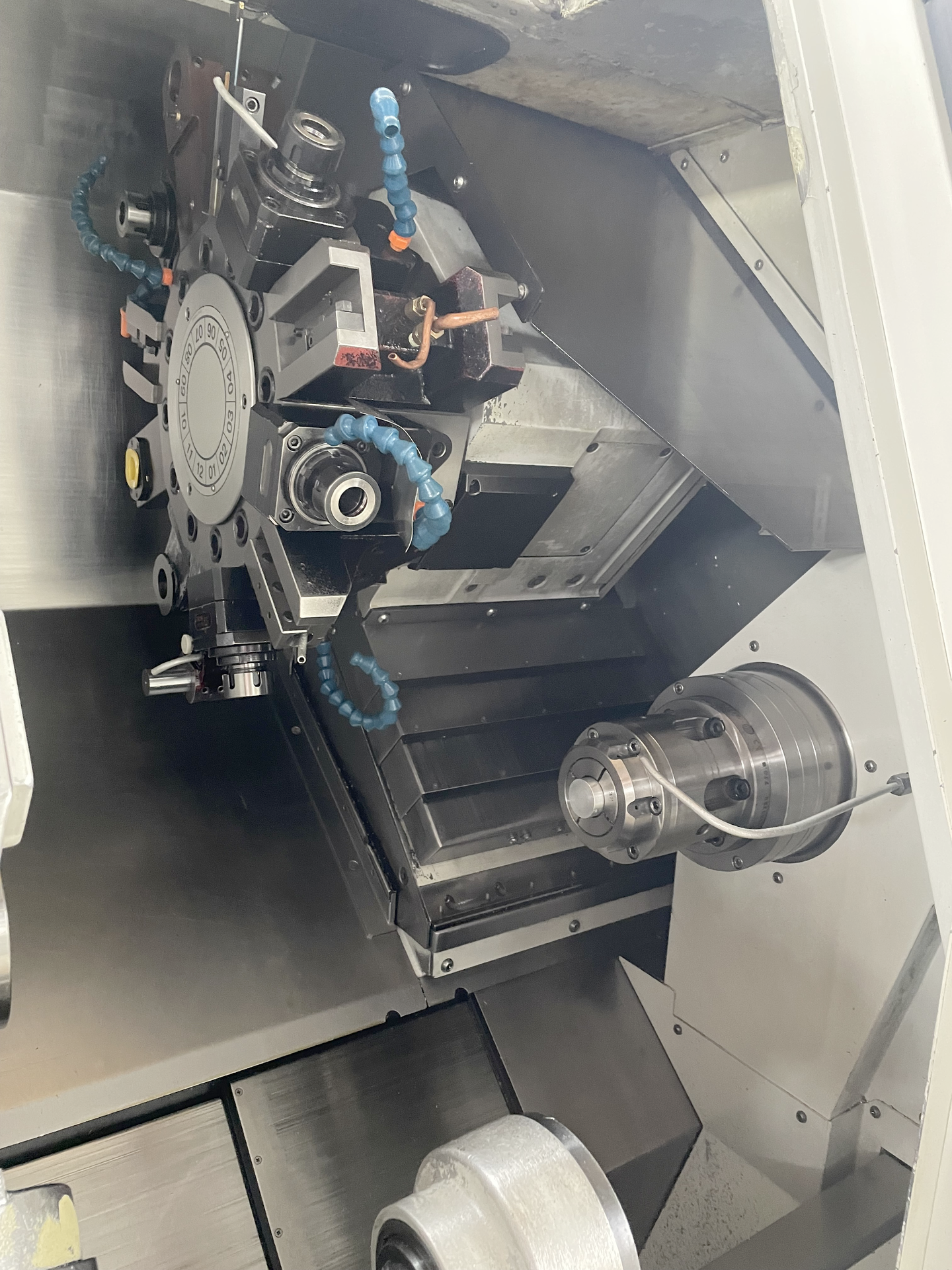

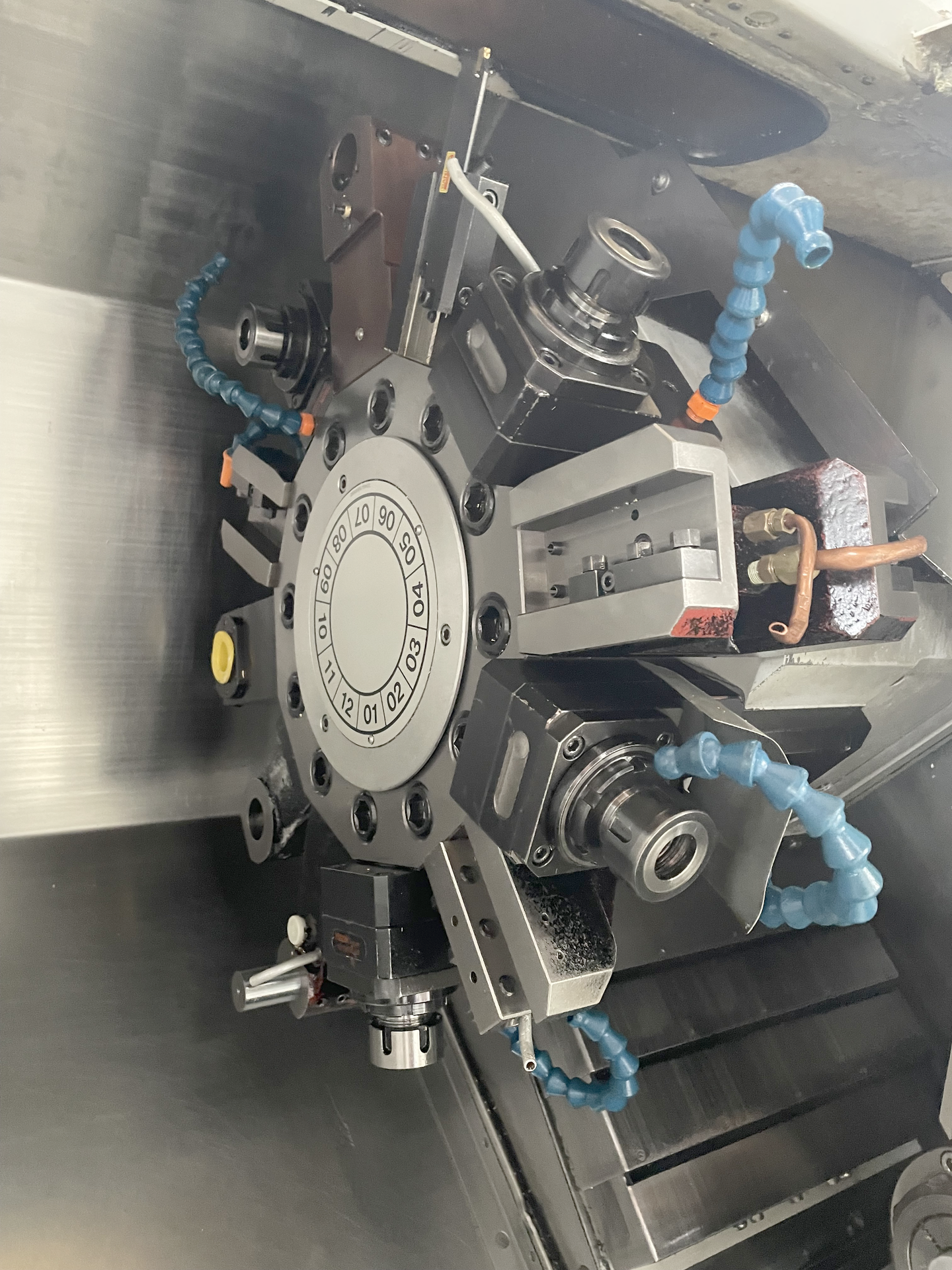

Number of positions: 12.

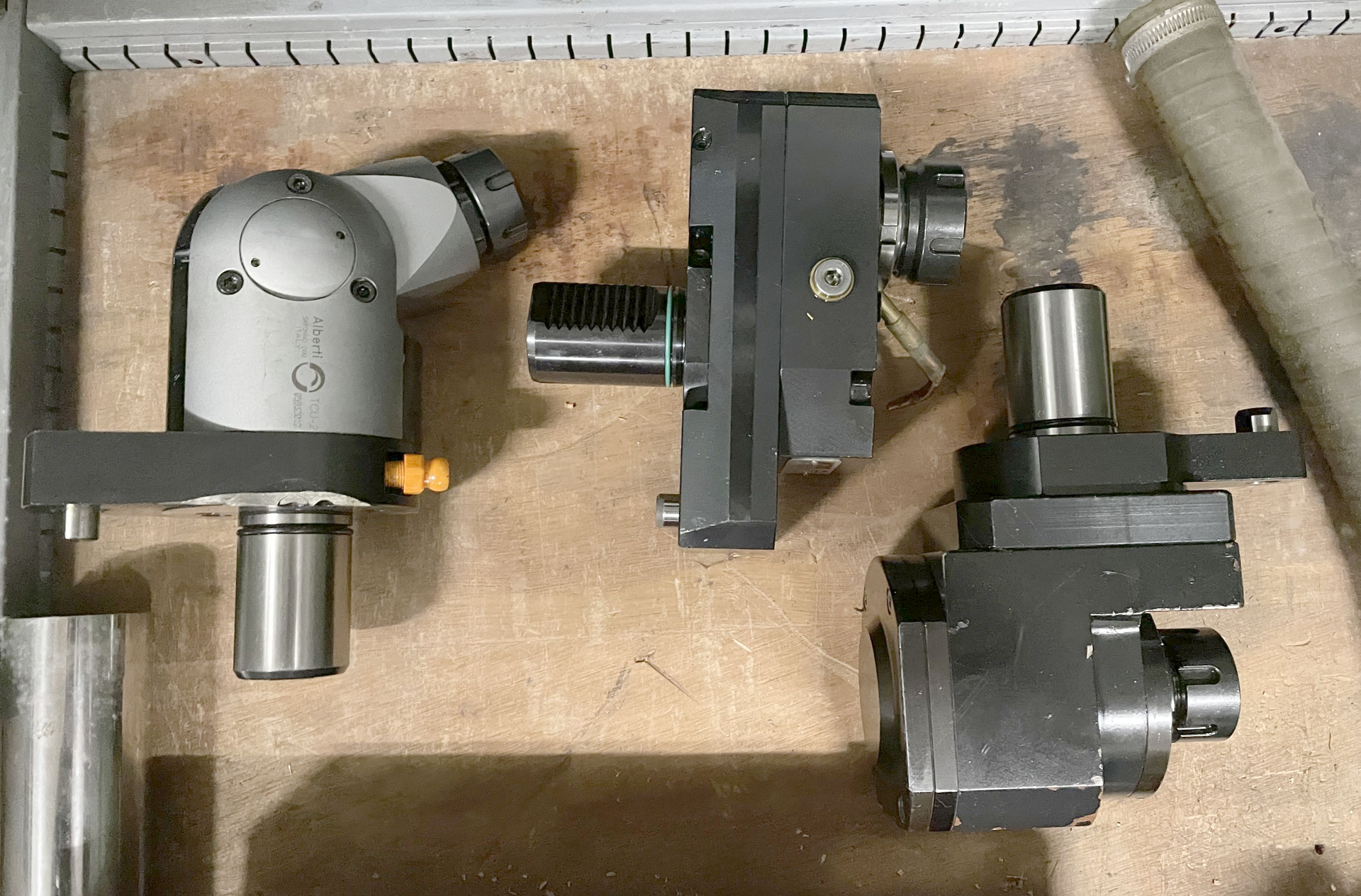

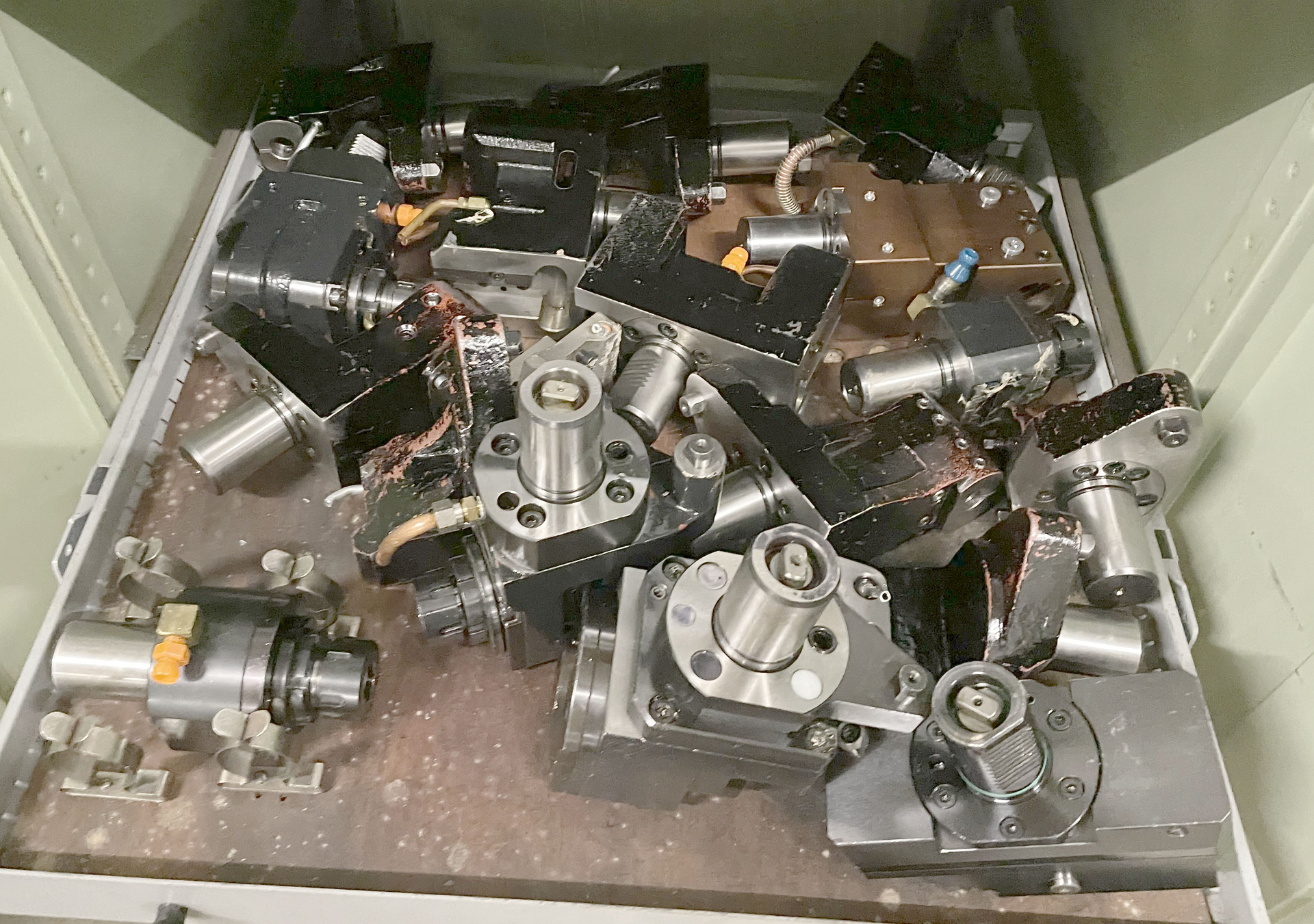

Driven tools turret: 6.
Spindle speeds: 25 - 4500 t/min.
Power of driven tools: 3.7 kW.
C axis (spindle,resolution): 0.001 °.
from: 35 t/min.
up to: 6000 t/min.
Tail stock travel: 275 mm.
max. speed: 6000 t/min.
Power of back spindle: 11 / 7.5 kW.
Rapid traverse X: 33 m/min.
Rapid traverse Z: 33 m/min.
Rapid traverse Y: 21 m/min.
Spindle motor: 15 / 11 kW.
Total power required: 31.3 kVA.
Machine's weight about: 3600 kg.
Length: 2400 mm.
Width: 1800 mm.
Height: 2000 mm.

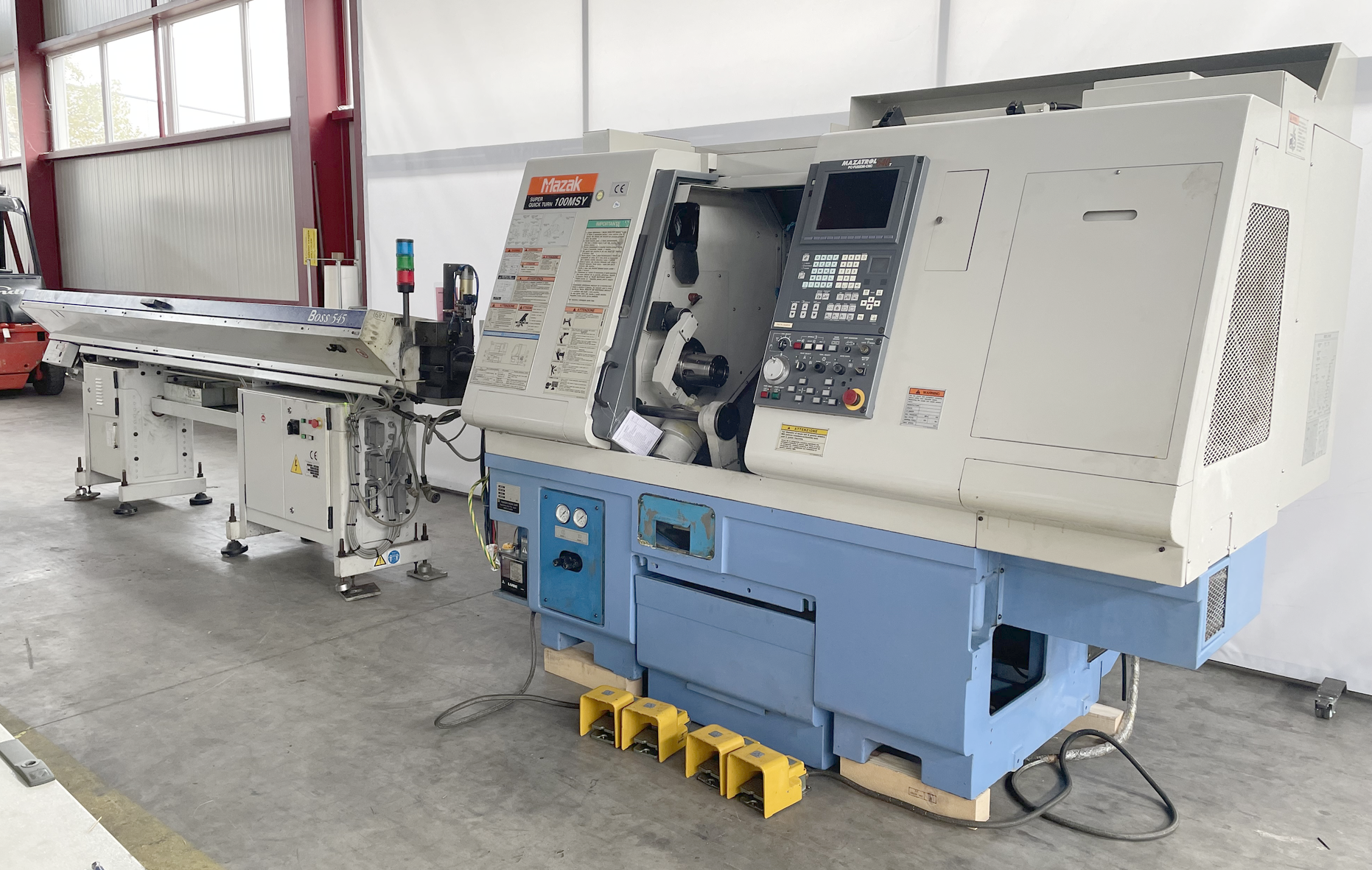

Bar feeder: IEMCA.
Type: BOSS 545/32.
