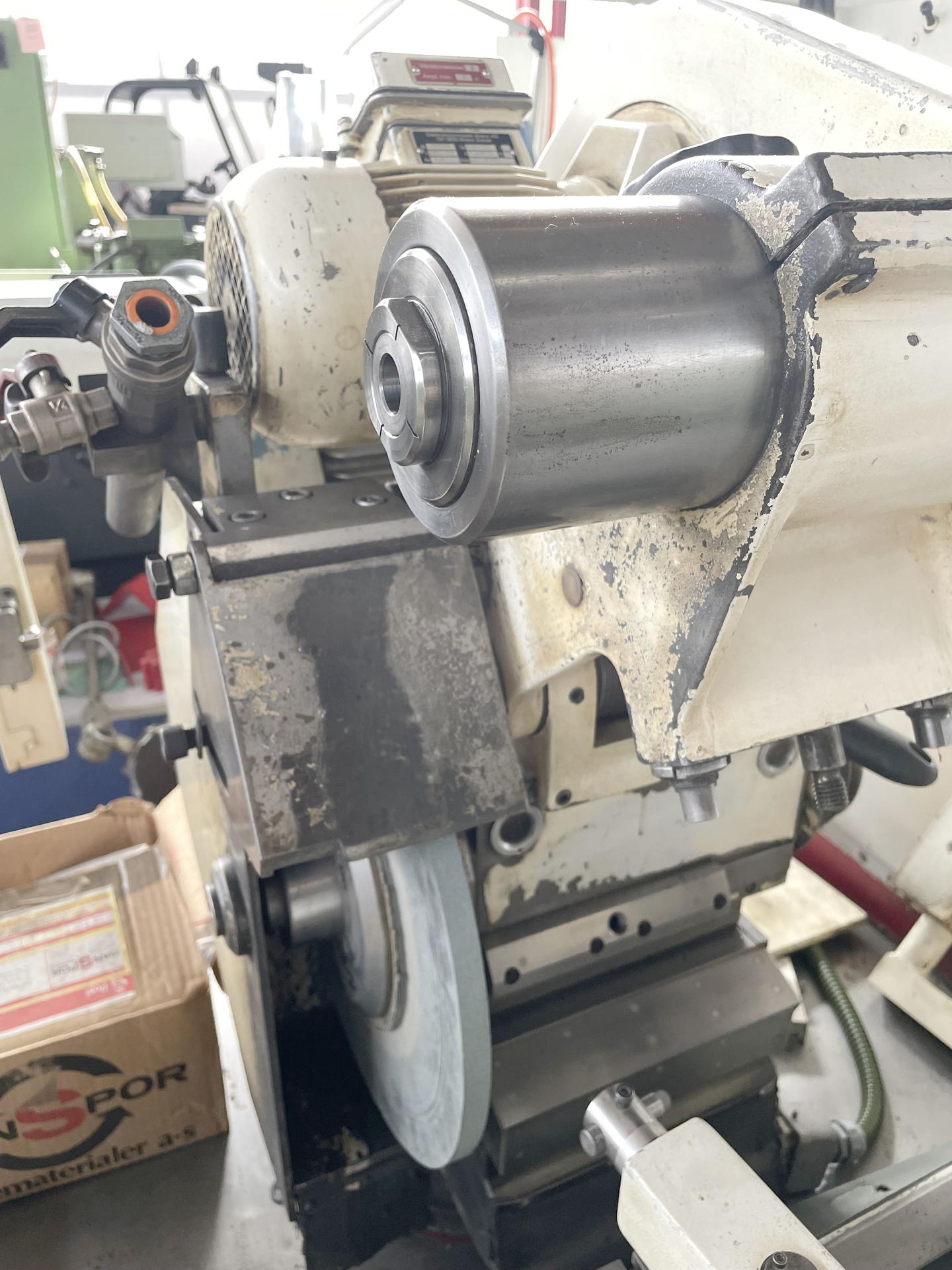

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • STUDER
  • Model:

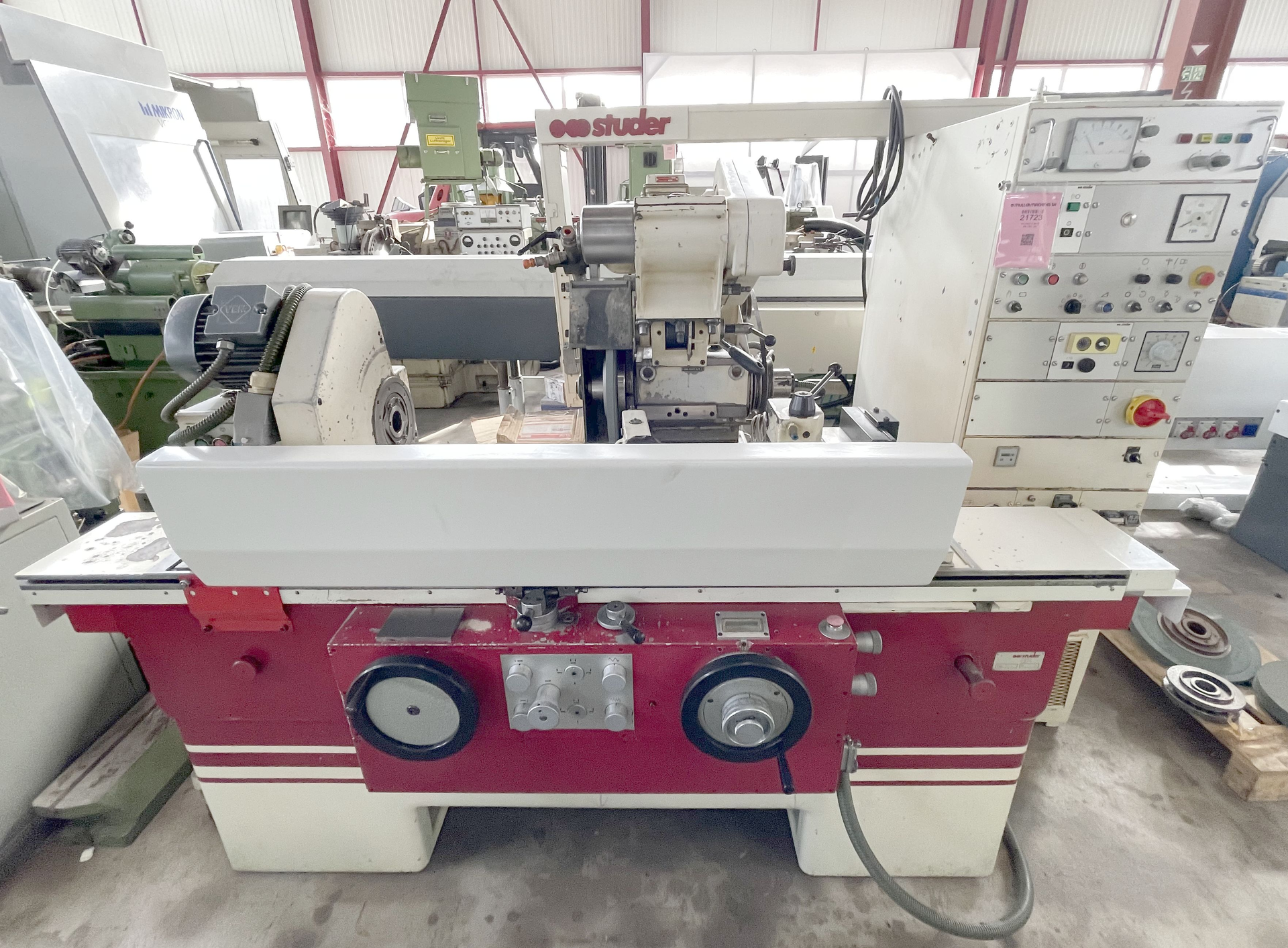

  • 021723 - STUDER S 30-12
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 175 mm.
Distance between centres: 700 mm.
Max. Longitudinal travel: 700 mm.
Diameter: 400 mm.
Width: 500 mm.
Bore: 127 mm.
Workpiece weight on centres max.: 80 kg.
number (steps): 6.
from: m/min.
up to: 6 m/min.
Peripheral speed: 35 m/s.
Angular displacement: 0-90 °.
rotatable: 90 °.
Spindle taper: 5 CM.
Taper in tailstock:: 3 CM.
Table angular displacement: 8 °.
Voltage 50 Hz 3x: 380 Volt.
External Grinding wheel motor: 3 kW.
Total power required: 13 kVA.
Length: 900 mm.
Height: 1700 mm.
Spindle speeds: 28000 t/min.
