MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Chiron
  • Model:

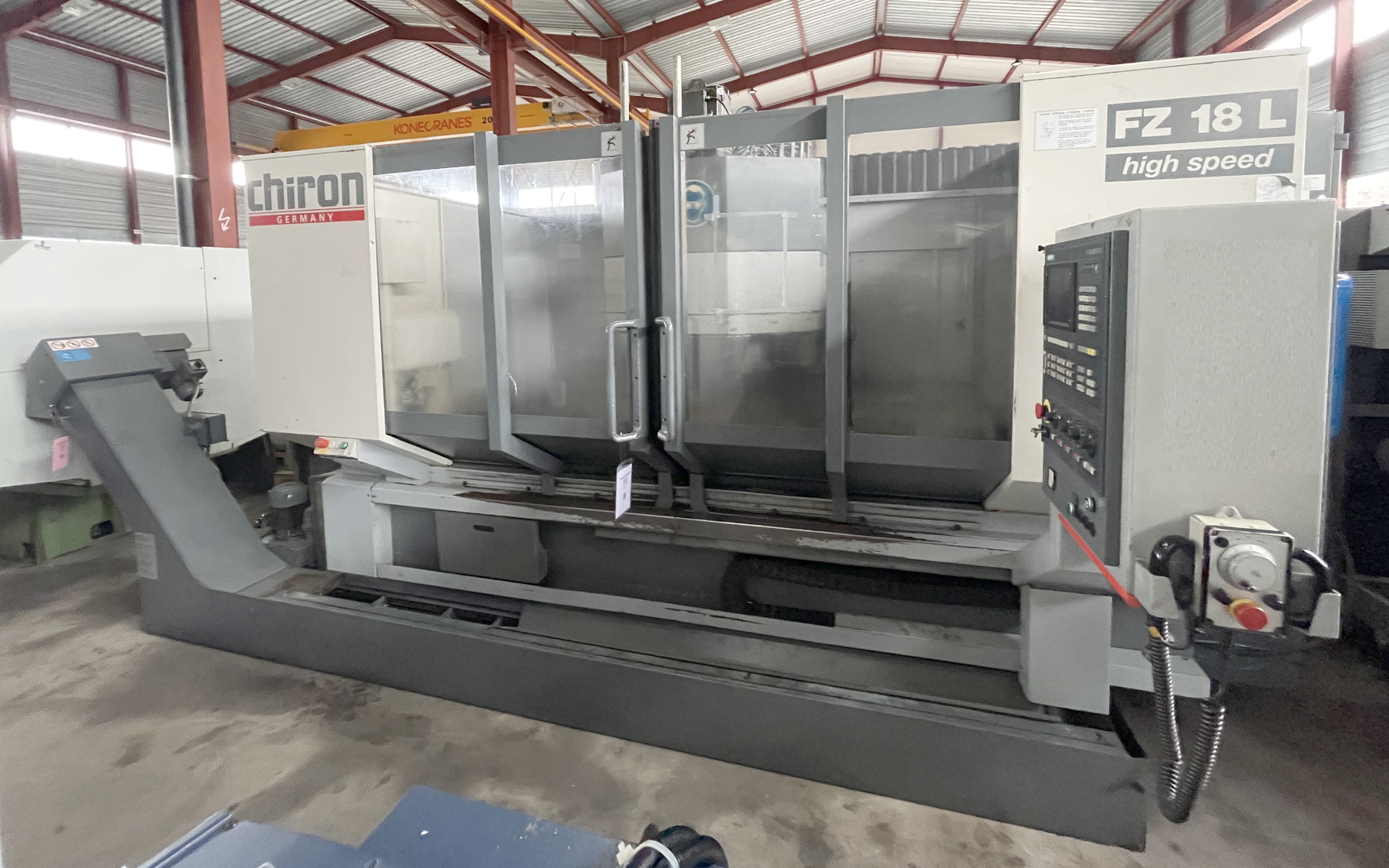

  • 021694 - CHIRON FZ 18 L
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.

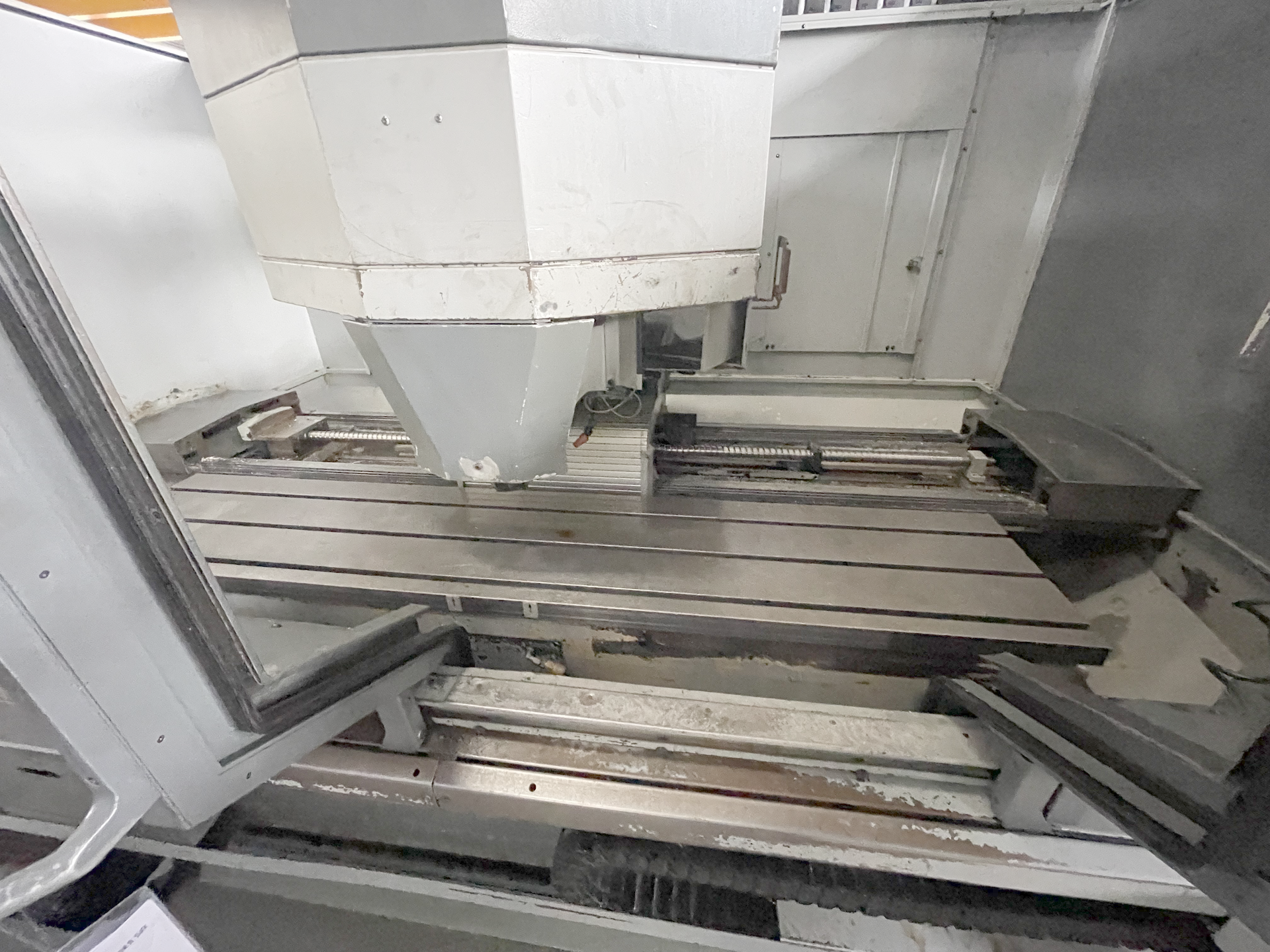

Table length: 2280 mm.
Table width: 450 mm.
Number of T-channels: 3.
Distance of the T-slots: 150 mm.
T-channel width: 18 mm.
Longitudinal travel (X-axis): 2000 mm.
Transversal travel (y-axis): 400 mm.
Vertical travel (z axis): 425 mm.
Number of tools: 20.
Tool diameter: 65 mm.
Diameter with free adjacent pockets: 180 mm.
Tool lenght: 220 mm.
Max. tool-weight: 8 kg.
Spindle nose SK: 40 DIN 69871.
from: 20 t/min.
up to: 10500 t/min.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 18 kW.
Total power required: 31 kVA.
Machine's weight about: 7200 kg.
Length: 4000 mm.
Width: 3010 mm.
Height: 3040 mm.
