MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • 021631 - SCHAUBLIN 102Mi CF W 25
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 102 mm.
Distance between centres: 470 mm.
Swing over cross-slide: 120 mm.
Swing over bed: 200 mm.

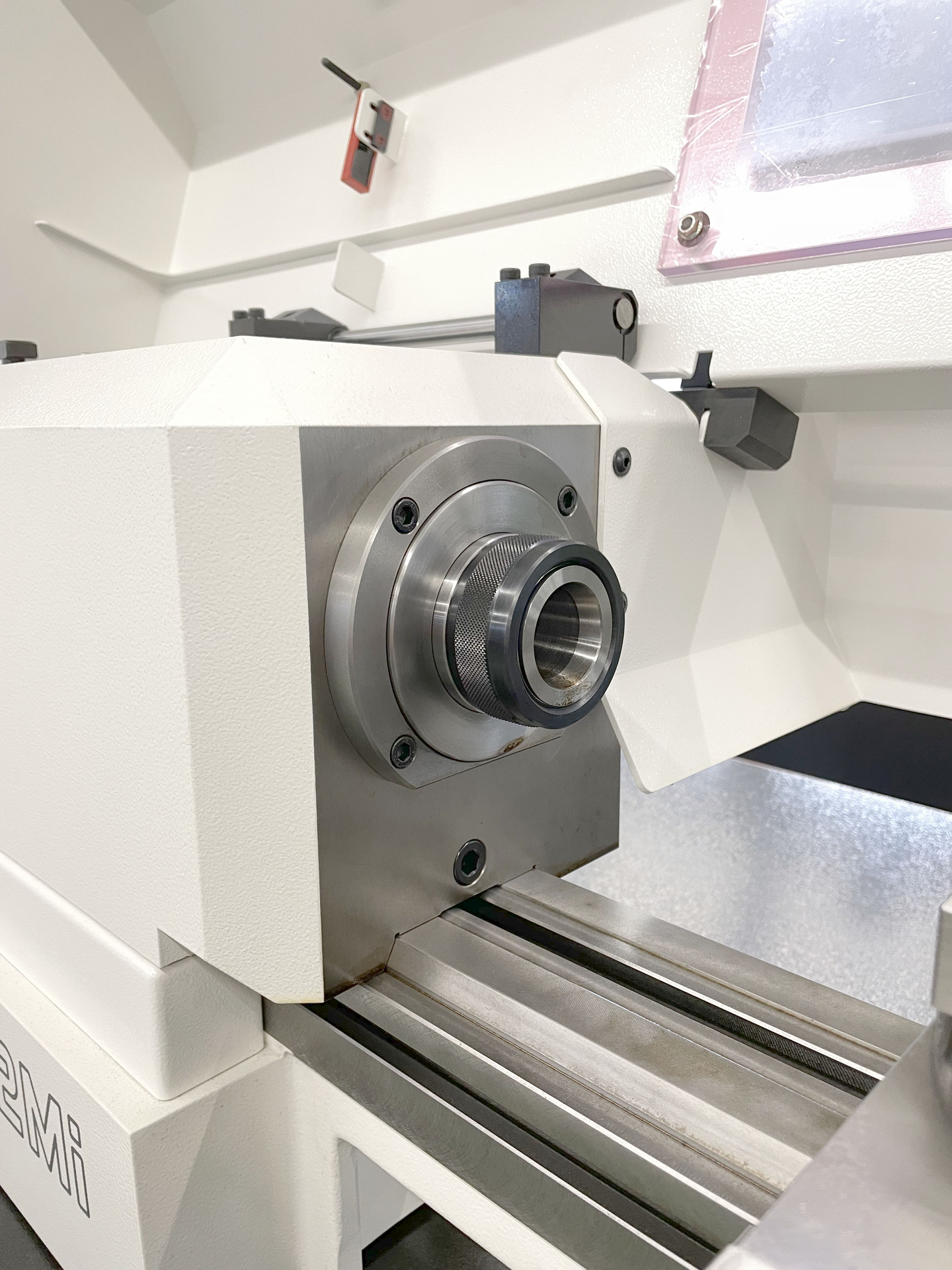

Spindle hole: 25 mm.
Bar passage: 19 mm.
Inner taper type: 25 W.
from: 100 t/min.
up to: 6000 t/min.

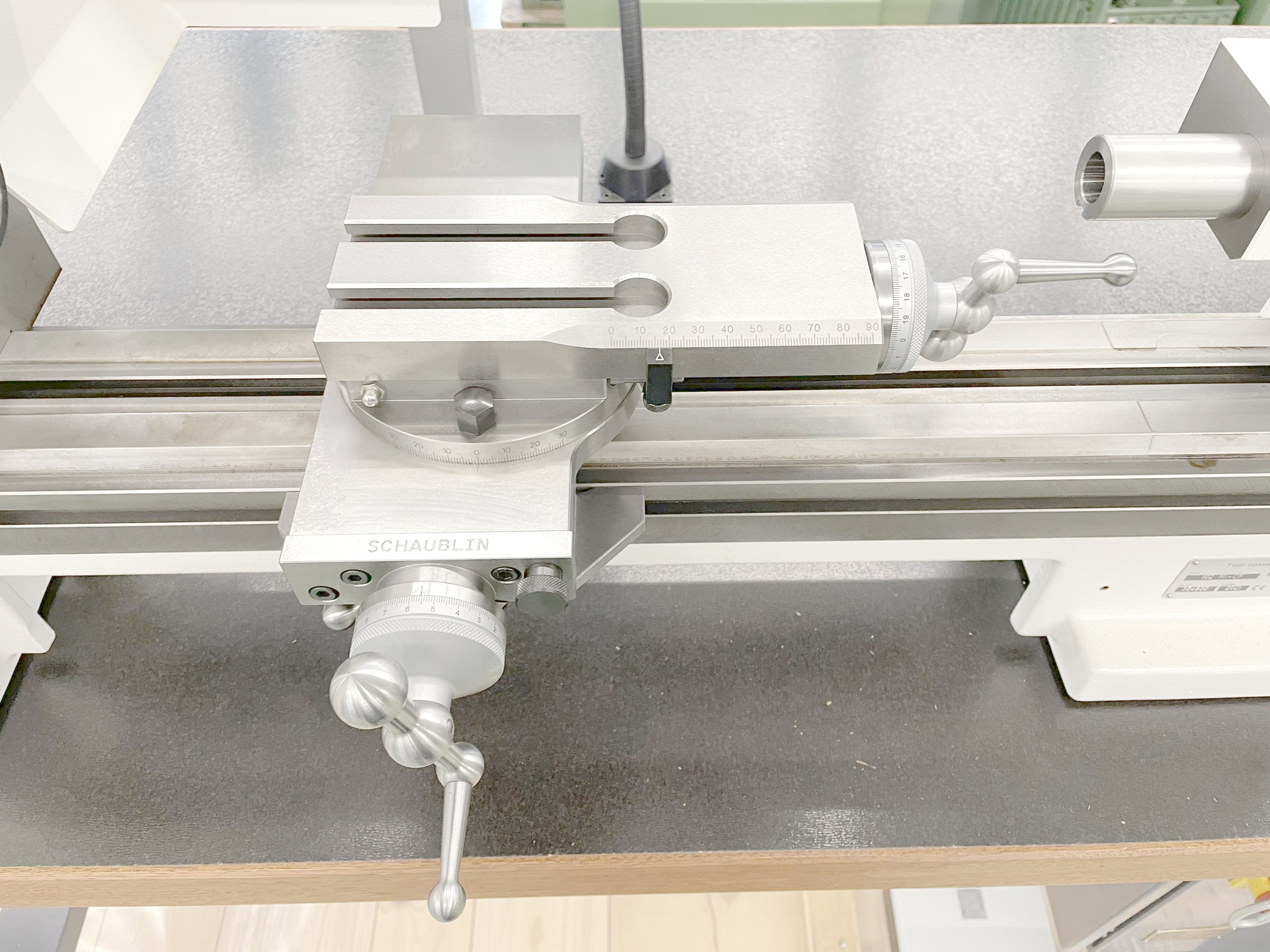

Cross travel (x-axis): 100 mm.
Longitudinal travel (X-axis): 90 mm.
Taper in tailstock:: 2 CM.
Spindle diameter: 30 mm.
Spindle stroke: 80 mm.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 1.5 kW.
Machine's weight about: 360 kg.
Length: 2000 mm.
Width: 800 mm.
Height: 900 mm.
