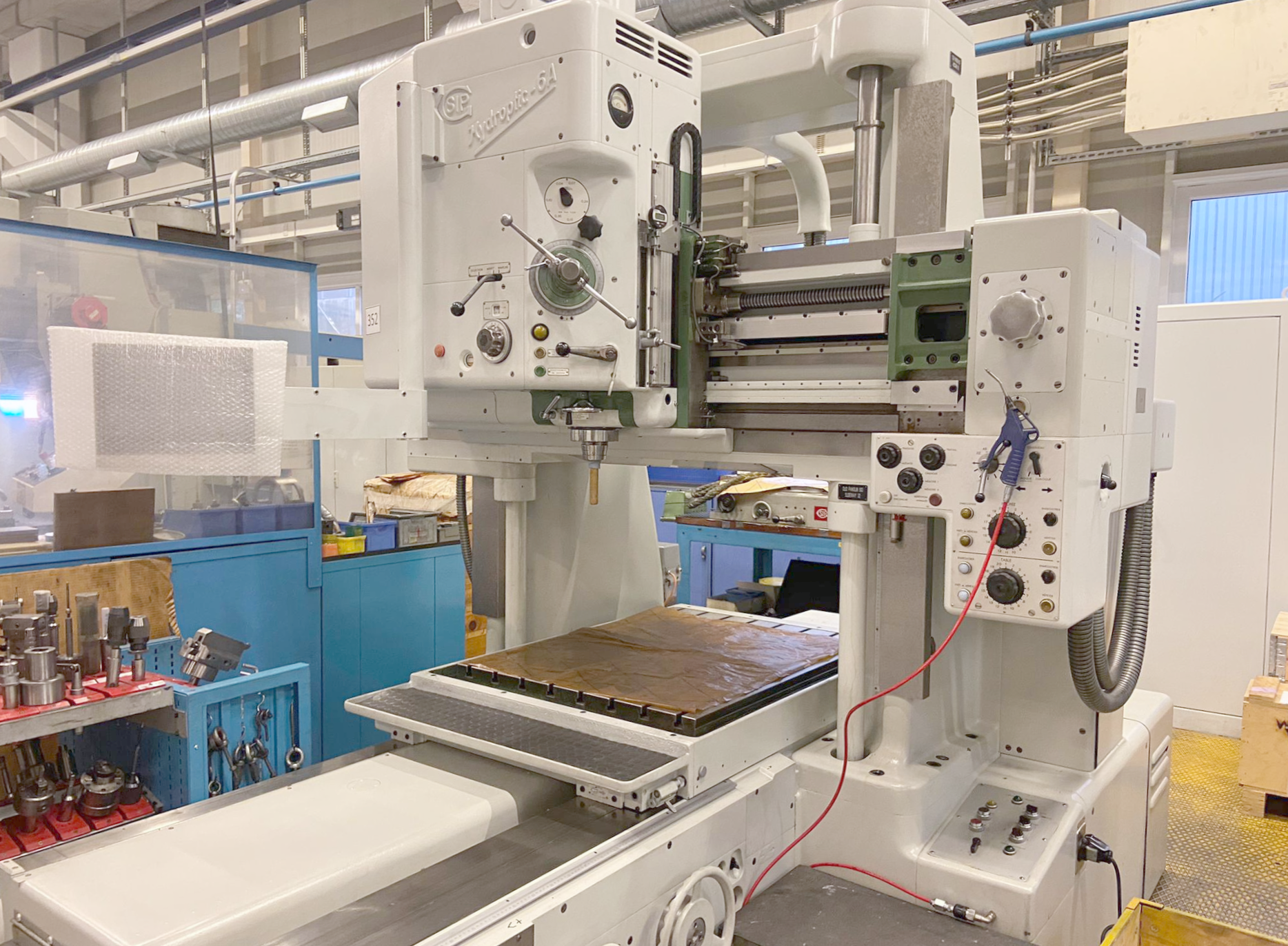

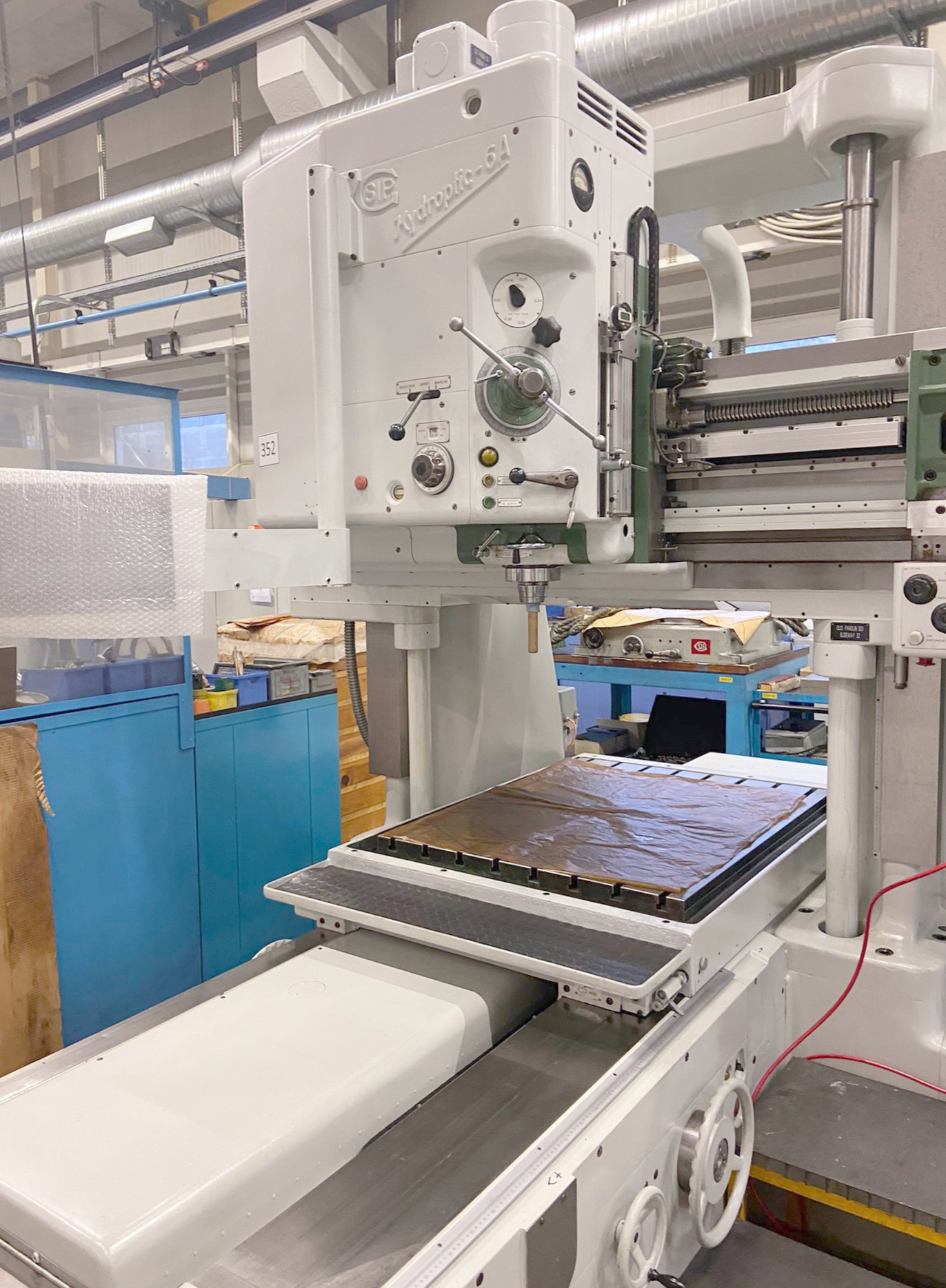

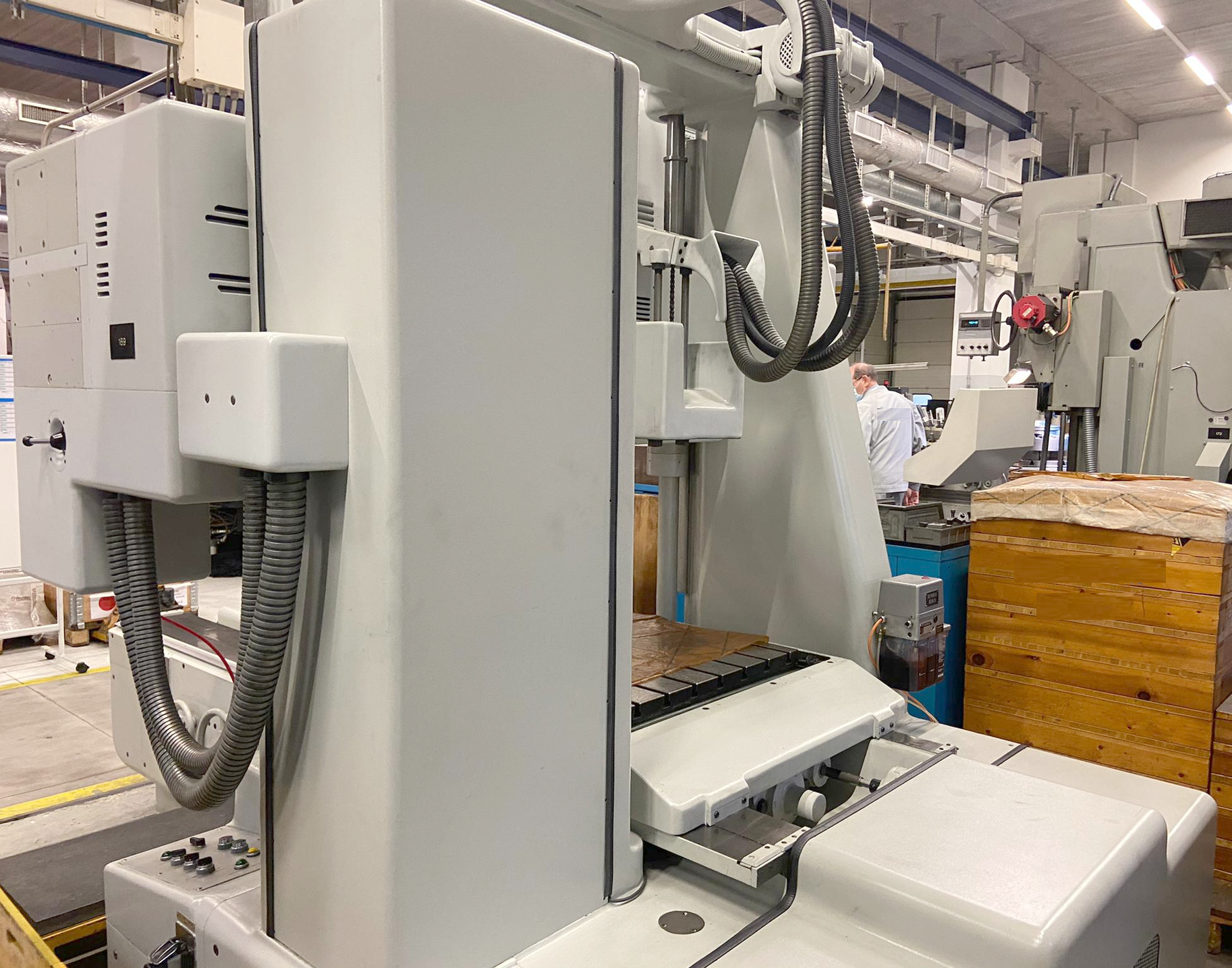

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SIP Hydroptic
  • Model:
  • 021475 - SIP HYDROPTIC 6A
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 1100 mm.
Table width: 842 mm.
Table load max.: 800 kg.
Longitudinal travel (X-axis): 1000 mm.
Transversal travel (y-axis): 795 mm.
Vertical travel (z axis): 800 mm.
Drill capacity in steel: 55 mm.
Taper in spindle: MT: 4.
Stroke of drilling spindle (Z-axis): 250 mm.
Bore diameter max.: 300 mm.
number (steps): 6.
from: mm/t.
up to: mm/t.
Table:longitudinal: 2500 mm/min.
transversal from: 2500 mm/min.
Distance between columns: 1100 mm.
and table: 900 mm.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 4 CV.
Total power required: 8 CV.
Machine's weight about: 7500 kg.
Length: 3220 mm.
Width: 2335 mm.
Height: 3205 mm.

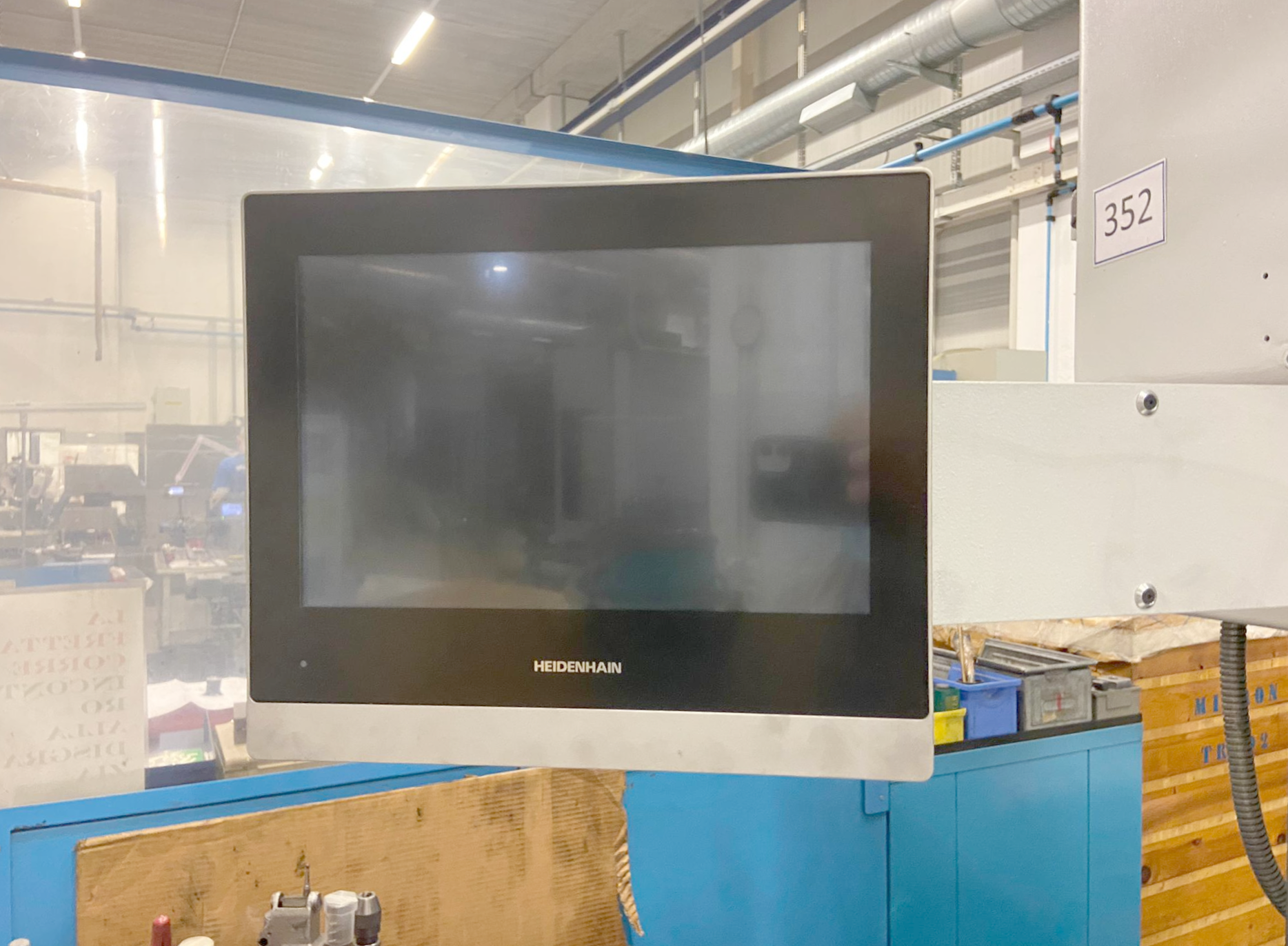

Manufacturer: HEIDENHAIN.
Machine refurbished: 2020.
