MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MINI
  • Model:

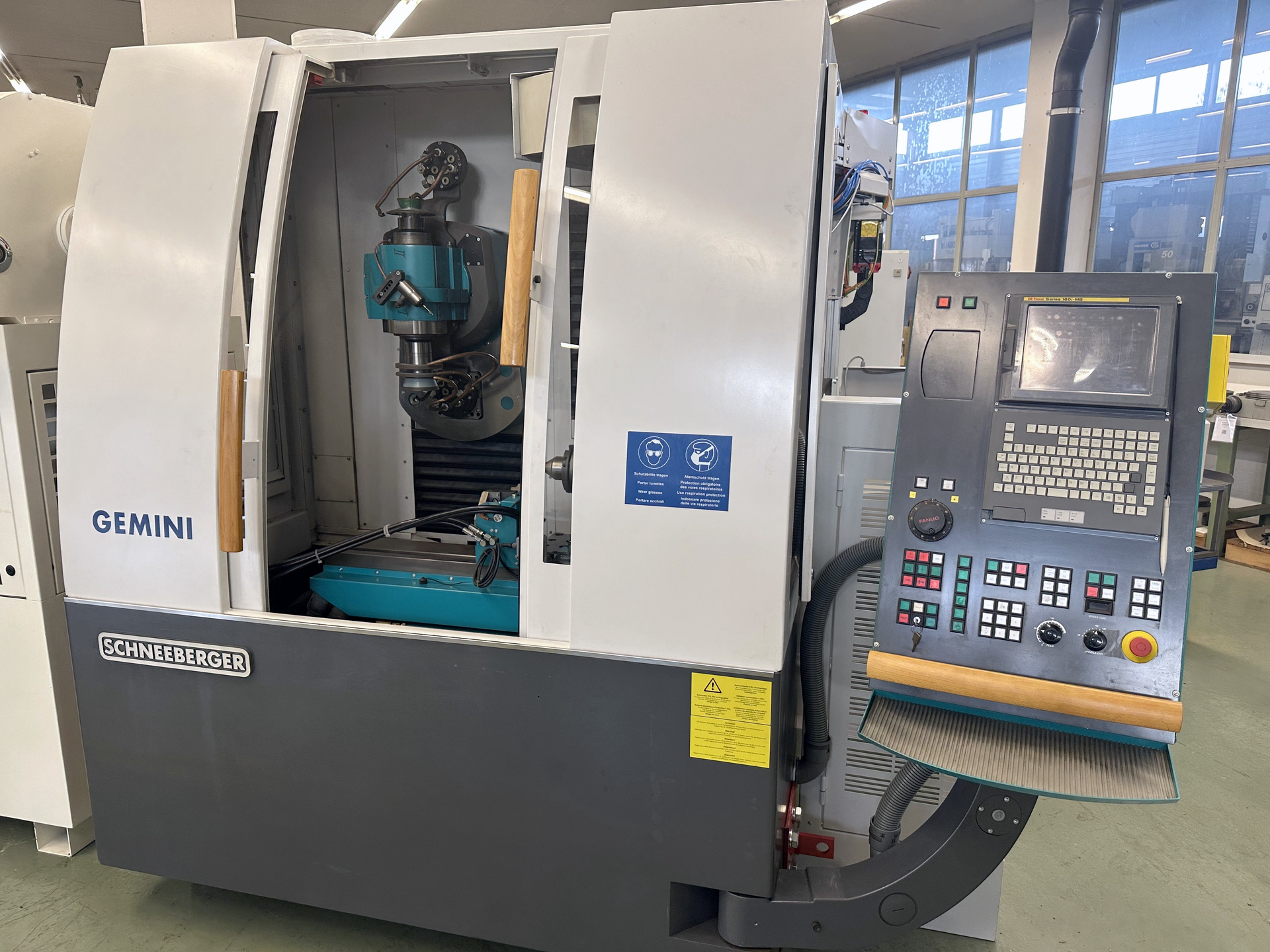

  • 021442 - SCHNEEBERGER GEMINI DMR
  • Condition:
  • 1
  • YOM:
  • NA

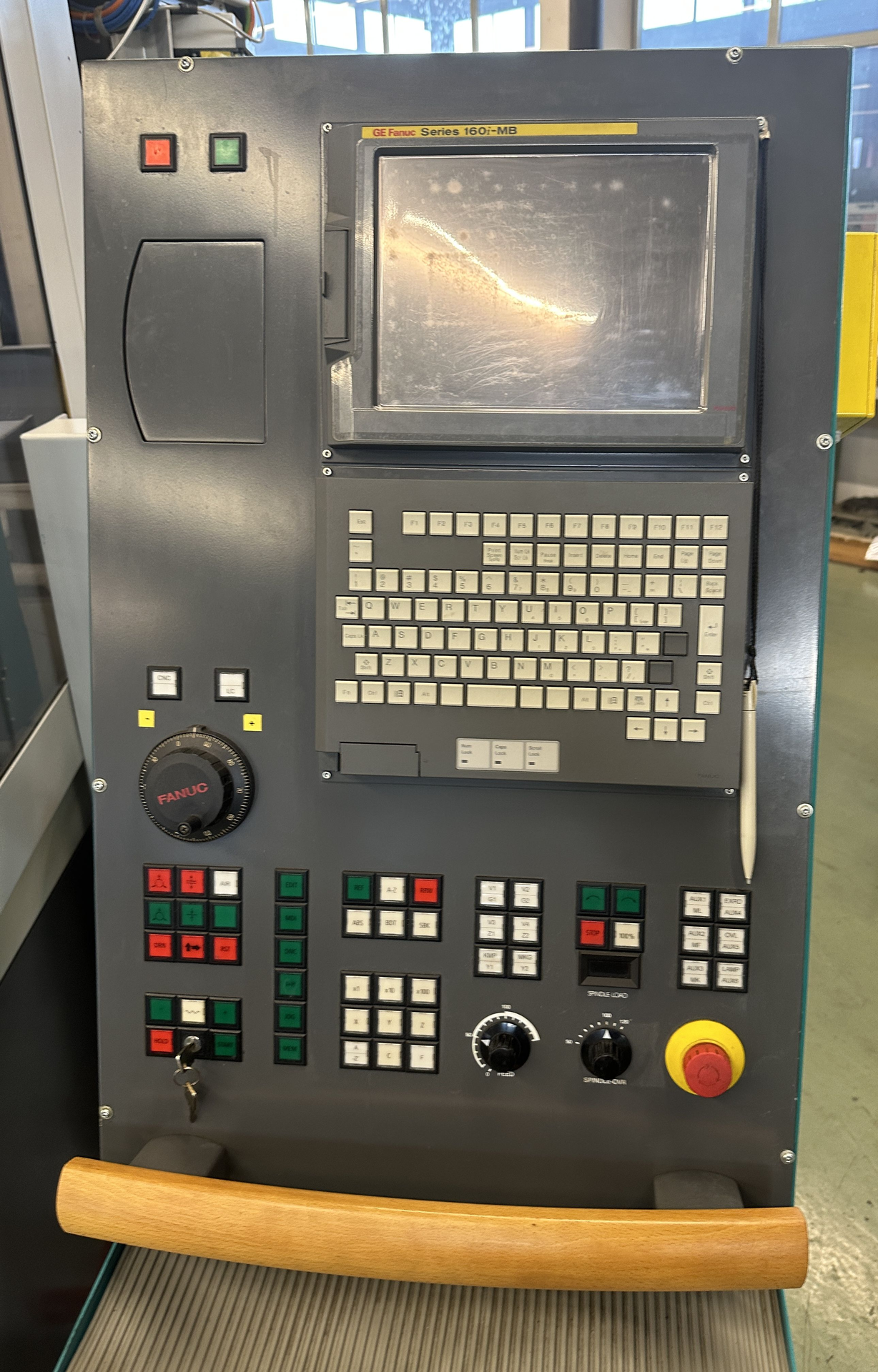

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

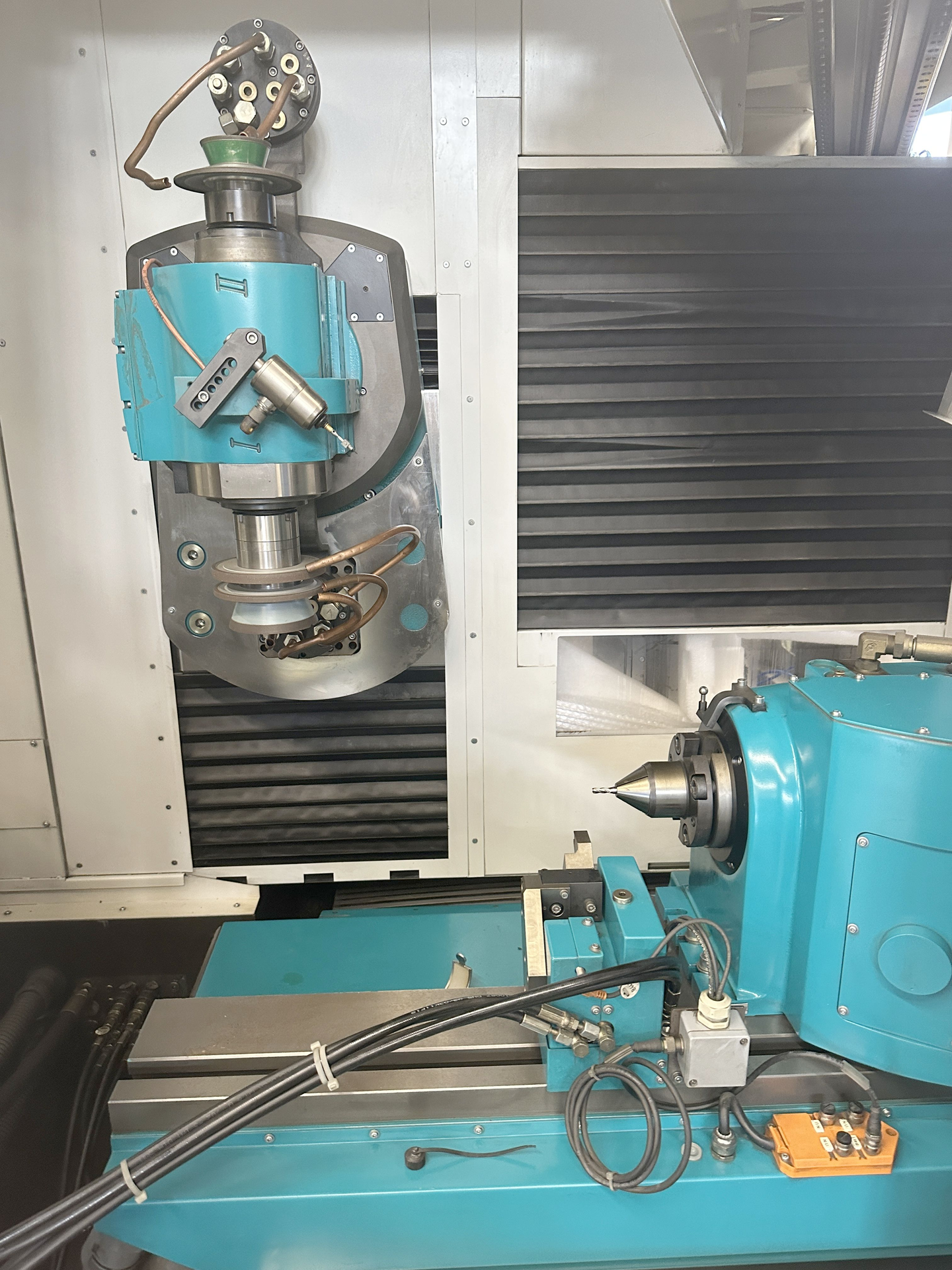

Number of axis simultaneous: 5.
Centre height: 210 mm.
Table length: 500 mm.
Table width: 145 mm.
X axis: 380 mm.
Y axis: 300 mm.
Z axis: 280 mm.
grinding diameter: 240 mm.

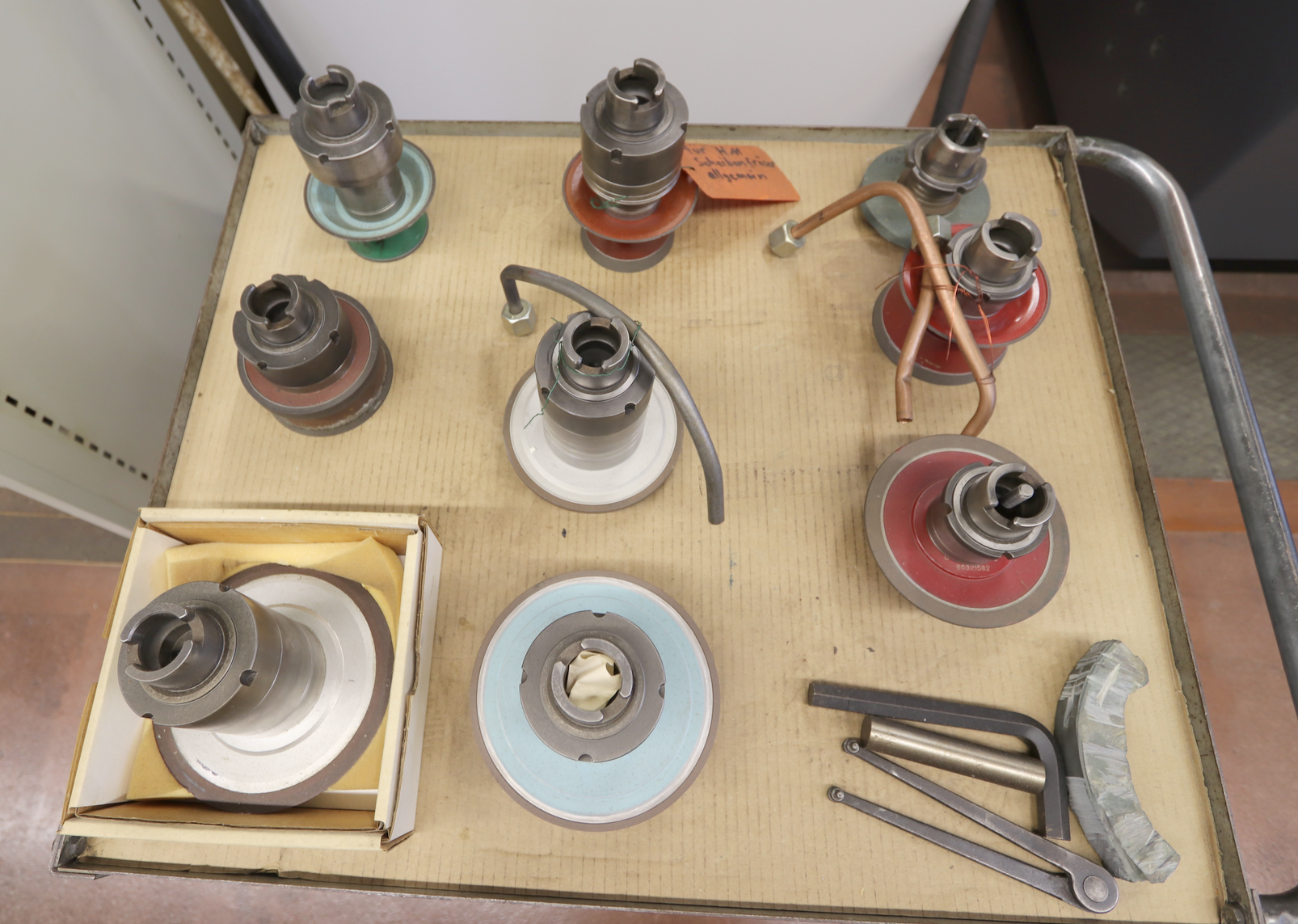

Grinding-wheel diameter: 50 - 250 mm.

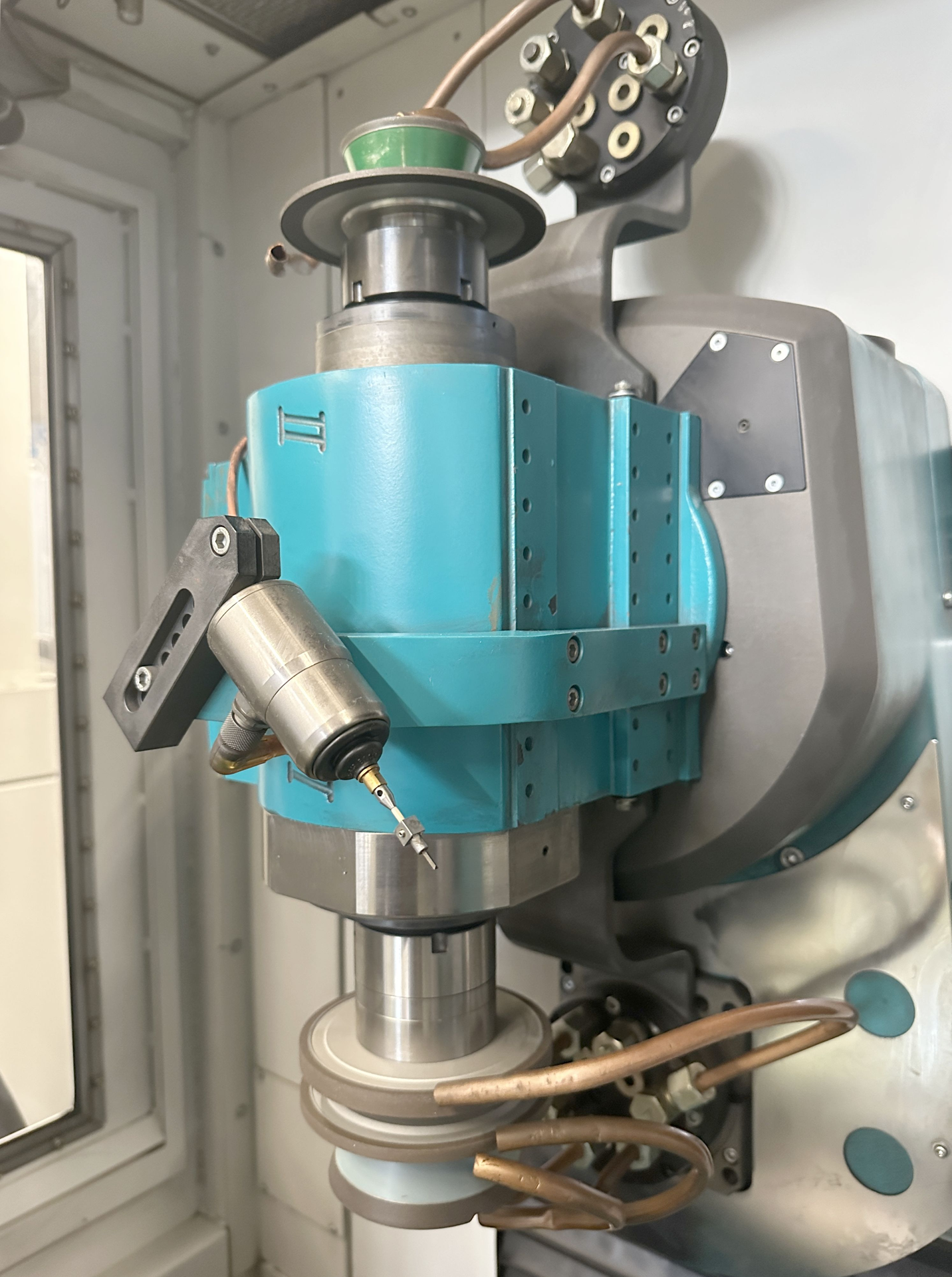

A axis (grinding head rotaion): 360 °.

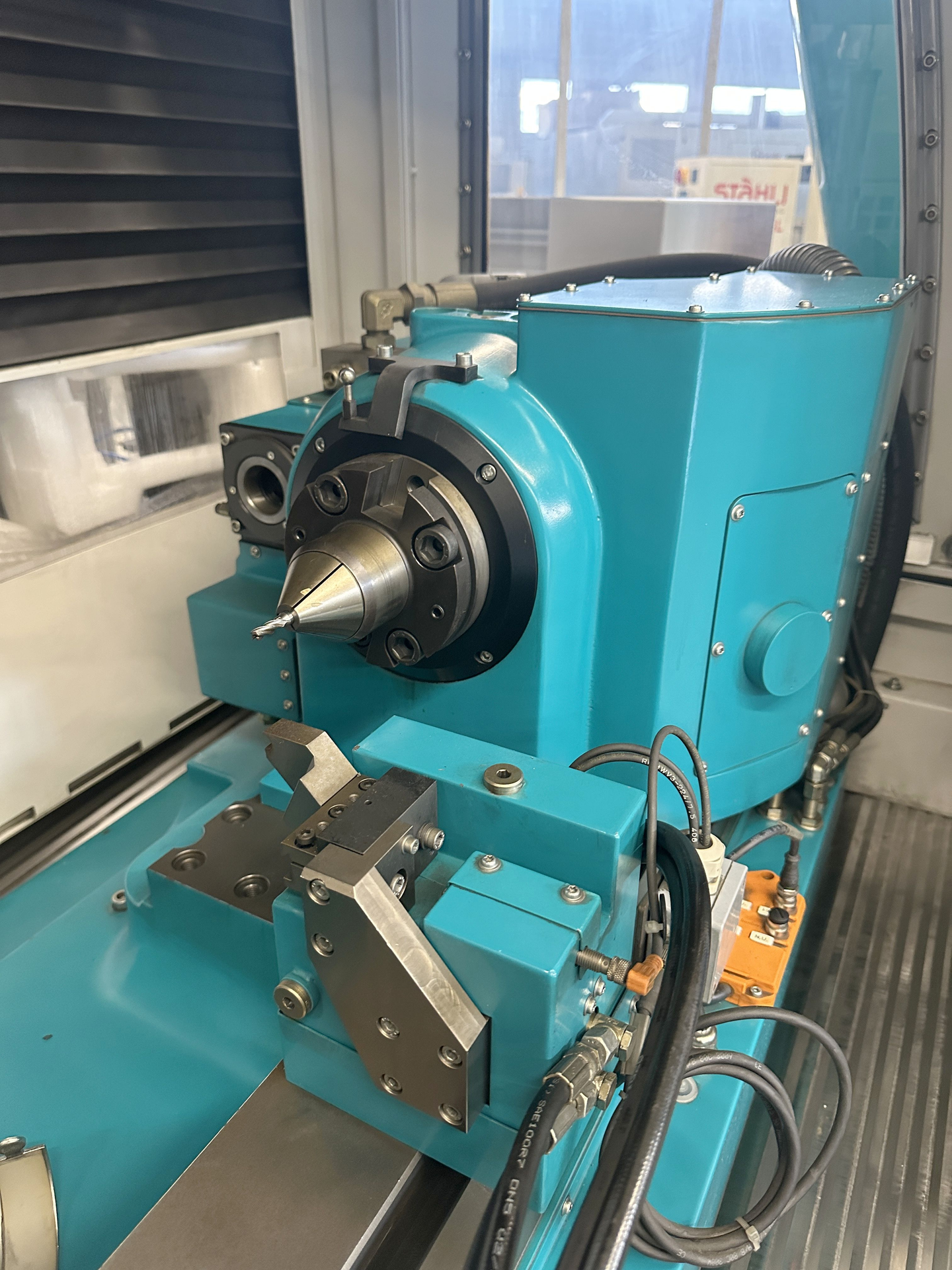

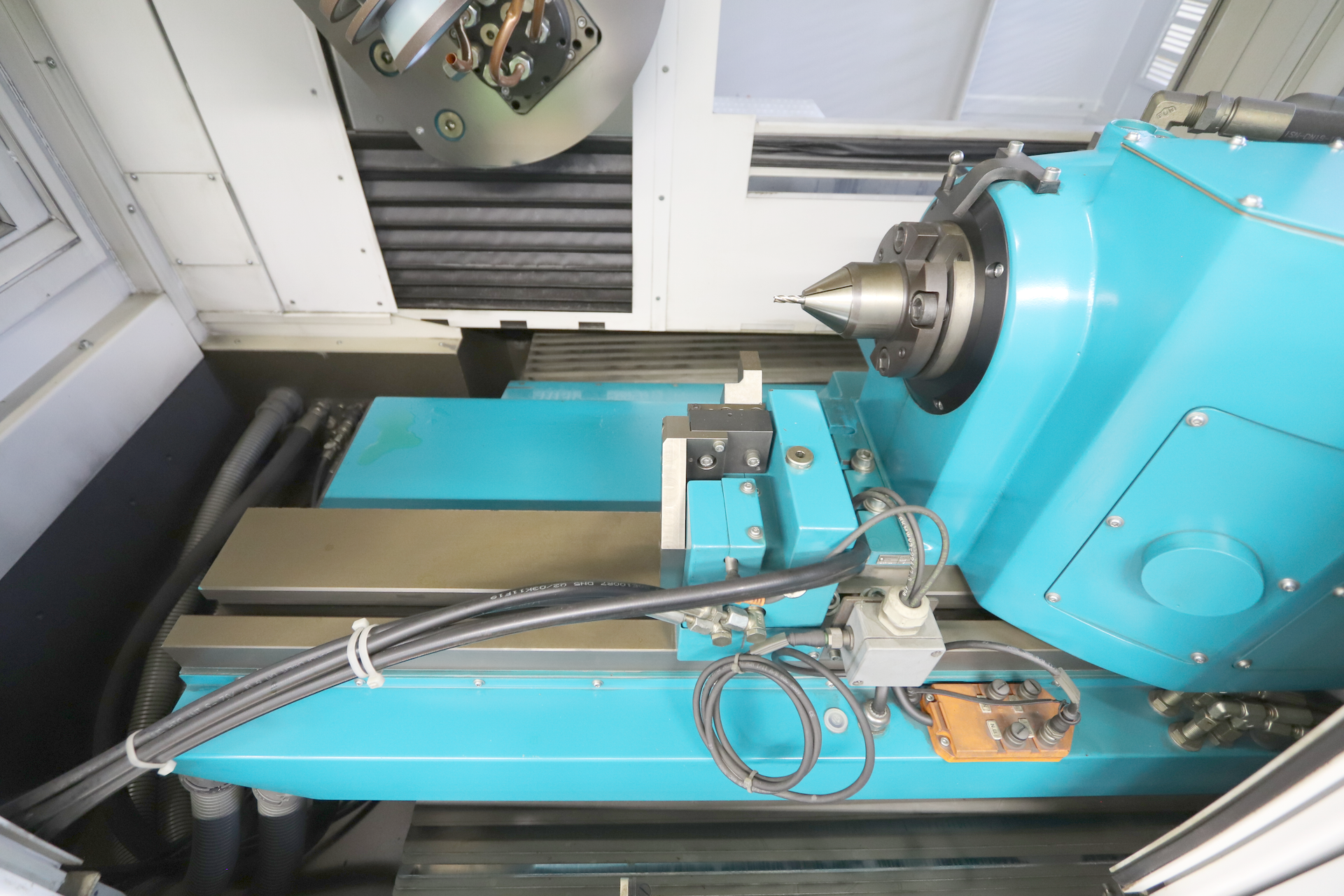

C axis (tool rotaion): 210 °.
Resolution: °.
Spindle nose: HSK: 50.
from: 50 t/min.
up to: 10000 t/min.
Max forwarding speed: 20 m/min.
Max. forwarding speed cross: 5 m/min.
Max forwarding speed vertical: 20 m/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 9 kW.
Total power required: 27 kVA.
Machine's weight about: 8000 kg.
Length: 2270 mm.
Width: 1700 mm.
Height: 2260 mm.

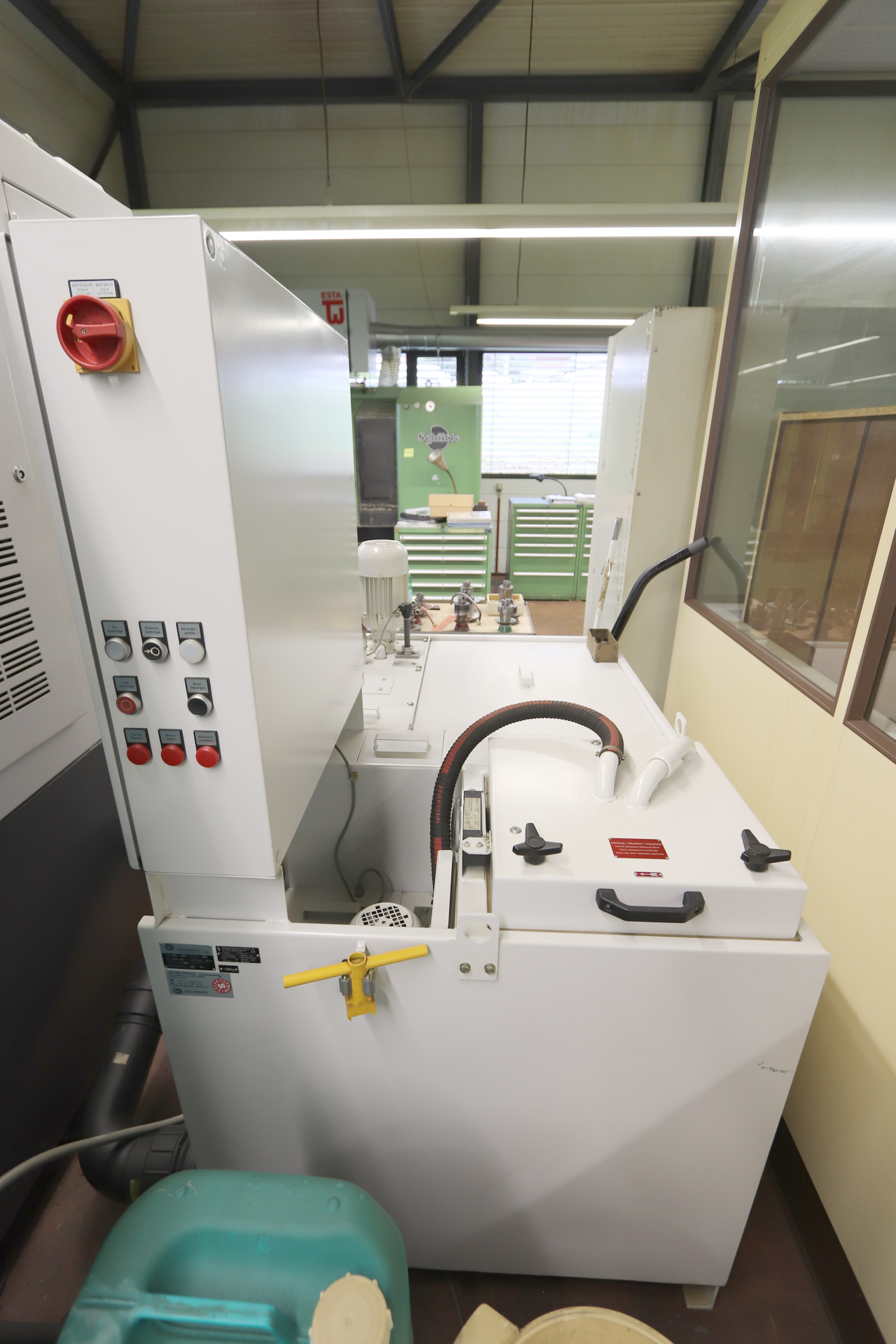

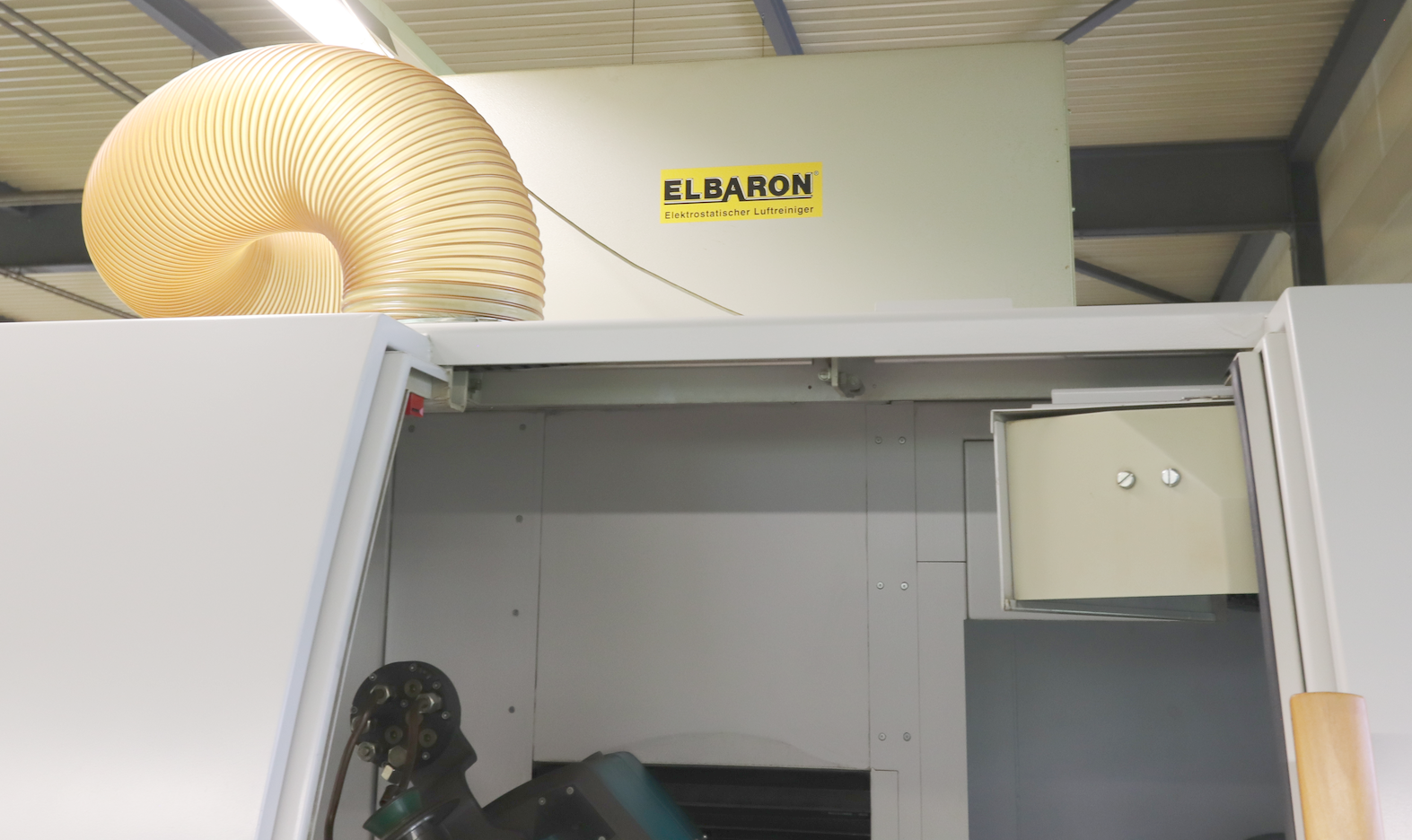

Oil mist extractor: ELBARON.
