MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • BENZING
  • Model:

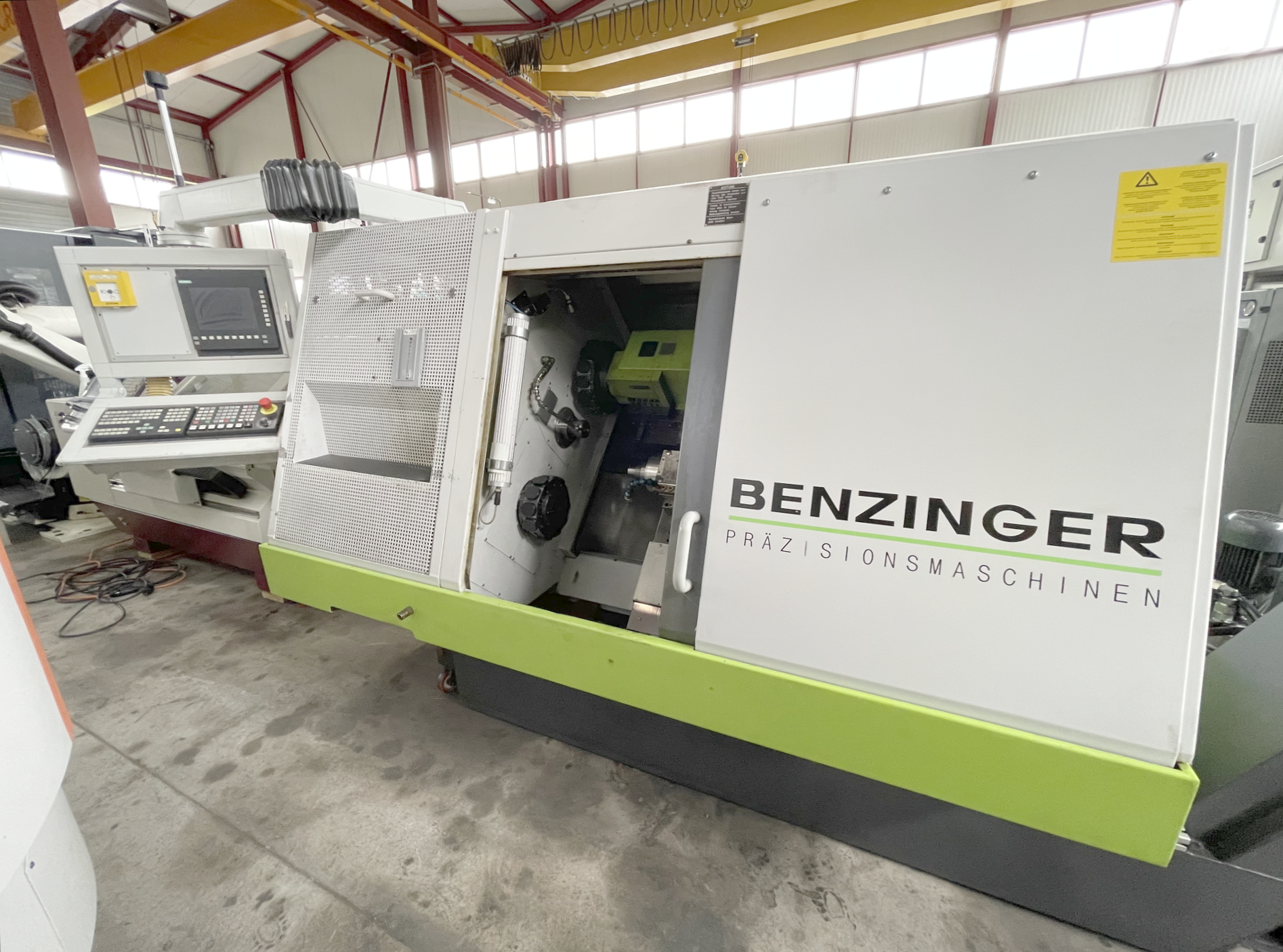

  • 021405 - BENZINGER TNI-B6
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

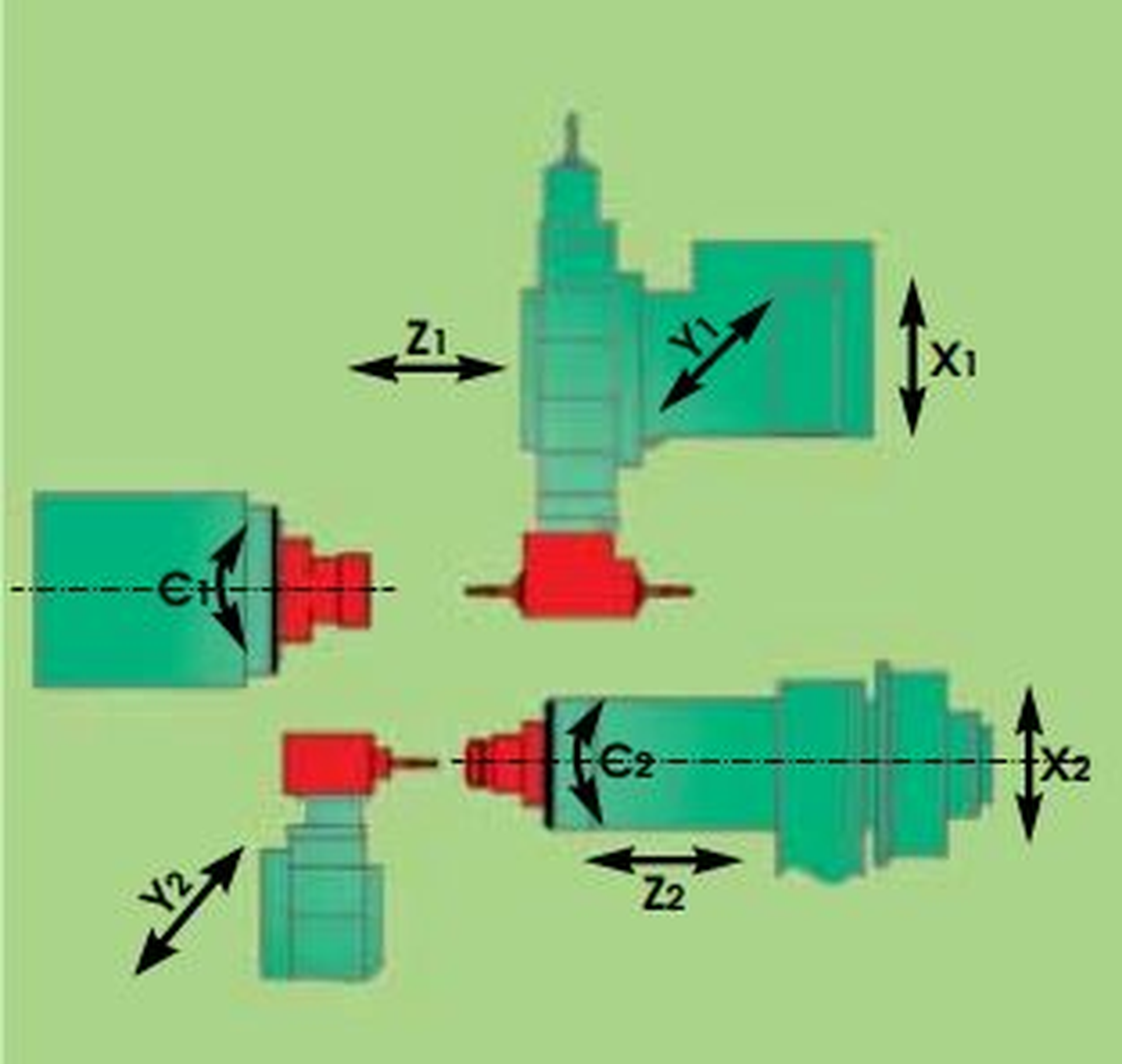

Number of axis total: 7.
Number of spindles: 2.
Number of revolvers: 2.
Spindle nose: DIN 55026 A4.
Spindle hole: 32 mm.
X1: 180 mm.
X2: 195 mm.
Z1: 340 mm.
Z2: 440 mm.
Y1: +40/-40 mm.
Y2: +40/-25 mm.
Y axis: 70 (-30/+40) mm.
Turret slide: number: 2.

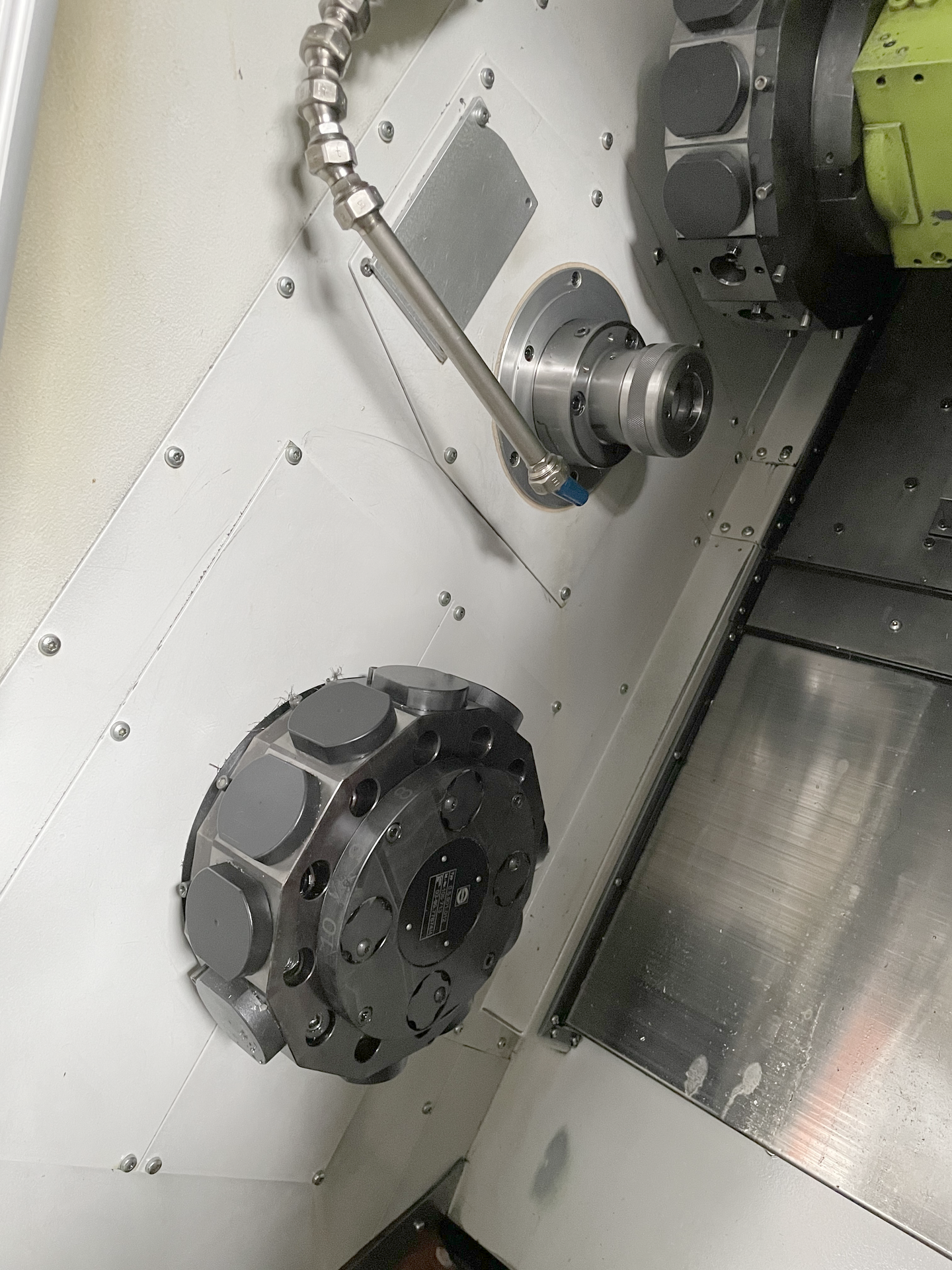

Number of positions turret 1: 16.
Number of positions turret 2: 12.
Driven tools turret 1: 16.
Driven tools turret 2: 12.
Spindle speeds: 6000 t/min.
Power of driven tools: 6 kW.
Spindle nose: VDI: 25 DIN 69880.
up to: 8000 t/min.
max. speed: 8000 t/min.
Power of back spindle: 12 kW.
Spindle motor: 7 - 9 kW.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 20 kW.
Machine's weight about: 4100 kg.
Length: 2350 mm.
Width: 1770 mm.
Height: 1925 mm.
Coolant system: 160 l.

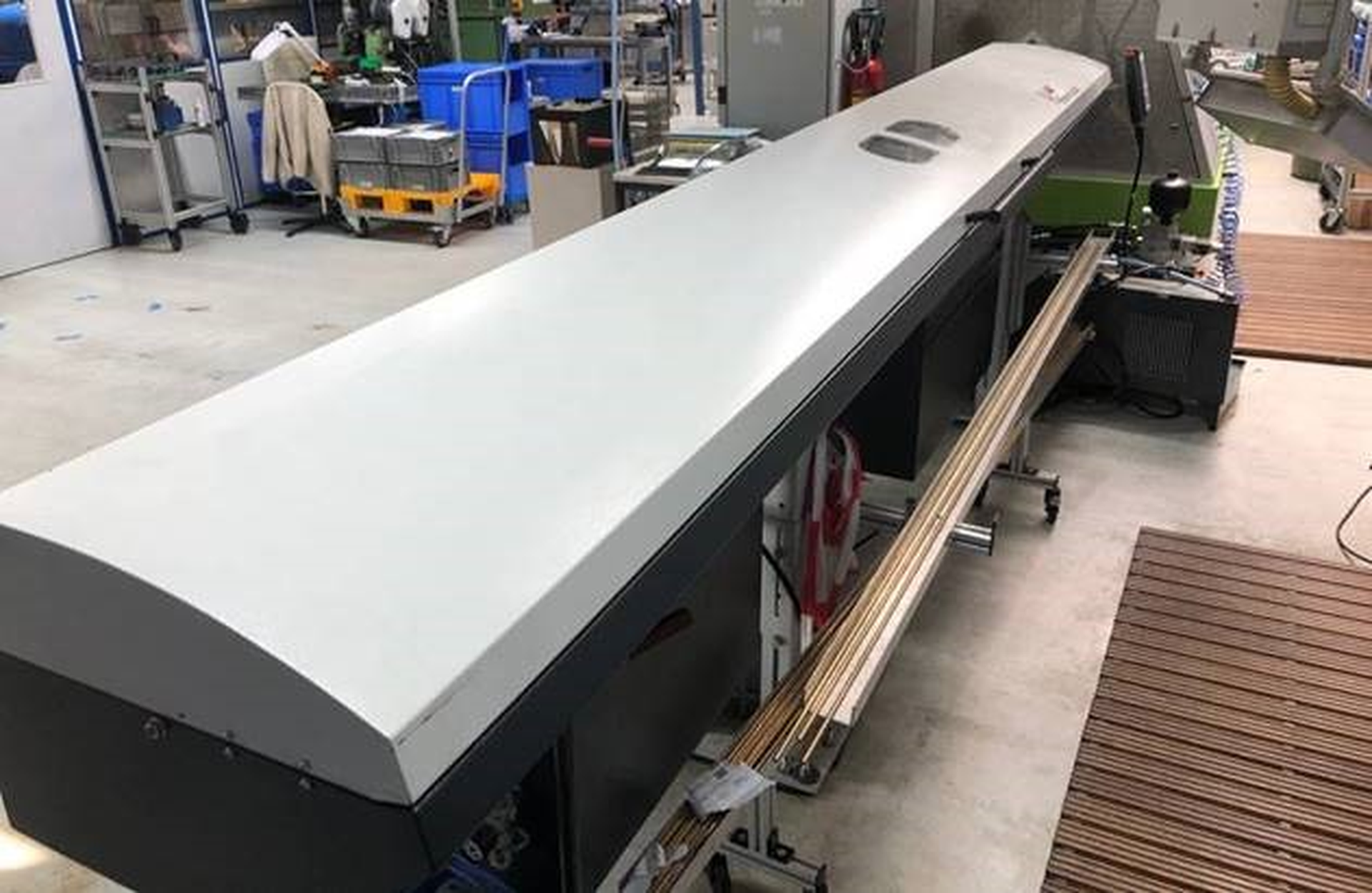

Bar feeder: LNS.
Type: EXPRESS 332 S2.
Length of bars max.: 3000 mm.
